1. Introduktion
This manual provides comprehensive instructions for the installation, configuration, operation, and maintenance of the Cisco SG250-18 Smart Switch. This device is designed to provide robust and efficient networking solutions for small and midsize businesses.
The Cisco SG250-18 features 16 Gigabit Ethernet RJ45 ports and 2 SFP Gigabit Ethernet combo ports, offering flexible connectivity options. It incorporates energy-efficient capabilities, including energy detect and Energy Efficient Ethernet (EEE), to optimize power consumption without compromising performance.
2. Produktet er slutview
The Cisco SG250-18 is a smart switch that combines the power of a managed switch with the ease of use of an unmanaged switch. It offers a rich set of Layer 2 and basic Layer 3 features, security, and quality of service (QoS) to deliver a solid foundation for your business network.

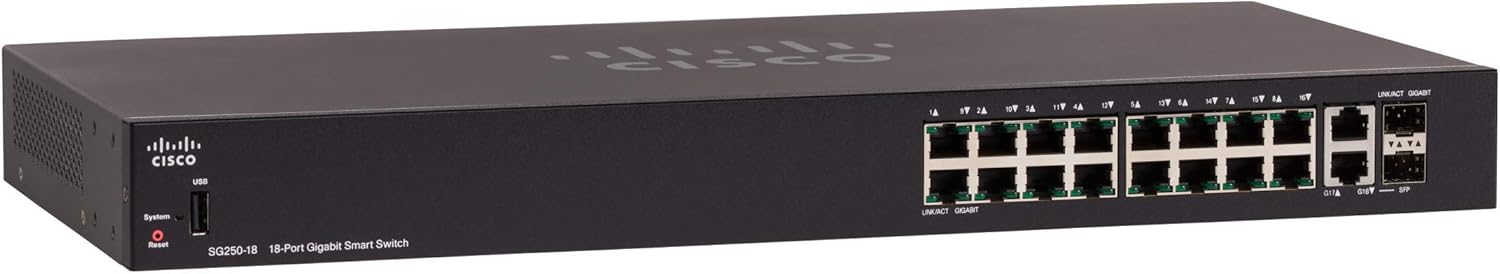

Figur 1: Front view of the Cisco SG250-18 Smart Switch.
Figur 2: Front panel of the Cisco SG250-18 Smart Switch, showing 16 Gigabit Ethernet RJ45 ports and 2 SFP Gigabit Ethernet combo ports, along with status indicators and a USB port.
Figur 3: Key features of the Cisco SG250-18 Smart Switch, including 16 10/100/1000 ports, 2 1G combo SFP ports, Energy Efficient Ethernet, Layer 3 Static Routing, and configuration via Web UI.
3. Opsætning og installation
3.1 Pakkens indhold
Bekræft, at din pakke indeholder følgende varer:
- Cisco SG250-18 Smart Switch
- Strømledning
- Documentation (Quick Start Guide, etc.)
3.2 Fysisk installation
- Placering: Position the switch on a stable, flat surface or mount it in a standard 19-inch equipment rack. Ensure adequate ventilation around the device.
- Strømtilslutning: Connect the provided power cord to the switch's power input and then to a grounded electrical outlet.
- Netværksforbindelser:
- Connect your network devices (computers, servers, access points) to the 16 Gigabit Ethernet RJ45 ports using standard Ethernet cables.
- For fiber optic connections, insert compatible SFP transceivers into the 2 SFP combo ports and connect fiber optic cables.
3.3 Indledende konfiguration
The Cisco SG250-18 Smart Switch supports multiple methods for initial configuration:
- Web Brugergrænseflade (WebUI): Få adgang til switchens administrationsgrænseflade via en web browser. The default IP address can typically be found using the Cisco FindIT Network Manager or by checking your network's DHCP server.
- Cisco FindIT Network Manager: This tool provides auto-discovery and zero-touch deployment capabilities, simplifying the setup process for multiple Cisco devices.
- Network Plug and Play (PnP): For automated deployment in larger networks.
Figur 4: Example dashboard of the Cisco FindIT Network Manager, illustrating network management, discovery, reporting, and provisioning capabilities.
4. Betjening af kontakten
The SG250-18 offers advanced features for network management and optimization.
4.1 Grundlæggende netværksfunktioner
- VLAN'er (virtuelle lokale netværk): Segment your network for improved security and performance. The switch supports VLAN configuration for isolating traffic.
- QoS (Quality of Service): Prioritize network traffic for critical applications like voice and video to ensure consistent performance.
- Statisk routing: Configure static routes to direct traffic between different IP subnets.
- IGMP Snooping: Optimize multicast traffic delivery to only the necessary recipients.
4.2 Sikkerhedsfunktioner
- Adgangskontrolliste (ACL): Define rules to filter network traffic based on various criteria, enhancing network security.
- 802.1X / RADIUS: Implement port-based authentication to control network access for connected devices.
- DoS Prevention: Protect your network from Denial of Service attacks.
- SSH/SSL: Securely manage the switch using encrypted communication protocols.
4.3 Administrationsgrænseflader
- WebUI: The primary graphical interface for configuring and monitoring the switch.
- CLI (Command Line Interface): Provides advanced configuration options for users familiar with command-line operations.
- SNMP (Simple Network Management Protocol): Allows integration with network management systems for centralized monitoring.
5. Vedligeholdelse
5.1 firmwareopdateringer
Tjek regelmæssigt Cisco-supporten website for firmware updates. Updating the firmware ensures optimal performance, security, and access to new features. Follow the instructions provided with the firmware package for a safe update process.
5.2 Miljøhensyn
- The switch is passively cooled, meaning it does not have internal fans. Ensure it is placed in an environment with adequate airflow to prevent overheating.
- Operate the switch within the specified temperature range (refer to specifications section).
- Keep the device free from dust and moisture.
6. Fejlfinding
Dette afsnit indeholder løsninger på almindelige problemer, du kan støde på.
6.1 Power and Connectivity Issues
- Ingen strøm:
- Kontroller, at netledningen er korrekt tilsluttet til både afbryderen og stikkontakten.
- Ensure the electrical outlet is functional.
- Ingen linklampe:
- Check the Ethernet cable connection between the switch port and the connected device.
- Sørg for, at den tilsluttede enhed er tændt og fungerer korrekt.
- Prøv en anden port eller et andet kabel.
6.2 Network Access Problems
- Kan ikke få adgang WebUI:
- Bekræft, at din computers IP-adresse er i samme undernet som switchens administrations-IP-adresse.
- Ensure there are no firewall rules blocking access.
- If the IP address is unknown, use Cisco FindIT Network Manager to discover the device.
- Consider resetting the switch to factory defaults if all else fails (refer to the device's reset button instructions).
- Intermitterende forbindelse:
- Tjek for løse kabelforbindelser.
- Examine network logs for errors or port flapping.
- Ensure no IP address conflicts exist on the network.
7. Specifikationer
| Feature | Beskrivelse |
|---|---|
| Model | SG250-18-K9-NA |
| Ethernet-porte | 16 x 10/100/1000 Gigabit Ethernet RJ45 |
| SFP Combo Ports | 2 x 1G SFP Combo |
| Dataoverførselshastighed | 10/100/1000 Mbps (Gigabit Ethernet) |
| Ledelse | WebUI, CLI, SNMP, Cisco FindIT Network Manager, PnP |
| Lag 2 funktioner | VLANs, QoS, GVRP, MSTP, IGMP Snooping |
| Lag 3 funktioner | Statisk routing |
| Sikkerhedsfunktioner | ACL, 802.1X / RADIUS, DoS Prevention, SSH/SSL |
| Dimensioner (LxBxH) | 21.7 x 12 x 3.8 tommer |
| Varens vægt | 6.75 pund |
| Etui materiale | Kobber |
| Driftstemperatur | Refer to product documentation for specific range (General: 1°F to 1°F - Note: This temperature range from the source data seems incorrect or incomplete. Users should consult official Cisco documentation for precise values.) |
Figur 5: Feature comparison across different Cisco Switches Family series, highlighting the capabilities of the 250 Series (SG250-18).
8. Garanti og support
The Cisco SG250-18 Smart Switch comes with a limited lifetime protection. This includes:
- Limited lifetime hardware warranty.
- One year of technical support.
- Free software fixes for the term of the warranty.
For detailed warranty information, technical assistance, or to download the latest firmware and documentation, please visit the official Cisco support webwebstedet eller kontakt Ciscos tekniske support.
