1. Introduktion
This manual provides comprehensive instructions for the installation, operation, and maintenance of the Mottura Series 32 Vertical Strip Lock, Model 325922. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.
Sikkerhedsoplysninger:
- Always ensure the lock is installed by a qualified professional if you are unsure of the process.
- Brug passende værktøjer til installation.
- Do not attempt to modify the lock mechanism, as this may void the warranty and compromise security.
2. Produktet er slutview
The Mottura Series 32 Vertical Strip Lock (Art. 325922) is a robust and easy-to-apply security solution designed for vertical installation alongside the main door lock. It features an adjustable rod travel, allowing for versatile application on various door types.

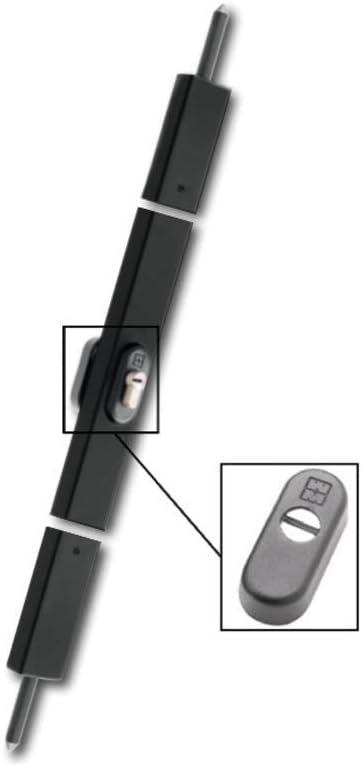

Figur 2.1: Detaljeret view of the Mottura Series 32 Vertical Strip Lock mechanism, highlighting its components.
Figure 2.2: The Mottura Series 32 Vertical Strip Lock installed on a door, demonstrating its vertical application.
3. Opsætning og installation
The Mottura Series 32 lock is designed for easy installation. Follow these general steps for proper setup:
- Forberedelse: Ensure the door frame and door edge are clean and free from obstructions. Identify the precise location for the vertical strip lock, typically alongside the main door lock.
- Mounting the Main Body: Position the main lock body vertically on the door edge. Mark the drilling points for the mounting screws.
- Boring: Carefully drill pilot holes at the marked points. Ensure the drill bit size is appropriate for the screws to prevent splitting the wood or damaging the door material.
- Securing the Lock: Attach the main lock body to the door using the provided screws. Ensure it is flush and securely fastened.
- Installing Rods: Insert the adjustable rods into their designated slots on the lock mechanism. Adjust the rod travel (20 to 85 mm) as needed to align with the strike plates on the door frame.
- Installing Strike Plates: Mark and install the corresponding strike plates on the door frame where the rods will engage. Ensure proper alignment for smooth locking and unlocking.
- Cylinder installation: Insert the 31/61 mm cylinder into the lock body and secure it according to the cylinder's specific instructions.
- Test: Test the lock mechanism thoroughly with the keys. Ensure the rods extend and retract smoothly and engage securely with the strike plates. Check that the door locks and unlocks without excessive force.
For detailed diagrams and specific measurements, refer to the product's technical drawings or consult a professional locksmith.
4. Betjeningsvejledning
To operate your Mottura Series 32 Vertical Strip Lock:
- At låse: Insert the key into the cylinder and turn it clockwise (or counter-clockwise, depending on installation) until the vertical rods fully extend and engage with the strike plates on the door frame. Remove the key.
- Sådan låses op: Insert the key into the cylinder and turn it in the opposite direction until the vertical rods fully retract from the strike plates. The door can now be opened.
Ensure the door is properly closed and aligned before attempting to lock it. Do not force the key if it does not turn easily; check for obstructions or misalignment.
5. Vedligeholdelse
Regular maintenance will ensure the longevity and smooth operation of your Mottura lock:
- Rensning: Periodically wipe the exterior of the lock with a soft, dry cloth to remove dust and grime. Avoid using abrasive cleaners or solvents.
- Smøring: Apply a small amount of graphite-based lubricant or a specialized lock lubricant into the keyway and moving parts of the mechanism once every 6-12 months. Do not use oil-based lubricants as they can attract dust and dirt.
- Tjek skruer: Periodically check all mounting screws to ensure they are tight. Loose screws can affect the lock's alignment and security.
- Nøglepleje: Keep keys clean and avoid using them for purposes other than operating the lock. Do not force a bent or damaged key into the cylinder.
6. Fejlfinding
If you encounter issues with your lock, consider the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Key is difficult to turn or stuck. | Lack of lubrication, bent key, debris in keyway, misaligned cylinder. | Apply lock lubricant. Check key for damage. Clean keyway. Consult a locksmith if cylinder is misaligned. |
| Rods do not extend/retract fully. | Obstruction in strike plate, misaligned lock body, worn mechanism. | Check strike plates for debris. Verify lock body alignment. Lubricate mechanism. |
| Door does not lock securely. | Misalignment of lock with strike plates, worn rods, door sag. | Adjust strike plate position. Check door hinges for sag. Inspect rods for wear. |
If the problem persists after attempting these solutions, please contact customer support or a qualified locksmith.
7. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | MOTTURA |
| Modelnummer | 325922 |
| Farve | Sort |
| Stil | Lodret |
| Materiale | Nikkel |
| Form | Konisk |
| Antal stykker | 1 |
| Speciel funktion | Nem at installere |
| Låsetype | Cylinder |
| Anbefalet brug | Dør |
| Adjustable Rod Travel | 20 til 85 mm |
| Cylinder størrelse | 31/61 mm (Project series) |
8. Garanti og support
For information regarding product warranty, please refer to the documentation provided at the time of purchase or visit the official Mottura website. For technical support, spare parts, or further assistance, please contact Mottura customer service or your authorized dealer.
MOTTURA Official Webwebsted: www.mottura.com (Note: This is a generic placeholder link, please refer to actual product documentation for precise contact information.)
