LEZYNE Macro Floor Drive High Pressure Bicycle Floor Pump

Indledning

The LEZYNE Macro Floor Drive is a high-quality, durable floor pump designed for efficient and accurate inflation of bicycle tires, particularly for road and track bikes. Its robust construction and precise analog gauge ensure reliable performance for years to come. This manual provides detailed instructions for setting up, operating, maintaining, and troubleshooting your pump to ensure optimal performance and longevity.

Figure 1: The LEZYNE Macro Floor Drive High Pressure Bicycle Floor Pump, showcasing its sleek design and integrated gauge.

Produktegenskaber

The Macro Floor Drive pump is engineered with several key features to enhance your tire inflation experience:

• Reliable High Pressure Floor Pump: Built with a composite matrix base for stability and durability.
• Durable Steel Barrel and Piston: Ensures long-term reliability and consistent performance.
• Ergonomic Composite Matrix Handle: Giver et behageligt og sikkert greb under brug.
• Extra-Long, High-Strength Hose: Offers extended reach for convenient inflation, even when the bike is on a stand or rack.
• Highly Accurate 2.5" Analog Gauge: Calibrated in-house for precise pressure readings up to 220 PSI (15.2 bar).
• ABS Flip Chuck or Dual Valve Pump Head: Compatible with both Presta and Schrader valves, with an air bleed system for fine pressure adjustments.
• Optimized for Road and Track Bikes: Designed to achieve high pressures with minimal pumping effort.

Figure 2: Key features of the Macro Floor Drive pump, highlighting its robust construction and user-friendly design.

Komponenter overview

Familiarize yourself with the main components of your LEZYNE Macro Floor Drive pump:

• Håndtag: Ergonomically designed for comfortable pumping.
• Tønde: The main body of the pump containing the piston.
• Slange: Connects the pump to the tire valve.
• Måler: Displays the current tire pressure.
• Grundlag: Giver stabilitet under drift.
• ABS vippepatron: The valve connector, compatible with Presta and Schrader valves.

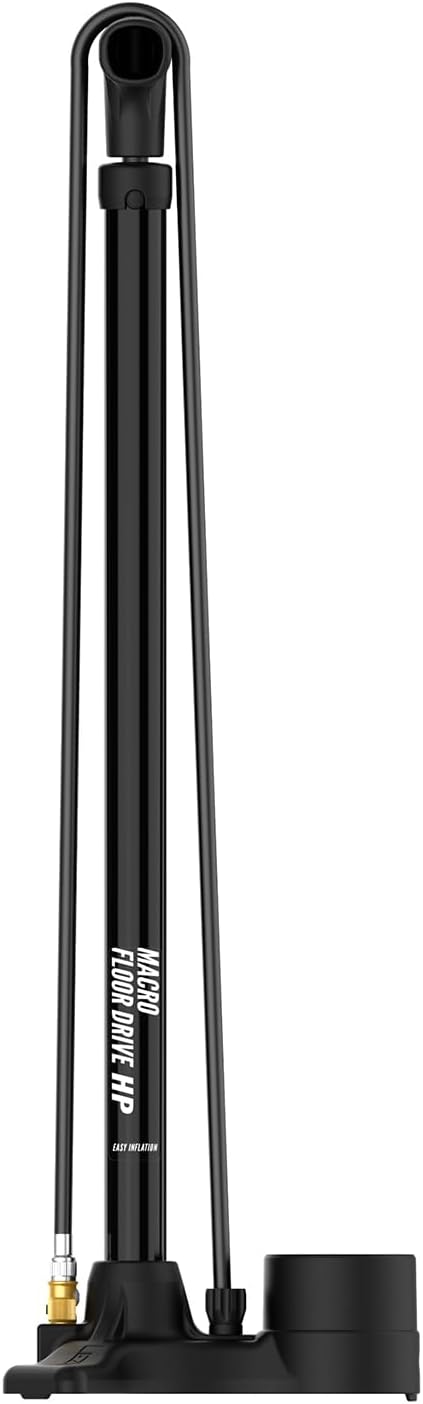

Figur 3: En side view of the pump, illustrating the hose and gauge placement.

Opsætning

Your LEZYNE Macro Floor Drive pump comes ready for use with minimal setup required.

Udpakning

Carefully remove the pump from its packaging. Inspect for any visible damage. The pump is designed for immediate use out of the box.

Understanding the ABS Flip Chuck

The ABS (Air Bleed System) Flip Chuck is a versatile connector designed for both Presta and Schrader valves. It features a threaded connection for secure attachment and a bleed button for precise pressure adjustments.

Figure 4: Close-up of the ABS Flip Chuck, showing the Presta and Schrader ends.

Figure 5: Diagram illustrating the features of the ABS Flip Chuck, including Presta/Schrader compatibility, secure attachment, and air bleed system.

• Presta Compatible: The narrower end of the chuck is designed for Presta valves.
• Schrader Compatible: The wider end of the chuck is designed for Schrader valves.
• Air Bleed System: A small button on the chuck allows you to release air for fine-tuning tire pressure.
• Sikker vedhæftning: The threaded design ensures an airtight connection to the valve.

Betjeningsvejledning

Follow these steps to effectively inflate your bicycle tires using the LEZYNE Macro Floor Drive pump.

1. Preparing the Tire Valve

• For Presta valves, unscrew the valve core locknut counter-clockwise until it is loose. Press down briefly on the valve stem to release a small amount of air and ensure it is not stuck.
• For Schrader valves, no special preparation is usually needed, but ensure the valve cap is removed.

2. Connecting the ABS Flip Chuck

• Identify the correct end of the ABS Flip Chuck for your valve type (Presta or Schrader).
• Thread the appropriate end of the chuck onto the tire valve by turning it clockwise until it is securely attached and airtight. Do not overtighten.

Figure 6: The ABS Flip Chuck securely connected to a bicycle tire valve, ready for inflation.

3. Inflating the Tire

• Place the pump's base firmly on the ground and hold the handle with both hands.
• Use smooth, full strokes to pump air into the tire. Push the handle down completely and pull it up fully for maximum efficiency.

4. Monitoring Pressure with the Analog Gauge

• Observe the analog gauge located at the base of the pump. It will display the current tire pressure as you inflate.
• Inflate the tire to the recommended PSI (Pounds per Square Inch) or BAR (Barometric Pressure) as specified on your tire's sidewall.
• If you overinflate, press the air bleed button on the ABS Flip Chuck to release small amounts of air until the desired pressure is reached.

5. Disconnecting the Chuck

• Once the desired pressure is achieved, unscrew the ABS Flip Chuck from the tire valve by turning it counter-clockwise.
• For Presta valves, remember to tighten the valve core locknut clockwise after disconnecting the pump.
• Replace the valve cap if applicable.

Opretholdelse

Proper maintenance will extend the life and performance of your LEZYNE Macro Floor Drive pump.

• Rensning: Wipe down the pump's barrel and hose with a damp cloth after use to remove dirt and grime. Avoid using harsh chemicals.
• Opbevaring: Store the pump in a dry, clean environment, away from extreme temperatures and direct sunlight. Ensure the hose is neatly stored in its designated clip.
• Smøring: Periodically, a small amount of silicone-based lubricant can be applied to the piston shaft (inside the barrel) to ensure smooth operation. Consult LEZYNE's official support for specific recommendations.
• Tjek for slid: Regularly inspect the hose and chuck for any signs of cracks, fraying, or damage. Replace components if necessary.

Fejlfinding

Her er nogle almindelige problemer og deres potentielle løsninger:

Specifikationer

Detailed technical specifications for the LEZYNE Macro Floor Drive High Pressure Bicycle Floor Pump:

Garanti og support

LEZYNE products are manufactured to the highest quality standards. For detailed warranty information, product registration, or technical support, please visit the official LEZYNE webwebstedet eller kontakt deres kundeservice direkte. Gem din købsbevis til garantikrav.
