Pit Boss Grills 2-serie gas vertikal ryger model 77425 brugsanvisning

Indledning

This manual provides essential instructions for the safe assembly, operation, and maintenance of your Pit Boss Grills 2 Series Gas Vertical Smoker, Model 77425. Please read all instructions thoroughly before using the appliance to ensure proper function and safety.

Front view of the Pit Boss 2 Series Gas Vertical Smoker in red and black — Figur 1: Forside view of the Pit Boss 2 Series Gas Vertical Smoker. This image displays the overall design, including the temperature gauge and control knob.

Vigtige sikkerhedsoplysninger

ADVARSEL:

For outdoor use only. Do not operate indoors.
Læs alle instruktioner inden belysning.
Keep children and pets away from the smoker during operation.
Sørg for tilstrækkelig ventilation.
Opbevar eller brug ikke benzin eller andre brændbare væsker eller dampe i nærheden af dette eller noget andet apparat.
Always open the door during lighting.
If ignition does not occur within 5 seconds, turn the burner valve to OFF, wait 5 minutes, and repeat the lighting procedure.
Use caution when handling hot surfaces. Always use protective gloves.
Ensure the smoker is on a level, stable surface.
Modificer ikke apparatet.
Refer to local codes for proper installation and use.

Forsamling

Assembly of the Pit Boss Grills 2 Series Gas Vertical Smoker requires careful attention to detail. It is recommended to have two people for assembly. Refer to the included assembly diagram and hardware list for specific steps.

Pak alle komponenter ud, og verificer dem i forhold til styklisten.
Attach the legs to the main body of the smoker.
Install the gas burner assembly according to the diagram.
Secure the cooking grates and water pan/chip tray.
Attach the door and ensure it seals properly.
Connect the propane tank regulator to the gas inlet.

Indre view of the Pit Boss 2 Series Gas Vertical Smoker with racks — Figur 2: Intern view of the smoker showing the cooking racks and internal components. This image illustrates the interior layout for proper assembly of racks and trays.

Betjeningsvejledning

Kontrol før brug

Sørg for, at alle forbindelser er tætte og sikre.
Check for gas leaks using a soapy water solution on connections. Bubbles indicate a leak.
Fill the water pan with water or other liquid for moisture during smoking.
Place wood chips or chunks in the designated tray.

Belysningsvejledning

Follow these steps carefully to light your gas vertical smoker:

LÆS ALLE INSTRUKTIONER FØR TÆNDING.
ÅBEN DØR UNDER TÆNDING.
Open the cylinder / main gas valve on your propane tank.
Push and turn the burner valve to "HIGH".
Push the igniter button.
If ignition does not occur within 5 seconds, turn the burner valve to OFF, wait 5 minutes, and repeat the lighting procedure.

Close-up of the control knob and igniter button on the Pit Boss smoker — Figur 3: Detaljeret view of the control knob and igniter button with lighting instructions printed on the panel. This shows the primary controls for igniting and adjusting the gas flow.

Hand pulling out the wood chip tray from the Pit Boss smoker — Figure 4: A hand demonstrating the removal of the wood chip tray. This tray is used to hold wood chips or chunks for smoke generation during the cooking process.

Temperature Control and Smoking

Once lit, close the door and allow the smoker to preheat to your desired temperature.
Adjust the control knob to regulate the heat. The integrated thermometer on the door provides an internal temperature reading.
Place food on the cooking grates.
Monitor internal food temperature with a separate meat thermometer for best results.
Glasset viewing window allows monitoring without opening the door, helping to maintain consistent temperature and smoke.

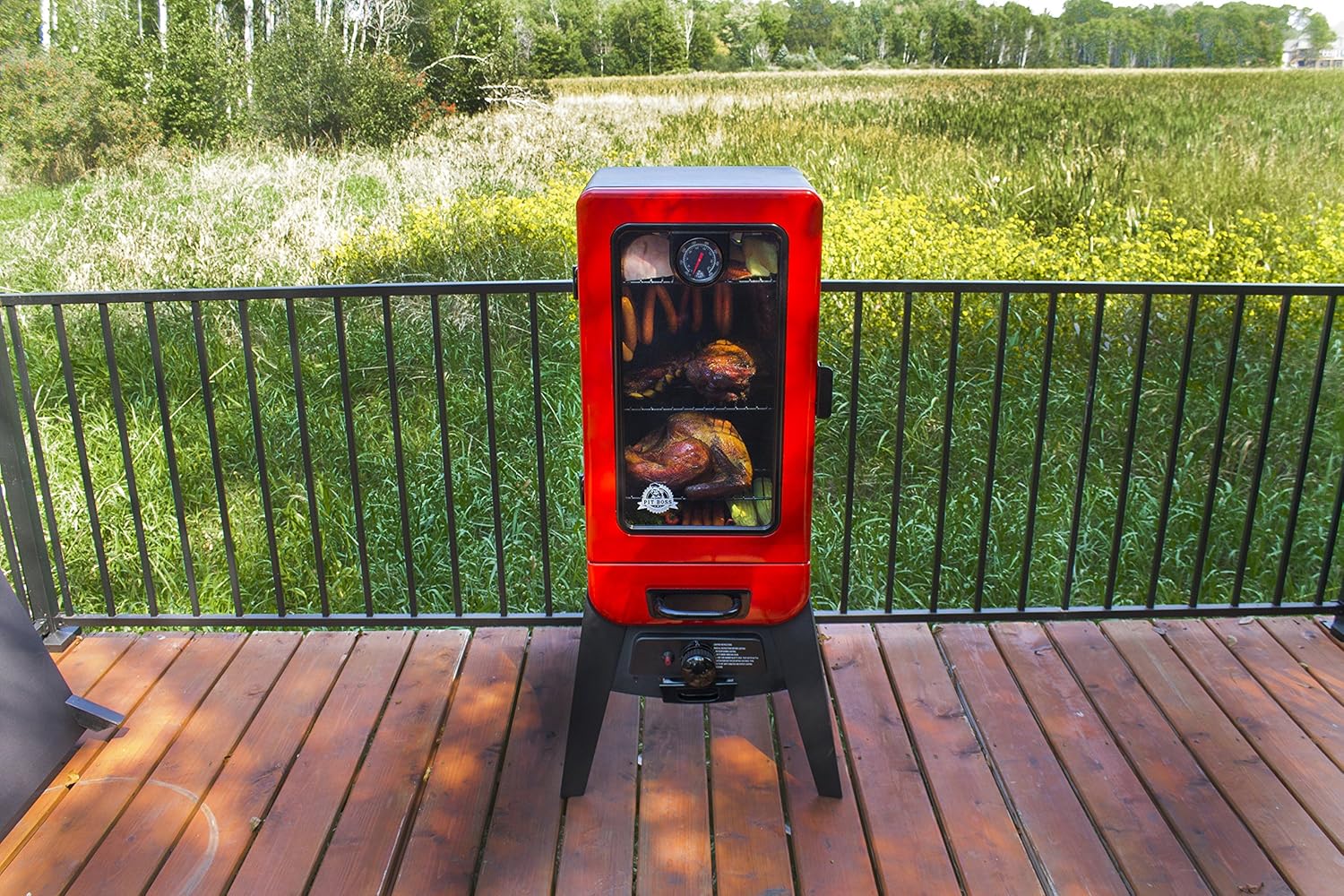

Pit Boss 2 Series Gas Vertical Smoker in an outdoor setting with food cooking inside — Figure 5: The Pit Boss vertical smoker in operation outdoors, with various foods visible through the glass door. This shows the smoker in a typical use scenario.

Pit Boss 2 Series Gas Vertical Smoker with its door open, revealing smoked meats and vegetables on the racks — Figure 6: The smoker with its door open, displaying smoked meats and vegetables on multiple racks. This highlights the capacity and versatility for different food items.

Pit Boss 2 Series Gas Vertical Smoker with its door open, showing a large cut of meat and ribs smoking on the lower racks — Figur 7: En anden view of the smoker with the door open, focusing on larger cuts of meat and ribs on the lower racks. This demonstrates the space available for substantial smoking projects.

Vedligeholdelse og rengøring

Lad rygeren køle helt af før rengøring.
Remove cooking grates and wash with warm, soapy water.
Clean the water pan and wood chip tray after each use.
Tør indvendige og udvendige overflader af med enamp cloth. For stubborn grease, use a mild degreaser.
Regularly inspect the gas hose and connections for wear or damage.
Rengør glasset viewing window after each use to maintain visibility.
Store the smoker in a dry, protected area, ideally with a cover, when not in use.

Fejlfinding

Problem	Mulig årsag	Løsning
Brænderen tænder ikke	No gas flow, igniter issue, clogged burner.	Check propane tank, ensure valve is open. Verify igniter spark. Clean burner ports.
Inkonsekvent temperatur	Low gas, door not sealed, windy conditions.	Check gas level. Ensure door latch is secure. Position smoker away from strong winds.
Overdreven røg	Too many wood chips, insufficient airflow.	Reduce amount of wood chips. Ensure vents are clear.

For further assistance, contact Pit Boss customer support.

Specifikationer

Mærke: PIT BOSS
Modelnummer: 77425
Strømkilde: Propan
Brændstoftype: Liquefied Petroleum Gas (LPG)
Farve: Rød
Ydermateriale: Rustfrit stål
Varens vægt: 48.5 pund
Produktdimensioner: 21.5 x 23 x 41 cm (bredde x dybde x højde)
UPC: 684678483220

Garanti og support

The Pit Boss Grills 2 Series Gas Vertical Smoker comes with a 5 års garanti. For warranty claims, technical support, or replacement parts, please contact Pit Boss customer service directly. Retain your proof of purchase for warranty validation.

For more information and support, visit the official Pit Boss webwebstedet eller se kontaktoplysningerne på din produktemballage.

Video 1: "Why Pit Boss?" This video, provided by Dansons, Inc. (the brand), showcases various Pit Boss products, including vertical smokers and pellet grills, highlighting features like flame broiler technology, heavy-duty construction with 14 gauge steel and cast iron grates, and the overall cooking experience. It also mentions the 5-year warranty.
