Indledning
The Suncourt ZoneMaster Motorized Airflow Control Zone Damper is designed to provide precise control over airflow in HVAC zoning, fresh air intake, and make-up air applications. This 8-inch damper improves air quality, comfort, and energy efficiency by allowing you to manage air distribution effectively. The ZC208 model is a Normally Closed (Power Open) damper, meaning it remains closed when unpowered and opens when power is applied.
This manual provides detailed instructions for the installation, operation, and maintenance of your Suncourt ZoneMaster damper, ensuring optimal performance and longevity.
Sikkerhedsoplysninger
ADVARSEL:
- Always disconnect power before installing, servicing, or cleaning the unit to prevent electric shock.
- Installation should be performed by a qualified technician in accordance with all local and national electrical and building codes.
- Do not operate the damper if it is damaged or malfunctioning.
- Sørg for korrekt ventilation under installation og drift.
- The maximum operating temperature for this unit is 140°F (60°C). Do not expose to temperatures exceeding this limit.
Produkt overview og komponenter
The Suncourt ZoneMaster damper is constructed with high-quality materials for durability and reliable performance. Key components include:
- Galvanized Steel Casing: Provides robust structural integrity.
- Motorized Actuator: Controls the damper klingeposition.
- Patented Adjustable Coupler: Allows for fine-tuned airflow control from 0° to 90° in both powered and unpowered positions.
- Damper Blade: Made of plastic, designed for efficient airflow regulation.
- Free-Wheeling Motor Coupling: Extends motor life.
- 24VAC/20VA Plug-in Transformer: Included for independent operation.
Figure 1: Suncourt ZoneMaster 8-inch motorized damper and its included plug-in transformer.

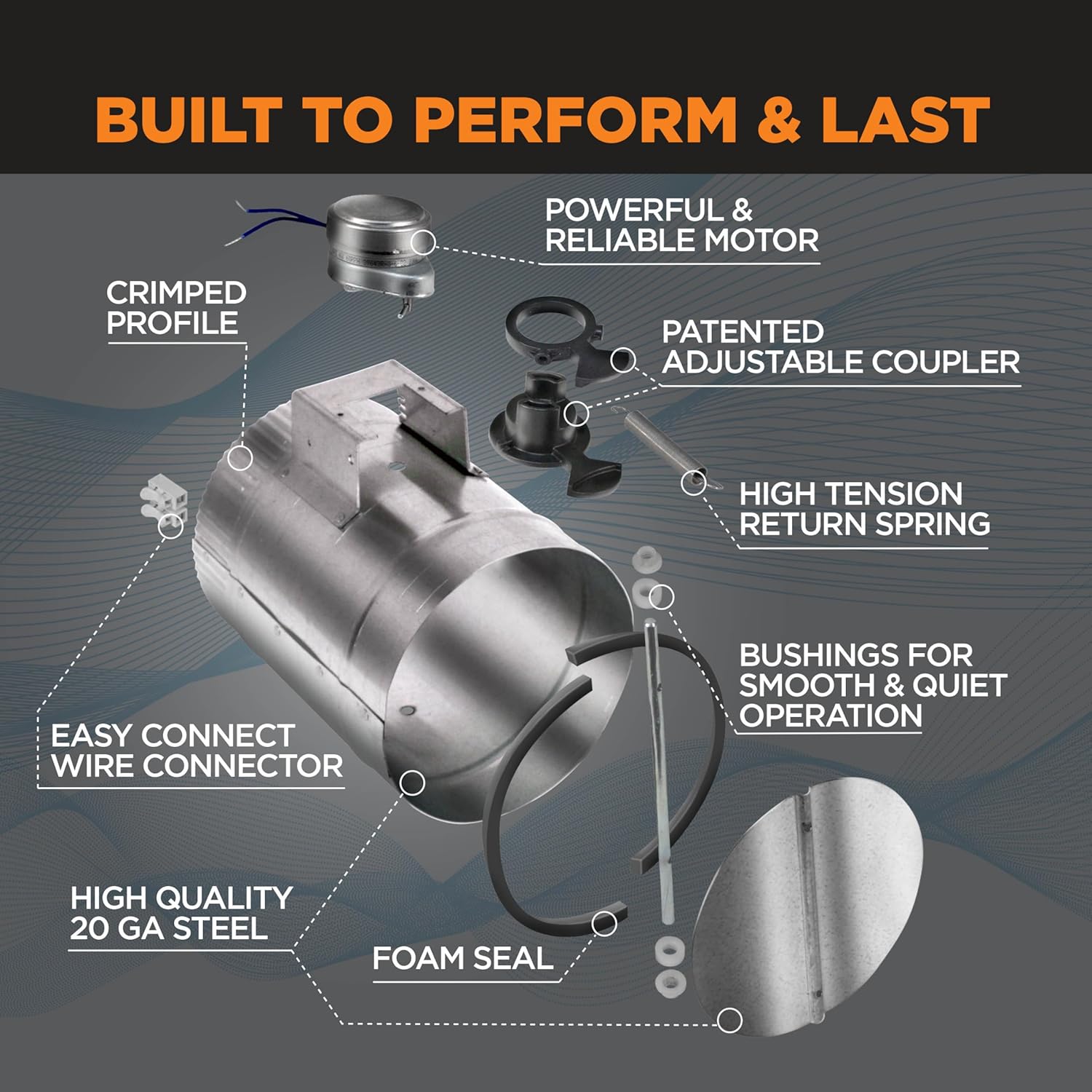

Figur 2: Detaljeret view af damper's internal components, highlighting the motor, adjustable coupler, and high-quality steel construction.
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | ZC208 |
| Størrelse | 8 inch (Blade Length: 8.25 Inches) |
| Strømkilde | Elektrisk med ledning |
| Voltage | 24 volt |
| Wattage | 6 watt |
| Kontrolmetode | Touch (via thermostat or control system) |
| Damper Type | Normally Closed (Power Open) |
| Justerbarhed | 0° - 90° adjustable coupler |
| Inkluderede komponenter | 24VAC/20 VA plug-in Transformer |
| Materiale | Galvanized Steel (casing), Plastic (blade) |
| Varens vægt | 3 pund |
| Indendørs/Udendørs brug | Indendørs |
Figure 3: Motorized Airflow Damper Dimensions.
Opsætning og installation
The Suncourt ZoneMaster damper features a simple two-wire installation. It can be integrated with existing zone control systems or operated independently using the included transformer.
Installationstrin:
- Prepare the Ductwork: Ensure the duct opening is clean and free of obstructions. The damper is designed for 8-inch ducting.
- Indsæt Dampeh: Skub damper into the ductwork. Ensure a snug fit.
- Fastgør Dampeh: Use appropriate fasteners (not included) to secure the damper to the ductwork, ensuring it is stable and airtight.
- Wiring (Single Zone Control):
- Connect the two wires from the damper's motor to the 24VAC/20VA plug-in transformer.
- Plug the transformer into a standard electrical outlet.
- For thermostat control, wire the transformer to the thermostat's appropriate terminals (typically 'R' and 'C' for power, and 'Y' or 'W' for damper activation, depending on your thermostat and desired operation). Refer to your thermostat's manual for specific wiring diagrams.
- Wiring (Whole Home Zone Control System):
- Tilslut damper's two wires to the designated damper terminals on your zone control panel.
- Ensure the zone control panel is properly powered and configured according to its manufacturer's instructions.
- Test drift: After wiring, restore power and test the damper's operation by activating the associated thermostat or zone control.

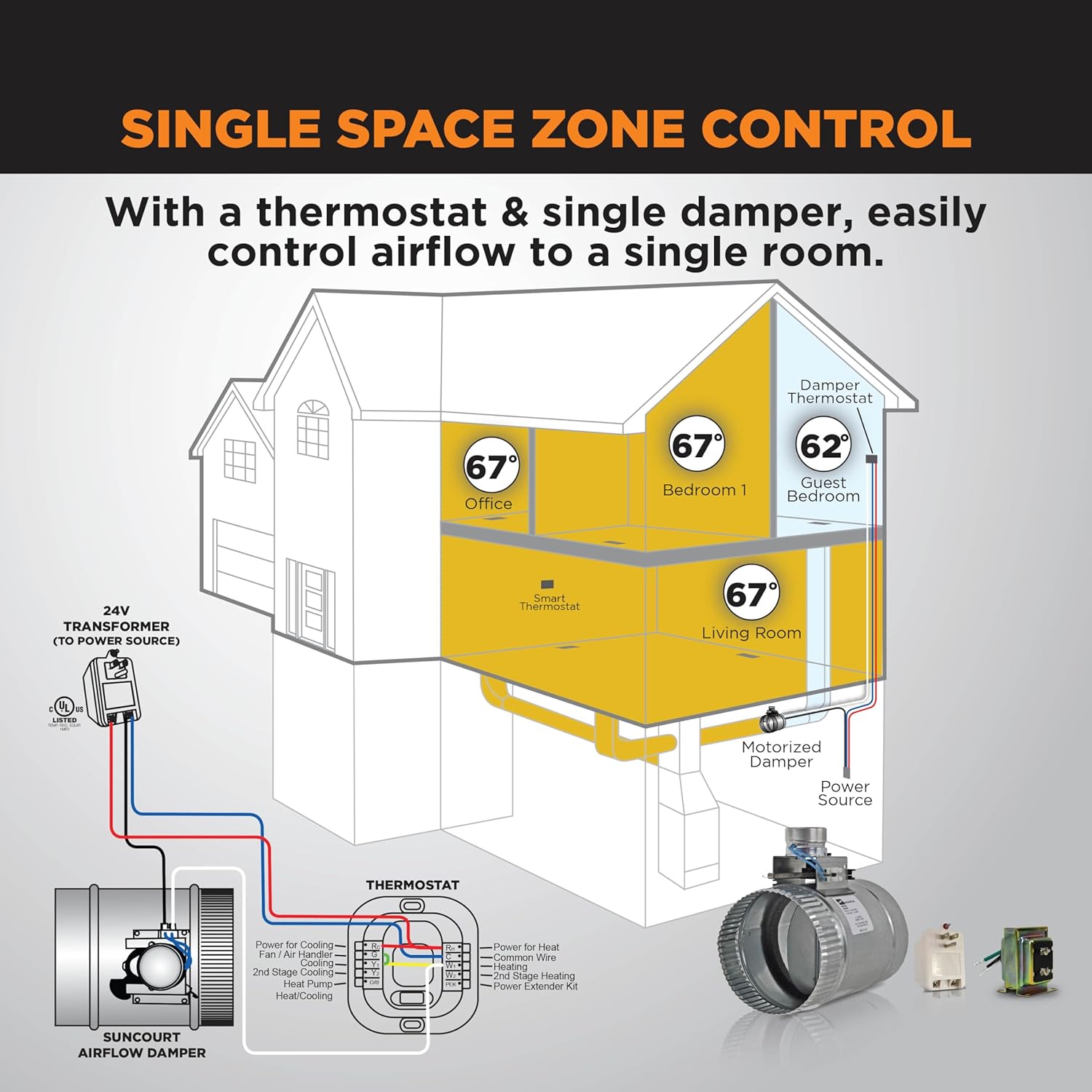

Figur 4: Eksample of Single Space Zone Control Wiring.

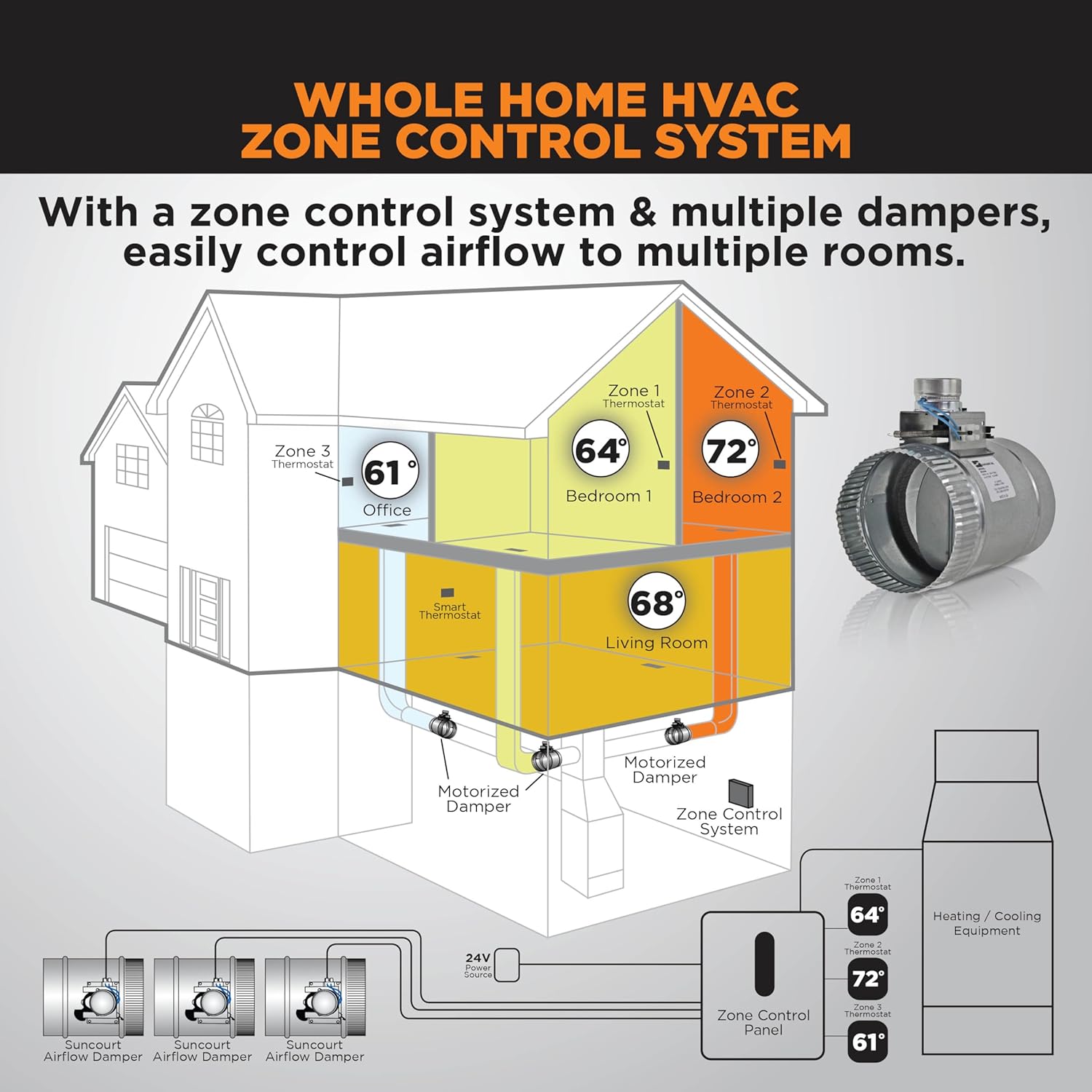

Figur 5: Eksample of Whole Home HVAC Zone Control System.
Betjeningsvejledning
The Suncourt ZoneMaster damper operates based on the electrical signal it receives, typically from a thermostat or a zone control panel.
Damper Operation (Normally Closed / Power Open):
- When no power is supplied to the damper's motor, the damper blade will remain in its fully closed position.
- When 24VAC power is supplied to the damper's motor, the damper blade will open to its fully open position.
Adjusting Airflow (0°-90° Adjustable Coupler):
The patented adjustable coupler allows for fine-tuned airflow control, even when the damper is in its "open" or "closed" state. This is particularly useful for balancing airflow in multi-zone systems or for specific fresh air requirements.
- Adgang til kobleren: Locate the adjustable coupler mechanism on the motor assembly.
- Adjust the Set Points: Carefully rotate the coupler to set the desired minimum or maximum opening angle. This allows you to restrict or ensure a minimum airflow even when the damper is technically "open" or "closed" by its motor.
- Test og finjuster: Observe the airflow and adjust as necessary to achieve the desired comfort and efficiency.
Figure 6: Patented Coupler System for Customized Airflow.
Figure 7: Ultra Quiet & Energy Efficient Operation.
Opretholdelse
The Suncourt ZoneMaster damper is designed for minimal maintenance. Regular inspection can help ensure long-term performance.
- Årlig inspektion: Annually, inspect the damper for any signs of wear, damage, or debris accumulation around the blade or motor mechanism.
- Rensning: If dust or debris is present, gently clean the damper blade and internal components with a soft, dry cloth. Do not use liquid cleaners or solvents.
- Ledningskontrol: Kontroller, at alle elektriske forbindelser er sikre og fri for korrosion.
- Bladets bevægelse: Sørg for, at damper blade moves freely without obstruction when powered.
Note: The free-wheeling motor coupling is designed to extend motor life and requires no lubrication.
Fejlfinding
If your Suncourt ZoneMaster damper is not functioning as expected, refer to the following common issues and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Damper does not open/close | No power to the unit; Loose wiring connection; Faulty transformer; Motor malfunction. | Check power supply to the transformer/zone panel. Verify all wiring connections are secure. Test the transformer output voltage. If issues persist, contact customer support. |
| Damper blade is stuck or moves slowly | Obstruction in ductwork; Debris around the blade/motor; Damaged blade or mechanism. | Disconnect power and inspect the ductwork and damper blade for obstructions. Gently remove any debris. Do not force the blade. If damaged, contact customer support. |
| Motor gets hot during operation | Normal operation (some heat is expected); Restricted airflow; Continuous power supply. | A slight warmth is normal. Ensure the damper is not continuously powered for extended periods if not required. Verify proper airflow through the duct. If the motor becomes excessively hot or emits smoke/odor, disconnect power immediately and contact support. |
| Damper does not fully open/close | Adjustable coupler set incorrectly; Obstruction; Motor issue. | Check the setting of the 0°-90° adjustable coupler. Ensure no physical obstructions prevent full travel. If the issue persists, the motor may be faulty. |
Garanti og support
Suncourt motorized vent dampers are backed by a 3 års garanti fra købsdatoen. Denne garanti dækker fejl i materialer og udførelse ved normal brug.
For warranty claims, technical support, or any questions regarding your Suncourt ZoneMaster damper, please contact Suncourt Customer Service. Keep your proof of purchase for warranty validation.
Suncourt Contact Information:
- Visit the official Suncourt website for contact details and FAQs: www.suncourt.com
- Refer to the product packaging or included documentation for specific customer service phone numbers or email addresses.
Suncourt has been improving indoor air quality and comfort since 1988, providing reliable and energy-saving airflow solutions engineered and assembled in the USA.
