RICOO R23-F TV Wall Mount Instruction Manual

1. Introduktion

This manual provides detailed instructions for the safe and correct installation, operation, and maintenance of your RICOO R23-F TV Wall Mount. Please read this manual thoroughly before installation and retain it for future reference. Proper installation is crucial for the safety and stability of your television.

2. Sikkerhedsoplysninger

• Vægt kapacitet: Overskrid ikke den maksimale vægtkapacitet på 95 kg. Overskridelse af denne grænse kan resultere i alvorlig personskade eller materielle skader.
• Vægtype: The included screws and Fischer dowels/plugs are suitable for solid concrete walls only. For other wall types (e.g., wood stud, brick, drywall), consult a professional installer or use appropriate mounting hardware (not included).
• VESA-kompatibilitet: Ensure your TV's VESA mounting pattern is compatible with the mount (200x200, 300x300, 400x200, 400x300, 400x400).
• Professionel installation: If you are unsure about the installation process or wall type, seek assistance from a qualified professional.
• Værktøjer: Brug passende værktøj til installationen. Bær sikkerhedsbriller og handsker.
• Børn: Hold børn væk fra installationsområdet.

3. Pakkens indhold

Please verify that all components are present and undamaged before proceeding with installation. If any parts are missing or damaged, contact RICOO customer support.

• RICOO R23-F TV Wall Mount assembly
• Mounting hardware kit (screws, washers, spacers)
• Fischer dowels/plugs (for solid concrete walls)
• Instruktionsmanual

Note: Specific quantities of screws and dowels may vary. Refer to the included hardware bag for exact counts.

4. Funktioner

• Adjustable Swivel: Swivels up to 180 degrees (if display width is max 80cm) for optimal viewing vinkler.
• Justerbar hældning: Tilts +/-15 degrees to reduce glare and improve viewkomfort.
• Front Plate Rotation: Rotates +/-6 degrees for ideal horizontal alignment after installation.
• VESA-kompatibilitet: Supports VESA patterns 200x200, 300x300, 400x200, 400x300, 400x400.
• Anbefalede skærmstørrelser: Suitable for 32" to 65" displays.
• Høj vægtkapacitet: Supports up to 209 lbs (95 kg) thanks to durable cold-rolled steel construction.
• Adjustable Wall Distance: Extends from 115mm to 522mm from the wall.

5. Opsætning og installation

Nødvendige værktøjer (ikke inkluderet): Drill, stud finder (if not concrete wall), level, screwdriver, pencil, measuring tape.

5.1. Prepare the TV

1. Placer forsigtigt dit tv med forsiden nedad på en blød, ren overflade for at undgå ridser.
2. Identificer VESA-monteringshullerne på bagsiden af ​​dit tv.
3. Attach the vertical TV brackets to the back of your TV using the appropriate screws, washers, and spacers from the hardware kit. Ensure they are securely fastened but do not overtighten. The rails are continuously adjustable to fit various TV sizes.

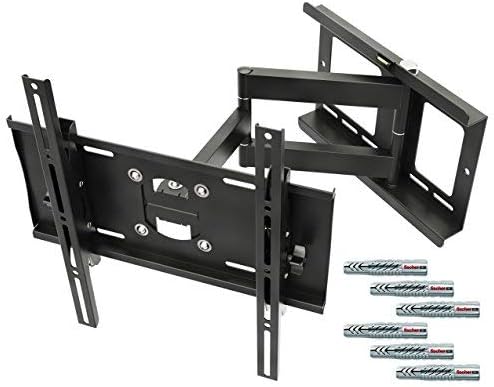

Billede 1: Overview of the RICOO R23-F TV Wall Mount components and included hardware.

5.2. Mount the Wall Plate

1. Determine the desired height and position for your TV. Use a pencil to mark the drill holes for the wall plate.
2. For Solid Concrete Walls: Drill pilot holes at the marked locations. Insert the Fischer dowels/plugs into the holes.
3. Position the wall plate over the drilled holes and secure it to the wall using the provided screws. Use a level to ensure the wall plate is perfectly horizontal before fully tightening all screws.
4. Vigtig: For other wall types (e.g., wood stud, brick, drywall), specialized anchors and screws are required and are not included. Consult a professional for proper installation on these surfaces.

5.3. Attach the TV to the Wall Mount

1. With assistance, carefully lift the TV (with attached brackets) and hook the brackets onto the arms of the wall mount.
2. Ensure the TV is securely seated on the mount. Engage any safety locking mechanisms if present.

6. Betjeningsvejledning (Justeringer)

The RICOO R23-F mount offers various adjustments for optimal viewing.

6.1. Drejejustering

The mount allows for 180-degree continuous swiveling. Gently push or pull the TV to the desired left or right angle. Ensure the TV's width does not exceed 80cm for full 180-degree movement.

Image 2: Demonstrates the 180-degree swivel capability and the extendable/retractable arm of the mount.

6.2. Hældningsjustering

To adjust the tilt angle (+/-15 degrees), loosen the tilt adjustment knobs or bolts on the TV brackets, set the TV to the desired vertical angle, and then securely tighten the knobs/bolts.

6.3. Front Plate Rotation

For minor horizontal alignment adjustments after installation, the front plate can be rotated +/-6 degrees. Loosen the rotation screws, adjust the TV to be perfectly level, and then retighten the screws.

Image 3: Illustrates the +/-6 degree front plate rotation, adjustable rails for various TV sizes, and +/-15 degree tilt adjustment.

6.4. Udvidelse og tilbagetrækning

The articulating arm allows the TV to be extended from the wall (115mm to 522mm) or pushed back closer to the wall. Gently pull or push the TV to achieve the desired wall distance.

7. Vedligeholdelse

• Regelmæssig inspektion: Kontrollér regelmæssigt alle skruer og forbindelser for at sikre, at de forbliver stramme og sikre.
• Rensning: Rengør holderen med en blød, tør klud. Undgå slibende rengøringsmidler eller opløsningsmidler, der kan beskadige overfladen.
• Smøring: Moving parts are designed for smooth operation. No regular lubrication is typically required. If movement becomes stiff, contact customer support.

8. Fejlfinding

• TV'et er ikke i vater: Check the front plate rotation adjustment (Section 6.3) and ensure the wall plate was installed level.
• Mount føles ustabil: Recheck all wall and TV attachment screws for tightness. Ensure the wall type is appropriate for the installed hardware. Do not exceed the weight capacity.
• Vanskeligheder med at justere hældning/drejevinkel: Ensure no cables are snagged. For tilt, loosen adjustment knobs before attempting to change the angle.
• TV'et passer ikke: Verify your TV's VESA pattern matches the mount's compatibility (200x200, 300x300, 400x200, 400x300, 400x400) and that your screen size is within the recommended 32"-65" range.

9. Specifikationer

10. Garanti og support

For warranty information, technical support, or to inquire about replacement parts, please contact RICOO customer service directly. Refer to the product packaging or the official RICOO webwebsted for kontaktoplysninger.
