Progress Lighting Hide-a-Lite V 9-inch LED Undercabinet Light Instruction Manual

1. Vigtige sikkerhedsoplysninger

FORSIGTIGHED: Read these instructions carefully before installation. Always turn off electricity at the main circuit breaker panel before beginning any installation or servicing of the fixture.

ADVARSEL: If any special control devices are used with this fixture, ensure that the installation follows all National Electrical Code (N.E.C.) requirements. If you have any questions, consult a qualified Electrical Contractor.

ADVARSEL: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Always wash hands thoroughly after installing, handling, cleaning, or otherwise touching this product.

ADVARSEL: Disconnect electrical power before installing or servicing any part of the fixture. Ensure that the supply leads are rated for a minimum of 75°C.

2. Produktet er slutview

The Progress Lighting Hide-a-Lite V 9-inch LED Undercabinet fixture is designed for residential and light commercial applications. It features extruded aluminum construction and a lens optimized for light distribution. This fixture offers energy-efficient lighting and can be dimmed with compatible Forward Phase Triac and Electronic Low Voltage (ELV) dimmers.

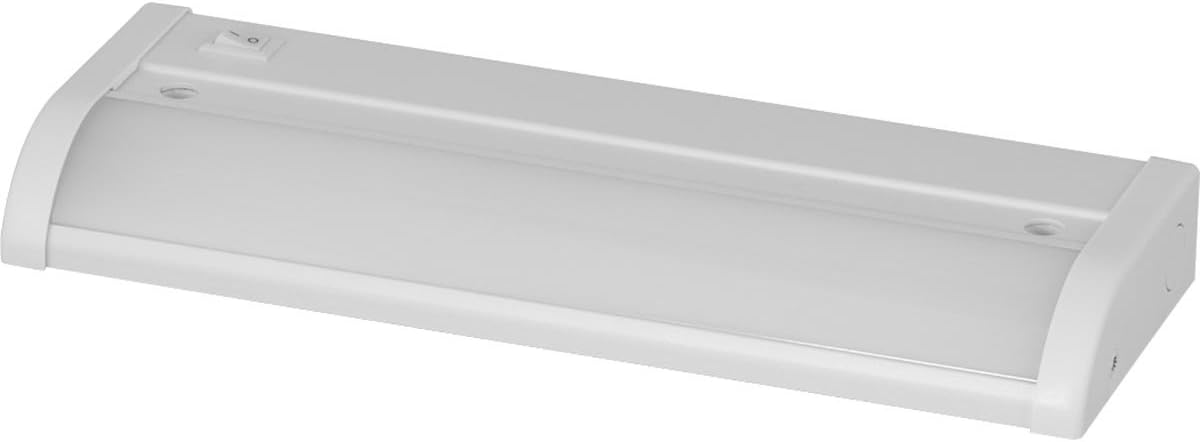

Image 2.1: A white Progress Lighting Hide-a-Lite V 9-inch LED Undercabinet Light, showing its compact linear design and integrated rocker switch.

3. Installation (Opsætning)

This section outlines the general assembly and wiring steps for the Hide-a-Lite V series (P700000, P700001, P700002, P700003). Refer to the detailed diagram for component identification.

Image 3.1: Detailed diagram showing assembly steps and wiring connections for the Hide-a-Lite V undercabinet light.

3.1 Monteringstrin

1. Attach components E and G.
2. Connect component D.
3. Secure component F.
4. Assemble components A, B, and C.
5. Fasten components H and F.

3.2 Ledningsinstruktioner

• Tilslut WHITE supply wire til WHITE marked fixture wire.
• Tilslut BLACK supply wire til BLACK or SMOOTH fixture wire.
• Tilslut BARE COPPER or GREEN ground wire from the supply to the BARE COPPER or GREEN ground wire fra armaturet.

Sørg for, at alle elektriske forbindelser er sikre og overholder lokale el-forskrifter.

4. Betjeningsvejledning

The Hide-a-Lite V undercabinet fixture is designed for straightforward operation.

4.1 Tænd/sluk

The fixture is equipped with an integrated rocker switch for convenient power control. Simply toggle the switch to turn the light on or off.

4.2 Dæmpningsfunktionalitet

This LED fixture is dimmable down to 10% of its maximum brightness. It is compatible with many Forward Phase Triac and Electronic Low Voltage (ELV) dimmers. For optimal performance, ensure you use a compatible dimmer switch.

5. Vedligeholdelse

To maintain the appearance and performance of your undercabinet light, follow these simple guidelines:

• Rensning: Disconnect power before cleaning. Use a soft, dry or slightly damp cloth to wipe the exterior surfaces. Avoid abrasive cleaners, solvents, or polishes as they may damage the finish or electrical components.
• Udskiftning af pære: This fixture uses integrated LED technology, meaning the LED light source is not user-replaceable. The LEDs are designed for a long operational life.
• Inspektion: Kontrollér regelmæssigt for løse forbindelser eller tegn på slid. Kontakt en kvalificeret elektriker, hvis der observeres problemer.

6. Fejlfinding

If you encounter issues with your Hide-a-Lite V fixture, consider the following common troubleshooting steps:

• Lyset tænder ikke:
  • Ensure the main circuit breaker is on.
  • Check that the fixture's rocker switch is in the 'ON' position.
  • Verify all wiring connections are secure and correct as per the installation instructions.
• Lyset flimrer eller dæmpes forkert:
  • Confirm that the dimmer switch used is compatible with LED fixtures and specifically with Forward Phase Triac or ELV dimmers.
  • Ensure the dimmer is properly installed and wired.
  • Check for loose wiring connections at the fixture or dimmer switch.
• Light output is low:
  • Verify the dimmer setting is at maximum brightness if full output is desired.
  • Ensure the fixture is receiving the correct voltage (120V).

If these steps do not resolve the issue, contact customer service or a qualified electrician.

7. Specifikationer

Detailed technical specifications for the Progress Lighting Hide-a-Lite V 9-inch LED Undercabinet Light, model P700000-028-30.

Image 7.1: Product specification sheet for the Progress Lighting Hide-a-Lite V, model P700000-028-30.

8. Garantioplysninger

The Progress Lighting Hide-a-Lite V fixture is backed by a 5 års begrænset garanti. This warranty guarantees your satisfaction with the product and includes professional after-sales customer service support. For specific terms and conditions, please refer to the warranty documentation included with your purchase or contact customer service.

9. Kundesupport

For any questions, assistance, or technical support regarding your Progress Lighting Hide-a-Lite V undercabinet light, please contact our customer service team:

Kundeservice telefon: 1-800-447-1723

Please have your model number (P700000-028-30) available when contacting support to ensure efficient service.
