GLOBE ELECTRIC 91205 3" Hvidt Integreret Indbygget Sæt Brugermanual

1. Vigtige sikkerhedsoplysninger

Please read and understand all instructions before beginning installation. Failure to do so may result in electric shock, fire, or other injuries that could be hazardous or fatal. Keep these instructions for future reference.

• ADVARSEL: Risiko for elektrisk stød. Afbryd strømmen til sikringen eller strømafbryderen før installation eller servicering.
• ADVARSEL: Brandfare. Brug kun med den angivne mængde.tage og wattage.
• Dette produkt skal installeres i overensstemmelse med den gældende installationskode af en person, der er bekendt med produktets konstruktion og drift og de involverede farer.
• Sørg for, at alle elektriske forbindelser er sikre og overholder lokale forskrifter og bestemmelser.
• Undlad at ændre eller modificere armaturet.
• Velegnet til damp steder.
• IC Klassificeret til direkte kontakt med isolering.

2. Produktet er slutview

The GLOBE ELECTRIC 91205 is a 3-inch white integrated LED recessed lighting kit designed for easy installation and efficient illumination. This ultra-slim fixture provides 370 lumens of light output with a 3000K color temperature, offering a warm white glow. Its integrated LED design ensures long-lasting performance without the need for bulb replacement.

Nøglefunktioner:

• 370 lumens of light output
• 3000K color temperature (Warm White)
• Dimmable construction
• Integrated LED for 50,000 hours of illumination
• Ultra-slim design for easy installation in shallow ceilings
• IC Rated for direct contact with insulation
• Wet rated, suitable for damp steder

Pakkeindhold:

• 1 x 3" Integrated LED Recessed Light Fixture
• 1 x Remote Driver/Junction Box with Integrated LED Connect Cable
• Installation Hardware (e.g., wire connectors)

Figur 2.1: Overview of the GLOBE ELECTRIC 91205 recessed light kit, showing the LED fixture, remote driver/junction box, and connecting cable.

Figur 2.2: Nærbillede view of the 3-inch integrated LED recessed light fixture.

3. Installationsvejledning

Before starting, ensure the power is turned off at the circuit breaker. This fixture is designed for flush mount installation in ceilings.

Nødvendige værktøjer (ikke inkluderet):

• Målebånd
• Blyant
• Gipsvægssav eller hulsav
• Trådstrippere
• Skruetrækker

Installationstrin:

1. Sluk for strømmen: Locate the circuit breaker controlling the area where you will install the light and turn off the power. Verify power is off using a voltage tester.
2. Bestem placering: Choose the desired location for your recessed light. Ensure there are no obstructions (joists, pipes, wires) in the ceiling space.
3. Klip hul: Using a pencil, mark a 3.25-inch (8.25 cm) diameter hole in the ceiling. Carefully cut the hole using a drywall saw or hole saw.


Figur 3.1: Dimensions of the recessed light fixture, showing a 3-inch (7.62cm) diameter and 0.4-inch (1cm) thickness.

4. Forbered ledningsføring: Run electrical supply wires (live, neutral, ground) to the cut-out hole.
5. Connect Junction Box: Open the cover of the remote driver/junction box. Remove the appropriate knock-out for your electrical cable. Insert the electrical supply cable into the junction box and secure it with a cable connector (not included, if required by local code).
6. Ledningsforbindelser: Connect the house wiring to the wires inside the junction box using the provided push-in quick connectors or wire nuts (if preferred):
   • Tilslut sort (Live) wire from the house to the sort ledning i samledåsen.
   • Tilslut hvid (Neutral) wire from the house to the hvid ledning i samledåsen.
   • Tilslut grøn or bare copper (Ground) wire from the house to the grøn ledning i samledåsen.

Figur 3.2: Wiring connections inside the low-profile junction box using push & click quick connectors for easy installation.
7. Sikker samledåse: Close the junction box cover and place the junction box into the ceiling opening.
8. Tilslut armatur: Connect the integrated LED connect cable from the fixture to the corresponding connector on the junction box. Ensure the connection is secure.
9. Installer armaturet: Push the spring clips on the sides of the recessed light fixture upwards. Insert the fixture into the ceiling hole. The spring clips will hold the fixture securely in place against the ceiling.
10. Gendan strøm: Når armaturet er sikkert installeret, skal strømmen genoprettes ved afbryderen.

4. Betjeningsvejledning

The GLOBE ELECTRIC 91205 recessed light is designed for simple operation.

• Tænd/sluk: Use a standard wall switch (not included) connected to the circuit to turn the light fixture on or off.
• Dæmpning: This fixture is dimmable. To utilize the dimming feature, connect it to a compatible LED dimmer switch (sold separately). Follow the dimmer switch manufacturer's instructions for installation and operation.

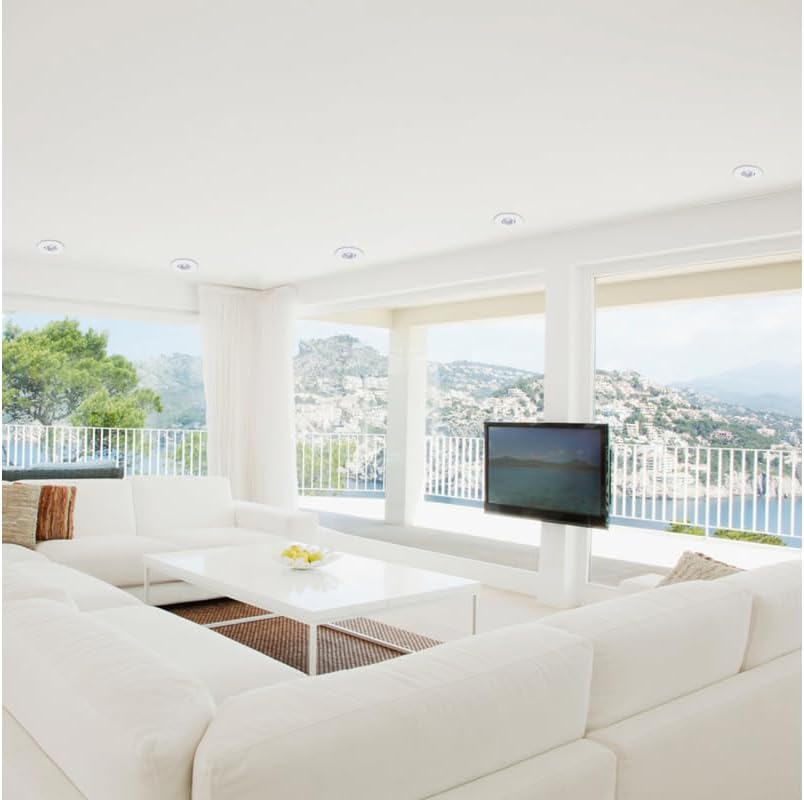

Figur 4.1: Example of GLOBE ELECTRIC recessed lights installed in a living room setting.

Figur 4.2: Example of GLOBE ELECTRIC recessed lights providing illumination in a kitchen.

Figur 4.3: Example of GLOBE ELECTRIC recessed lights installed in a covered outdoor entryway, suitable for damp steder.

5. Vedligeholdelse

The GLOBE ELECTRIC 91205 recessed light requires minimal maintenance.

• Rensning: Sørg for, at strømmen er slukket, inden rengøring. Tør armaturet af med en blød, tør eller let fugtet klud.amp cloth. Do not use harsh chemicals or abrasive cleaners, as they may damage the finish or electrical components.
• LED-levetid: The integrated LED is designed for a long lifespan (50,000 hours) and does not require bulb replacement.

6. Fejlfinding

If you experience issues with your recessed light, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, contact a qualified electrician or GLOBE ELECTRIC customer support.

7. Specifikationer

8. Garanti og support

For warranty information or technical support, please contact GLOBE ELECTRIC customer service. Keep your purchase receipt as proof of purchase.

• Fabrikant: GLOBE ELECTRIC
• Kontaktoplysninger: Refer to the GLOBE ELECTRIC official website or product packaging for the most current customer support details.
