Audibax Arkansas 12 Bluetooth-højttaler brugermanual

1. Introduktion

This manual provides detailed instructions for the safe and effective operation of your Audibax Arkansas 12 Bluetooth Speaker. Please read this manual thoroughly before using the product and retain it for future reference. The Audibax Arkansas 12 is an active 2-way speaker designed for high-quality audio reproduction with versatile connectivity options including Bluetooth, USB, and SD card playback.

2. Sikkerhedsoplysninger

• Strømkilde: Connect the speaker only to an AC power outlet that matches the voltage angivet på enheden.
• Ventilation: Ensure adequate ventilation around the speaker. Do not block ventilation openings.
• Vand og fugt: Do not expose the speaker to rain, moisture, or excessive humidity. Keep liquids away from the unit.
• Varme: Avoid placing the speaker near heat sources such as radiators, heat registers, stoves, or other heat-producing appliances.
• Rensning: Tag stikket ud af stikkontakten før rengøring. Brug kun en tør klud.
• Service: Forsøg ikke selv at servicere dette produkt. Overlad al service til kvalificeret servicepersonale.
• Placering: Place the speaker on a stable, level surface. Ensure it is securely mounted if using a stand.

3. Produktet er slutview

The Audibax Arkansas 12 speaker features a robust ABS enclosure and a steel grille for durability. It includes integrated handles for easy transport. The rear panel houses all control interfaces and input/output ports.

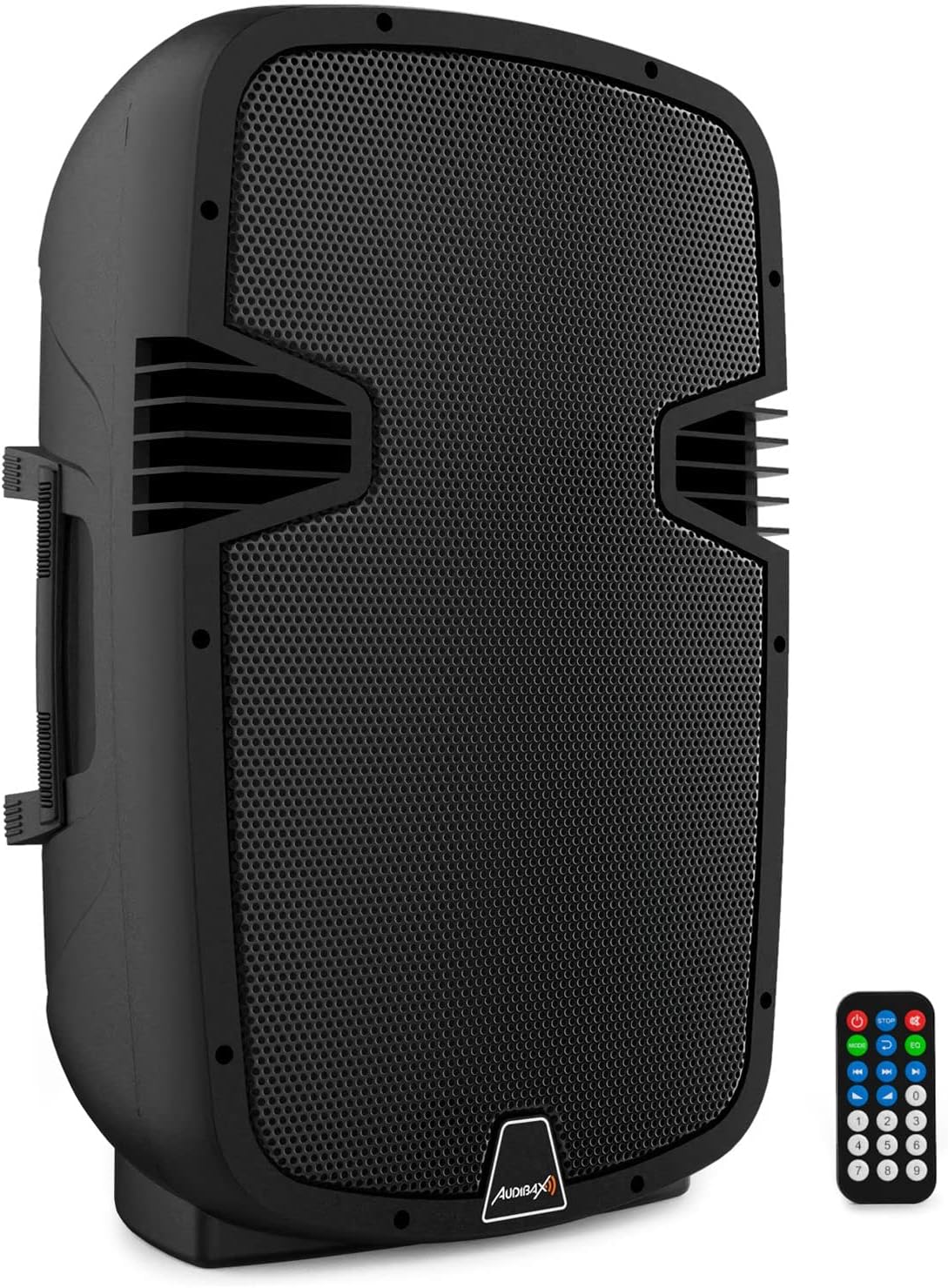

Figur 3.1: Forside view of the Audibax Arkansas 12 speaker with its remote control.

3.1 Betjeningselementer og tilslutninger på bagpanelet

The rear panel provides access to all audio inputs, outputs, and control adjustments.

Figur 3.2: Detaljeret view of the Audibax Arkansas 12 rear panel, illustrating various inputs, outputs, and controls.

• USB/SD Digital Player: Slot for USB drives and SD cards for media playback. Includes a display and control buttons.
• MIC NIVEAU: Justerer lydstyrken på mikrofonindgangen.
• LINJENIVEAU: Adjusts the volume of the line inputs.
• HOVEDLYD: Master volume control for all audio sources.
• DISKANT: Justerer diskantresponsen.
• BAS: Justerer lavfrekvensresponsen.
• LINE IN (RCA/XLR): Inputs for connecting external audio devices (e.g., mixers, CD players).
• LINE OUT (RCA/XLR): Output for connecting to another speaker or audio system.
• SPEAKER OUT (8Ω): Output for connecting a passive speaker.
• Afbryderen: Tænder eller slukker for højttaleren.
• AC-INDGANG: Tilslutning af strømkabel.

3.2 Fjernbetjening

The included remote control allows for convenient operation of playback functions (play, pause, skip tracks), mode selection, and volume adjustment from a distance.

Figure 3.3: The Audibax Arkansas 12 speaker shown with its multi-function remote control.

4. Opsætning

4.1 Udpakning og placering

1. Tag forsigtigt højttaleren og alt tilbehør ud af emballagen.
2. Place the speaker on a stable, flat surface or mount it on a compatible speaker stand. Ensure the speaker is stable to prevent accidental falls.

4.2 Strømtilslutning

1. Sørg for, at POWER-knappen på bagpanelet er i OFF-positionen.
2. Connect the supplied AC power cord to the AC INPUT on the rear panel of the speaker.
3. Sæt den anden ende af netledningen i en passende stikkontakt.

5. Betjening

5.1 Tænd/sluk

To power on the speaker, flip the POWER switch on the rear panel to the ON position. The display on the USB/SD Digital Player will illuminate. To power off, flip the POWER switch to the OFF position.

5.2 Bluetooth-forbindelse

1. Turn on the Audibax Arkansas 12 speaker. The digital player display will show the current mode.
2. Press the 'MODE' button on the speaker's digital player or the remote control until 'BLUE' (Bluetooth) mode is selected. The display will show 'BLUE' and a blinking Bluetooth icon, indicating it is ready for pairing.
3. On your Bluetooth-enabled device (smartphone, tablet, etc.), go to the Bluetooth settings and search for available devices.
4. Select 'Audibax Arkansas 12' from the list of devices.
5. Once paired, the Bluetooth icon on the speaker's display will stop blinking, and you will hear a confirmation tone. You can now play audio from your device through the speaker.

5.3 USB/SD-afspilning

1. Insert a USB flash drive into the USB port or an SD card into the SD card slot on the digital player.
2. The speaker will automatically switch to USB or SD mode and begin playing compatible audio files. If not, press the 'MODE' button to select the correct source.
3. Use the control buttons on the digital player or the remote control to play, pause, skip tracks, and adjust volume.

5.4 Line Input Connection

To connect an external audio source (e.g., a mixer, another speaker, or a media player) using cables:

1. Connect your audio source to the LINE IN (RCA or XLR) ports on the rear panel.
2. Press the 'MODE' button on the speaker until 'LINE' mode is selected.
3. Adjust the LINE LEVEL and MAIN VOLUME controls to achieve the desired audio output.

5.5 mikrofonindgang

Connect a microphone to the MIC IN port on the rear panel. Adjust the MIC LEVEL control to set the microphone volume independently.

5.6 Tone Control (Equalizer)

Use the TREBLE and BASS knobs on the rear panel to adjust the high and low frequencies of the audio output, tailoring the sound to your preference or environment.

6. Vedligeholdelse

6.1 Rengøring

Before cleaning, ensure the speaker is powered off and disconnected from the power outlet. Use a soft, dry cloth to wipe the exterior surfaces. Do not use abrasive cleaners, waxes, or solvents as they may damage the finish.

6.2 Opbevaring

If the speaker will not be used for an extended period, store it in a cool, dry place, away from direct sunlight and extreme temperatures. It is recommended to keep the original packaging for storage and transport.

7. Fejlfinding

• Ingen strøm:
  • Check if the power cord is securely connected to both the speaker and the wall outlet.
  • Ensure the POWER switch is in the ON position.
  • Kontroller, at stikkontakten fungerer ved at tilslutte en anden enhed.
• Ingen lyd:
  • Check the MAIN VOLUME control and ensure it is not set to minimum.
  • Verify the correct input mode (Bluetooth, USB, SD, LINE) is selected.
  • If using Bluetooth, ensure the device is properly paired and its volume is up.
  • If using LINE IN, check the cable connections and the source device's output.
  • If using USB/SD, ensure the media contains compatible audio files og er isat korrekt.
• Problemer med Bluetooth-parring:
  • Ensure the speaker is in Bluetooth pairing mode ('BLUE' blinking on display).
  • Make sure your device's Bluetooth is enabled and within range (typically 10 meters).
  • Prøv at ophæve parringen og parre enheden igen.
  • Genstart både højttaleren og din Bluetooth-enhed.
• Forvrænget lyd:
  • Reduce the MAIN VOLUME on the speaker and the volume on your source device.
  • Check if the audio source itself is distorted.
  • Adjust BASS and TREBLE controls to see if distortion is related to specific frequencies.

8. Specifikationer

The following are the technical specifications for the Audibax Arkansas 12 Bluetooth Speaker:

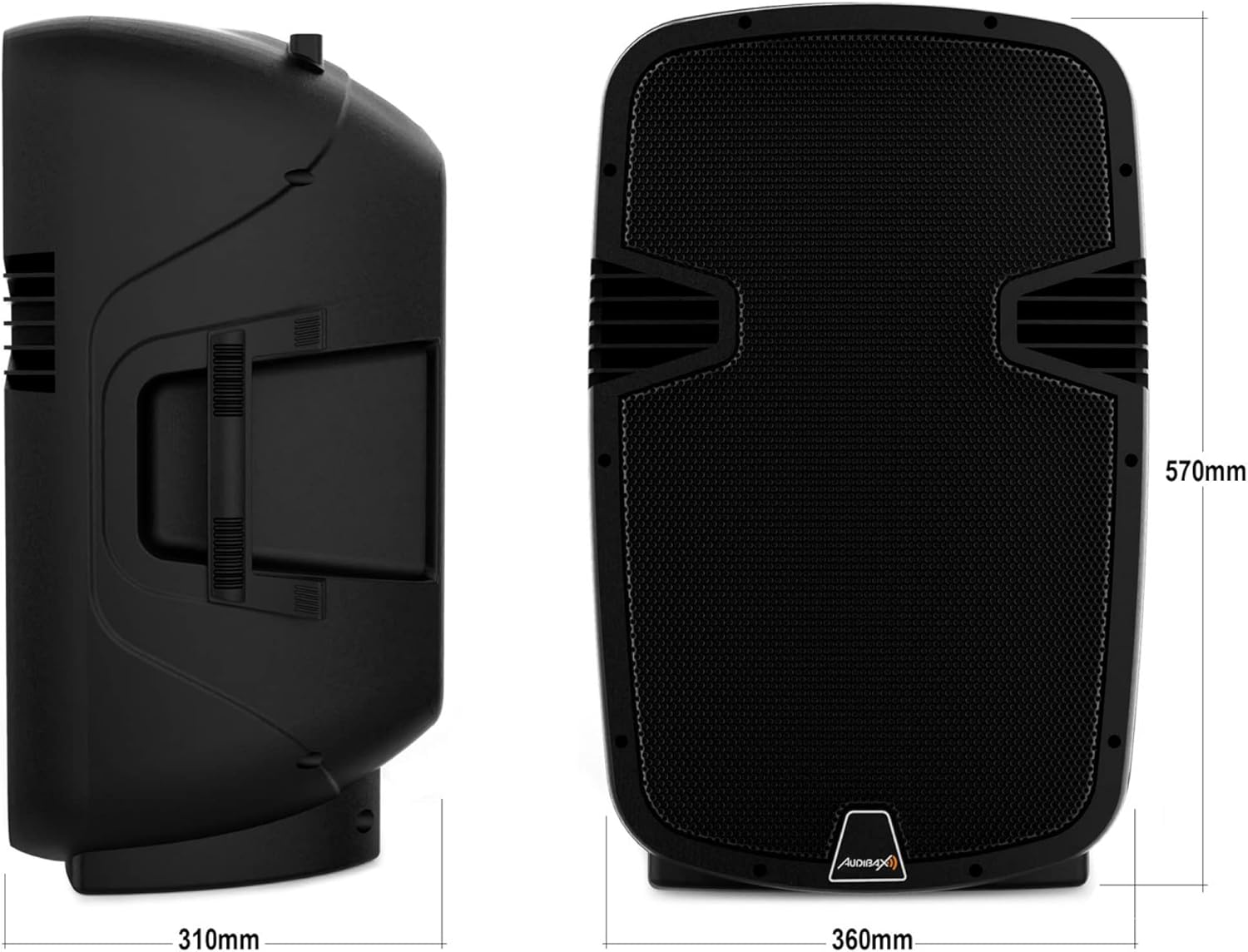

Figure 8.1: Dimensions of the Audibax Arkansas 12 speaker.

9. Garanti og support

For warranty information or technical support, please refer to the documentation provided with your purchase or contact Audibax customer service through their official webwebsted. Gem din købsbevis i tilfælde af garantikrav.
