Fosmon Outdoor Light Timer Outlet

Indledning

This manual provides detailed instructions for the safe and efficient use of your Fosmon Outdoor Light Timer Outlet. Designed for durability and convenience, this 24-hour mechanical timer is ideal for controlling outdoor lights, pool pumps, fountains, and other heavy-duty electrical devices. Please read this manual thoroughly before operation and retain it for future reference.

Produktegenskaber

• 24-timers mekanisk kontrol: Customize on/off times throughout the day or night.
• 30-minutters segmenter: Allows for precise timing adjustments.
• Vejrbestandigt design: Built with a rainproof and rugged lid and casing to withstand rain, wind, and snow.
• Heavy-Duty Capacity: 15A, 1875W resistance, 10A tungsten lamp, 3/4HP, TV-5 ratings, suitable for various appliances including pool pumps.
• 3-Prong Grounded Outlet: Ensures safe electrical connection.
• Fleksibel ledning: Features a 7-inch power cord for convenient placement.
• ETL Certificeret: Meets high safety and performance standards.

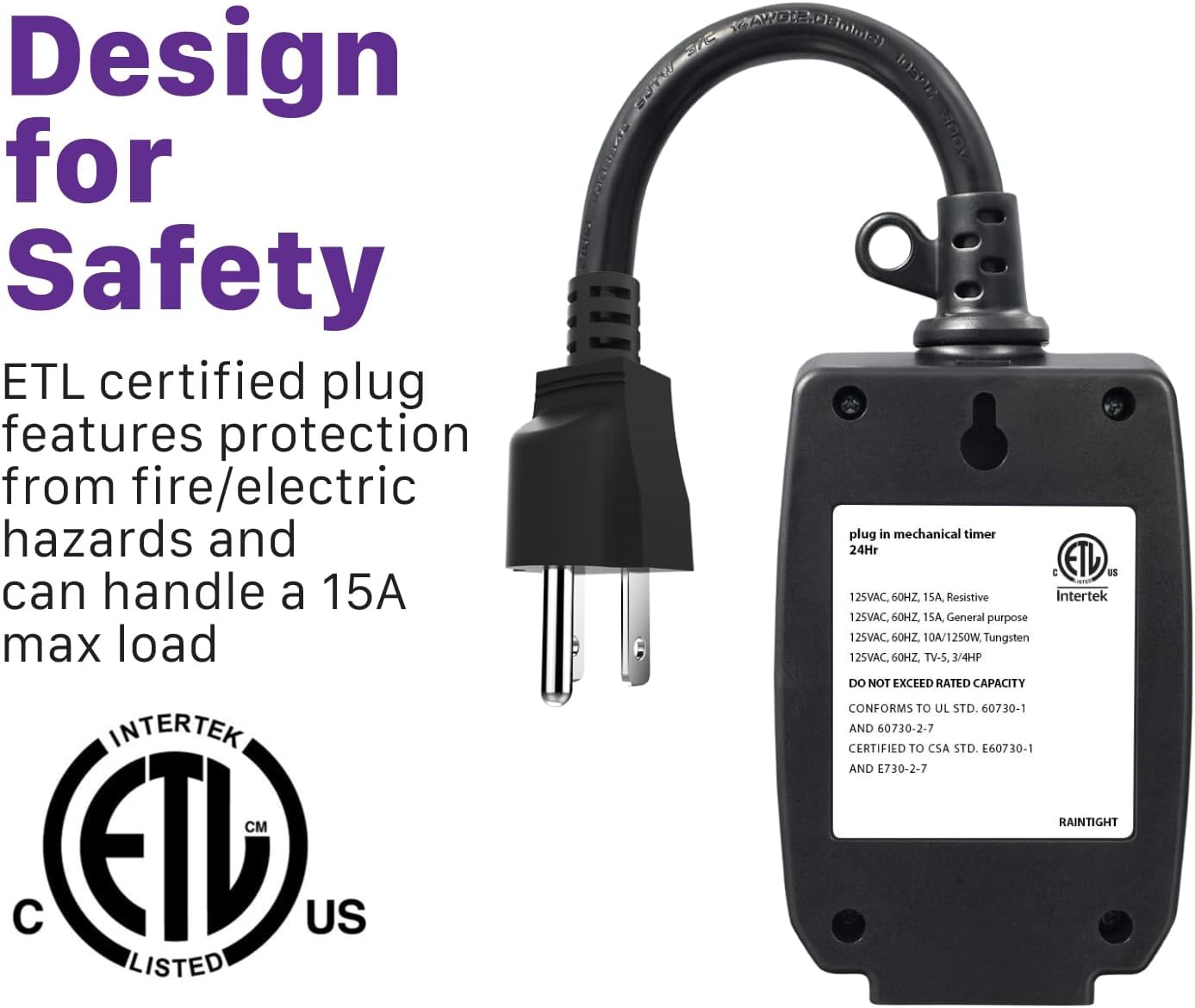

Figure 1: Fosmon Outdoor Light Timer Outlet (Model C-10707US)

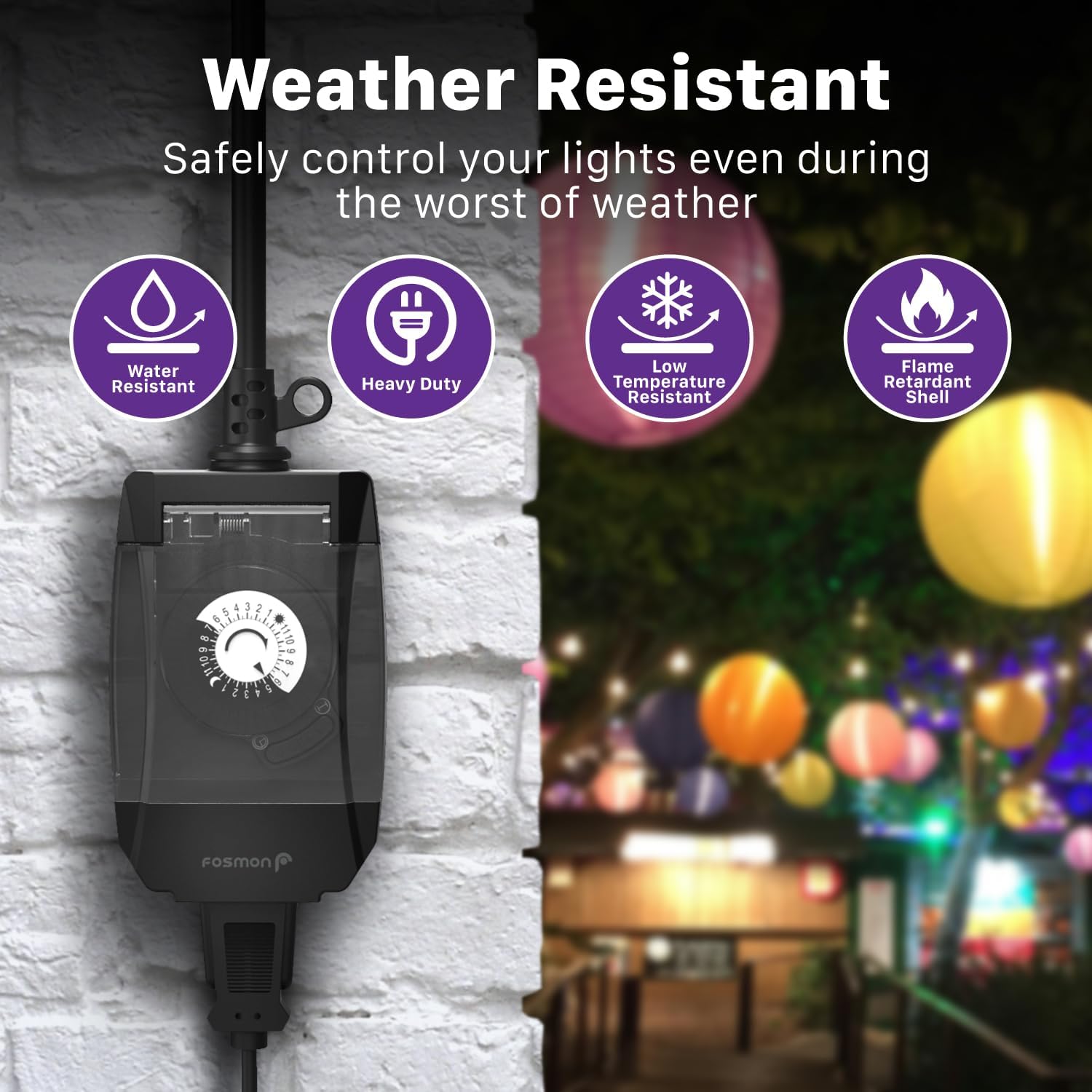

Figure 2: Weather Resistant Features of the Timer

Opsætningsinstruktioner

1. Pak timeren ud: Tag forsigtigt timeren ud af emballagen.
2. Indstil aktuel tid: Rotate the dial clockwise until the current time aligns with the arrow indicator. The dial is divided into 24 hours, with white indicating daytime and black indicating nighttime.
3. Program tænd/sluk-tider: The dial has small pins around its circumference. Each pin represents 30 minutes. Push the pins ned for the periods you want the connected device to be ON. Leave the pins up for the periods you want the device to be SLUKKET.
4. Vælg driftstilstand: Use the slide switch on the side of the timer to select 'TIMER ON' for automatic operation based on your programmed settings, or 'MANUAL ON' to keep the device continuously on, or 'MANUAL OFF' to keep it continuously off.
5. Mount and Plug In: Hang the timer above ground using the integrated mounting hole. Plug the timer into a grounded outdoor electrical outlet. Then, plug your device into the timer's outlet.

Figure 3: Visual Guide for Timer Setup

Figur 4: Detaljeret view of the programmable dial and pins

Betjeningsvejledning

Once set up, the timer will automatically control your connected device according to your programmed schedule. Ensure the slide switch is in the 'TIMER ON' position for automatic operation.

• Automatisk drift: The timer will activate and deactivate the connected device based on the pushed-down (ON) and pulled-up (OFF) pins on the dial.
• Manuel tilsidesættelse: If you need to temporarily turn the device ON or OFF outside of the programmed schedule, use the slide switch to select 'MANUAL ON' or 'MANUAL OFF'. Remember to switch it back to 'TIMER ON' for the programmed schedule to resume.
• Tidssynkronisering: If power is interrupted, the timer will stop. You will need to reset the current time on the dial once power is restored to maintain accurate scheduling.

Opretholdelse

The Fosmon Outdoor Light Timer Outlet is designed for minimal maintenance due to its robust, weather-resistant construction.

• Rensning: Periodically wipe the timer with a damp cloth to remove dirt or debris. Do not immerse in water or use harsh chemicals.
• Placering: For optimal performance and longevity, ensure the timer is hung in a location where water can drain away from it, ideally above ground level.
• Inspektion: Regularly inspect the power cord and plug for any signs of damage. Discontinue use if any damage is found.

Figure 5: Timer operating reliably in various outdoor conditions

Fejlfinding

If you encounter issues with your timer, please refer to the following common solutions:

• Enheden tænder/slukker ikke:
  • Kontroller, om timeren er korrekt tilsluttet en strømførende stikkontakt.
  • Ensure the connected device is functioning correctly when plugged directly into an outlet.
  • Verify that the current time on the timer dial is accurately set.
  • Confirm that the pins for the desired ON/OFF periods are correctly pushed down or pulled up.
  • Make sure the slide switch is set to 'TIMER ON'.
• Timeren går ikke fremad:
  • Sørg for, at timeren modtager kontinuerlig strøm.
  • The mechanical timer relies on power to advance. If power is interrupted, it will stop. Reset the time after power is restored.

Specifikationer

Figure 6: Detailed product dimensions and electrical ratings

Garanti og support

Fosmon stands behind the quality of its products. This timer outlet comes with a Begrænset livstidsgaranti.

• For warranty claims or technical assistance, please contact our experienced and dedicated USA-based customer service team.
• Contact information can typically be found on the product packaging or the official Fosmon webwebsted.
