Indledning
This manual provides essential information for the safe and correct assembly, operation, and maintenance of your Kappesberg S725 5-Drawer Chest. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Sikkerhedsoplysninger
- Anti-tip-enhed: Always install the included anti-tip device to prevent serious injury from furniture tip-over. Secure the chest to a wall stud using the provided hardware.
- Vægtgrænser: Do not exceed the recommended weight limits for each drawer or the top surface. Overloading can cause structural damage or tip-over.
- Børnesikkerhed: Keep small parts away from children during assembly. Do not allow children to climb on or play with the chest.
- Forsamling: Assemble the chest on a soft, clean surface to prevent scratches. Ensure all fasteners are securely tightened before use. Periodically check and re-tighten fasteners as needed.
- Placering: Place the chest on a level surface to ensure stability and proper drawer function.
Pakkens indhold
Before assembly, verify that all components are present. If any parts are missing or damaged, contact Kappesberg customer support.
- Sidepaneler (2)
- Toppanel (1)
- Bundpanel (1)
- Back Panel (1 or more sections)
- Skuffefronter (5)
- Skuffesidepaneler (10)
- Skuffebagpaneler (5)
- Skuffebundpaneler (5)
- Skuffeskinner (10 par)
- Håndtag (5)
- Assembly Hardware (screws, dowels, cam locks, anti-tip kit)
Opsætnings- og monteringsvejledning
Tools required: Phillips head screwdriver, hammer (optional, for dowels), measuring tape, pencil.
- Forbered arbejdsområdet: Clear a spacious area and lay down a blanket or cardboard to protect the furniture panels from scratches during assembly.
- Saml hovedrammen: Attach the side panels to the bottom panel using dowels and cam locks. Ensure the pre-drilled holes for drawer slides are facing inward.
- Installer skuffeskinner: Secure the cabinet-side drawer slides to the inner surfaces of the side panels and any central support panels using the provided screws. Ensure they are level and aligned.
- Fastgør toppanelet: Secure the top panel to the assembled frame using dowels and cam locks.
- Installer bagpanelet: Carefully align and nail or screw the back panel to the rear of the chest frame. This adds stability.
- Saml skuffer: For each of the five drawers, attach the side panels to the front and back panels using dowels and cam locks. Slide the drawer bottom panel into the grooves.
- Fastgør skuffeskinner til skuffer: Secure the drawer-side drawer slides to the outer surfaces of the assembled drawer boxes.
- Installer håndtag: Attach the handles to the front of each drawer using the provided screws.
- Indsæt skuffer: Carefully slide each assembled drawer into its corresponding slot in the chest, ensuring the drawer slides engage properly.
- Installer anti-tip-anordning: Position the chest in its desired location. Secure the anti-tip bracket to the top rear of the chest and then to a wall stud using the provided hardware. This step is crucial for safety.
Image: The fully assembled Kappesberg S725 5-Drawer Chest, showcasing its five drawers and Nature finish.
Image: The Kappesberg S725 5-Drawer Chest integrated into a bedroom environment, demonstrating its functional and aesthetic placement.
Betjeningsvejledning
The Kappesberg S725 chest features five smooth-gliding drawers for storage.
- Åbning/lukning af skuffer: Gently pull the handle to open a drawer and push it firmly to close. Avoid slamming drawers to prevent damage to the slides and frame.
- Vægtfordeling: Distribute items evenly within each drawer. Avoid placing heavy items exclusively at the front of the drawer, which can cause tipping when fully extended.
- Skuffekapacitet: Each drawer is designed to hold a reasonable amount of clothing or personal items. Do not overload drawers beyond their capacity, as this can strain the drawer slides and potentially cause them to fail.

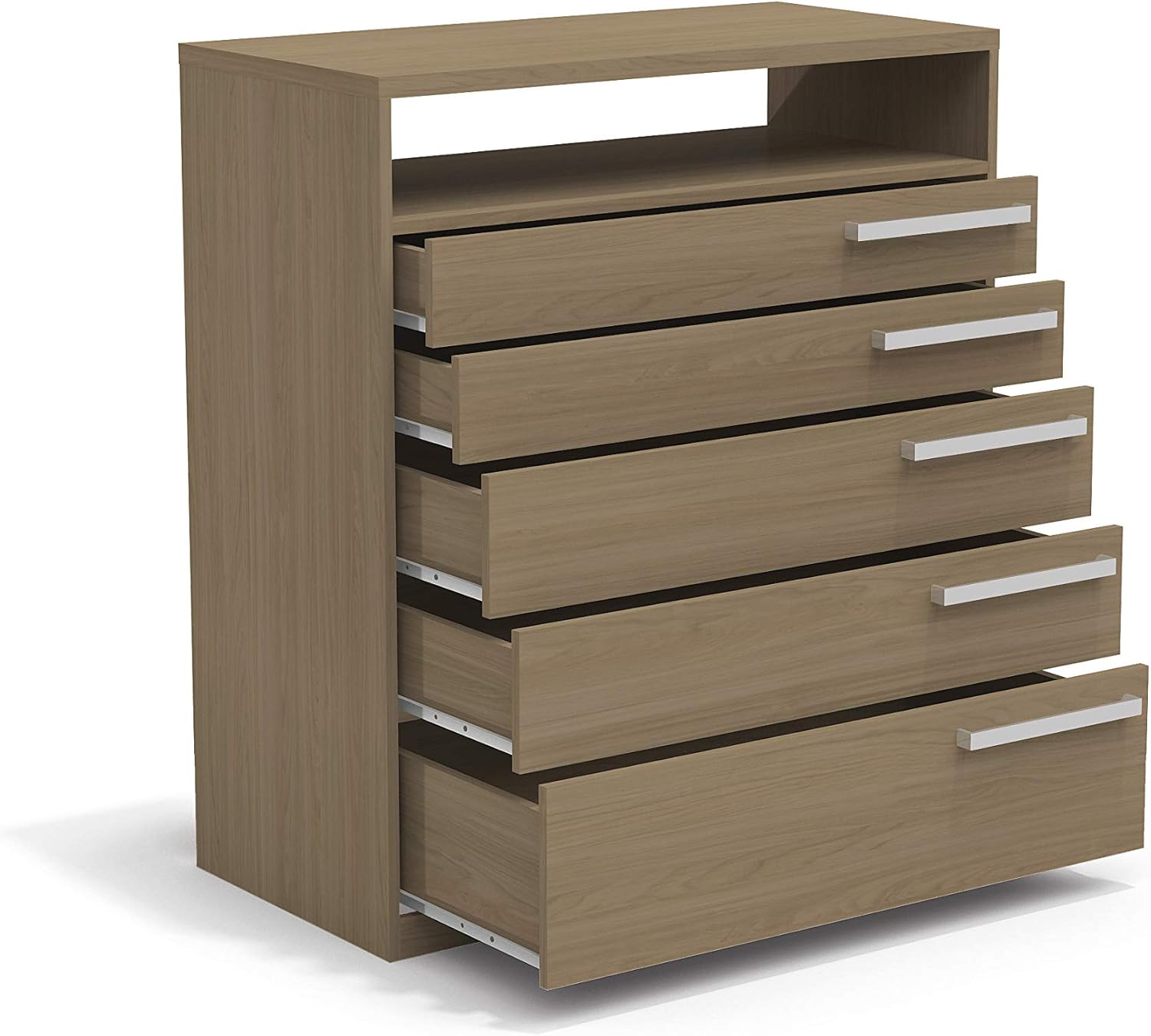

Image: The Kappesberg S725 5-Drawer Chest with all five drawers partially open, illustrating the drawer mechanism and storage access.
Opretholdelse
- Rensning: Tør overflader af med en blød, damp cloth. Avoid using abrasive cleaners, harsh chemicals, or excessive moisture, which can damage the MDP material and glossy finish.
- Støvning: Regularly dust the chest with a dry, soft cloth to prevent buildup.
- Fastgørelseskontrol: Periodically inspect all screws and fasteners to ensure they remain tight. Re-tighten as necessary to maintain structural integrity.
- Eksponering for sollys: Undgå langvarig udsættelse for direkte sollys, da dette kan forårsage falmning eller misfarvning af overfladen.
Fejlfinding
- Drawers are Sticking or Not Closing Smoothly:
- Check if the chest is on a level surface. Adjust if necessary.
- Ensure drawer slides are properly aligned and free of obstructions.
- Verify that all drawer assembly screws are tight.
- Chest Feels Unstable:
- Confirm that the anti-tip device is securely installed to a wall stud.
- Check all main frame fasteners for tightness.
- Ensure the chest is on a flat, even surface.
- Manglende eller beskadigede dele:
- Refer to the 'Package Contents' section. If parts are missing or damaged upon receipt, contact Kappesberg customer support for assistance.
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Kappesberg |
| Model | S725 |
| Materiale | MDP (Medium Density Particleboard) |
| Finish Type | Blank |
| Antal skuffer | 5 |
| Produktmål (D x B x H) | 47 cm x 91 cm x 102 cm |

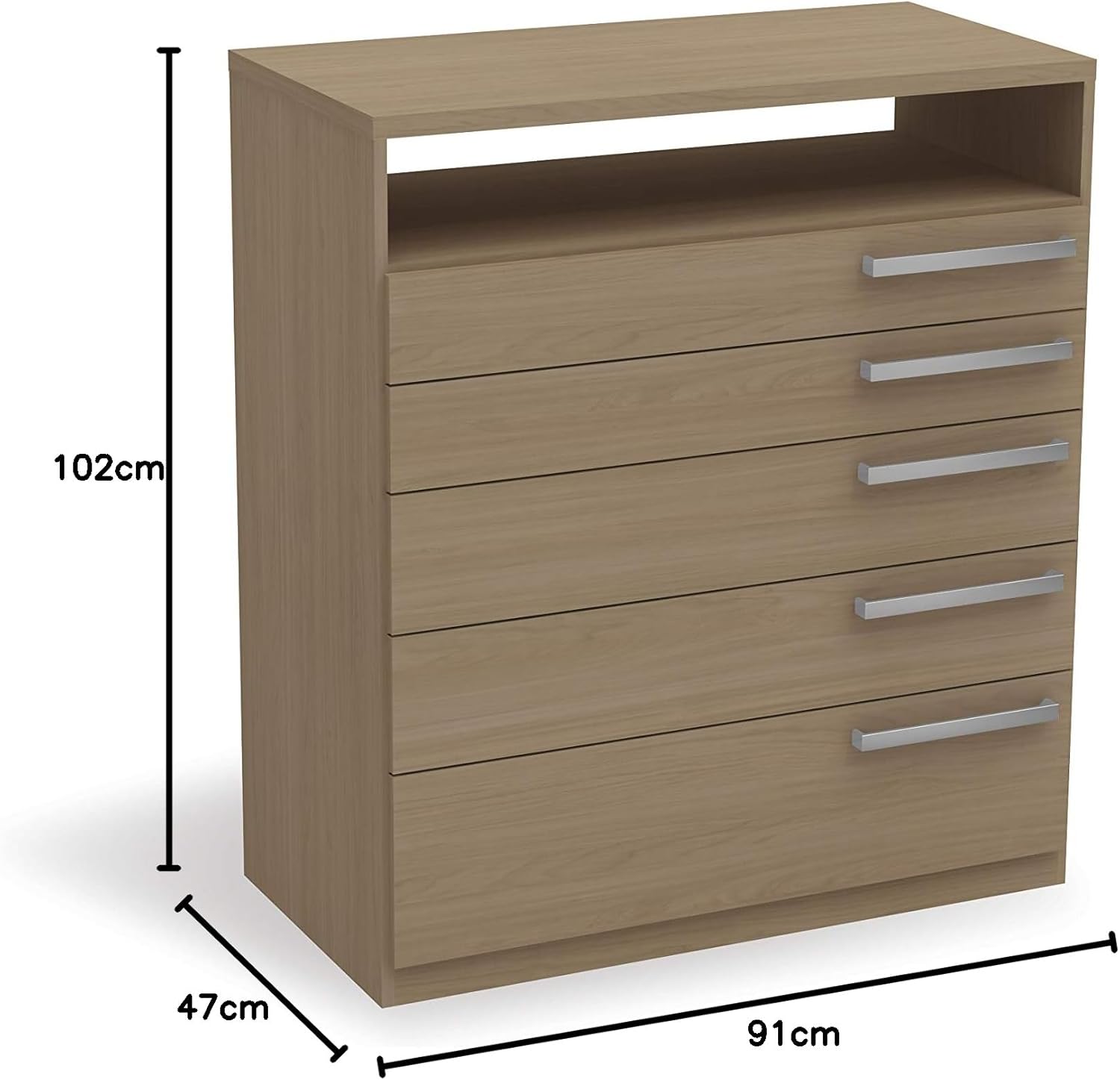

Image: A diagram illustrating the depth (47cm), width (91cm), and height (102cm) of the Kappesberg S725 5-Drawer Chest.
Garanti og support
Information regarding product warranty and customer support contact details is not provided within this manual. Please refer to your purchase documentation or the official Kappesberg website for warranty terms and support options.
