1. Introduktion
This manual provides instructions for the installation, operation, and maintenance of the Nexxt Solutions Naxos800 8-Port Fast Ethernet Network Switch. The Naxos800 is an unmanaged compact desktop switch designed for small office/home office (SOHO) environments, student dormitories, and small enterprises, offering reliable network connectivity.
2. Nøglefunktioner
- 8 Fast Ethernet Ports: Provides 8 UTP/STP 10/100Mbps ports with auto MDI/MDIX.
- Plug and Play: Simple setup requiring no software configuration.
- Ikke-administreret switch: Operates without requiring complex management interfaces.
- Store-and-Forward Technology: Ensures efficient packet transmission.
- MAC-adresselæring: Supports auto-learning and aging with a built-in 1000 MAC address table.
- Kompakt design: Suitable for desktop or wall mounting.
- Energibesparelse: Design med lavt strømforbrug.
- Flow kontrol: Full duplex and half duplex back pressure flow control.
- Holdbarhed: Integrated lightning protection and a sturdy metal case.
- Stille drift: Fanless design for silent performance.
3. Pakkens indhold
Bekræft, at din pakke indeholder følgende varer:
- One (1) Nexxt Solutions Naxos800 8-Port Fast Ethernet Switch
- En (1) strømadapter
Image: The Nexxt Solutions Naxos800 switch, its power adapter, and product packaging.
4. Produktet er slutview
Billede: Forside view of the Naxos800 switch, showing the Nexxt logo and eight green LED indicators for port activity.

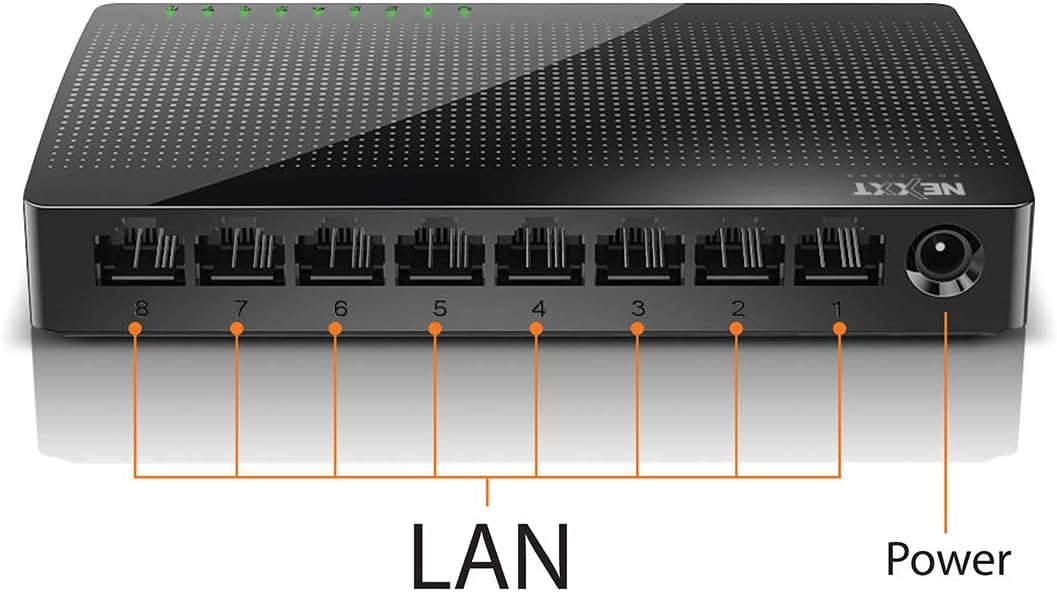

Billede: Bagside view of the Naxos800 switch, highlighting the eight LAN ports (numbered 1-8) and the power input port.
LED-indikatorer
The front panel features LED indicators for each port, providing visual status:
- Grøn LED (konstant): Indicates a stable link connection.
- Grøn LED (blinker): Indicates data activity on the corresponding port.
- LED slukket: No link or connection detected.
5. Opsætning og installation
The Naxos800 switch is designed for simple plug-and-play installation. No software or complex configuration is required.
- Placering: Place the switch on a stable, flat surface or mount it on a wall using appropriate hardware (not included). Ensure adequate ventilation around the device.
- Tilslut til strøm: Connect the provided power adapter to the power input port on the switch and then plug the adapter into a standard electrical outlet. The power LED (if present, or the port LEDs will light up) should illuminate.
- Opret forbindelse til netværk:
- Connect your router or modem to any of the 8 LAN ports on the Naxos800 switch using an Ethernet cable.
- Connect your network devices (e.g., computers, gaming consoles, IP cameras, Smart TVs, printers) to the remaining LAN ports on the Naxos800 switch using an Ethernet cable.
- Bekræft forbindelsen: Once devices are connected, the corresponding LED indicators on the switch's front panel should light up green (solid for link, flashing for activity).
Image: Diagram illustrating a typical network setup. An ADSL or Cable Modem connects to a Router, which then connects to the Naxos800 switch. Various devices like laptops, media players, game consoles, IP cameras, Smart TVs, and IP phones are connected to the Naxos800 switch.
6. Betjening af kontakten
The Naxos800 is an unmanaged switch, meaning it operates automatically without user intervention once connected. It functions as an internet splitter, expanding the number of wired network connections available from your router or modem.
- Automatic Speed Detection: Each port automatically detects the speed of the connected device (10Mbps or 100Mbps) and adjusts accordingly.
- Automatisk MDI/MDIX: Eliminates the need for crossover cables; the switch automatically detects and corrects for straight-through or crossover cable types.
- Dataoverførsel: Data packets are forwarded between connected devices at Fast Ethernet speeds. The store-and-forward architecture ensures data integrity.
7. Vedligeholdelse
The Naxos800 switch requires minimal maintenance.
- Rensning: Brug en blød, tør klud til at rengøre ydersiden af kontakten. Brug ikke flydende rengøringsmidler eller rengøringsmidler på sprayform.
- Ventilation: Sørg for, at ventilationsåbningerne ikke er blokeret for at forhindre overophedning.
- Power Cycle: If the device experiences issues, a simple power cycle (unplugging and replugging the power adapter) can often resolve minor problems.
8. Fejlfinding
If you encounter issues with your Naxos800 switch, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen strøm / Enheden tænder ikke. | Strømadapteren er ikke tilsluttet eller defekt; stikkontakten virker ikke. | Ensure the power adapter is securely connected to the switch and a working electrical outlet. Try a different outlet. |
| No link light for a connected device. | Ethernet cable faulty or improperly connected; device not powered on or faulty; incorrect port. |
|
| Langsomme netværkshastigheder. | Network congestion; faulty cable; device limitations. |
|
9. Specifikationer
| Attribut | Værdi |
|---|---|
| Modelnummer | ASIDT084U3 |
| Havne | 8 x 10/100Mbps Fast Ethernet (UTP/STP) |
| Backplane båndbredde | 1.6 Gbps |
| MAC-adressetabel | 1000 poster |
| Adgangskontrol | CDMA |
| Flow kontrol | Full duplex and half duplex back pressure |
| Dimensioner (L x B x H) | 12.4 x 5.9 x 2.3 cm |
| Vægt | 140 g |
| Strømindgang | Ekstern strømadapter (medfølger) |
Bemærk: Specifikationerne kan ændres uden forudgående varsel.
10. Garanti og support
The Nexxt Solutions Naxos800 8-Port Fast Ethernet Network Switch comes with a 5 års begrænset garanti. For warranty claims or technical support, please contact Nexxt Solutions customer service. Refer to the official Nexxt Solutions webwebstedet for de seneste supportoplysninger og kontaktoplysninger.
Nexxt Solutions is a US company committed to quality and customer service.
