Reloop RP-7000 MK2 Professionel DJ Pladespiller Brugermanual

Indledning

The Reloop RP-7000 MK2 is a professional direct-drive turntable system designed for DJs and audiophiles. Engineered for club environments, it features a robust construction and precise motor control, offering exceptional performance and reliability.

Nøglefunktioner:

• Built for the Club: Heavy-duty housing structure with additional reinforcement using metal, rubber, and plastic elements.
• Refined Motor Control: Further reduction of synchronization fluctuations and adjustable starting torque (2.8 - 4.5 kg/cm).
• Newly Designed Tonearm Base: Height-adjustable (VTA) tonearm base with satin-finished, low-resonance tonearm material.
• Improved Pitch Section and Connections: Precisely readable pitch scale and optional ground connection for added protection in club environments.
• Design af høj kvalitet: Elegant and discreet finish in deep metallic black and easily replaceable, rotatable LED needle illumination.

1. Opsætning

1.1 Udpakning og første inspektion

Carefully remove all components from the packaging. Inspect the turntable and accessories for any signs of damage during transit. Retain the original packaging for future transport or storage.

1.2 Inkluderede komponenter

The Reloop RP-7000 MK2 package includes:

• Reloop RP-7000 MK2 Pladespiller
• Universal attachment for pick-up cartridge systems (PMI)
• Reloop Headshell
• Pick-up (stylus/cartridge not included, sold separately)
• Strømkabel
• RCA-kabel

1.3 Placement and Connections

Place the turntable on a stable, level surface away from direct sunlight, heat sources, and excessive vibrations. Ensure adequate ventilation around the unit.

Figure 1: Reloop RP-7000 MK2 Turntable overview. This image shows the complete turntable unit, highlighting its robust design and key components like the platter, tonearm, and control buttons.

Connect the turntable to your audio system using the provided RCA cables. The RP-7000 MK2 features 2 x RCA connections. Connect the RCA output from the turntable to the PHONO input of your mixer or ampHvis din mixer/amplifier does not have a PHONO input, you can use the built-in phono pre-amp by setting the switch on the rear panel to "LINE" and connecting to a standard line input.

Ensure the ground wire (if present and separate) is connected to the ground terminal on your mixer or amplifier to minimize hum and noise.

Figure 2: Rear connections of the Reloop RP-7000 MK2. This image illustrates the RCA output ports and the power input, crucial for connecting the turntable to an audio system.

Finally, connect the power cable to the turntable and then to a suitable power outlet (230 Volt AC).

2. Betjeningsvejledning

2.1 Power On/Off and Basic Playback

To power on the turntable, rotate the power knob located on the top left of the unit. The platter illumination will light up. Place a record on the platter and select the appropriate speed (33, 45, or 78 RPM) using the speed selection buttons.

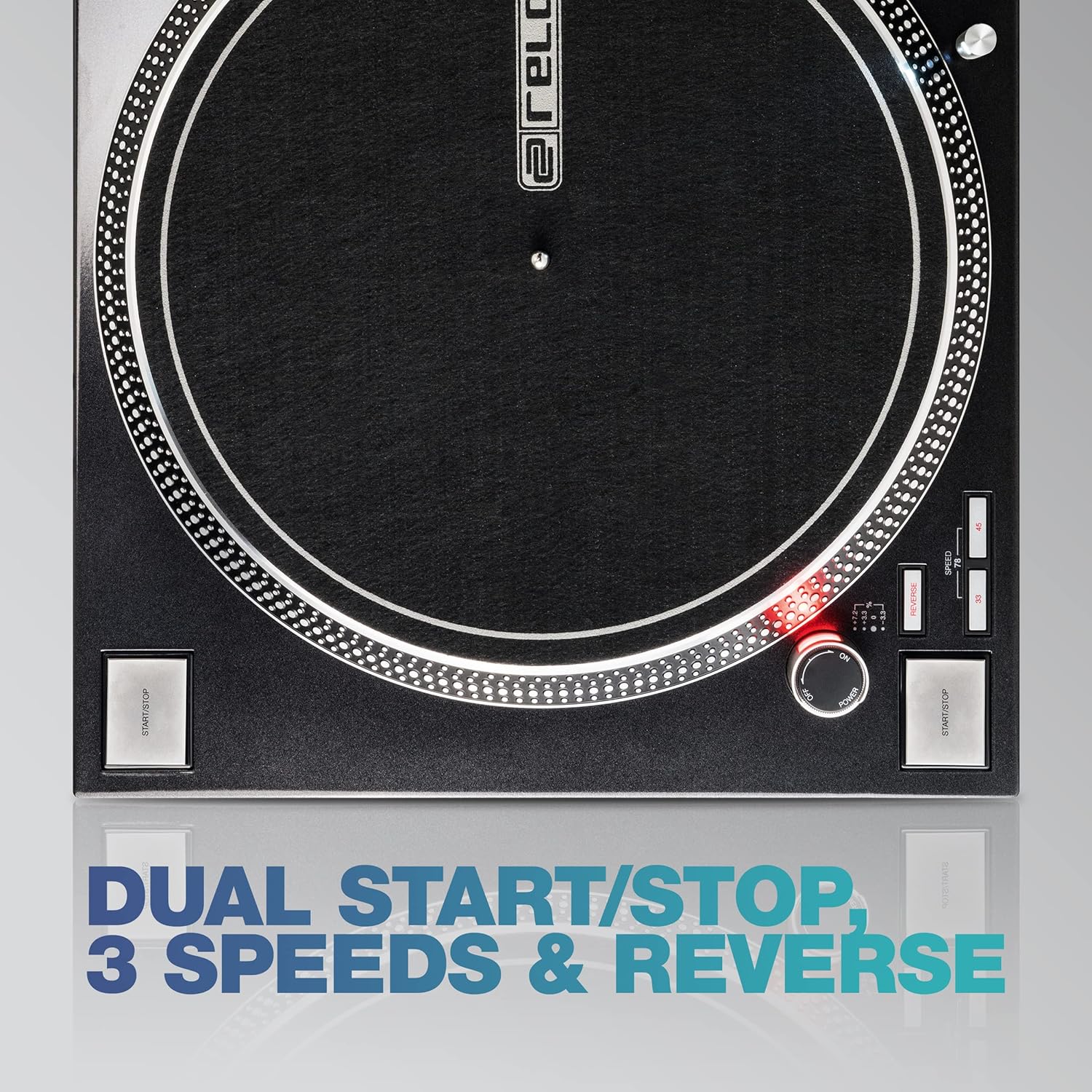

Figure 3: Close-up of speed selection and start/stop buttons. This image highlights the controls for adjusting playback speed and initiating/stopping the platter rotation, including the dual start/stop buttons for flexible setup.

Tryk på en af START/STOP buttons to begin platter rotation. Gently lower the tonearm onto the record using the cueing lever. To stop playback, lift the tonearm and press a START/STOP knap.

2.2 Avancerede kontroller

• Pitch kontrol: Use the pitch slider to adjust the playback speed within a specified range. The RP-7000 MK2 offers precise pitch adjustment for beatmatching.
• Torque and Brake Adjustment: The turntable features adjustable starting torque (2.8 - 4.5 kg/cm) and brake speed. These can be fine-tuned to your preference for quick starts and stops, essential for DJing.
• Omvendt funktion: Activate the reverse function for creative playback effects.
• Tonearm Height Adjustment (VTA): The tonearm base allows for Vertical Tracking Angle (VTA) adjustment. This feature enables precise alignment of the stylus with the record groove, optimizing sound quality and minimizing record wear.

Figure 4: Close-up of the S-shaped tonearm and VTA adjustment. This image details the tonearm assembly, showing the counterweight, anti-skate dial, and the VTA adjustment ring, which allows for precise calibration of the stylus angle.

Figure 5: Hands-on operation of the Reloop RP-7000 MK2. This image captures a DJ interacting with the turntable, demonstrating the ergonomic placement of controls for seamless mixing and scratching.

3. Vedligeholdelse

3.1 Rengøring

Regular cleaning will ensure the longevity and optimal performance of your turntable.

• Chassis and Platter: Wipe the surface of the turntable and platter with a soft, dry, lint-free cloth. For stubborn marks, a slightly damp en klud kan bruges, efterfulgt af øjeblikkelig tørring. Undgå slibende rengøringsmidler eller opløsningsmidler.
• Stylus: Use a dedicated stylus brush to gently clean the stylus tip. Always brush from back to front to avoid damaging the cantilever. Clean the stylus regularly to prevent dust and debris buildup, which can degrade sound quality and damage records.
• Dust Cover (if applicable): If you have an optional dust cover, clean it with a soft, damp klæde.

3.2 Generel pleje

• Always handle records by their edges to prevent fingerprints and dirt.
• When not in use, ensure the tonearm is secured in its rest and the stylus guard is in place.
• Avoid exposing the turntable to extreme temperatures, humidity, or direct sunlight.

4. Fejlfinding

If you encounter issues with your Reloop RP-7000 MK2, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Reloop customer support or your authorized dealer for further assistance.

5. Specifikationer

Below are the technical specifications for the Reloop RP-7000 MK2 Professional DJ Turntable:

6. Garanti og support

Reloop products are manufactured to high quality standards and come with a manufacturer's warranty. The specific terms and duration of the warranty may vary by region and retailer. Please refer to the warranty card included with your product or consult the retailer from whom you purchased the unit for detailed warranty information.

For technical support, service, or spare parts, please contact your authorized Reloop dealer or visit the official Reloop website for support resources and contact information. When contacting support, please have your product model number (AMS-RP-7000-MK2) and serial number ready.

For mere information kan du besøge Reloop official webwebsted.
