Indledning
Thank you for choosing the Hifonics Zs65c Zeus Series 6.5-inch 2-Way Component Speaker System. This manual provides essential information for the proper installation, operation, and maintenance of your new car audio speakers. Please read this manual thoroughly before installation to ensure optimal performance and safety.
Sikkerhedsoplysninger
- Always disconnect the vehicle's battery negative terminal before beginning any electrical installation.
- Sørg for, at alle ledninger er korrekt isoleret for at forhindre kortslutninger.
- Mount speakers securely to avoid vibration and potential damage.
- Installer ikke højttalere på steder, der blokerer køretøjets betjening eller sikkerhedsfunktioner.
- Kontakt en professionel installatør, hvis du er usikker på nogen del af installationsprocessen.
- Avoid prolonged exposure to extremely high volume levels, which can cause hearing damage.
Pakkens indhold
Bekræft at alle varer er til stede i din pakke:
- Two 6.5-inch Mid-bass Woofers
- Two Tweeters
- Two Passive Crossover Networks
- Flush, surface, and angle tweeter mounting hardware
- Grilles for the mid-bass woofers

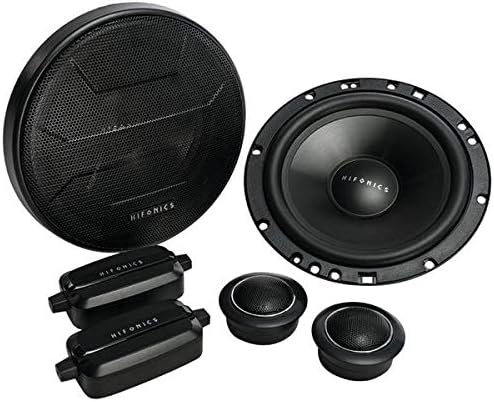

This image displays the complete Hifonics Zs65c component speaker system. It features two 6.5-inch mid-bass woofers, each with a black cone and Hifonics branding. Alongside them are two compact tweeters, also black, designed for high-frequency sound reproduction. Additionally, two black passive crossover networks are visible, which are essential for directing the correct frequency ranges to the woofers and tweeters.
Opsætning og installation
Proper installation is crucial for the performance and longevity of your speaker system. This component system consists of separate woofers, tweeters, and passive crossovers, allowing for flexible placement and optimized sound staging.
1. Mounting the Woofers
- Identify suitable locations in your vehicle for the 6.5-inch woofers. Common locations include door panels or rear deck.
- Ensure the mounting depth of 2-1/8 inches is sufficient.
- Securely fasten the woofers using appropriate hardware.
- Install the provided grilles over the woofers for protection.
2. Mounting the Tweeters
The tweeters come with flush, surface, and angle mounting hardware, offering versatility for optimal sound imaging.
- Flush Mount: Requires cutting a circular hole for the tweeter to sit flush with the mounting surface.
- Overflademontering: Allows the tweeter to be mounted on top of a flat surface.
- Angle Mount: Provides an angled housing to direct the sound towards the listening position.
- Choose the mounting method that best suits your vehicle and desired sound stage.
3. Tilslutning af systemet
The passive crossover networks are essential for directing the correct frequency ranges to the woofers and tweeters. Incorrect wiring can damage the speakers or your amplivligere.
- Tilslut udgangen fra din amplifier (or head unit) to the input terminals of the passive crossover network.
- Connect the "Woofer" output from the crossover to the 6.5-inch mid-bass woofer.
- Connect the "Tweeter" output from the crossover to the tweeter.
- Ensure correct polarity (+ to + and - to -) for all connections.
- All connections should be secure and insulated to prevent short circuits.
Betjeningsvejledning
Once installed and wired correctly, your Hifonics Zs65c component speakers are ready for use. These speakers are designed to integrate with your existing car audio system.
- Ensure your car audio head unit or amplifier is powered off before making any connections.
- After installation, power on your audio system and start with the volume at a low level.
- Gradually increase the volume and adjust audio settings (bass, treble, balance, fader) on your head unit or amplifier to achieve your preferred sound.
- These speakers are rated for 60 Watts RMS power handling and 300 Watts Maxx Power. Avoid exceeding these limits to prevent damage.
Opretholdelse
To ensure the longevity and optimal performance of your Hifonics Zs65c speakers, follow these simple maintenance guidelines:
- Rensning: Use a soft, dry cloth to gently wipe dust from the speaker cones and grilles. Avoid using harsh chemicals or abrasive cleaners.
- Fugtighed: While designed for automotive environments, these speakers are not waterproof. Avoid exposing them to excessive moisture or direct water spray.
- Inspektion: Kontrollér regelmæssigt alle ledningsforbindelser for at sikre, at de forbliver fastgjorte og fri for korrosion.
- Miljøfaktorer: Protect speakers from extreme temperatures and direct sunlight when possible, as these can degrade materials over time.
Fejlfinding
Hvis du støder på problemer med dit højttalersystem, kan du se følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen lyd fra højttalerne |
|
|
| Forvrænget eller uklar lyd |
|
|
| En højttaler virker ikke |
|
|
If these steps do not resolve the issue, contact Hifonics customer support or a qualified car audio technician.
Specifikationer
| Feature | Specifikation |
|---|---|
| Modelnavn | Zs65c |
| Højttaler type | Komponent |
| Højttaler størrelse | 6.5 tommer (wooferdiameter) |
| RMS Power Handling | 60 watt |
| Maksimal udgangseffekt | 400 watt |
| Højttalerimpedans | 4 Ohm |
| Frekvensrespons (+/- 3dB) | 55Hz-20kHz |
| Sensitivity (1 watt/1 meter) | 88 dB |
| Crossover punkt | 6 kHz |
| Crossover hældning | 12dB |
| Mounting Depth/Chassis Depth | 2-1/8 tommer (5.4 cm) |
| Produktmål (D x B x H) | 5.4 cm D x 17.8 cm B x 5.4 cm H (2.13 cm D x 7.01 cm B x 2.13 cm H) |
| Varens vægt | 4.8 pund (2.18 kg) |
| Forbindelsesteknologi | Coaxial (Note: This refers to the general type of speaker connection, not the speaker itself being coaxial) |
| Lydudgangstilstand | Stereoanlæg |
| Fabrikant | HIFONIK |
| Dato først tilgængelig | 9. oktober 2019 |
Garanti og support
The Hifonics Zs65c Zeus Series Component Speaker System comes with a Limited Warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty card included with your product or visit the official Hifonics webwebsted.
For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Hifonics customer support. Contact information can typically be found on the manufacturer's webwebsted eller produktemballage.
