1. Introduktion
This document provides essential instructions for the safe handling, installation, and maintenance of the Garland 4522628 Mwe/G3 Main USA Wiring Harness. This component is a genuine Original Equipment Manufacturer (OEM) replacement part designed for use in Garland and US Range commercial kitchen equipment, including ovens, grills, and griddles.
Proper installation and adherence to these guidelines are crucial for the safety, reliability, and optimal performance of your equipment. Please read this manual thoroughly before proceeding with any installation or service.
2. Sikkerhedsoplysninger
ADVARSEL: Electrical shock hazard. Disconnect power before servicing. Only qualified service personnel should perform installation and maintenance procedures.
- Always disconnect the main power supply to the equipment before beginning any work.
- Brug passende personlige værnemidler (PPE), herunder isolerede handsker og sikkerhedsbriller.
- Sørg for, at alle forbindelser er sikre og korrekt isolerede for at forhindre kortslutninger eller elektriske farer.
- Do not modify the wiring harness. Use only genuine Garland replacement parts.
- Refer to the specific equipment's service manual for detailed wiring diagrams and safety procedures.
Failure to follow these safety instructions could result in serious injury, death, or damage to the equipment.
3. Produktet er slutview
The Garland 4522628 Mwe/G3 Main USA Wiring Harness is a critical electrical component responsible for distributing power and control signals within compatible Garland and US Range commercial kitchen appliances. It consists of multiple color-coded wires, connectors, and terminals, pre-assembled for specific functions within the equipment's electrical system.
Figur 3.1: The Garland 4522628 Mwe/G3 Main USA Wiring Harness, shown coiled. This image displays the overall appearance of the wiring harness, including various wire colors and connector types.
4. Installation og udskiftning
This section outlines the general procedure for replacing the Garland 4522628 wiring harness. Always refer to the specific service manual for your equipment model for precise instructions and wiring diagrams.
- Forberedelse:
- Ensure the equipment is completely disconnected from its power source. Verify with a voltage tester.
- Allow the equipment to cool down if it has been in operation.
- Gather necessary tools: screwdrivers, wire cutters/strippers (if needed), multimeter, and the new Garland 4522628 wiring harness.
- Adgang til komponenten:
- Carefully remove any access panels or covers to expose the existing wiring harness. Document the location of screws and panels.
- Take photographs or make detailed sketches of the existing wiring connections before disconnection. Note wire colors and terminal positions.

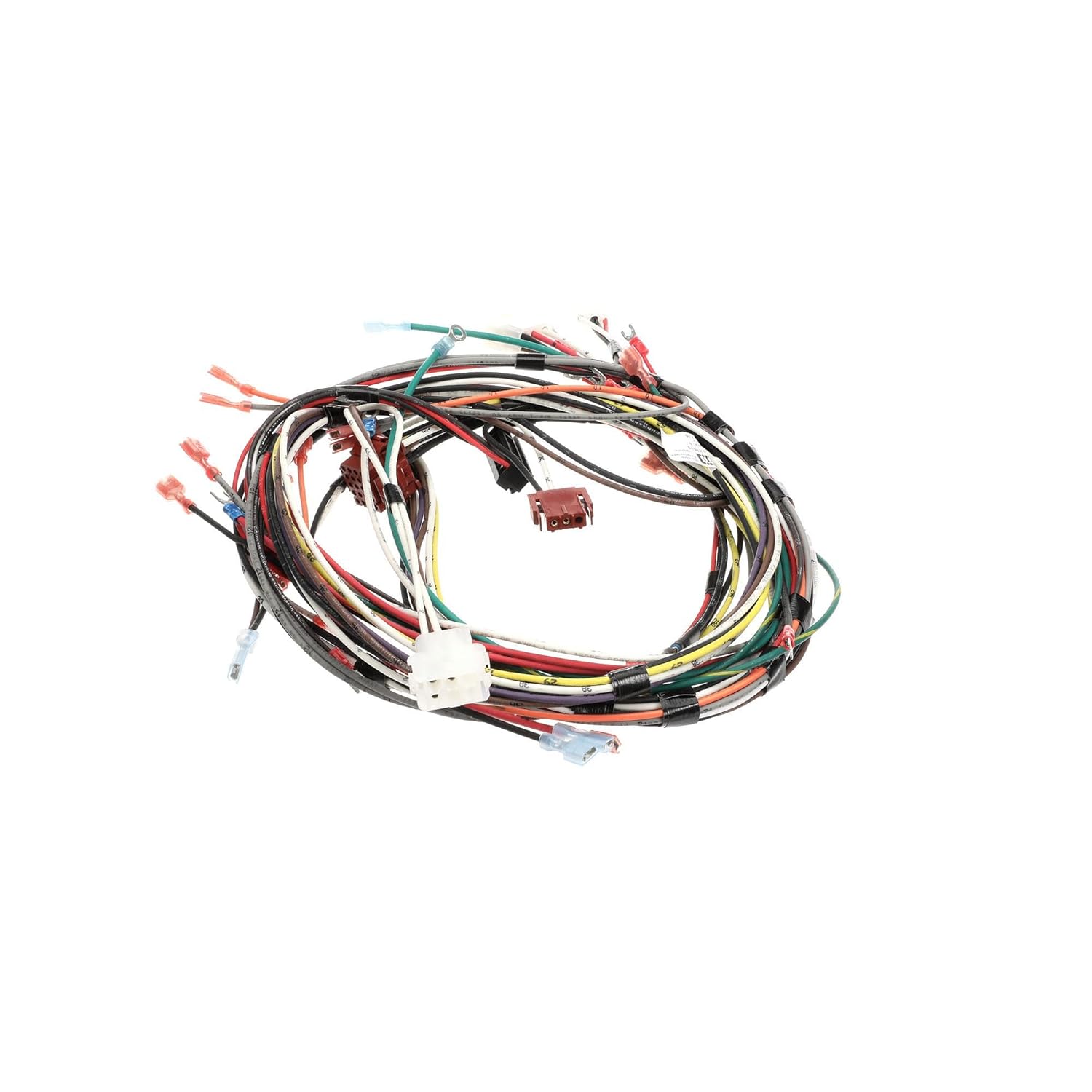

Figur 4.1: Et nærmere view of the Garland 4522628 wiring harness, highlighting various connectors and wire terminations. This image helps in identifying specific connection points.
- Frakobl den gamle ledning:
- Carefully disconnect each wire and connector from the old harness, referencing your documentation.
- Ensure no wires are left loose or incorrectly identified.
- Installer den nye sele:
- Route the new Garland 4522628 wiring harness in the same path as the old one, ensuring it does not interfere with moving parts or heat sources.
- Connect each wire and connector of the new harness to its corresponding terminal, matching the documentation created earlier.
- Kontroller, at alle forbindelser er sikre og korrekt monteret.

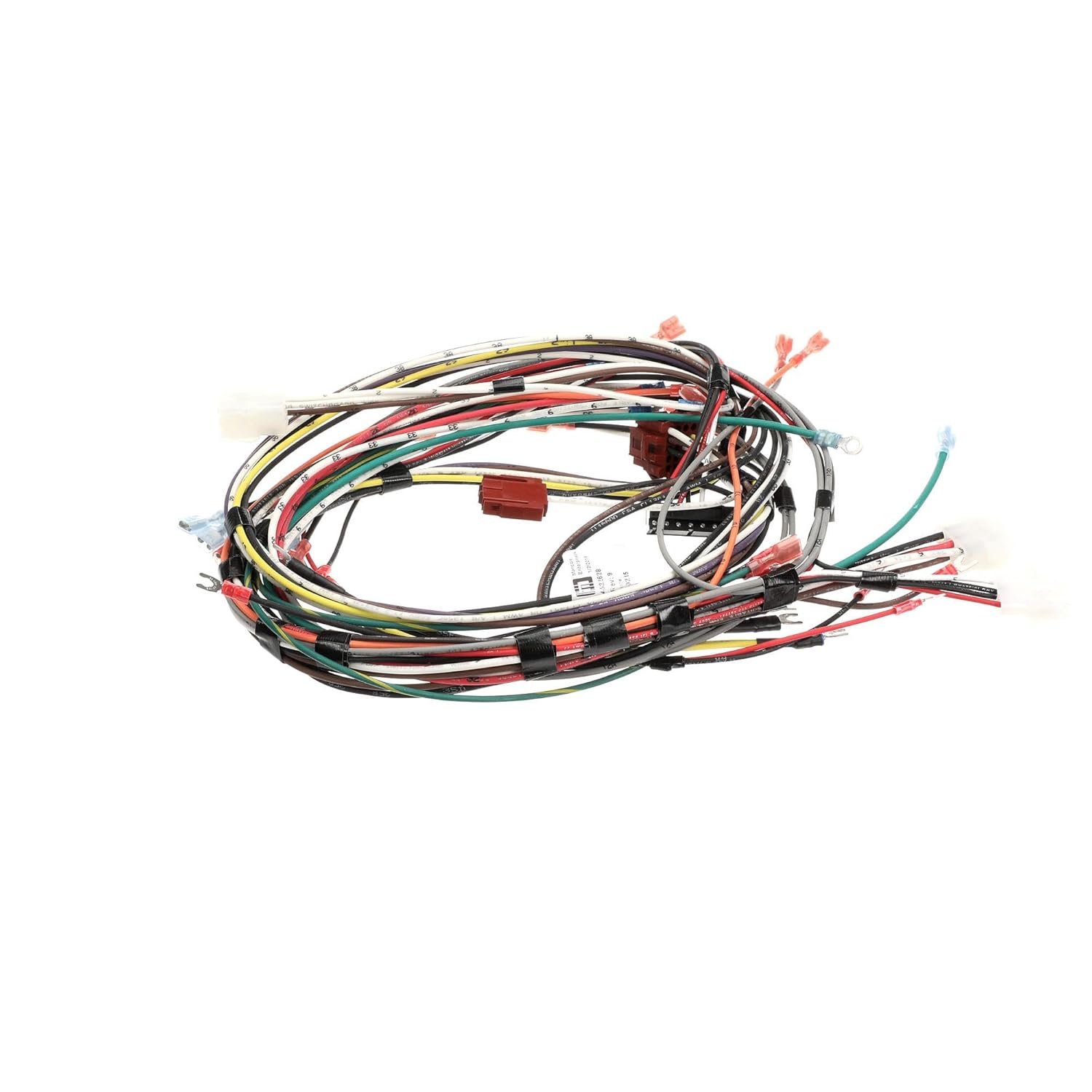

Figur 4.2: An alternative perspective of the Garland 4522628 wiring harness, showing the arrangement of wires and connectors from a different angle. This can assist in understanding routing and connection points.
- Testing and Reassembly:
- Before reassembling, perform continuity and voltage checks as per the equipment's service manual to ensure proper installation.
- Once verified, carefully replace all access panels and covers.
- Reconnect the equipment to the main power supply and test its functionality according to manufacturer guidelines.
Figur 4.3: A view of the Garland 4522628 wiring harness emphasizing the various bundles of wires and their terminations. This image provides further detail on the complexity and structure of the harness.
5. Vedligeholdelse
The Garland 4522628 wiring harness is designed for durability and reliability. Regular maintenance primarily involves inspection during routine equipment servicing.
- Visuel inspektion: Periodically inspect the wiring harness for signs of wear, fraying, discoloration (indicating overheating), or damage to insulation.
- Forbindelsesintegritet: Ensure all connectors remain securely seated and free from corrosion. Loose connections can lead to arcing and component failure.
- Renhed: Keep the area around the wiring harness free from grease, debris, and moisture, which can degrade insulation or cause short circuits.
- Undgå stress: Ensure the harness is not pinched, stretched, or subjected to excessive tension during equipment operation or cleaning.
If any damage is observed, the harness should be replaced immediately by qualified personnel using a genuine Garland replacement part.
6. Fejlfinding
Troubleshooting issues related to the wiring harness typically involves diagnosing electrical continuity and proper signal transmission. Always ensure power is disconnected before performing any checks.
| Symptom | Mulig årsag | Handling |
|---|---|---|
| Equipment fails to power on or specific functions are inoperative. | Loose or disconnected wire/connector in the harness. Damaged wire. | Inspect all connections for tightness. Check for continuity using a multimeter. Replace harness if damaged. |
| Intermittent operation or flickering indicators. | Poor connection, corroded terminal, or partially broken wire. | Inspect connections for corrosion. Gently wiggle wires to check for intermittent contact. Replace harness if issues persist. |
| Burning smell or visible charring near the harness. | Overheating due to excessive current, short circuit, or loose connection. | Afbryd straks strømmen. Do not operate. Inspect for short circuits or overloaded circuits. Replace the harness and address the root cause of overheating. |
For complex electrical issues, consult a qualified service technician or refer to the equipment's comprehensive service manual.
7. Specifikationer
Key specifications for the Garland 4522628 Mwe/G3 Main USA Wiring Harness are provided below. These are general specifications; refer to your equipment's documentation for specific compatibility details.
- Varenummer: 4522628
- Modelbetegnelse: Mwe/G3 Main USA
- Mærke: Garland
- Type: Genuine OEM Replacement Wiring Harness
- Kompatibilitet: Designed for various Garland and US Range commercial kitchen equipment (e.g., ovens, grills, griddles). Refer to equipment-specific manuals.
- Pakkedimensioner: Cirka 14.2 x 12.2 x 7.2 tommer
- Varens vægt: Cirka 1.1 pund
8. Garanti og support
For warranty information regarding the Garland 4522628 Mwe/G3 Main USA Wiring Harness, please refer to the original purchase documentation or contact your authorized Garland dealer or service provider. Genuine OEM parts typically carry a manufacturer's warranty against defects in materials and workmanship.
For technical support, service inquiries, or to locate an authorized service center, please visit the official Garland website or contact their customer service department. Always provide the full model and serial number of your equipment when seeking support.
