YeeSite YS-BR24

YeeSite YS-BR24 72W 24LED RGB Stage Light Bar Instruction Manual

Model: YS-BR24

1. Introduktion

This manual provides detailed instructions for the safe and effective operation of your YeeSite YS-BR24 72W 24LED RGB Stage Light Bar. Please read this manual thoroughly before use and retain it for future reference.

2. Produktfunktioner

3. Sikkerhedsoplysninger

4. Pakkens indhold

Kontroller, at alle genstande er til stede ved udpakning:

YeeSite YS-BR24 LED Stage Light Bar and accessories in packaging
Image 4.1: The YeeSite YS-BR24 LED Stage Light Bar with its included power cord and mounting brackets, shown next to its retail packaging.

5. Opsætning

5.1 Fysisk installation

The light bar can be mounted in various positions: wall, ceiling, or floor. Use the provided mounting brackets to secure the unit. Ensure the mounting surface is stable and can support the weight of the fixture (approximately 4 pounds).

YeeSite YS-BR24 LED Stage Light Bar with mounting brackets
Image 5.1: The YeeSite YS-BR24 LED Stage Light Bar, illustrating its linear design and adjustable mounting brackets for flexible positioning.

5.2 Strømtilslutning

Connect the provided power cord to the 'POWER IN' port on the back of the unit and then to a standard 110V AC power outlet.

Diagram showing power linking for multiple YeeSite YS-BR24 light bars
Image 5.2: A diagram illustrating the power linking capability of the YeeSite YS-BR24, allowing multiple units to be connected in series from a single power source. The image also shows the product dimensions: 40 inches long, 2.5 inches wide, and 3.3 inches high, with a 4.0 ft power cord.

For multiple units, use the 'POWER OUT' port to daisy-chain power to additional light bars. This eliminates the need for multiple power outlets.

6. Driftstilstande

The YeeSite YS-BR24 offers several operational modes, selectable via the 4-button digital display on the rear panel (MENU, UP, DOWN, ENTER).

Close-up of the control panel and DMX ports on the YeeSite YS-BR24
Billede 6.1: En detaljeret view of the rear panel of the YeeSite YS-BR24, highlighting the LED display, control buttons (MENU, UP, DOWN, ENTER), DMX IN/OUT ports, and power IN/OUT connections.

6.1 Auto-Run Mode

In Auto-Run mode, the light bar cycles through pre-programmed patterns and color changes automatically. Use the UP/DOWN buttons to select different auto programs or adjust speed.

6.2 Sound Active Mode

The Sound Active mode allows the light bar to react to ambient sound or music via its built-in microphone. The light patterns and colors will change in sync with the rhythm. Adjust sensitivity using the UP/DOWN buttons.

YeeSite YS-BR24 LED Stage Light Bar syncing with music in a live performance setting
Image 6.2: The YeeSite YS-BR24 LED Stage Light Bar displaying multi-color effects, synchronized with music during a live performance, demonstrating its sound-activated capabilities.

6.3 Static Color Mode

Select Static Color mode to display a single, continuous color. Use the UP/DOWN buttons to choose from a range of colors (Red, Green, Blue, or mixed colors).

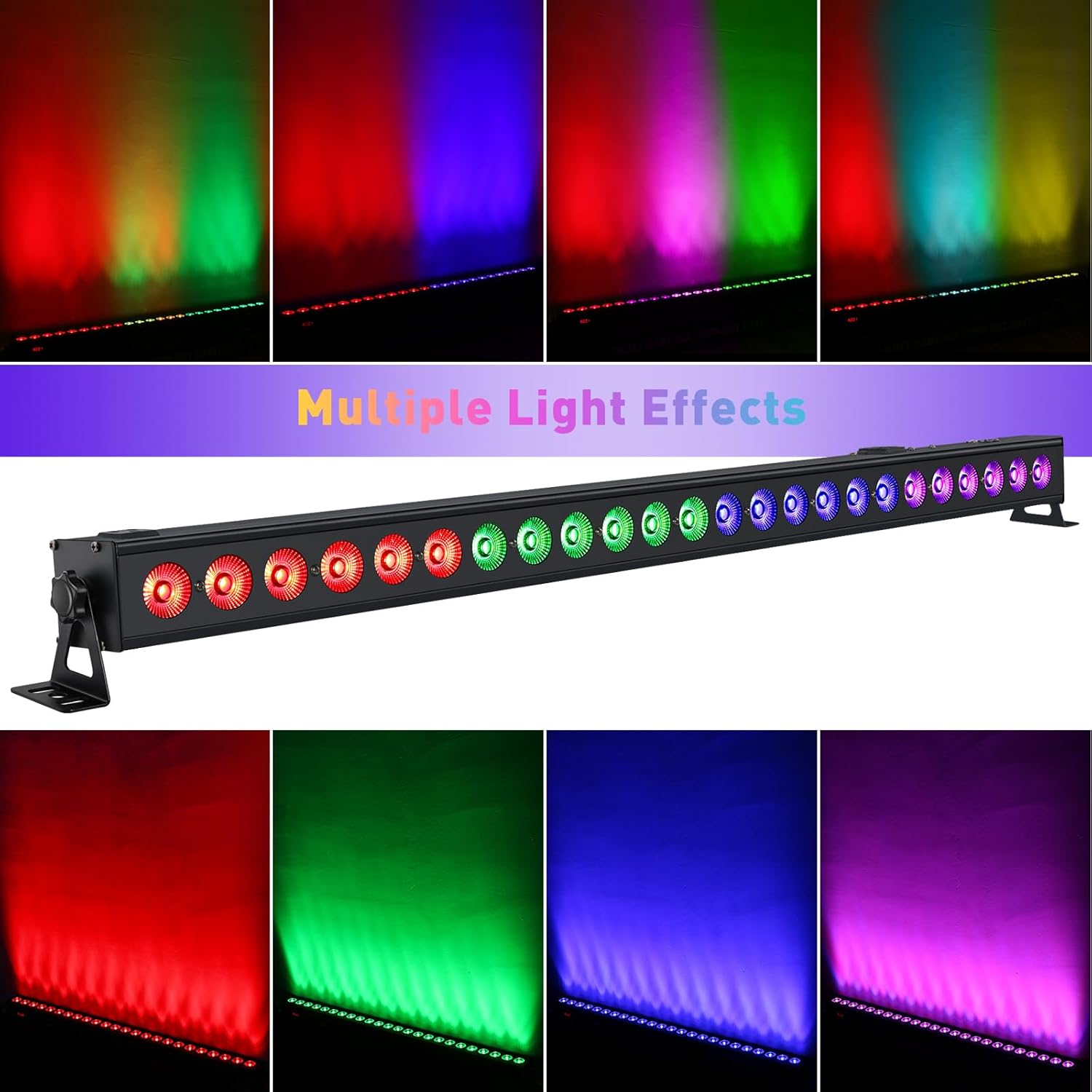

YeeSite YS-BR24 LED Stage Light Bar displaying various static colors and multiple light effects
Image 6.3: The YeeSite YS-BR24 LED Stage Light Bar showcasing its ability to produce multiple light effects and static colors, including red, green, blue, and purple washes on a wall.

6.4 Master/Slave-tilstand

To synchronize multiple YS-BR24 units, connect them using DMX cables. Set one unit as the 'Master' and the others as 'Slave' units. The Slave units will mimic the Master's operation, ensuring synchronized lighting effects across all connected fixtures.

7. DMX kontrol

The YS-BR24 is compatible with DMX-512 protocol, allowing for advanced control via an external DMX controller. Connect the DMX output of your controller to the 'DMX IN' port of the first light bar. For multiple units, daisy-chain DMX cables from 'DMX OUT' to 'DMX IN' of subsequent units.

7.1 Indstilling af DMX-adresse

Use the digital display and buttons to set the DMX address for each fixture. Each fixture in a DMX chain requires a unique starting address.

7.2 DMX-kanaltilstande

The YS-BR24 offers 5 DMX channel modes: 5, 8, 14, 26, and 50 channels. Select the mode that best suits your control requirements. Higher channel counts provide more granular control over individual LEDs, color mixing, and effects.

8. Vedligeholdelse

9. Fejlfinding

ProblemMulig årsagLøsning
Lyset tænder ikkeNo power, faulty cable, unit offCheck power connection, try another outlet, ensure unit is powered on.
Ingen DMX kontrolIncorrect DMX address, faulty DMX cable, incorrect channel modeVerify DMX address, check DMX cable connections, ensure correct DMX channel mode is selected.
Sound Active mode not workingLow sound input, microphone obstructed, sensitivity too lowIncrease music volume, ensure microphone is clear, adjust sound sensitivity setting.
Lights flicker or behave erraticallyPower fluctuations, DMX signal interference, loose connectionEnsure stable power supply, check DMX connections, try a different DMX cable.

10. Specifikationer

FeatureDetalje
ModelnummerYS-BR24
Lyskilde24 x 3W RGB 3-in-1 LEDs
I alt Wattage72 watt
Input bindtage110 Volt AC
Ampslette0.3 Amps
Strålevinkel40 grader
KontroltilstandeDMX512, Sound Active, Auto-Run, Master/Slave, Static Color
DMX kanaler5, 8, 14, 26, 50 kanaler
MaterialeAluminum (Powder Coated)
Dimensioner (L x B x H)40 cm x 2.5 cm x 2.5 cm
Varens vægt4 pund
MonteringstypeWall mount, Ceiling mount, Floor mount

11. Garanti og support

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official YeeSite webwebsted. Gem din købsbevis til garantikrav.
