1. Introduktion
This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your Extol Premium Teether Side for Electronics, 130 mm. Please read this manual thoroughly before using the product and retain it for future reference.
The Extol Premium Teether Side for Electronics is a precision cutting tool designed for delicate tasks in electronics, jewelry making, and other fine mechanical applications. Its compact size and sharp cutting edges enable precise work on soft wires, plastic components, and small metal wires.
2. Sikkerhedsinstruktioner
Overhold altid følgende sikkerhedsforanstaltninger for at forhindre personskade og beskadigelse af værktøjet:
- Bær øjenbeskyttelse: Always wear safety glasses or goggles to protect your eyes from flying debris when cutting.
- Hold fingrene fri: Ensure fingers are away from the cutting edges during operation.
- Use for Intended Purpose Only: This tool is designed for cutting soft wires, plastic, and small metal wires. Do not use it for cutting hardened steel, thick cables, or other materials beyond its capacity, as this can damage the blades and cause injury.
- Efterse før brug: Before each use, check the tool for any signs of damage, such as bent blades or loose handles. Do not use a damaged tool.
- Opbevar sikkert: Store the tool in a dry, secure place, out of reach of children and pets.
- Bevar et fast greb: Hold the tool firmly to prevent slipping during use.
- Avoid Electrical Hazards: Do not use this tool on live electrical circuits unless it is specifically rated and insulated for such use. This product is not insulated for live electrical work.
3. Produktet er slutview
The Extol Premium Teether Side for Electronics is a compact and robust cutting tool. It features alloy steel cutting jaws and comfortable handles for precise control.
Figur 1: Forside view of the Extol Premium Teether Side for Electronics, 130 mm, in a closed position. The red plastic handles are clearly visible, along with the black alloy steel body and cutting jaws.

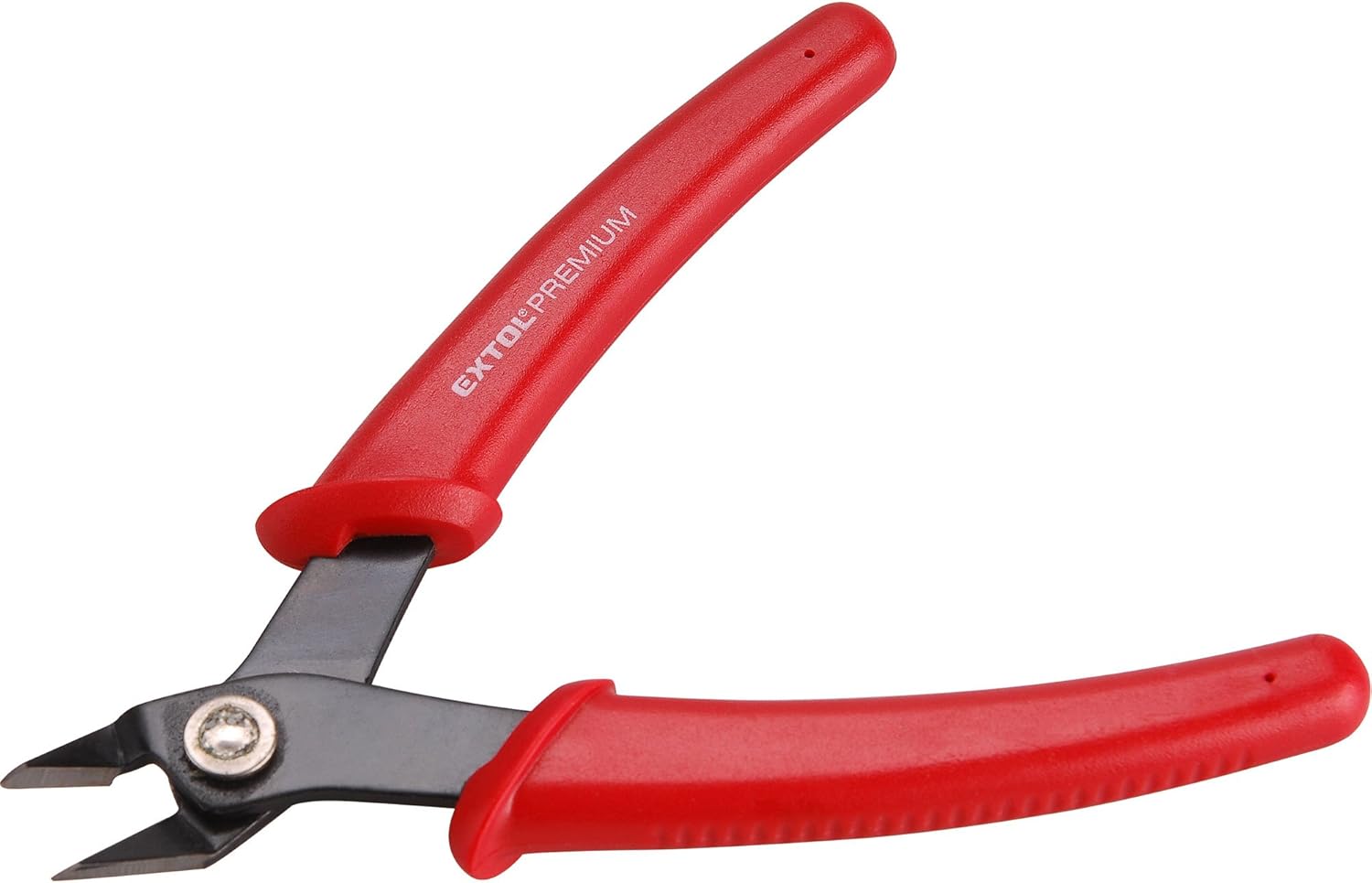

Figur 2: Vinklet view of the Extol Premium Teether Side for Electronics, 130 mm, with the jaws slightly open. This view highlights the sharp cutting edges and the pivot mechanism.
Nøglekomponenter:
- Cutting Jaws: Made from durable alloy steel for precise and clean cuts.
- Håndtag: Ergonomically designed plastic handles for comfortable grip and control.
- Pivot Joint: Smooth action for easy opening and closing of the jaws.
4. Opsætning
The Extol Premium Teether Side for Electronics requires minimal setup. It is ready for use directly out of the packaging.
- Pakker ud: Tag forsigtigt værktøjet ud af emballagen.
- Inspicere: Before first use, visually inspect the tool for any manufacturing defects or shipping damage. Ensure the cutting edges are sharp and aligned, and the handles are securely attached.
- Rengøring (valgfrit): If desired, wipe down the tool with a clean, dry cloth to remove any residual manufacturing oils or dust.
5. Betjeningsvejledning
Følg disse trin for sikker og effektiv drift:
- Identify Material: Ensure the material to be cut is suitable for this tool (e.g., soft wire, plastic, small metal wire). Do not attempt to cut materials that are too hard or thick.
- Placer værktøjet: Open the jaws of the pliers and position the material to be cut as close to the pivot joint as possible. This provides maximum leverage and a cleaner cut.
- Påfør tryk: Squeeze the handles firmly and steadily to cut through the material. Avoid sudden, jerky movements.
- Rent snit: For best results, ensure the cutting edges are perpendicular to the material being cut.
- Specifikke anvendelser:
- Elektronik: Ideal for trimming electronic component leads, cutting small gauge wires, and shaping plastic enclosures.
- Jewelry Processing: Suitable for cutting soft jewelry wire, headpins, and eyepins.
- Modelbygning: Useful for precise cuts on plastic model parts, small wooden dowels, and other craft materials.
Note: Always ensure the material is fully seated within the cutting jaws before applying pressure to prevent damage to the blades or an incomplete cut.
6. Vedligeholdelse
Proper maintenance will extend the life of your tool and ensure its continued performance:
- Rensning: After each use, wipe the cutting jaws and handles with a clean, dry cloth to remove any debris, dust, or moisture.
- Smøring: Periodically apply a small drop of light machine oil to the pivot joint to ensure smooth operation. Wipe off any excess oil.
- Opbevaring: Store the tool in a dry environment to prevent rust. Keep the jaws closed when not in use to protect the cutting edges. A tool pouch or box is recommended.
- Inspektion: Regularly inspect the cutting edges for nicks or dullness. While these pliers are not typically user-sharpenable, proper use and care will maintain their sharpness for a long time.
7. Fejlfinding
Her er nogle almindelige problemer og deres potentielle løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Kæberne føles stive eller klæbrige. | Ophobning af snavs/affald i drejetappen, manglende smøring. | Clean the pivot joint thoroughly and apply a small amount of light machine oil. |
| Cuts are not clean or material is pinched. | Dull cutting edges, attempting to cut material too hard/thick, improper positioning. | Ensure material is suitable for the tool. Position material closer to the pivot. If blades are dull from misuse, replacement may be necessary. |
| Håndtagene føles løse. | Wear and tear, manufacturing defect. | Discontinue use if handles compromise safety. Contact manufacturer for support. |
8. Specifikationer
- Model: Teether Side for Electronics, 130 mm
- Mærke: Extol Premium
- Fabrikant: EXTOL PREMIUM
- Materiale: Alloy Steel (Jaws), Plastic/Metal/Steel (Handle)
- Farve: Copper (referring to the tool's metallic parts, handles are red)
- Varens vægt: 2.18 ounce
- Pakkedimensioner: 6.69 x 2.76 x 1.07 tommer
- Varepakkemængde: 1
- Specifikke anvendelser: Professional use for fine cutting work in electronics, precision mechanics, jewelry processing, model making.
- ASIN: B076CX2J58
9. Garanti og support
Specific warranty information for the Extol Premium Teether Side for Electronics, 130 mm, is not provided in this manual. For details regarding warranty coverage, terms, and conditions, please refer to the product packaging or contact Extol Premium directly through their official webwebsted eller kundeservicekanaler.
For technical support, product inquiries, or to report any issues, please contact the manufacturer or your point of purchase. Keep your purchase receipt as proof of purchase.
