1. Introduktion
This manual provides instructions for the safe and efficient use of your Cygnett ChargeUp Pro 20K Power Bank. Please read this manual thoroughly before using the device and retain it for future reference.
The Cygnett ChargeUp Pro 20K is a high-capacity portable power bank designed to charge a wide range of devices, including smartphones, tablets, and USB-C laptops. It features Power Delivery (PD) and Qualcomm Quick Charge 3.0 technologies for optimized charging speeds.
2. Vigtige sikkerhedsoplysninger
- Udsæt ikke powerbanken for ekstreme temperaturer, direkte sollys eller ild.
- Nedsænk ikke powerbanken i vand eller andre væsker.
- Du må ikke skille enheden ad, modificere eller forsøge at reparere enheden.
- Opbevares utilgængeligt for børn.
- Use only certified cables for charging the power bank and your devices.
- Undgå at tabe eller udsætte powerbanken for kraftige stød.
- Hvis powerbanken hæver, afgiver en lugt eller bliver for varm, skal du straks stoppe brugen.
- Bortskaf powerbanken ansvarligt i henhold til lokale regler.
3. Pakkens indhold
Pakken indeholder:
- Cygnett ChargeUp Pro 20K Power Bank (Model 60-4438-05-XP)
- Brugervejledning (dette dokument)
Note: A charging cable for the power bank and an AC adapter are not included and must be purchased separately.
4. Produktet er slutview
Familiarize yourself with the components of your Cygnett ChargeUp Pro 20K Power Bank.

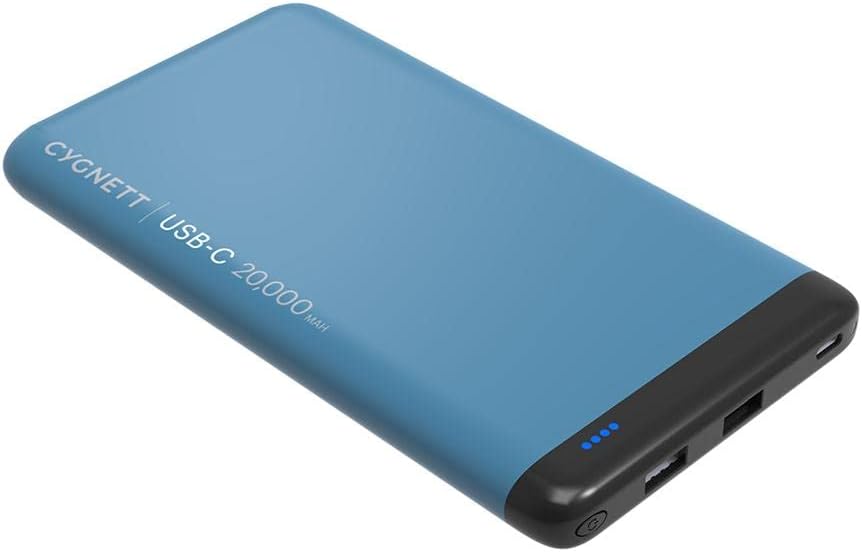

Figur 1: Vinklet view of the Cygnett ChargeUp Pro 20K Power Bank, showing its sleek blue design and the Cygnett branding.
Figur 2: Top view of the power bank, highlighting the USB-C port, two USB-A ports, and the four LED battery indicator lights.
Funktioner:
- 20,000 mAh Kapacitet: Provides multiple charges for smartphones and tablets, and a full charge for some laptops.
- Power Delivery (PD) teknologi: Optimizes charging for USB-C devices, delivering up to 45W output.
- Qualcomm Quick Charge 3.0 (QC 3.0): Enables faster charging for compatible devices via USB-A ports.
- Flere porte: One USB-C port and two USB-A ports allow simultaneous charging of up to three devices.
- 4 LED Battery Indicator: Displays the remaining power level.
- Overvoltage Beskyttelse: Ensures safe charging for connected devices.
5. Opsætning
5.1 Første opladning af powerbanken
- Connect a USB-C charging cable (not included) to the USB-C input/output port on the power bank.
- Tilslut den anden ende af kablet til en kompatibel USB-C-vægoplader (medfølger ikke). Brug en PD-kompatibel oplader for at opnå den hurtigste opladning.
- The LED indicators will illuminate to show the charging progress. All four LEDs will be solid when the power bank is fully charged.
Det anbefales at oplade powerbanken helt inden den tages i brug første gang.
6. Betjeningsvejledning
6.1 Opladning af dine enheder
- Identificér det korrekte opladningskabel til din enhed.
- Tilslut den ene ende af kablet til din enhed.
- Connect the other end of the cable to an available port on the power bank (USB-C or USB-A).
- Powerbanken begynder automatisk at oplade din enhed. LED-indikatorerne viser den resterende strøm.
- Du kan oplade op til tre enheder samtidigt ved hjælp af de tilgængelige porte.
For optimal charging speed, use the USB-C PD port for compatible devices and the Quick Charge 3.0 USB-A ports for QC-compatible devices.
6.2 Kontrol af batteriniveau
The power bank features four LED indicators to display its remaining charge:
- 4 LED'er lyser konstant: 75-100% opladning
- 3 LED'er lyser konstant: 50-75% opladning
- 2 LED'er lyser konstant: 25-50% opladning
- 1 LED lyser konstant: 0-25% opladning
Press the power button (if present, or connect a device) to activate the LED indicators and check the current battery level.
7. Vedligeholdelse
- Rensning: Tør powerbanken af med en blød, tør klud. Brug ikke skrappe kemikalier eller slibende materialer.
- Opbevaring: Opbevar powerbanken et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
- Langtidsopbevaring: Hvis den opbevares i en længere periode, skal du oplade powerbanken til cirka 50-75% hver tredje måned for at opretholde batteriets sundhedstilstand.
8. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Powerbanken oplader ikke. | Charging cable is faulty or not properly connected. Wall charger is not working or incompatible. | Ensure the charging cable is securely connected. Try a different cable or wall charger. |
| Enheden oplades ikke fra powerbanken. | Power bank battery is depleted. Device charging cable is faulty. Device is incompatible. | Genoplad powerbanken. Prøv et andet opladningskabel. Sørg for, at din enhed er kompatibel med USB-opladning. |
| Langsom opladningshastighed. | Cable is not suitable for fast charging. Device does not support fast charging. Multiple devices are connected. | Use a high-quality, fast-charging compatible cable. Ensure your device supports PD or QC 3.0. Disconnect other devices to maximize speed for one device. |
| LED-indikatorerne virker ikke. | Powerbanken er helt afladet. | Connect the power bank to a charger. If still unresponsive, contact support. |
9. Specifikationer
| Mærke: | Cygnett |
| Model: | 60-4438-05-XP |
| Batterikapacitet: | 20,000 mAh |
| Batteritype: | Lithium polymer |
| Battericellesammensætning: | Lithium Ion |
| Input (USB-C PD): | Up to 45W (e.g., 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A) |
| Output (USB-C PD): | Up to 45W (e.g., 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A) |
| Output (USB-A QC 3.0): | Up to 18W (e.g., 5V/3A, 9V/2A, 12V/1.5A) per port |
| Samlet output: | 63W (maks.) |
| Antal porte: | 3 (1x USB-C, 2x USB-A) |
| Kompatible enheder: | Smartphones, Tablets, USB-C Laptops |
| Dimensioner: | 13.49 x 2.01 x 23.01 cm |
| Vægt: | 539.77 grams (approx. 540g) |
| Vise: | 4 LED batteriindikator |
Bemærk: Specifikationerne kan ændres uden varsel.
10. Garanti og support
For warranty information and technical support, please refer to the official Cygnett webhjemmeside eller kontakt deres kundeservice direkte.
Webwebsted: www.cygnett.com
Please have your product model number (60-4438-05-XP) and proof of purchase ready when contacting support.
