1. Introduktion
This manual provides detailed instructions for the safe operation, installation, and maintenance of your Cambridge 42-inch Wall Mounted Electric Fireplace Heater. Please read all instructions carefully before use and retain this manual for future reference.
The Cambridge electric fireplace offers a multi-color flame display with driftwood logs and provides supplemental heat for indoor spaces. It is designed for wall mounting to optimize room space.

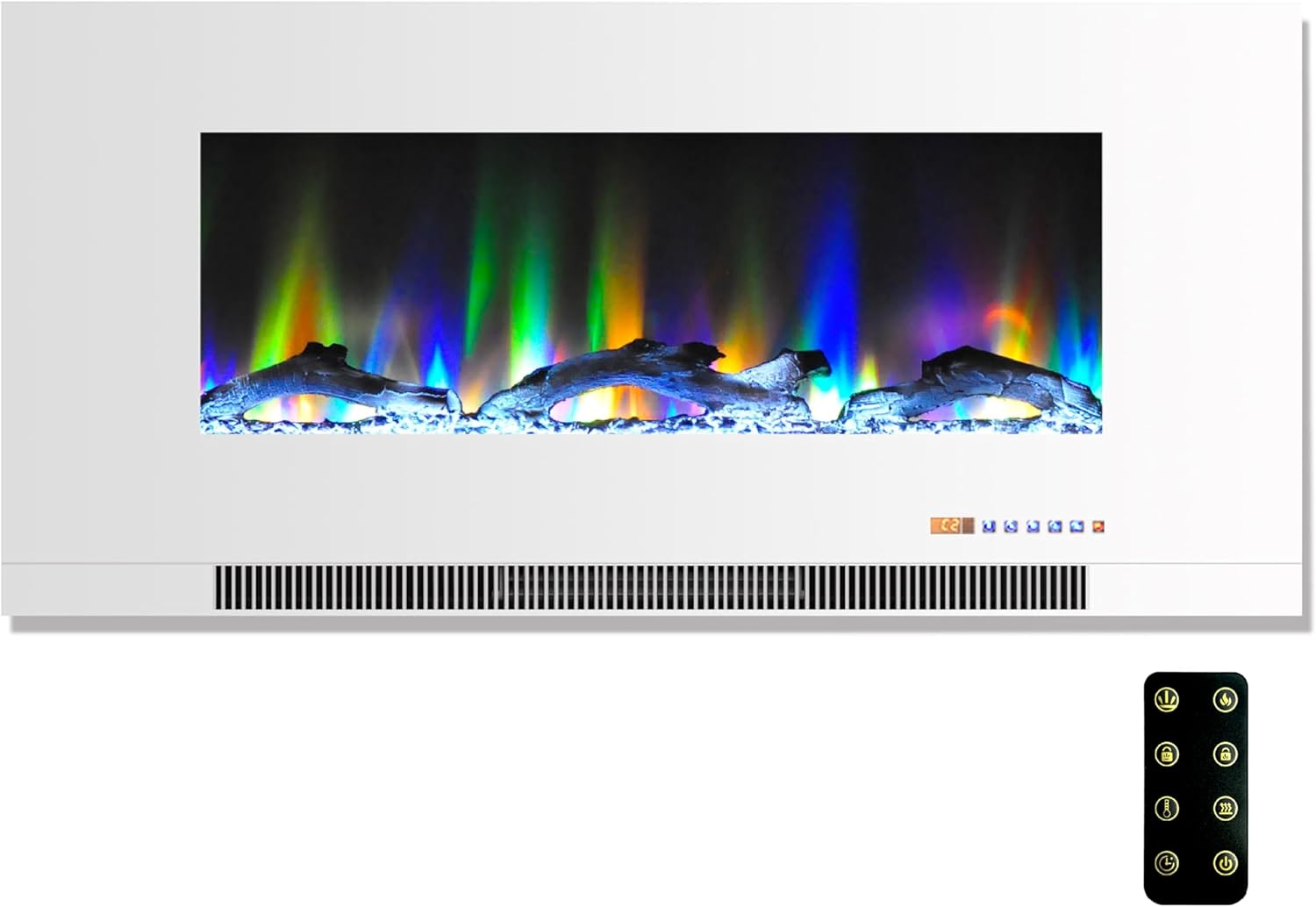

Billede 1.1: Forside view of the Cambridge 42-inch wall mounted electric fireplace heater, showcasing its multicolor flame display and driftwood log bed.
2. Vigtige sikkerhedsoplysninger
ADVARSEL: For at mindske risikoen for brand, elektrisk stød eller personskade skal du læse alle instruktioner, før du bruger dette apparat.
- Dette apparat er kun til indendørs brug.
- Do not operate any fireplace with a damaged cord or plug, or if the heater has malfunctioned or been dropped/damaged in any manner.
- Tag altid stikket ud af pejsen, når den ikke er i brug.
- Hold brændbare materialer, såsom møbler, puder, sengetøj, papir, tøj og gardiner, mindst 0.9 m fra varmeapparatets forside.
- Indsæt eller lad ikke fremmedlegemer trænge ind i ventilations- eller udsugningsåbninger, da dette kan forårsage elektrisk stød eller brand eller beskadige varmeren.
- This fireplace is equipped with an automatic thermal safety switch to prevent overheating. If the heater overheats, it will automatically shut off.
3. Pakkens indhold
Carefully unpack all components and check against the list below. Ensure all items are present and undamaged. If any parts are missing or damaged, do not attempt to assemble or operate the fireplace. Contact customer support for assistance.
- Elektrisk pejsenhed
- Steel Holder (Mounting Bracket)
- 8 Screws (for mounting)
- Fjernbetjening
- CR2025 3V Battery (pre-installed in remote)
- Brugervejledning (dette dokument)
- Garantikort
4. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | CAMBRIDGE |
| Modelnummer | CAM42WMEF-2WHT |
| Produktdimensioner | 42 cm B x 5.7 cm D x 19.8 cm H |
| Varens vægt | 36.5 lbs |
| Strømkilde | Elektrisk med ledning |
| Materiale | Hærdet glas |
| Installationstype | Vægmontering |
| Varmeoutput | 4433 BTU'er |
| Varmedækning | Op til 210 sq. ft. |
| Strømforbrug | 1350 watt |
| Særlige funktioner | Multicolor Flame Effect, LED Flame, Safety Shut Off, Timer |
| UPC | 819430020959 |
Image 4.1: Dimensional diagram of the electric fireplace, illustrating its width, height, and depth for installation planning.
5. Opsætning og installation
This electric fireplace is designed for wall-mounted installation. Ensure the chosen location is suitable and can support the weight of the unit (36.5 lbs).
5.1 Valg af placering
- Select a flat, vertical wall surface.
- Ensure there is a grounded electrical outlet within reach of the power cord.
- Avoid locations near water sources or in direct sunlight.
- Maintain a minimum distance of 3 feet (0.9 m) from combustible materials.
5.2 Monteringsvejledning
- Carefully remove the mounting bracket (steel holder) from the back of the fireplace unit.
- Hold the mounting bracket against the wall at the desired height. Use a level to ensure it is straight.
- Mark the drilling points through the holes on the bracket.
- Drill pilot holes at the marked locations. For drywall, use appropriate wall anchors (not included, but recommended for secure installation). For wood studs, drill directly.
- Secure the mounting bracket to the wall using the provided screws. Ensure it is firmly attached.
- Carefully lift the fireplace unit and align the hooks on the back of the unit with the slots on the wall-mounted bracket.
- Gently lower the fireplace onto the bracket until it is securely seated.
- Sæt netledningen i en jordet 120V AC-stikkontakt.
Image 5.1: The electric fireplace installed on a wall in a living room setting, demonstrating its wall-mounted design.
Image 5.2: Back of the fireplace unit, highlighting the pre-attached mounting bracket for wall installation.
6. Betjeningsvejledning
The fireplace can be operated using the included remote control or the control panel located on the unit.
6.1 Fjernbetjeningsfunktioner
Ensure the CR2025 3V battery is correctly installed in the remote control. Point the remote directly at the fireplace unit for optimal response.
Image 6.1: Remote control with clearly labeled buttons for various functions of the electric fireplace.
- Tænd/sluk-knap (tænd/sluk): Tænder eller slukker pejsen.
- Flame Adjustment (Brightness): Cycles through flame brightness levels.
- Fire Color (Flame Color Cycle): Changes the color of the flames. Multiple color options are available.
- Flame Color Lock: Locks the current flame color.
- Log Color Lock: Locks the current color of the driftwood log display.
- Heat Settings (Low/High/Off): Toggles between two heat settings (Low/High) or turns heat off.
- Temperature Display Mode (C/F): Changes the temperature display unit (e.g., Celsius/Fahrenheit).
- Timer (Auto Shut-off): Sets the automatic shut-off timer (up to 9 hours).

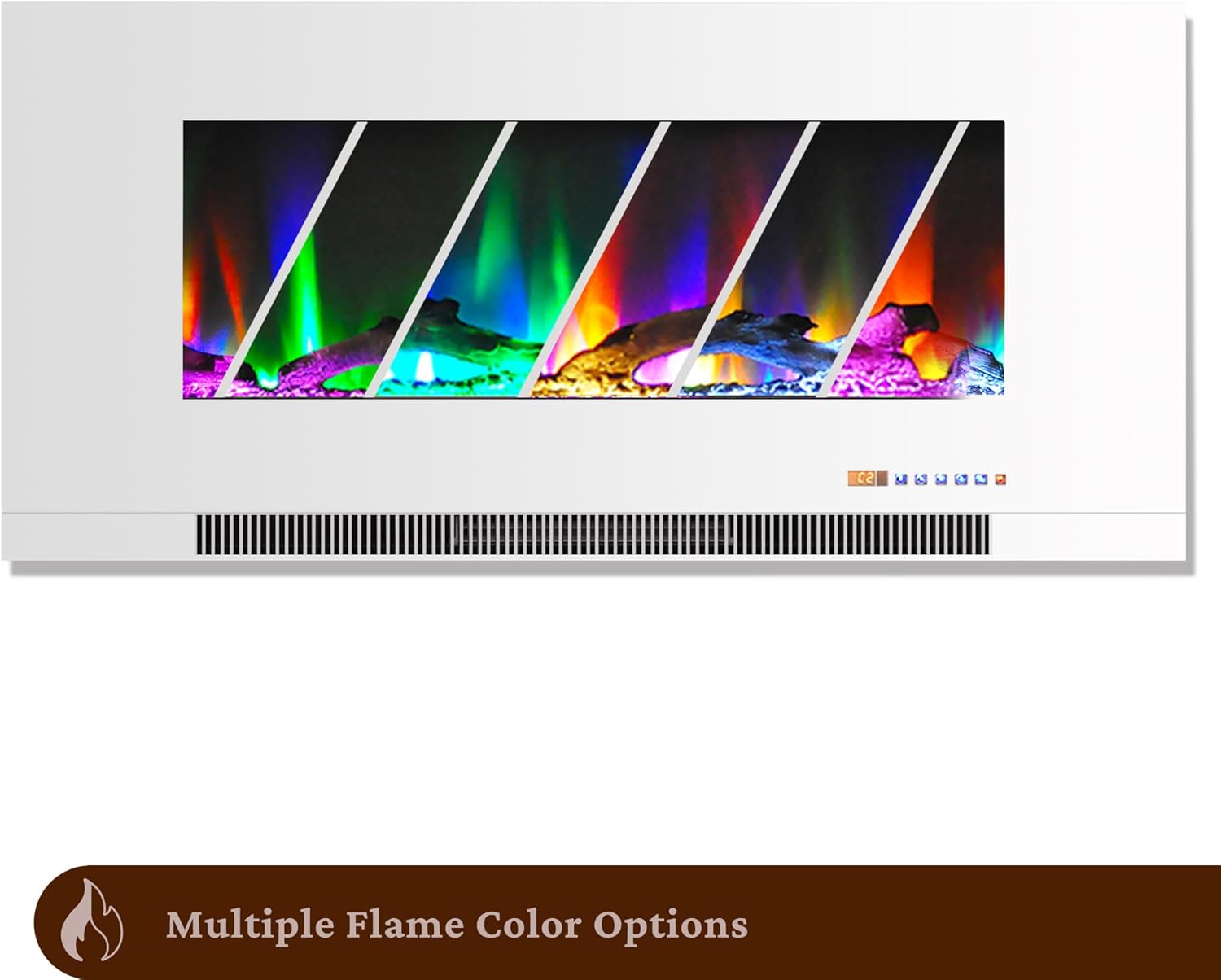

Image 6.2: Illustration of the multiple flame color options available, demonstrating the customizable ambiance.
Image 6.3: Diagram illustrating the heat output from the bottom vent, capable of warming areas up to 210 square feet.
6.2 Manuelt kontrolpanel
The control panel is located on the front of the fireplace unit, typically on the right side. It provides basic control over power, flame effects, and heat settings, mirroring some remote functions.
- Magt: Tryk for at tænde eller slukke for enheden.
- Flamme: Press to cycle through flame brightness and color options.
- Varmeapparat: Press to activate or adjust heat settings.
The LED flames can operate independently of the heating function, allowing for year-round ambiance without additional warmth.
7. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer optimal ydeevne og levetid for din elektriske pejs.
7.1 Rengøring
- Tag altid stikket ud af pejsen før rengøring.
- Tør de udvendige overflader af med en blød, damp klud. Brug ikke slibende rengøringsmidler eller spray.
- Rengør forsigtigt glaspanelet med en blød klud og glasrens.
- Periodically vacuum the air intake and exhaust vents to prevent dust buildup.
7.2 Opbevaring
If storing the fireplace for an extended period, unplug it and store it in a dry, dust-free location. It is recommended to store it in its original packaging to protect it from damage.
8. Fejlfinding
Hvis du oplever problemer med din elektriske pejs, kan du se følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Pejsen tænder ikke. | No power, remote control battery low, power switch off. | Check power cord connection. Replace remote battery. Ensure main power switch on unit is ON. |
| Varmeapparatet producerer ikke varme. | Heat function off, thermal overload activated, air vents blocked. | Activate heat function via remote/control panel. Unplug unit for 15 minutes to reset thermal overload. Clear any obstructions from vents. |
| Flames are not visible or flickering incorrectly. | Flame effect off, LED malfunction. | Ensure flame effect is turned on. If issue persists, contact customer support. |
| Fjernbetjening virker ikke. | Battery low/dead, obstruction, remote not pointed at sensor. | Replace CR2025 3V battery. Ensure clear line of sight to the fireplace sensor. |
9. Garanti og kundesupport
This Cambridge electric fireplace heater comes with a 1 års begrænset garanti fra købsdatoen. Denne garanti dækker fabrikationsfejl og udførelse under normal brug.
For warranty claims, technical assistance, or any questions regarding your product, please contact Cambridge Customer Support. Please have your model number (CAM42WMEF-2WHT) and proof of purchase available when contacting support.
Kontaktoplysninger:
- Mærke: CAMBRIDGE
- Webwebsted: Visit the CAMBRIDGE Store on Amazon
- Kundeservice åbningstider: Monday-Friday (9am-10pm EST) / Saturday-Sunday (8am-6pm EST)
