SuperATV Polaris Ranger Cab Enclosure Vented Doors Instruction Manual

1. Introduktion

This manual provides essential information for the installation, operation, and maintenance of your SuperATV Polaris Ranger Cab Enclosure Vented Doors. These doors are designed to provide protection and comfort for your Polaris Ranger Crew model. Please read this manual thoroughly before proceeding with installation or use to ensure proper function and safety.

Billede 1.1: Hel side view of a Polaris Ranger with SuperATV cab enclosure doors installed, showcasing the complete enclosure.

Image 1.2: Rear quarter view of the Polaris Ranger, highlighting the rear cab enclosure doors.

2. Sikkerhedsoplysninger

WARNING: Ensure the doors and all components are properly installed according to the manufacturer's instructions. Incorrect installation may cause parts to become loose or fail, leading to accidents.

Always wear appropriate safety gear during installation and operation. Keep hands and clothing clear of moving parts. Regularly inspect all components for wear or damage and replace as necessary. This product is intended for off-road use only. Always operate your vehicle responsibly and adhere to all local laws and regulations.

3. Pakkens indhold

Verify that all components are present before beginning installation. If any parts are missing or damaged, contact SuperATV customer support.

• Front Cab Enclosure Vented Doors (2)
• Rear Cab Enclosure Vented Doors (2)
• Side View Mirrors (2)
• Mounting Hardware Kit (bolts, washers, nuts, brackets)
• Installation Instructions (refer to SuperATV website for detailed, model-specific guides)

4. Opsætning og installation

Installation requires basic mechanical skills and common tools. For detailed, model-specific instructions and diagrams, it is highly recommended to visit the official SuperATV website and search for the installation guide for your specific Polaris Ranger model and these doors. The general steps are outlined below:

1. Forberedelse: Park your Polaris Ranger on a level surface and engage the parking brake. Ensure the vehicle is turned off. Unpack all components and verify against the package contents list.
2. Montering af hængsel: Attach the door hinges to the door frames using the provided hardware. Ensure all bolts are securely tightened.
3. Door Mounting: Carefully align and mount the doors to the vehicle's roll cage or designated mounting points. Secure the doors using the appropriate brackets and hardware. Do not fully tighten all fasteners until final adjustments are made.
4. Justering: Close each door and check for proper alignment and fit. Adjust hinges and mounting points as needed to ensure a snug, rattle-free closure and smooth operation. Once satisfied with the fit, fully tighten all mounting hardware.
5. Side Mirror Installation: Attach the side view mirrors to the designated locations on the doors. Adjust the mirrors for optimal visibility.
6. Afsluttende inspektion: Double-check all fasteners for tightness. Open and close each door multiple times to confirm smooth operation and secure latching.

For comprehensive, step-by-step visual guides, please refer to the SuperATV webwebsted: SuperATV Official Store

Image 4.1: Detail of the door latch and hinge assembly, crucial for secure installation.

5. Betjeningsvejledning

Your SuperATV Cab Enclosure Vented Doors are designed for ease of use and versatility.

• Åbning og lukning: Use the integrated handles and key locking system to open and close the doors. The gas-powered struts will assist in holding the doors open securely when needed.
• Sliding Vents: The doors feature sliding vents for adjustable airflow. To open or close the vents, slide the polycarbonate panel horizontally. This allows for ventilation without fully opening the door.
• Fjernelse af dør: For full open-air riding, the doors can be removed quickly by disengaging the hinge pins or mounting bolts, depending on the specific hinge design. Refer to the detailed installation guide on the SuperATV website for precise removal instructions.

Image 5.1: A person demonstrating the opening of a front door, showing the ease of access.

Billede 5.2: Interiør view of the driver's side door, highlighting the sliding vent and side mirror from the inside.

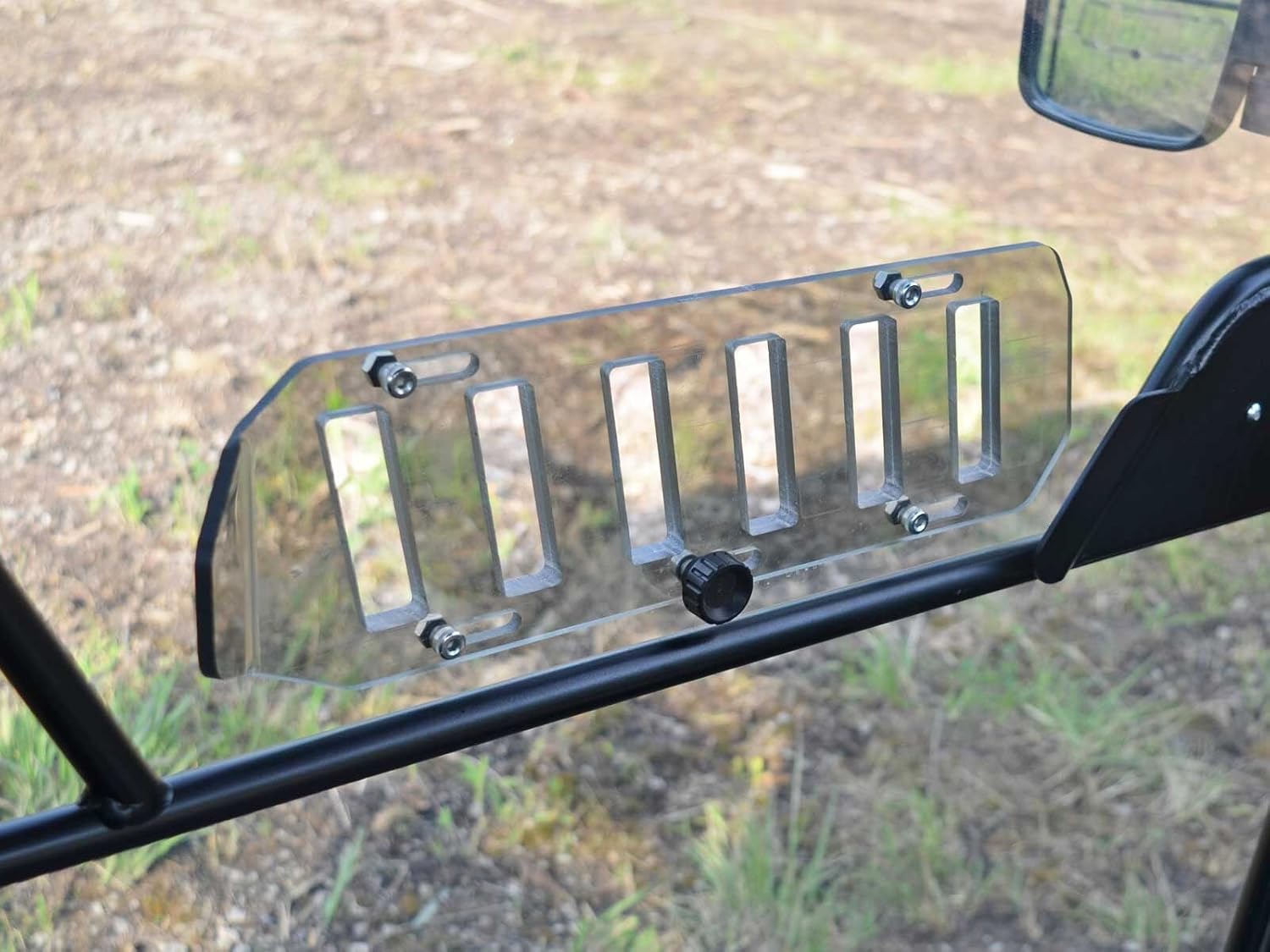

Image 5.3: Close-up of the sliding vent mechanism, illustrating its design for adjustable airflow.

6. Vedligeholdelse

Proper maintenance will extend the life and appearance of your cab enclosure doors.

• Rensning: Clean the polycarbonate panels with a soft cloth and mild soap and water. Avoid abrasive cleaners or harsh chemicals, as these can scratch or damage the material. Rinse thoroughly and dry with a clean, soft cloth.
• Hardware inspektion: Periodically check all mounting hardware, hinges, and latches for tightness. Re-tighten any loose fasteners to prevent rattles and ensure secure operation.
• Smøring: Apply a silicone-based lubricant to hinges and latch mechanisms as needed to ensure smooth operation and prevent corrosion.

7. Fejlfinding

If you encounter issues with your cab enclosure doors, consider the following common solutions:

• Dørene flugter ikke eller lukker ikke korrekt: Check all mounting points and hinges. Loosen fasteners, adjust the door position, and re-tighten. Ensure the vehicle's frame is not bent or damaged, which could affect door fitment.
• Rattling noise: Inspect all hardware for looseness. Ensure all bolts are tightened to the manufacturer's specifications. Check for any contact points between the door and the vehicle frame that may require additional padding.
• Vents are stiff or difficult to slide: Clean the vent tracks and apply a small amount of silicone lubricant to ensure smooth operation.

If problems persist, contact SuperATV customer support for further assistance.

8. Specifikationer

9. Garanti og support

SuperATV products are manufactured to high standards. For information regarding product warranty, returns, or technical support, please contact SuperATV directly. You can find contact information and additional resources on their official webwebsted:

Visit the SuperATV Official Store
