MICMOL Aqua Air AA-900 Planted Smart LED akvarielys brugermanual

Indledning

The MICMOL Aqua Air AA-900 Planted Smart LED Aquarium Light is designed for freshwater planted tanks, offering a full-spectrum lighting solution with programmable features. This manual provides essential information for the proper installation, operation, and maintenance of your new aquarium light.

Pakkens indhold

Bekræft, at alle nedenstående varer er til stede i din pakke:

• 1 x G2 Aqua Air 900 Lighting Fixture (AA-900 / 72)
• 1 x Smart Controller
• 1 x Super Bracket Set
• 1 x US Standard Power Cord
• 1 x strømadapter
• 1 x Værktøjssæt
• 1 x Printed Instructions (this manual)

Produktegenskaber

• Thin Unibody Design: Features an 11mm super thin, all-aluminum modeled body.
• Fuldspektrede LED'er: Utilizes high-quality 0.5 watt SMD LEDs, providing a full spectrum suitable for planted tanks.
• Smart Controller: Includes a controller with programmable timer, sunrise, sunset, and special effects.
• Justerbare beslag: Equipped with adjustable super brackets suitable for rimmed and rimless aquariums.
• Vandtæt: Designed with a water-resistant cooling system.
• Certificeringer: UL approval power supply ensures safety and efficiency.

Opsætning og installation

Follow these steps to properly install your MICMOL Aqua Air AA-900 light:

1. Bracket Assembly and Mounting

The adjustable super brackets allow for flexible mounting on various tank sizes. The brackets are designed to fit tanks between 885mm (35 inches) and 1385mm (54 inches) in length.

Billede: Diagram illustrating the dimensions of the light fixture and its adjustable mounting brackets. The fixture measures 33.8 inches in length, with brackets extending to accommodate tanks from 35 to 46 inches. The fixture itself is 0.4 inches thick.

1. Attach the super brackets to both ends of the lighting fixture using the provided tool set.
2. Adjust the bracket length to match the width of your aquarium. Ensure the light fixture is centered over the tank.
3. Carefully place the assembled light fixture onto the edges of your aquarium. Ensure it is stable and securely seated.

Billede: The MICMOL Aqua Air AA-900 light fixture mounted on top of a 48-inch aquarium, demonstrating its fit and placement.

2. Strømtilslutning

1. Connect the smart controller to the lighting fixture.
2. Connect the power adapter to the smart controller.
3. Plug the US standard power cord into the power adapter, then into a suitable electrical outlet.
4. Sørg for, at alle forbindelser er sikre, før du tænder for enheden.

Operating Instructions (Smart Controller)

The Aqua Air smart controller provides comprehensive control over your lighting system. It features a touch interface for easy navigation.

Controller funktioner:

• Ur: Set the current time for accurate timer functions.
• Timer: Program up to 6 timer points to adjust light intensity throughout the day.
• LED Channels: The light features 3 independent LED channels that can be set separately:
  • Channel 1 (CN 1): Hvide lysdioder
  • Channel 2 (CN 2): White and Royal Blue LEDs
  • Channel 3 (CN 3): Special LEDs (UV, Green, Red, Warm White, Blue)
• Specialeffekter: Simulate natural phenomena such as sunrise, sunset, and thunderstorms.
• Demotilstand: Allows you to quickly preview all settings and effects in approximately 1 minute.
• Gendan fabriksindstillinger: Resets all settings to their default factory configuration.

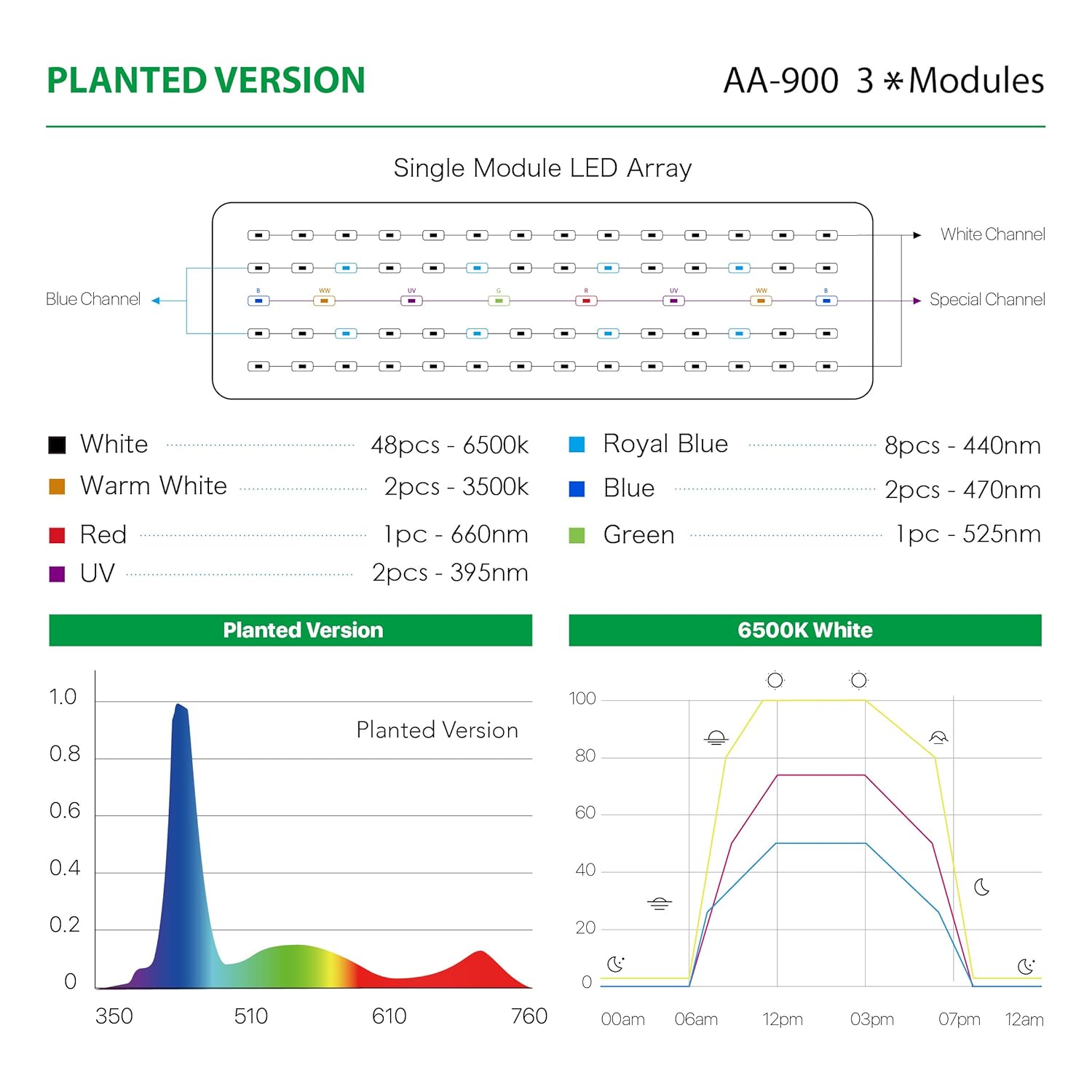

Billede: Detailed diagram illustrating the LED configuration for the Planted version of the AA-900, including the distribution of White, Warm White, Red, UV, Royal Blue, Blue, and Green LEDs across three channels. A spectral graph shows the light output, and a daily intensity graph demonstrates programmable sunrise/sunset cycles.

Opretholdelse

The MICMOL Aqua Air AA-900 features a water-resistant cooling system, minimizing the need for extensive maintenance. To ensure optimal performance and longevity:

• Tør regelmæssigt lampens yderside af med en blød, tør klud.amp cloth to remove dust and water spots.
• Ensure the cooling vents are not obstructed to allow for proper heat dissipation.
• Do not submerge the light fixture or smart controller in water.
• Disconnect power before performing any cleaning or maintenance.

Fejlfinding

If you encounter issues with your MICMOL Aqua Air AA-900 light, consider the following:

• Lyset tænder ikke: Check all power connections, including the power cord, adapter, and controller. Ensure the outlet is functional.
• Incorrect time or program: Verify the clock setting on the smart controller. If issues persist, try using the "Factory Reset" option to restore default settings and then reprogram.
• Uregelmæssig lysudbytte: Ensure the LED channels are correctly programmed. Check for any physical obstructions on the LED surface.

For persistent issues not resolved by these steps, please refer to the Warranty and Support section for further assistance.

Specifikationer

Garanti og support

The MICMOL Aqua Air AA-900 LED Aquarium Light comes with a To års garanti fra købsdatoen. Denne garanti dækker fabrikationsfejl og funktionsfejl under normal brug.

For warranty claims, technical support, or any inquiries regarding your product, please contact MICMOL customer service through their official webwebstedet eller forhandleren, hvor produktet blev købt. Gem venligst din købsbevis for at validere garantien.
