Taylor Programmable Instant Read Wired Probe Digital Meat Thermometer - Model 1574 User Manual

Indledning

This manual provides detailed instructions for the safe and effective use of your Taylor Programmable Instant Read Wired Probe Digital Meat Thermometer, Model 1574. This device is designed to monitor food temperature and cooking progress, ensuring precise results for various culinary applications.

Vigtige sikkerhedsoplysninger

• Do not expose the probe wire to direct flame or cooking surfaces that exceed its heat resistance.
• Ensure the probe wire is not crimped or damaged by oven doors or grill lids.
• The probe is food-safe stainless steel. Insert it at least 1-2 inches into the thickest part of the food, avoiding bones or fat.
• When removing the probe, pull gently from the probe itself, not the wire, to prevent damage. Use a heat-resistant glove or pot holder.
• Do not immerse the main unit or the probe wire in water, as this may damage electronic components. Hand wash the probe only.
• Opbevares utilgængeligt for børn.
• This device is intended for proper food preparation and does not guard against foodborne illnesses. Always follow safe food handling practices.

This image illustrates essential care instructions for the wired probe. It shows that the probe wire should not be exposed to direct flame or extreme heat, should not be crimped by oven doors, and the probe itself should be hand-washed without submerging the wire connection in water.

Pakkens indhold

• Taylor Programmable Thermometer Unit
• 6-inch Stainless Steel Probe with 3.5-foot Stainless Steel Cord
• 1 AAA batteri

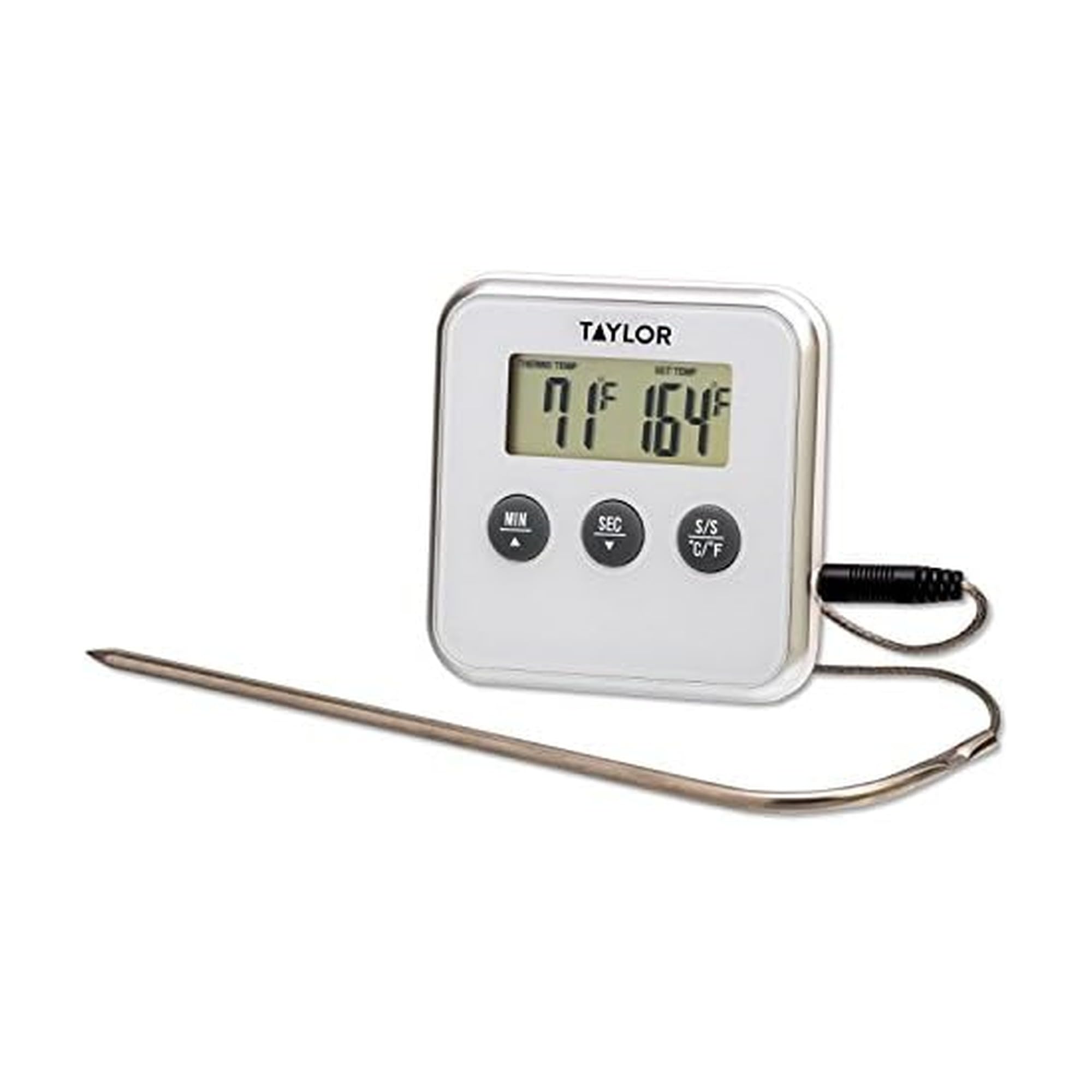

A white digital thermometer unit with a large display, three control buttons, and a connected stainless steel probe with a braided cord. The probe is shown resting next to the unit.

Opsætning

Installation af batteri

1. Locate the battery compartment on the back of the thermometer unit.
2. Åbn batterirummets dæksel.
3. Isæt et AAA-batteri, og sørg for at polariteten (+/-) vender korrekt.
4. Luk batterirummets dæksel forsvarligt.

Sondeforbindelse

1. Insert the stainless steel probe's jack into the designated port on the side of the thermometer unit.
2. Sørg for, at forbindelsen er fast.

Betjeningsvejledning

Tænd/sluk

Slide the ON/OFF switch located on the back of the unit to turn the thermometer on or off.

Indstilling af måltemperatur

1. With the unit powered on, press the 'MODE' button to select the temperature setting mode.
2. Use the 'UP' and 'DOWN' buttons to adjust the desired target temperature.
3. Once the target temperature is set, the thermometer will sound an alarm when the food reaches this temperature.

Brug af timeren

1. Press the 'MODE' button to cycle through modes until the timer function is displayed.
2. Use the 'UP' and 'DOWN' buttons to set the desired time (up to 99 minutes, 59 seconds).
3. Press the 'S/S' (Start/Stop) button to start or pause the timer.
4. The timer operates independently of the thermometer function.

Temperature Unit Selection (°F/°C)

Locate the °F/°C switch on the back of the unit and slide it to select your preferred temperature unit.

Probe Placement Guidelines

• Insert the probe into the thickest part of the meat, avoiding bones, fat, or gristle, which can affect accuracy.
• For poultry, insert the probe into the thickest part of the thigh, avoiding the bone.
• Ensure the probe tip is fully inserted into the food for an accurate reading.
• The braided stainless steel cord is heat resistant, allowing the main unit to remain outside the oven or grill while the probe is inside.

Pleje og vedligeholdelse

• Rengøring af sonden: Hand wash the stainless steel probe with warm, soapy water. Do not immerse the probe wire or the main unit in water.
• Rengøring af enheden: Wipe the thermometer unit with a damp klud. Brug ikke slibende rengøringsmidler, og nedsænk ikke enheden i vand.
• Opbevaring: Store the thermometer in a dry place when not in use.

Fejlfinding

• Upræcise læsninger: Ensure the probe is inserted correctly into the thickest part of the food, away from bones or fat. Check battery level.
• Ingen visning: Check if the battery is correctly installed and has sufficient power. Replace the battery if necessary.
• Alarmen lyder ikke: Verify that the target temperature is set correctly and the alarm function is enabled (if applicable).

Produktspecifikationer

Garanti og support

For garantioplysninger og kundesupport henvises til den dokumentation, der følger med dit produkt, eller besøg den officielle Taylor webwebstedet. Behold din købskvittering som købsbevis.

Denne video giver en overview of Taylor products and their commitment to precision measurement.
