Indledning
This manual provides comprehensive instructions for the LoraTap Wireless Remote Control E26 Light Socket. It covers product features, installation, operation, compatibility, maintenance, and troubleshooting to ensure safe and efficient use of your device.
Figure 1: LoraTap Wireless Remote Control E26 Light Socket and Remote.
Produkt overview
Nøglefunktioner:
- Long Range & Magnetic Base: Offers wireless control up to 100ft (30m) indoors and 656ft (200m) outdoors. The remote control features a magnetic base for mountable and movable placement without wall damage.
- Bred pærekompatibilitet: Works with most E26 bulbs including LED, Smart, CFL, Fluorescent, and Corn Light bulbs. Not compatible with Incandescent, Halogen, or Tungsten bulbs.
- Easy Installation & Non-Interference: Simply screw the adapter between the lamp holder and the bulb. Multiple kits can be used in one room without signal interference.
- Brugervenlig: Pre-paired at the factory for immediate use, requiring no app. Ideal for elderly individuals, children, and those with limited mobility.
- Hukommelsesfunktion: Remembers the previous ON/OFF state after a power restoration, ensuring energy efficiency.
Hvad er der i æsken:
- 1x LoraTap Wireless Remote Control E26 Light Socket
- 1x Wireless Remote Control (with 1 CR2 battery included)
Sikkerhedsoplysninger
To prevent damage to the light socket and ensure safe operation, this device cannot be used with Incandescent, Halogen, or Tungsten bulbs.
Opsætning og installation
- Install the Light Socket: Screw the LoraTap E26 light socket into your existing E26 lamp holder.
- Installer pæren: Screw your compatible E26 bulb (LED, Smart, CFL, Fluorescent, Corn Light) into the LoraTap E26 light socket.
- Remote Pairing (Pre-paired from factory): The remote and socket are pre-paired for immediate use. If re-pairing is needed, refer to the video below.
Figure 2: Illustration of screwing the LoraTap E26 light socket into a fixture and then a bulb into the socket.
Pairing and Unpairing Instructions:
Video 1: This video demonstrates the step-by-step process of pairing and unpairing the LoraTap wireless remote control with the E26 light socket. It shows how to put the socket into pairing mode and then link or unlink the remote.
Operation
Once installed and paired, operating the LoraTap Wireless Remote Control E26 Light Socket is straightforward.
- Tænd/sluk: Press the "ON" button on the remote to turn the light on, and the "OFF" button to turn it off.
- Fjernplacering: The remote features a magnetic base, allowing it to be mounted on a wall or any magnetic surface, or used as a portable handheld device.

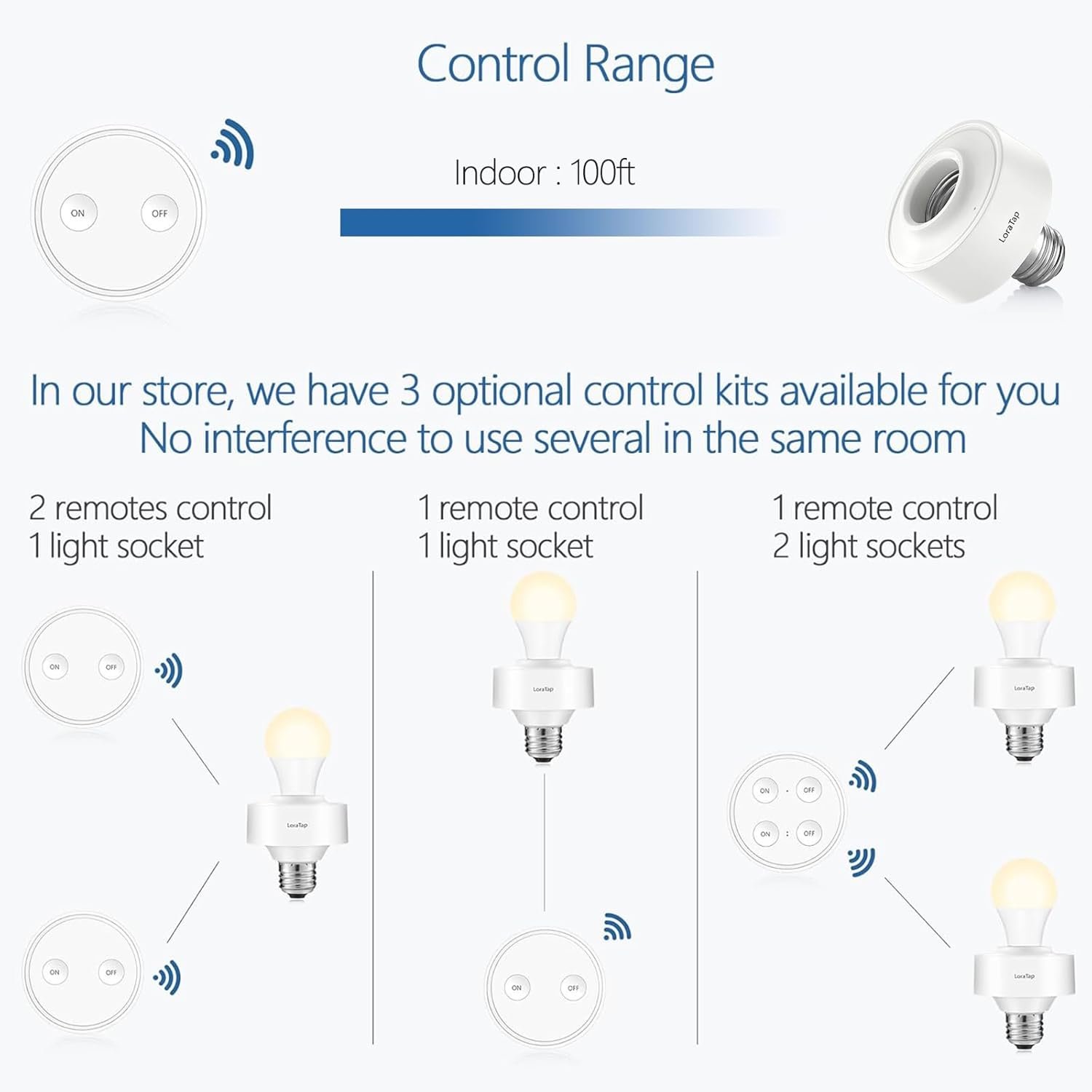

- Rækkevidde: The wireless control operates effectively up to 100ft (30m) indoors and 656ft (200m) outdoors.
Figure 3: Depiction of the wireless remote control being used to activate a light from a distance, showcasing its convenience.
Figure 4: The remote control's magnetic base, illustrating its versatility for fixed or portable use.
Demonstrationsvideoer:
Video 2: This video illustrates the functionality of the LoraTap wireless remote control, including its magnetic base for convenient placement and its ability to control a light.
Video 3: A short video demonstrating the LoraTap Wireless Remote Control E26 Holder in use, highlighting its ease of operation.
Kompatibilitet
The LoraTap E26 Light Socket is designed for use with specific bulb types and power ratings.
- Kompatible pærer: LED Bulb, Smart Bulb, CFL Bulb, Fluorescent Bulb, Corn Light Bulb.
- Inkompatible pærer: Incandescent Bulb, Halogen Bulb, Tungsten Bulb, Dimmer Lights. Using these may damage the light socket.
- Strømspecifikationer: Works with 100-120V AC, max load 2.5 amp, max power 30W.
- Varmemodstand: < 248℉/120℃.
Figure 5: Visual guide indicating compatible bulb types (LED, Smart, CFL, Fluorescent, Corn Light) and incompatible types (Incandescent, Halogen, Tungsten, Dimmer Light).
Figure 6: Detailed diagram showing the E26 base, the added length of the socket (1.58in/4cm), and power specifications (Max. Power: 30W).
Opretholdelse
- Rensning: Ensure the device is powered off before cleaning. Use a dry, soft cloth to wipe the socket and remote. Do not use liquid cleaners.
- Udskiftning af batteri: The remote control uses a CR2032 coin cell battery. Replace the battery when the indicator light on the remote no longer illuminates or the range decreases significantly.
- Opbevaring: Opbevar enheden et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer, når den ikke er i brug i længere perioder.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Light does not turn ON/OFF with remote. | Remote battery is low or depleted. | Udskift CR2032-batteriet i fjernbetjeningen. |
| Remote and socket are not paired. | Follow the pairing instructions in the "Setup and Installation" section (Video 1). | |
| Bulb is incompatible or faulty. | Ensure a compatible bulb is used (LED, CFL, etc.) and test with a known working bulb. Refer to "Compatibility" section. | |
| Reduceret rækkevidde for fjernbetjening. | Remote battery is low. | Udskift CR2032-batteriet i fjernbetjeningen. |
| Obstructions between remote and socket. | Minimize physical obstructions (e.g., thick walls, metal objects) between the remote and the light socket. | |
| Light socket gets hot. | Incompatible bulb type or excessive wattage. | Ensure only compatible bulbs are used and the total wattage does not exceed 30W. Refer to "Compatibility" section. |
Specifikationer
- Mærke: Lora Tap
- Model: LT-E26-1R1S
- Pære base: E26
- Input bindtage: 100-120V AC
- Max belastning: 2.5 Amp
- Maks effekt: 30W
- Trådløs frekvens: 915 MHz
- Trådløs rækkevidde: Up to 100ft (30m) indoors, 656ft (200m) outdoors
- Varmemodstand: < 248℉/120℃
- Bulb Socket Dimensions (Dia x H): 2.68 x 2.83 tommer
- Added Length to Light Fixture: 1.58 tommer (4 cm)
- Fjernbetjenings batteri: 1x CR2032 (inkluderet)
- Materiale: Acrylonitril Butadien Styren (ABS)
- Certificeringer: FCC, CE, RoHS
Garanti og support
LoraTap provides a 2 års garanti for this product. For technical support, warranty claims, or any inquiries, please contact LoraTap customer service through the retailer's platform or visit the official LoraTap webwebsted for kontaktoplysninger.
