Indledning
The Fosmon WaveLink 51018HOM Add-On Door Contact Sensor Unit is designed to expand your existing Fosmon WaveLink Doorbell System. This unit provides an additional layer of security by detecting when a door or window is opened, transmitting a signal to your compatible receiver (not included) to alert you with a customizable ringtone. Its wireless and portable design makes it suitable for various applications, from home security to retail business monitoring.
Image: Four Fosmon WaveLink Door Contact Sensor Units, showcasing the product in a multi-pack.
Pakkens indhold
- Magnetic Door Sensor Transmitter
- Dobbeltsidet tape
- Ankre og skruer
- AA Transmitter Battery (Note: The product specifications state 'Batteries Included? No', but the description lists 'AA Transmitter Battery' in package contents. Please verify upon receipt.)
Image: Contents of the package, including the door sensor, user manual, screws, anchors, and double-sided tape.
Funktioner
- Udvidbart system: Designed to seamlessly integrate with existing Fosmon WaveLink Doorbell Systems.
- Moderne design: Features a sleek, contemporary design suitable for various home and business environments.
- Magnetic Door Sensor: Activates when the magnetic stripe is separated, signaling the receiver.
- Built-in LED Indicator: Provides a visual alert, beneficial for the hearing impaired.
- Nem installation: Wire-free setup for quick and convenient installation.
Kompatibilitet
This add-on door sensor transmitter is compatible with the following Fosmon WaveLink Doorbell Systems:
- 51004HOM - Fosmon WAVELINK Wireless Entry Alert Doorbell
- 51005HOM - Fosmon WAVELINK Wireless Motion Doorbell Alert Sensor
- 51007HOM - Fosmon WAVELINK Wireless Door Open Chime
- 51009HOM - Fosmon WAVELINK Wireless Entry Alert Doorbell (Black)

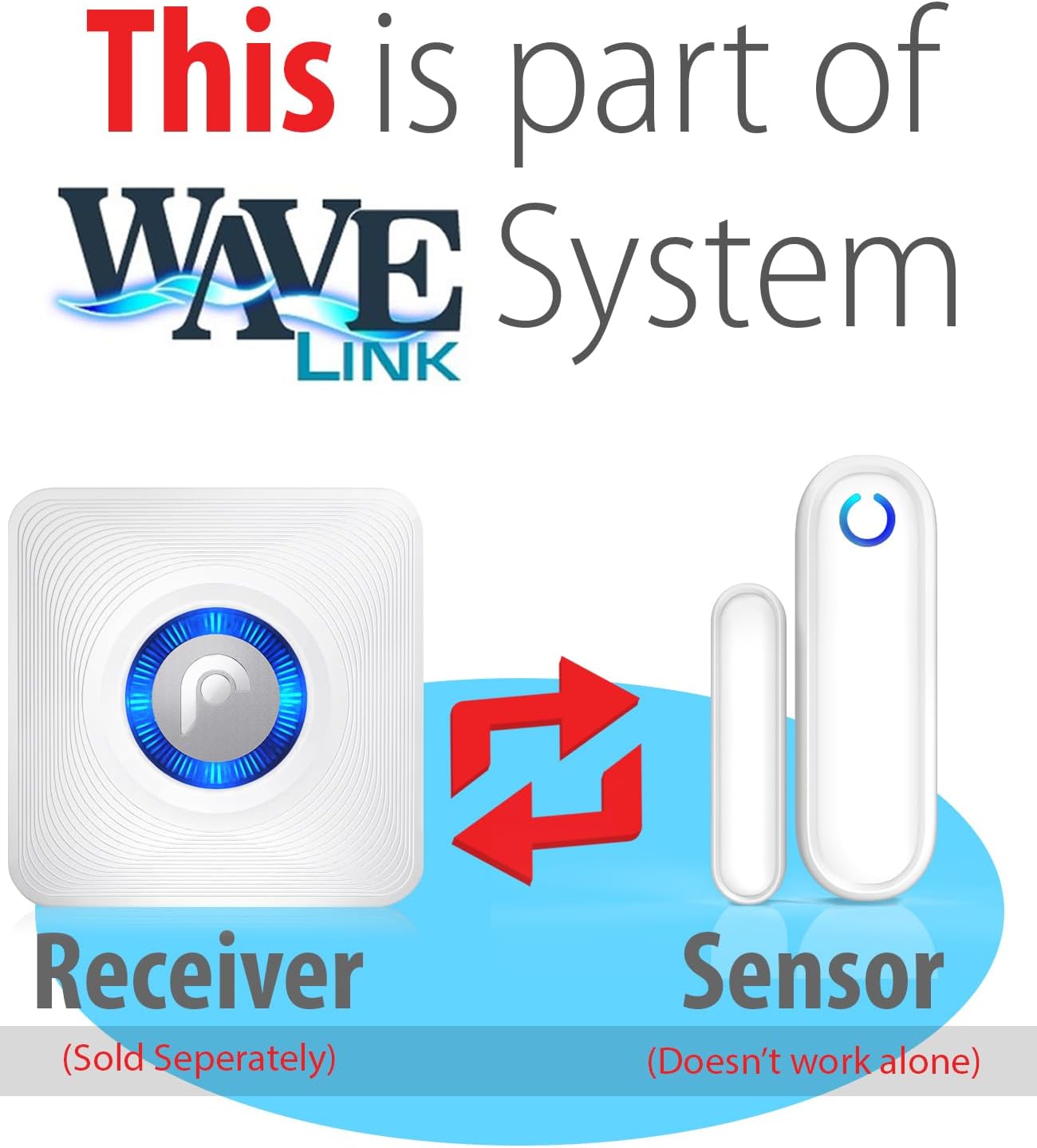

Image: Diagram illustrating the sensor as part of the WaveLink system, showing communication between the sensor and a separately sold receiver.
Opsætning og installation
The Fosmon WaveLink door sensor is designed for wire-free and easy installation. Each receiver can be paired with up to 10 transmitters, and each transmitter can be paired with up to 10 receivers.
Installationstrin:
- Forbered sensoren: Insert the 1.5V AA Alkaline Battery into the transmitter unit.
- Vælg monteringssted: Select a clean, dry surface on your door frame and the corresponding door where the sensor and its magnetic component will be aligned when the door is closed. Ensure the two parts are within close proximity (e.g., less than 1 cm) when the door is shut.
- Monteringsmuligheder:
- Brug af dobbeltklæbende tape: Peel off the protective backing from the double-sided tape and firmly press the main sensor unit onto the door frame and the smaller magnetic component onto the door, ensuring they align.
- Brug af skruer og ankre: For a more secure installation, use the provided screws and anchors to mount the sensor unit and its magnetic component. Pre-drill small pilot holes if necessary.
- Parring med modtager: Refer to your Fosmon WaveLink receiver's instruction manual for specific pairing instructions. Generally, this involves putting the receiver into pairing mode and then activating the door sensor (e.g., by separating the magnetic parts) to establish the connection.
- Test funktionalitet: Once installed and paired, open and close the door to ensure the sensor triggers the receiver and the LED indicator on the transmitter illuminates.
Image: Illustrates the sensor's use for child safety, showing a child opening a door equipped with the sensor, and a receiver in the background.
Operation
Once installed and paired with a compatible Fosmon WaveLink receiver, the door contact sensor operates automatically. When the door or window to which the sensor is attached is opened, the magnetic connection between the two sensor parts is broken. This action triggers the transmitter to send a wireless signal to the paired receiver. The receiver will then alert you with its programmed ringtone, indicating that the door or window has been opened.
The built-in LED indicator on the transmitter will flash when activated, providing a visual confirmation of the sensor's operation.
Image: Depicts the sensor's application in a retail business setting, notifying staff when customers enter.
Image: Shows the sensor's role in deterring break-ins, with a sensor mounted on a window being tampered med.
Image: Illustrates how the system can be customized and expanded throughout a home with multiple sensors and receivers.
Opretholdelse
To ensure optimal performance of your Fosmon WaveLink Door Contact Sensor Unit, follow these maintenance guidelines:
- Udskiftning af batteri: Replace the 1.5V AA Alkaline Battery when the LED indicator on the transmitter no longer illuminates or if the sensor fails to trigger the receiver reliably.
- Rensning: Wipe the sensor units with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Justeringstjek: Periodically check that the main sensor unit and its magnetic component remain properly aligned on the door/window and frame to ensure consistent detection.
- Miljøforhold: Ensure the sensor is not exposed to extreme temperatures or direct moisture, as this can affect performance and lifespan.
Fejlfinding
If you experience issues with your Fosmon WaveLink Door Contact Sensor Unit, consider the following:
- Sensor Not Triggering Receiver:
- Check battery: Ensure the battery is correctly inserted and has sufficient charge. Replace if necessary.
- Check alignment: Verify that the main sensor unit and the magnetic component are properly aligned and close enough when the door/window is closed.
- Re-pair sensor: Attempt to re-pair the sensor with your receiver according to your receiver's instructions.
- Range: Ensure the sensor is within the operating range of your receiver (maximum 500 feet or 150 meters in open area). Walls and other obstructions can reduce this range.
- Falske alarmer:
- Secure mounting: Ensure both parts of the sensor are securely mounted and do not shift or vibrate, which could cause momentary separation.
- Environmental factors: Extreme temperature changes or strong electromagnetic interference might rarely affect performance.
- LED-indikator virker ikke:
- Battery: This typically indicates a low or dead battery. Replace the battery.
If these steps do not resolve the issue, please contact Fosmon customer support for further assistance.
Specifikationer
| Driftsområde | Maximum 500 feet or 150 meters (in open area) |
| LED-indikator | Ja |
| Sender batteri | 1.5V AA Alkaline Battery |
| Senderens strømforbrug | <10mW |
| Driftsfrekvens | 433 MHz ± 2 MHz |
| Driftstemperatur | 5°F til 140°F (-15°C til 60°C) |
| Sender dimension | 2.95 x 1.97 x 0.63 inches (75 x 50 x 18 millimeters) |
| Vægt | 0.92 ounce (26 gram) |
| Kontrolmetode | Røre |
| Monteringstype | Vægmontering |
| Sensor Technology | Kontakt sensor |
Billede: Detaljeret view of the sensor with its dimensions, highlighting its small and compact design.
Garanti og support
For warranty information and customer support, please refer to the official Fosmon webwebstedet eller kontakt deres kundeservice direkte. Gem din købskvittering til eventuelle garantikrav.
