Indledning
This manual provides essential information for the safe and efficient operation of your RCF ART 710A active 2-way speaker. Please read this manual thoroughly before using the product to ensure proper setup, operation, and maintenance. Retain this manual for future reference.
Figur 1: Forside view of the RCF ART 710A active speaker, showcasing its robust grille and RCF logo.
Vigtige sikkerhedsoplysninger
- Strømforsyning: Sørg for, at strømforsyningen voltage matches the requirements specified on the unit. Use only the provided power cord.
- Ventilation: Bloker ikke ventilationsåbningerne. Sørg for tilstrækkelig luftgennemstrømning omkring enheden for at forhindre overophedning.
- Fugtighed: Do not expose the unit to rain or moisture. Avoid placing liquids on or near the speaker.
- Placering: Place the speaker on a stable, level surface or mount it securely using appropriate hardware.
- Service: Overlad al service til kvalificeret servicepersonale. Forsøg ikke selv at åbne eller reparere enheden.
- Høreværn: Prolonged exposure to high sound pressure levels can cause permanent hearing damage. Use hearing protection when operating at high volumes.
Nøglefunktioner
- 1400W Peak Power, 700W RMS
- 10-inch Woofer, 1-inch Compression Driver
- FiRPHASE Technology for linear response
- Integrated DSP with equalization, phase control, soft limiting, crossover, and speaker protections
- Klasse D Amplivførere
- Frequency Response: 50 Hz - 20 kHz
- Maksimal SPL: 129 dB
Opsætning
1. Udpakning
Carefully remove the speaker from its packaging. Inspect the unit for any signs of damage that may have occurred during transit. Retain the original packaging for future transport or storage.
2. Placering og montering
The ART 710A can be used as a main front-of-house speaker, a stage monitor, or mounted on a pole. Ensure the speaker is placed on a stable surface or securely mounted.
- Polmontering: Use a standard 35mm speaker pole. Ensure the pole is rated to support the speaker's weight (approximately 37 lbs / 16.8 kg).
- Gulvplacering: For stage monitor applications, position the speaker at the desired angle.
- Affjedring: If suspending the speaker, consult a qualified professional and use appropriate rigging hardware.

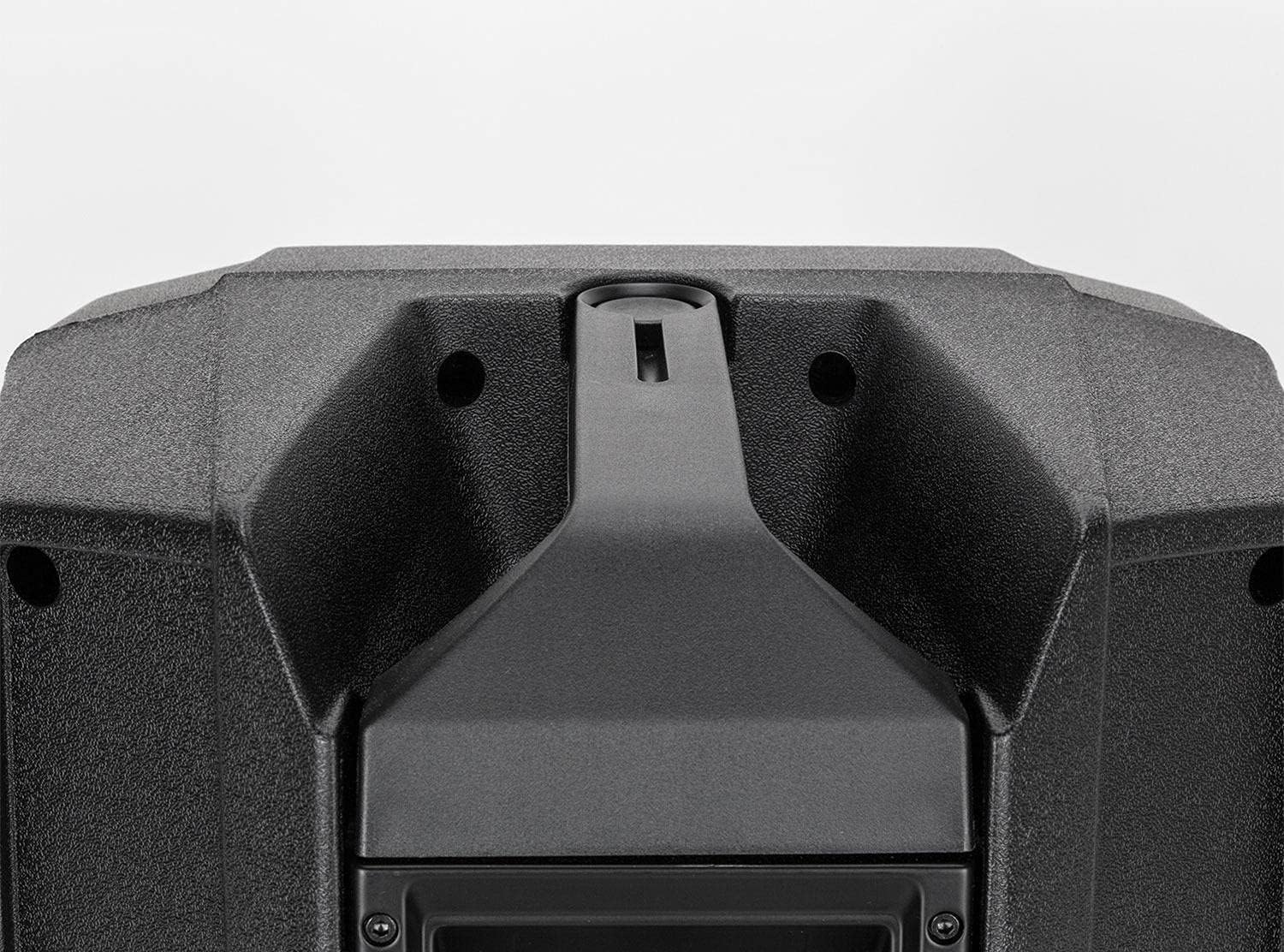

Figur 2: Øverst view of the RCF ART 710A, highlighting the integrated pole mount socket for stand placement.
3. Forbindelser
Refer to the rear panel for all input and output connections.
Figure 3: Rear panel of the RCF ART 710A, displaying XLR inputs, output, volume control, and power connection.
- Lydindgang: Connect your audio source (mixer, instrument, etc.) to the BALANCERET INDGANG ved hjælp af et XLR-kabel.
- Audio Output (Link): Brug BALANCERET UDGANG to link to another speaker or audio device.
- Strømindgang: Tilslut det medfølgende netkabel til AC INPUT stikkontakt.
- Input Sensitivity Switch: Adjust for microphone or line-level signals.
- Lydstyrkekontrol: Adjust the overall output level of the speaker.
Betjeningsvejledning
1. Tænd/sluk
- Ensure all connections are secure and the volume control is set to minimum before powering on.
- Vend AFBRYDEREN to the "ON" position. The power indicator LED will illuminate.
- To power off, set the volume to minimum, then flip the AFBRYDEREN to "OFF".
2. Adjusting Volume and Input Sensitivity
- Start med BIND control at its minimum setting.
- Indstil INPUT følsomhed switch according to your source: "MIC" for microphone level signals, "LINE" for line level signals (e.g., mixer output).
- Øg gradvist BIND control to the desired listening level. Monitor the signal LEDs to avoid clipping (distortion).
3. DSP Functions (Internal Processing)
The ART 710A features an integrated Digital Signal Processor (DSP) that manages equalization, phase control, soft limiting, crossover, and speaker protections automatically. There are no user-adjustable DSP parameters directly on the unit. The system is optimized for a linear response and balanced sound.
Opretholdelse
- Rensning: Clean the speaker cabinet with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Gitter: Kontrollér frontgitteret med jævne mellemrum for støv eller snavs, og rengør det forsigtigt om nødvendigt for at opretholde optimal lydspredning.
- Opbevaring: When not in use for extended periods, store the speaker in a dry, temperate environment, ideally in its original packaging or a protective cover.
- Inspektion: Regularly inspect power cables and audio cables for any signs of wear or damage. Replace damaged cables immediately.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen lydudgang |
|
|
| Forvrænget lyd |
|
|
| Brummen eller støj |
|
|
Tekniske specifikationer
| Feature | Detalje |
|---|---|
| Model | RCF ART 710A |
| Højttaler type | Active 2-way Speaker |
| Strømudgang | 1400W Peak, 700W RMS |
| Bashøjttaler | 10 tommer |
| Kompressions driver | 1 tommer |
| Frekvensrespons | 50 Hz - 20 kHz |
| Max SPL | 129 dB |
| DSP funktioner | FiRPHASE Technology, EQ, Phase Control, Soft Limiting, Crossover, Protections |
| Amplivligere Type | Klasse D |
| Indgangsstik | XLR |
| Output Stik | XLR |
| Dimensioner (H x B x D) | 22.3 x 15.4 x 13.9 tommer (56.6 x 39.1 x 35.3 cm) |
| Vægt | 37 lbs (16.8 kg) |
| Strømkilde | Elektrisk med ledning |
Garantioplysninger
RCF products are covered by a limited warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region and product. Please refer to the official RCF website or your local distributor for detailed warranty information and registration procedures. Keep your proof of purchase for warranty claims.
Kundesupport
For technical assistance, service, or spare parts, please contact RCF customer support or your authorized RCF dealer. You can find contact information on the official RCF webwebsted:
RCF Official Support Webwebsted
When contacting support, please have your product model (ART 710A) and serial number ready. The serial number is located on the rear panel of the speaker.
