SuperATV Half Windshield Instruction Manual

1. Introduktion

This manual provides essential information for the proper installation, operation, and maintenance of your SuperATV Half Windshield (Model HWS-CA-DEF-71). Please read these instructions thoroughly before proceeding with installation or use to ensure safety and optimal performance.

2. Produktet er slutview

The SuperATV Half Windshield is designed to provide protection from bugs, wind, and debris without obstructing your forward view. It is constructed from durable 1/4-inch polycarbonate and features an XR Optic Hard Coating for enhanced scratch resistance and UV protection.

Image: SuperATV Half Windshield installed on a Can-Am Defender UTV.

Image: Driver's view through the half windshield, demonstrating clear visibility.

Nøglefunktioner:

• Materiale: 1/4-inch polycarbonate, offering high impact resistance.
• Belægning: Proprietary XR Optic Hard Coating on both sides for scratch and UV resistance.
• Design: Half windshield cut to provide protection without obstructing view.
• Kompatibilitet: Designed for various Can-Am Defender HD 5, HD 8, HD 10, and MAX models.

3. Opsætning og installation

The SuperATV Half Windshield is designed for quick and straightforward installation. It comes pre-assembled, simplifying the process.

Installationstrin:

1. Udpak komponenter: Carefully remove all items from the packaging and verify that all parts are present.
2. Position Windshield: Place the half windshield onto your Can-Am Defender, aligning it with the vehicle's frame.
3. Fastgør med Clamps and Straps: Utilize the provided lock-tight, high-strength ABS clamps and tough rip-stop Velcro straps to secure the windshield firmly to the roll cage. Ensure the flexible PVC plastic trim with EPDM rubber bulb seals creates a tight seal against the body to prevent water intrusion and rattling.
4. Endelig justering: Confirm the windshield is securely mounted and does not interfere with vehicle operation or visibility.

Image: Visual representation of the easy installation process.

Billede: Detaljeret view of the no-leak seal design, featuring flexible PVC plastic trim with EPDM rubber bulb seals and internal metal clips for a secure fit.

Image: Close-up of the robust Velcro straps and ABS clamps designed for a secure, no-rattle fit.

For a visual guide or more detailed instructions, please refer to the QR code provided with your product or visit the manufacturer's webwebsted.

4. Betjeningsvejledning

Once installed, the half windshield operates passively, providing continuous protection. Ensure the windshield is clean for optimal visibility before operating your vehicle.

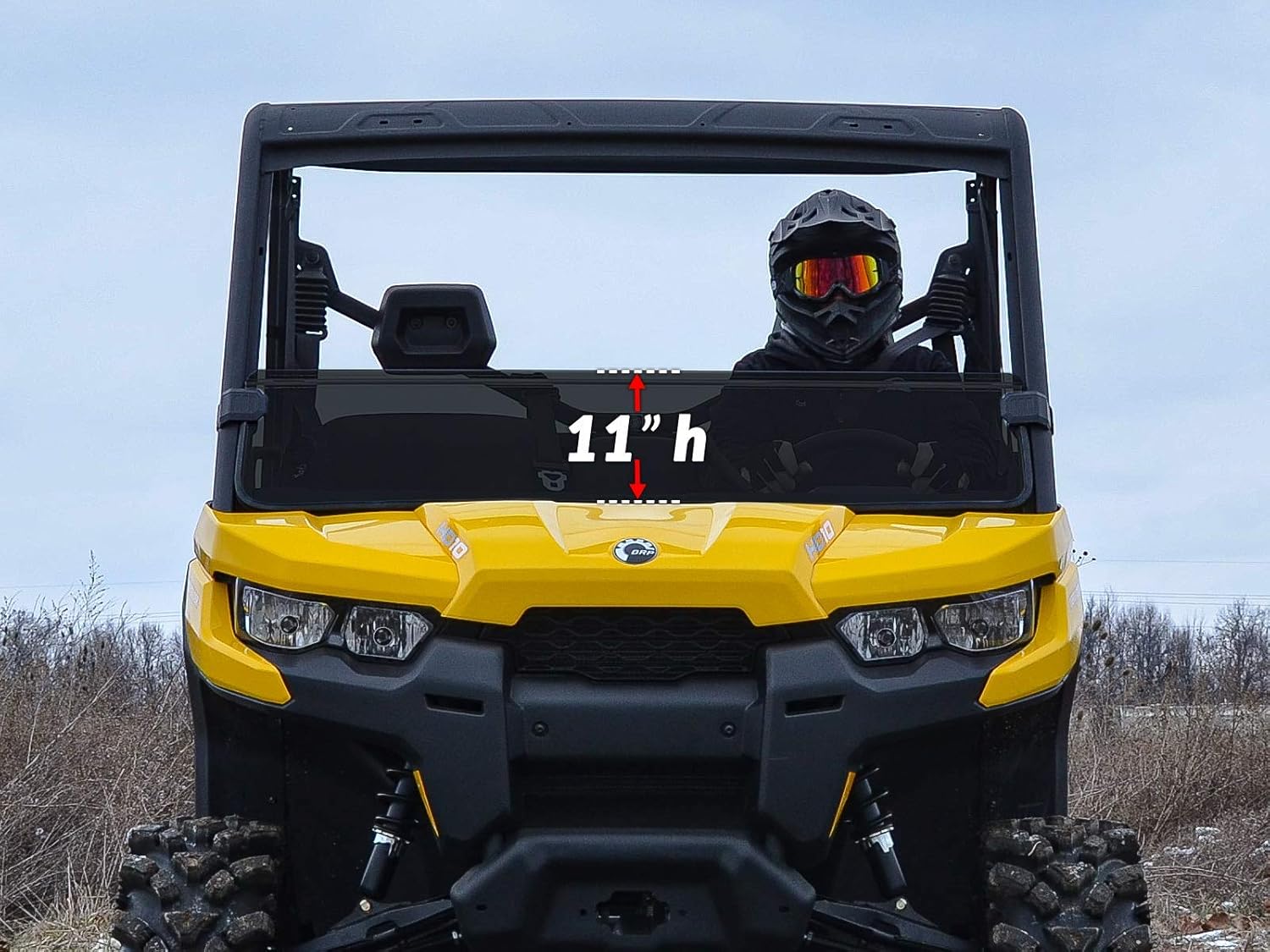

Image: The half windshield's height, approximately 11 inches, designed to provide protection while maintaining an open-air feel.

5. Vedligeholdelse

Proper maintenance will extend the life and clarity of your SuperATV Half Windshield.

Rengøringsvejledning:

• Skånsom rengøring: Use a soft cloth or microfiber towel and warm water with a mild, non-abrasive soap.
• Undgå barske kemikalier: Do not use window cleaners containing ammonia, alcohol, or abrasive cleaning agents, as these can damage the XR Optic Hard Coating.
• Skyl grundigt: After cleaning, rinse the windshield thoroughly with clean water to remove any soap residue.
• Dry Carefully: Air dry or gently blot with a clean, soft cloth to prevent water spots.

6. Fejlfinding

If you encounter any issues with your half windshield, consider the following:

• Windshield Not Staying Down: Sørg for, at alle clamps and straps are tightened securely. Check the positioning of the flexible seal along the vehicle's body for proper contact. Adjust as necessary to eliminate gaps.
• Excessive Wind Deflection: A half windshield is designed to provide partial protection. If you require more comprehensive wind blockage, consider a full windshield option.
• Raslen: Verify that all mounting hardware, including clamps and straps, are tight. The no-leak seal is designed to prevent rattling; ensure it is properly seated.

7. Specifikationer

8. Fitment Details

This SuperATV Half Windshield (HWS-CA-DEF-71) is compatible with the following Can-Am Defender models:

• CAN-AM DEFENDER HD8: 2016-2025
• CAN-AM DEFENDER HD5: 2017-2021
• CAN-AM DEFENDER DPS HD7: 2022-2025
• CAN-AM DEFENDER DPS HD8 CAB: 2021
• CAN-AM DEFENDER DPS HD8: 2016-2021
• CAN-AM DEFENDER DPS HD9 CAB: 2022-2023
• CAN-AM DEFENDER DPS HD9: 2022-2025
• CAN-AM DEFENDER HD10 6X6 DPS: 2020-2025
• CAN-AM DEFENDER HD10 6X6 XT: 2021, 2025
• CAN-AM DEFENDER HD10 LIMITED: 2020-2025
• CAN-AM DEFENDER HD10 MOSSY OAK HUNTING EDITION: 2017-2020
• CAN-AM DEFENDER HD10 X MR: 2018, 2025
• CAN-AM DEFENDER HD10 XT: 2022-2025
• CAN-AM DEFENDER HD10 XT-P: 2018-2020
• CAN-AM DEFENDER MAX HD10 DPS: 2017-2025
• CAN-AM DEFENDER MAX HD10 LIMITED: 2020-2025
• CAN-AM DEFENDER MAX HD10 Lone Star CAB: 2023-2025
• CAN-AM DEFENDER MAX HD10 Lone Star: 2018, 2025
• CAN-AM DEFENDER MAX HD10 X MR: 2020-2025
• CAN-AM DEFENDER MAX HD10 XT CAB: 2018-2020
• CAN-AM DEFENDER MAX HD10 XT: 2017, 2025
• CAN-AM DEFENDER MAX HD7: 2022-2025
• CAN-AM DEFENDER MAX HD8 DPS: 2017-2021
• CAN-AM DEFENDER MAX HD8 XT: 2017-2021
• CAN-AM DEFENDER MAX HD8: 2018-2021
• CAN-AM DEFENDER MAX HD9 DPS: 2022-2025
• CAN-AM DEFENDER MAX HD9 XT: 2022-2025
• CAN-AM DEFENDER MAX HD9: 2022-2025
• CAN-AM DEFENDER PRO HD10 DPS: 2023-2025
• CAN-AM DEFENDER PRO HD10 LIMITED: 2022-2025
• CAN-AM DEFENDER PRO HD10 LONE STAR: 2022
• CAN-AM DEFENDER PRO HD10 XT: 2020-2025
• CAN-AM DEFENDER PRO HD10: 2020-2022
• CAN-AM DEFENDER XT CAB HD10: 2016-2020
• CAN-AM DEFENDER XT CAB HD8: 2018-2020
• CAN-AM DEFENDER XT HD10: 2016-2021
• CAN-AM DEFENDER XT HD8: 2016-2021
• CAN-AM DEFENDER XT HD9: 2022-2025

9. Garanti og support

For warranty information or technical assistance, please contact SuperATV customer support directly. Refer to the contact details provided with your product packaging or visit the official SuperATV webwebsted for de mest aktuelle supportmuligheder.
