Maksview B2013 Enkelt vejrbestandigt udendørsstik med RJ45-tilslutning Brugermanual

1. Produktet er slutview

Den maksimaleview B2013 Single Weatherproof Outdoor Socket with RJ45 Connection is designed to provide a secure and weatherproof external entry point for network/Ethernet connections into mobile vehicles. This unit is ideal for routing external Wi-Fi aerials or network cables, ensuring reliable internet access while on the move.

Its robust design includes a tight closing lid that conceals cables during use, protecting the internal connections from environmental elements such as rain, wind, and snow. A self-adhesive EPDM foam seal ensures water ingress protection between the socket and the vehicle.

Nøglefunktioner:

• Specially designed to provide a neat, external weatherproof cable entry point into any vehicle.
• Features an RJ45 connection for network/Ethernet cables.
• Includes a 3-meter cable length for flexible installation.
• Ideal for various portable satellite systems and touring aerials.
• Equipped with a waterproof self-adhesive EPDM foam seal for enhanced protection.

2. Sikkerhedsoplysninger

Læs alle sikkerhedsinstruktioner omhyggeligt inden installation og brug. Manglende overholdelse af disse instruktioner kan medføre skade på produktet, ejendom eller personskade.

• Ensure the installation surface is clean, dry, and free from debris before applying the seal.
• Do not attempt to modify the product. Any modifications will void the warranty and may compromise safety.
• Opbevares utilgængeligt for børn.
• When drilling, be aware of any existing wiring or pipes behind the installation surface.
• Brug altid passende værktøj og personlige værnemidler under installationen.

3. Pakkens indhold

Kontroller, at alle komponenter er til stede, før installationen påbegyndes:

• 1 x Maksview B2013 Single Weatherproof Outdoor Socket with RJ45 Connection
• 1 x Self-adhesive EPDM foam seal
• Monteringsskruer
• 3-meter RJ45 cable

4. Installationsvejledning

Follow these steps for proper installation of your Maxview B2013 weatherproof socket:

1. Vælg placering: Select a flat, clean, and accessible surface on your vehicle for mounting. Ensure there is sufficient space for the unit and for cables to be routed internally.
2. Forbered overflade: Clean the mounting area thoroughly to remove any dirt, grease, or moisture. This ensures proper adhesion of the EPDM foam seal.
3. Markér borepunkter: Place the socket against the chosen surface and mark the positions for the mounting screws. Also, mark the center point for the cable entry hole.
4. Bore huller: Carefully drill pilot holes for the mounting screws and a larger hole for the cable entry, ensuring not to damage any internal wiring or structures.
5. Påfør segl: Apply the self-adhesive EPDM foam seal to the back of the socket, aligning it with the edges to create a watertight barrier.
6. Kabelrute: Feed the RJ45 cable through the drilled cable entry hole from the inside of the vehicle to the outside. Connect the RJ45 end to the socket's internal connector.
7. Mount Socket: Position the socket over the drilled holes, ensuring the cable is properly routed and connected. Secure the socket to the vehicle using the provided mounting screws. Tighten firmly but do not overtighten.
8. Luk låget: Ensure the lid is securely closed when the socket is not in use or when cables are connected, to maintain its weatherproof integrity.

Figure 4.1: Maxview B2013 socket with an RJ45 cable connected, demonstrating its primary function.

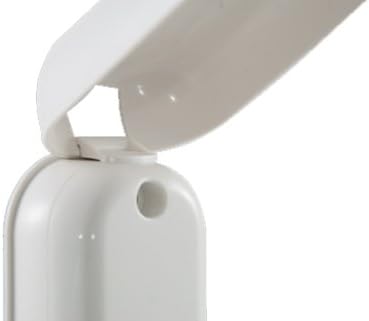

Figure 4.2: Detail of the robust hinge mechanism for the weatherproof lid.

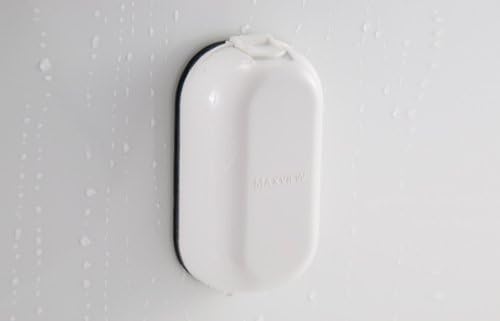

Figure 4.3: The Maxview B2013 socket with its lid closed, illustrating its weatherproof capability against water.

5. Betjeningsvejledning

Using the Maxview B2013 socket is straightforward:

1. Åbent låg: Gently lift the weatherproof lid to expose the RJ45 port.
2. Tilslut kabel: Insert your external RJ45 network cable into the port until it clicks securely into place.
3. Kabelrute: Ensure the cable is routed neatly and does not obstruct the lid's closing mechanism. The design allows the lid to close around the cable.
4. Luk låget: Once the cable is connected, carefully close the lid. The lid is designed to provide a tight seal around the connected cable, maintaining the weatherproof integrity.
5. Frakobl kablet: To disconnect, open the lid, press the release tab on the RJ45 connector, and gently pull the cable out.
6. Sikkert låg: Always ensure the lid is fully closed when no cable is connected to protect the port from environmental exposure.

6. Vedligeholdelse

To ensure the longevity and optimal performance of your Maxview B2013 socket, follow these maintenance guidelines:

• Rensning: Periodically clean the exterior of the socket with a soft, damp cloth. Avoid using abrasive cleaners or solvents that could damage the plastic or seal.
• Forseglingsinspektion: Regularly inspect the EPDM foam seal for any signs of wear, cracking, or damage. A compromised seal can lead to water ingress. If damaged, replace the seal promptly.
• Lågmekanisme: Check the lid's hinge and latch mechanism to ensure it operates smoothly and closes securely. Lubricate with a silicone-based spray if necessary, avoiding contact with electrical components.
• Kabelforbindelse: Ensure the internal RJ45 connection remains free of dirt and moisture. If exposed, clean gently with compressed air.
• Skruefasthed: Periodically check the mounting screws for tightness. Vibrations during travel can loosen them over time.

7. Fejlfinding

If you encounter issues with your Maxview B2013 socket, refer to the following common problems and solutions:

8. Specifikationer

9. Garanti og support

Maksview products are manufactured to high standards and are designed for reliable performance. For specific warranty information, please refer to the documentation included with your purchase or visit the official Maxview webwebsted.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Maxview customer service. Contact details can typically be found on the manufacturer's webwebstedet eller på produktemballagen.

Gem venligst dit købsbevis for garantikrav.
