SBS Bluetooth-øretelefon med udtrækkelig klips og kabel brugermanual

1. Introduktion

Thank you for choosing the SBS Bluetooth Earphone with Retractable Clip and Cable. This device is designed for convenience and high-quality audio, featuring a practical retractable cable, multipoint technology for connecting two devices simultaneously, and a long-lasting battery. This manual provides detailed instructions to help you get the most out of your earphone.

Image 1.1: SBS Bluetooth Earphone, showcasing its compact design and integrated earbud.

2. Pakkens indhold

Markér venligst feltet for følgende elementer:

• 1 x SBS Bluetooth Earphone (Model: TEROLLCLIPBTK)
• 1 x Micro USB ladekabel
• 1 x Brugermanual (dette dokument)

3. Produktet er slutview

Familiarize yourself with the components and controls of your SBS Bluetooth Earphone.

Image 3.1: Labeled diagram of the earphone's controls and ports.

1. Lydstyrke op/ned (+/-): Justerer lydstyrken.
2. Multifunktionsknap: Controls power, pairing, call management, and music playback.
3. Tilbagespolingsknap: Retracts the earphone cable.
4. Mikrofon: For voice communication during calls.
5. Type-C opladningsport: For charging the device.

Image 3.2: The retractable cable feature, highlighting its convenience.

The earphone features a convenient clip on the back, allowing it to be securely attached to clothing or bags.

4. Opsætning

4.1. Opladning af øretelefonerne

Before first use, fully charge the earphone. Connect the supplied charging cable (listed as Micro USB in package contents) to the Type-C opladningsport (5) on the earphone and the other end to a USB power source (e.g., computer USB port, USB wall adapter). The LED indicator will show charging status (refer to LED indicator section for details). A full charge provides up to 7 hours of talk time and 270 hours of standby time.

4.2. Parring med en Bluetooth-enhed

1. Ensure the earphone is turned off.
2. Tryk og hold på Multifunktionsknap (2) until the LED indicator flashes blue and red alternately, indicating pairing mode.
3. On your smartphone or Bluetooth-enabled device, enable Bluetooth and search for new devices.
4. Select "TEROLLCLIPBTK" (or similar name) from the list of available devices.
5. Once connected, the LED indicator will flash blue slowly, and you may hear a confirmation tone.

5. Betjeningsvejledning

5.1. Tænd/sluk

• Tænd: Tryk på og hold Multifunktionsknap (2) for approximately 3 seconds until the LED flashes blue.
• Sluk: Tryk på og hold Multifunktionsknap (2) for approximately 3 seconds until the LED flashes red and then turns off.

5.2. Opkaldsstyring

• Besvar opkald: Tryk på Multifunktionsknap (2) én gang.
• Afslut opkald: Tryk på Multifunktionsknap (2) once during a call.
• Afvis opkald: Tryk på og hold Multifunktionsknap (2) i 2 sekunder.
• Genopkald sidste nummer: Double-press the Multifunktionsknap (2).

5.3. Musikafspilning

• Afspil/pause: Tryk på Multifunktionsknap (2) én gang.
• Lydstyrke op: Tryk på Knappen Lydstyrke op (+) (1).
• Lydstyrke ned: Tryk på Lydstyrke ned (-)-knap (1).

5.4. Retractable Cable Operation

To extend the earphone cable, gently pull the earbud until the cable reaches the desired length. To retract the cable, press the Tilbagespolingsknap (3). The cable will automatically retract into the unit.

5.5. Flerpunktsforbindelse

The earphone supports multipoint technology, allowing it to be connected to two Bluetooth devices simultaneously (e.g., two smartphones). This enables you to manage calls from either device without needing to disconnect and reconnect repeatedly.

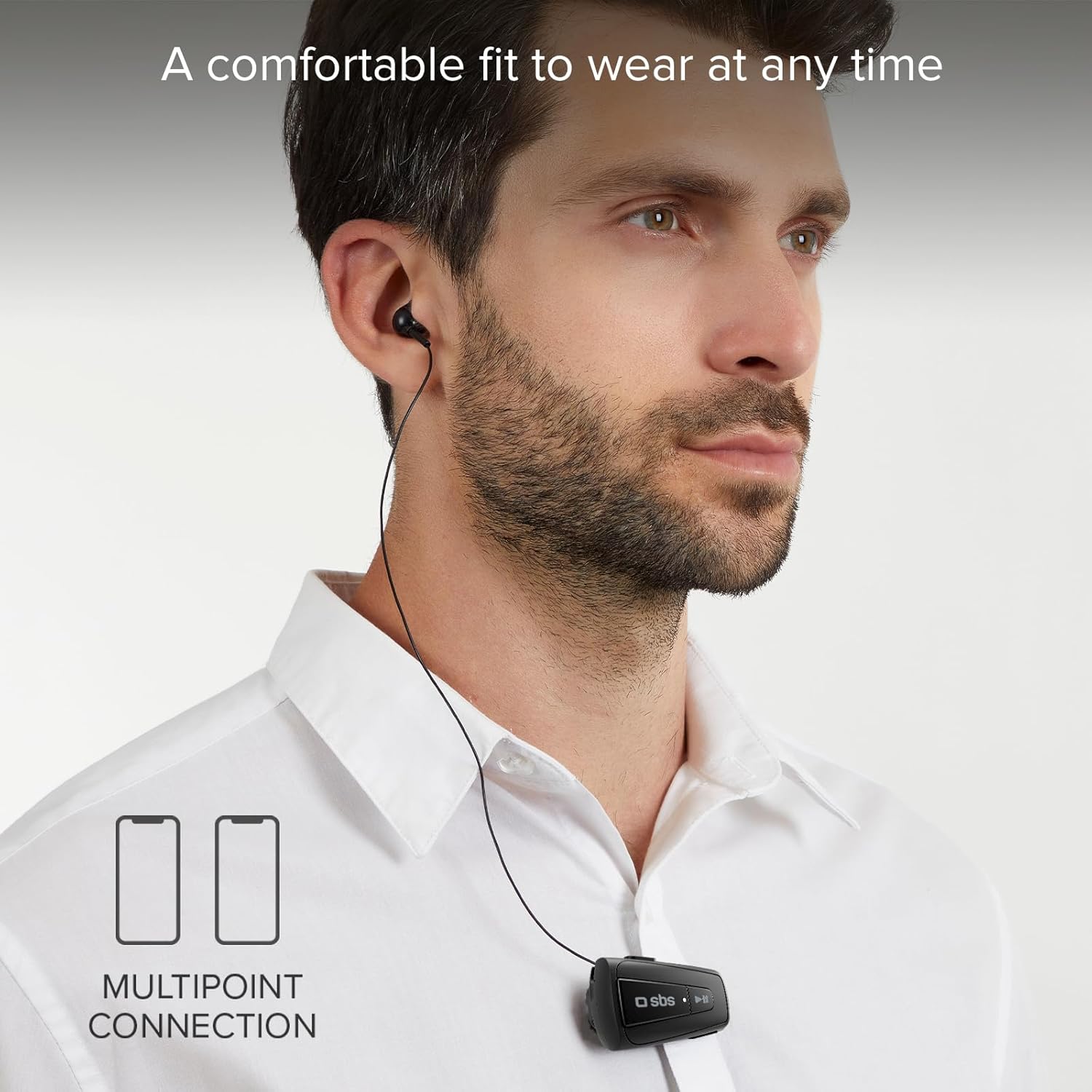

Image 5.1: Illustrating the multipoint connection feature, allowing two devices to be connected simultaneously.

To use multipoint:

1. Pair the earphone with the first device as described in Section 4.2.
2. Når du er tilsluttet, skal du deaktivere Bluetooth på den første enhed.
3. Put the earphone back into pairing mode (Section 4.2) and pair it with the second device.
4. After the second device is connected, re-enable Bluetooth on the first device. The earphone should automatically connect to both devices.

6. Vedligeholdelse

• Clean the earphone with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Avoid exposing the earphone to extreme temperatures, humidity, or direct sunlight.
• Do not immerse the earphone in water or any other liquids.
• Store the earphone in a cool, dry place when not in use.
• Do not attempt to disassemble or repair the earphone yourself, as this will void the warranty.

7. Fejlfinding

8. Specifikationer

9. Garanti og support

For warranty information and technical support, please refer to the warranty card included with your product or visit the official SBS webwebsted. Gem din købsbevis i tilfælde af garantikrav.

For further assistance, you may contact SBS customer service through their official channels.
