1. Produktet er slutview
The OUTWATER Samson Series Twin Wheel Casters are designed for smooth and quiet mobility of furniture and equipment. This 4-pack of 2-inch diameter casters features durable black Nylon 6 wheels and hoods, suitable for various floor types including hardwood and carpet. Each caster includes a brake mechanism for secure positioning and a 5/16-18 x 1" UNC threaded stem for easy installation.
Figure 1.1: OUTWATER 2" Black Nylon Swivel Hooded Samson Twin Wheel Casters (4-pack) with packaging.
Figur 1.2: Detaljeret view of a single caster, highlighting the brake mechanism.
2. Nøglefunktioner
- Holdbar konstruktion: Made from black Nylon 6 and Zinc-Plated Steel for long-lasting performance.
- Twin Wheel Design: 2-inch twin wheels provide increased surface contact and minimize carpet fiber twisting.
- Integrated Brake: Each caster includes a locking brake to secure furniture in place.
- Non-Marring Wheels: Nylon 6 material prevents unsightly black track marks, making them safe for various floor types including hardwood, laminate, and carpet.
- Gusset-Reinforced: Features 16 gussets (8 on each side) and steel axle technology for enhanced rigidity and strength, supporting up to 75 lbs per caster (static rating).
- Stille drift: Enclosed moving mechanism and axle reduce noise levels, ideal for office and residential environments.
- Nem installation: 5/16-18 x 1" UNC threaded stem allows for simple screw-in installation.
- 360° drejning: Provides full range of motion for effortless maneuverability.
Figure 2.1: Illustration of gusset-reinforced wheels and hardened steel axle for enhanced strength.
Figure 2.2: Casters are safe for use on multiple floor types without leaving marks.
3. Specifikationer
| Attribut | Værdi |
|---|---|
| Hjul diameter | 2 tommer (50 mm) |
| Installed Mounting Height | 2-5/16 tommer (58.7 mm) |
| Stilktype | UNC Threaded Stem |
| Stem Dimensions | 5/16-18 x 1 inch |
| Load Capacity (Static) | 75 lbs per wheel (300 lbs per set of 4) |
| Load Capacity (Dynamic) | 49 lbs per wheel (196 lbs per set of 4) |
| Materiale | Nylon 6, Zinc-Plated Steel |
| Farve | Sort |
| Swivel Radius | 2-1/8 tommer |
| Fabrikant | Outwater |
| Modelnummer | SAMS-7-BK-BRK |
| UPC | 707571852884 |
Figure 3.1: Detailed technical dimensions of the caster.
4. Opsætning og installation
These casters are designed for easy, tool-free installation into compatible furniture. Ensure your furniture has a threaded receptacle that matches the 5/16-18 x 1" UNC stem. If replacing existing casters, first remove the old casters before installing the new ones.
4.1. Verifying Stem Compatibility
Before installation, it is crucial to verify that the threaded stem of the new OUTWATER caster matches the existing receptacle on your furniture. The stem diameter is measured over the threads.

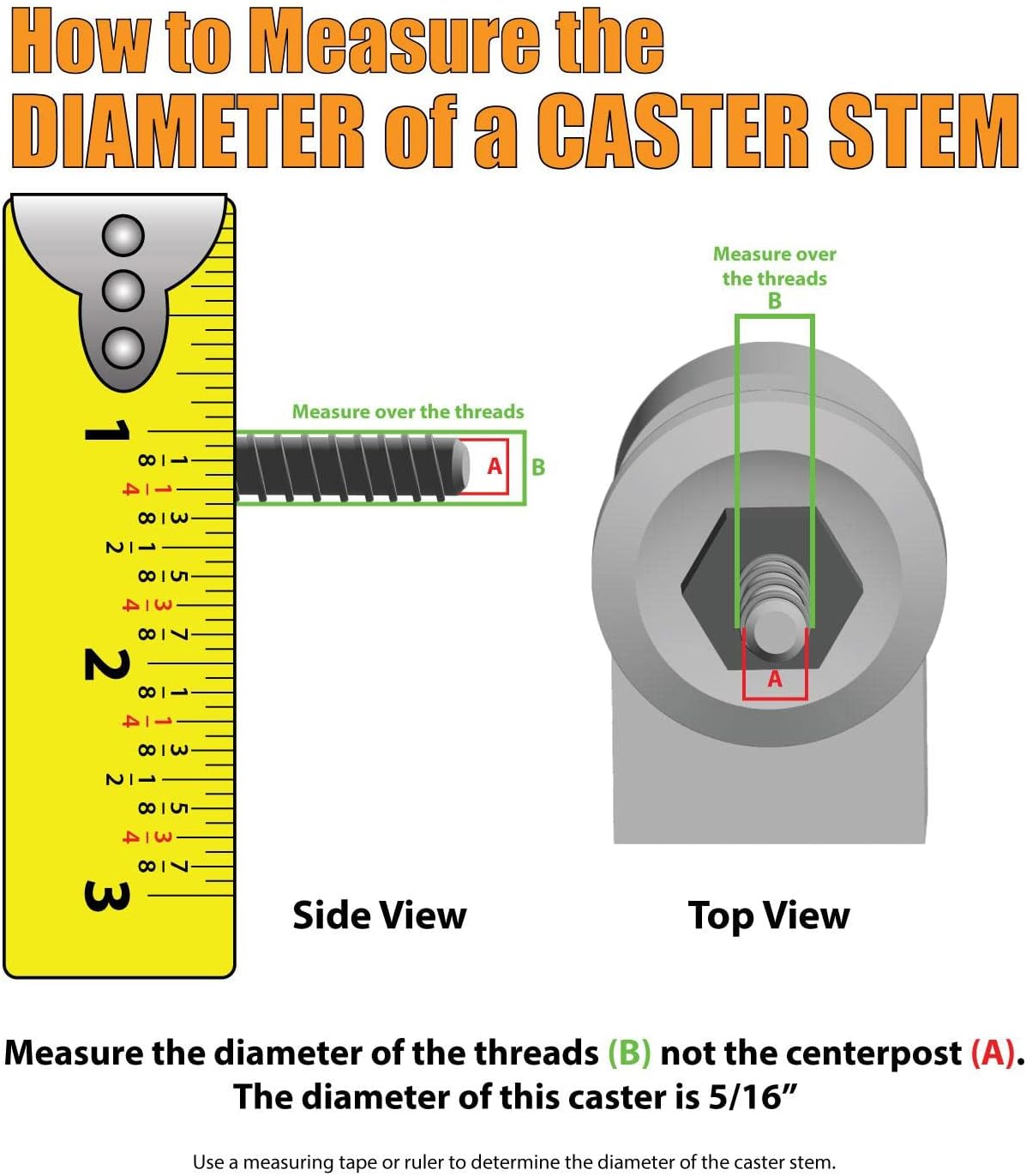

Figure 4.1: Guide to measuring caster stem diameter. The diameter of this caster's stem is 5/16".
4.2. Installationstrin
- Prepare the Furniture: If replacing old casters, carefully remove them from the furniture legs. This may involve pulling them out or unscrewing them, depending on their type.
- Insert New Casters: Align the threaded stem of the new OUTWATER caster with the threaded receptacle on the furniture leg.
- Skru på plads: Gently screw the caster into the receptacle by hand, turning clockwise until it is securely tightened. Do not overtighten.
- Gentage: Install all remaining casters following the same procedure.
- Test stabilitet: Once all casters are installed, gently test the stability of the furniture before applying full weight.
5. Betjeningsvejledning
The OUTWATER Samson Twin Wheel Casters are designed for smooth and effortless movement across various surfaces.
5.1. Bevægelse
These casters feature a 360-degree swivel action, allowing for easy maneuverability in any direction. The twin-wheel design helps distribute weight and reduces friction, making it simple to move furniture without excessive effort.
5.2. Engaging the Brake
Each caster is equipped with a brake mechanism to prevent unintended movement. To engage the brake, press down firmly on the lever located on the side of the caster until it clicks into the locked position. To disengage, lift the lever upwards.
Always ensure all casters are either fully engaged or fully disengaged to prevent uneven stress on the furniture and potential damage.
Figur 5.1: Eksample of casters installed on a piece of furniture.
6. Vedligeholdelse
Regular maintenance will ensure the longevity and smooth operation of your OUTWATER casters.
- Rensning: Periodically clean the wheels and the area around the axle to remove dust, hair, and debris that may accumulate and hinder smooth movement. Use a damp klud og mild sæbe om nødvendigt.
- Inspektion: Regularly inspect the casters for any signs of wear, damage, or loose connections. Ensure the threaded stem remains securely tightened.
- Smøring: While these casters are designed for quiet operation, a small amount of silicone-based lubricant can be applied to the swivel mechanism if any squeaking or stiffness occurs. Avoid oil-based lubricants as they can attract more dirt.
7. Fejlfinding
If you encounter any issues with your casters, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Hjulet ruller ikke jævnt | Debris (hair, lint) caught in wheels or axle. | Clean wheels and axle area thoroughly. |
| Caster squeaks during movement | Manglende smøring i drejemekanismen. | Apply a small amount of silicone-based lubricant to the swivel point. |
| Brake not holding furniture securely | Brake mechanism not fully engaged or worn. | Ensure the brake lever is pressed down firmly until it locks. If worn, consider replacement. |
| Caster feels loose or wobbly | Threaded stem is loose in the receptacle. | Carefully tighten the threaded stem by turning the caster clockwise until snug. Do not overtighten. |
8. Garanti og support
Your OUTWATER Samson Twin Wheel Casters are backed by a commitment to quality. For specific warranty details and support, please refer to your purchase documentation or contact the seller directly.
Returpolitik: Dette produkt er berettiget til refusion eller ombytning inden for 30 dage efter købet, i henhold til sælgers politik.
For further assistance, you may visit the official OUTWATER Store on Amazon: OUTWATER Store
