Thomson WHP5327 Wireless TV Headphones User Manual

Indledning

This manual provides comprehensive instructions for the setup, operation, and maintenance of your Thomson WHP5327 Wireless TV Headphones. Designed for comfortable, high-quality audio listening from various sources like TVs, Hi-Fi systems, smartphones, tablets, and laptops, these over-ear headphones offer a wireless range of up to 20 meters and come with a convenient charging station.

Sikkerhedsoplysninger

Læs venligst alle sikkerhedsinstruktioner omhyggeligt, inden produktet tages i brug. Gem denne manual til senere brug.

• Do not expose the headphones or charging station to extreme temperatures, humidity, or direct sunlight.
• Undgå at tabe eller udsætte enheden for kraftige stød.
• Forsøg ikke at skille produktet ad eller ændre det. Dette vil ugyldiggøre garantien.
• Brug kun den medfølgende strømadapter og kabler.
• Langvarig lytning ved høj lydstyrke kan forårsage høreskader. Juster lydstyrken til et behageligt niveau.
• Opbevares utilgængeligt for børn.

Pakkens indhold

Bekræft at alle varer er til stede i pakken:

• 1x Thomson WHP5327 Wireless TV Headphones
• 1x Charging Station / Transmitter
• 1x strømadapter
• 2x Rechargeable Batteries (AA)
• 3x Audio Cables (e.g., 3.5mm Jack, RCA)
• 2x Audio Adapters (e.g., 6.3mm adapter)
• 1x brugermanual

Produkt overview

Familiarize yourself with the components of your wireless headphone system.

Hovedtelefoner

Billede: Side view of the Thomson WHP5327 headphones, highlighting the integrated volume control and power button on the earcup.

• Justerbart pandebånd: For en behagelig pasform.
• Polstrede ørekopper: Provide comfort during extended listening sessions.
• Lydstyrkekontrol: Integrated on the earcup for easy adjustment.
• Tænd/sluk-knap/indikator: To turn the headphones on/off and show status.
• Opladningskontakter: Located on the bottom of the headband for charging on the station.
• 3.5 mm lydstik: For optional wired connection to devices (cable may be required).

Charging Station / Transmitter

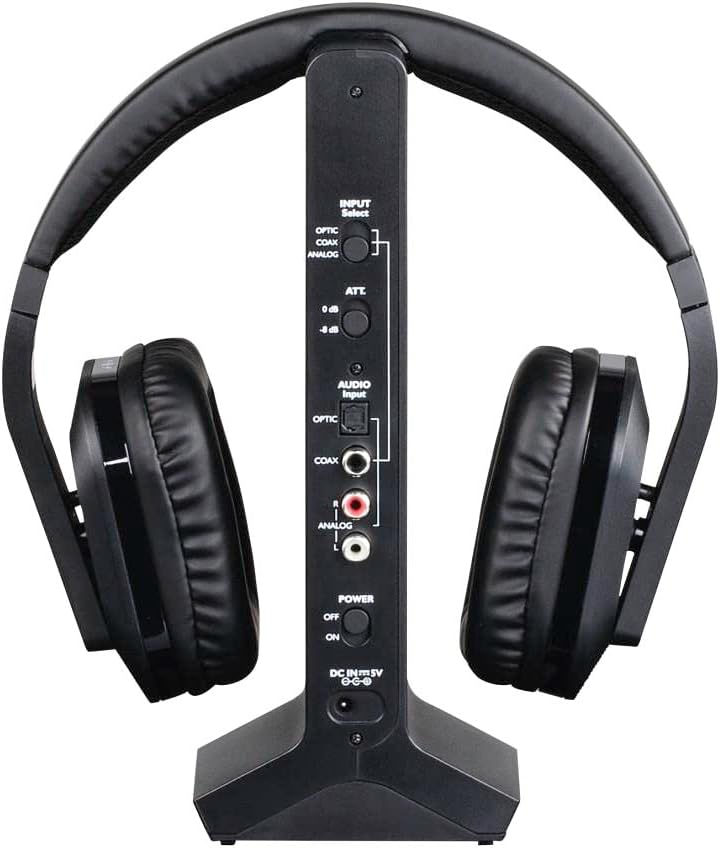

Billede: Bagside view of the Thomson WHP5327 charging station, displaying the various audio input ports (Optical, Coaxial, Analog) and power connection.

• Headphone Cradle: For storing and charging the headphones.
• Opladningsindikator: Light indicating charging status.
• Strømindikator: Light indicating the station is powered on.
• Indgangsvælgerknap: To choose between Optical, Coaxial, or Analog audio inputs.
• Audio Input Ports: Optical, Coaxial, and Analog (RCA) inputs for connecting to audio sources.
• Power Input (DC IN 5V): Til tilslutning af strømadapteren.
• Afbryderen: To turn the charging station on/off.

Opsætning

1. Opladning af hovedtelefonerne

1. Insert the provided rechargeable AA batteries into the headphone earcups, ensuring correct polarity.
2. Connect the power adapter to the "DC IN 5V" port on the charging station and plug it into a wall outlet. The Power indicator on the station will light up.
3. Place the headphones onto the charging station. Ensure the charging contacts align. The "CHARGE" indicator on the station will light up, indicating charging is in progress.
4. Allow approximately 8 hours for the initial full charge. Subsequent charges may take less time.

Image: The Thomson WHP5327 headphones resting on their charging station, ready for use or charging.

2. Connecting the Charging Station to an Audio Source

The charging station acts as the transmitter. Choose the appropriate connection method for your audio source (TV, Hi-Fi, etc.).

• Optical Digital Audio (Recommended for TVs):

  Connect an optical audio cable (not always included, check package contents) from your TV's "Optical Out" or "Digital Audio Out (Optical)" port to the "OPTIC" input on the charging station. Set the "INPUT Select" switch on the station to "OPTIC".

• Koaksial digital lyd:

  Connect a coaxial audio cable from your audio source's "Coaxial Out" port to the "COAX" input on the charging station. Set the "INPUT Select" switch on the station to "COAX".
• Analog Audio (RCA or 3.5mm Jack):

  Use the provided RCA audio cable to connect your audio source's "Audio Out" (red and white RCA jacks) to the "ANALOG" RCA inputs on the charging station. If your source has a 3.5mm headphone jack, use the provided 3.5mm to RCA adapter cable. Set the "INPUT Select" switch on the station to "ANALOG".

Ensure the power switch on the charging station is set to "ON" after connecting the audio source.

Betjeningsvejledning

Tænd/sluk

• To turn on the headphones, press and hold the Power button on the earcup until the indicator light illuminates.
• To turn off the headphones, press and hold the Power button again until the indicator light turns off.

Lydstyrkekontrol

Adjust the listening volume using the integrated volume control dial/buttons located on the earcup of the headphones.

Image: A person comfortably wearing the Thomson WHP5327 headphones while watching television, demonstrating typical usage.

Automatisk sluk

The transmitter and headphones feature an automatic shut-off function. If no audio signal is detected for approximately 5 minutes, both the transmitter and headphones will automatically power down to conserve battery life.

Wireless Range

The Thomson WHP5327 headphones offer a wireless range of up to 20 meters (approximately 65 feet) from the charging station/transmitter. Optimal range may vary depending on environmental factors such as walls, obstacles, and interference from other wireless devices.

Image: A diagram illustrating the wireless range between the headphones and the base unit, indicating a typical operational distance of 10-15 meters.

Kablet forbindelse (valgfrit)

While primarily designed for wireless use, the WHP5327 headphones can also be used with a wired connection. Connect a 3.5mm audio cable (not always included) from your audio source (e.g., smartphone, tablet, laptop) to the 3.5mm audio jack on the headphone earcup. This allows for direct audio playback without the need for the charging station/transmitter.

Image: A person using the Thomson WHP5327 headphones connected via a cable to a smartphone, demonstrating the optional wired listening mode.

Opretholdelse

• Rensning: Use a soft, dry cloth to clean the headphones and charging station. Do not use liquid cleaners or abrasive materials.
• Udskiftning af batteri: The headphones use rechargeable AA batteries. If the battery life significantly decreases, replace them with new rechargeable AA batteries of the same type and capacity. Ensure correct polarity when inserting.
• Opbevaring: When not in use, store the headphones on the charging station to keep them charged and ready. If storing for an extended period, ensure batteries are fully charged and store in a cool, dry place.

Fejlfinding

Specifikationer

Garanti og support

Thomson products are designed and manufactured to the highest quality standards. This product is covered by a limited warranty against defects in materials and workmanship. For detailed warranty terms and conditions, please refer to the warranty card included in your package or visit the official Thomson webwebsted.

For technical support, troubleshooting assistance, or spare parts inquiries, please contact Thomson customer service. Contact information can typically be found on the product packaging or the official Thomson support webwebsted.

Gem venligst dit købsbevis for garantikrav.
