Gree Multi21+ Dual-Zone Floor/Ceiling Mini Split Air Conditioner Heat Pump User Manual

Indledning

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Gree Multi21+ Dual-Zone Floor/Ceiling Mini Split Air Conditioner Heat Pump. Please read this manual thoroughly before installation and use, and retain it for future reference.

Sikkerhedsoplysninger

ADVARSEL: Forkert installation, justering, ændring, service eller vedligeholdelse kan forårsage materielle skader, personskade eller død. Se denne manual. For assistance eller yderligere information, kontakt en kvalificeret installatør eller et servicebureau.

• Installation must be performed by a state-licensed HVAC contractor to ensure eligibility for warranty and safe operation.
• Ensure the power supply matches the unit's requirements (208/230V).
• Forsøg ikke selv at reparere eller servicere enheden. Kontakt kvalificeret personale.
• Keep children and pets away from the outdoor unit during operation.
• Sørg for korrekt ventilation omkring udendørsenheden.

Produkt overview

The Gree Multi21+ Dual-Zone system is an inverter-driven mini split air conditioner and heat pump designed for efficient heating and cooling of two separate zones. It utilizes eco-friendly R410A refrigerant.

Figur 1: Overview of the Gree Multi21+ Dual-Zone Mini Split system, showing two indoor floor/ceiling units, their respective remote controls, and the single outdoor condenser unit.

Figur 2: A single Gree Multi21+ Floor/Ceiling indoor unit, designed for flexible installation, accompanied by its wired wall controller and wireless remote control.

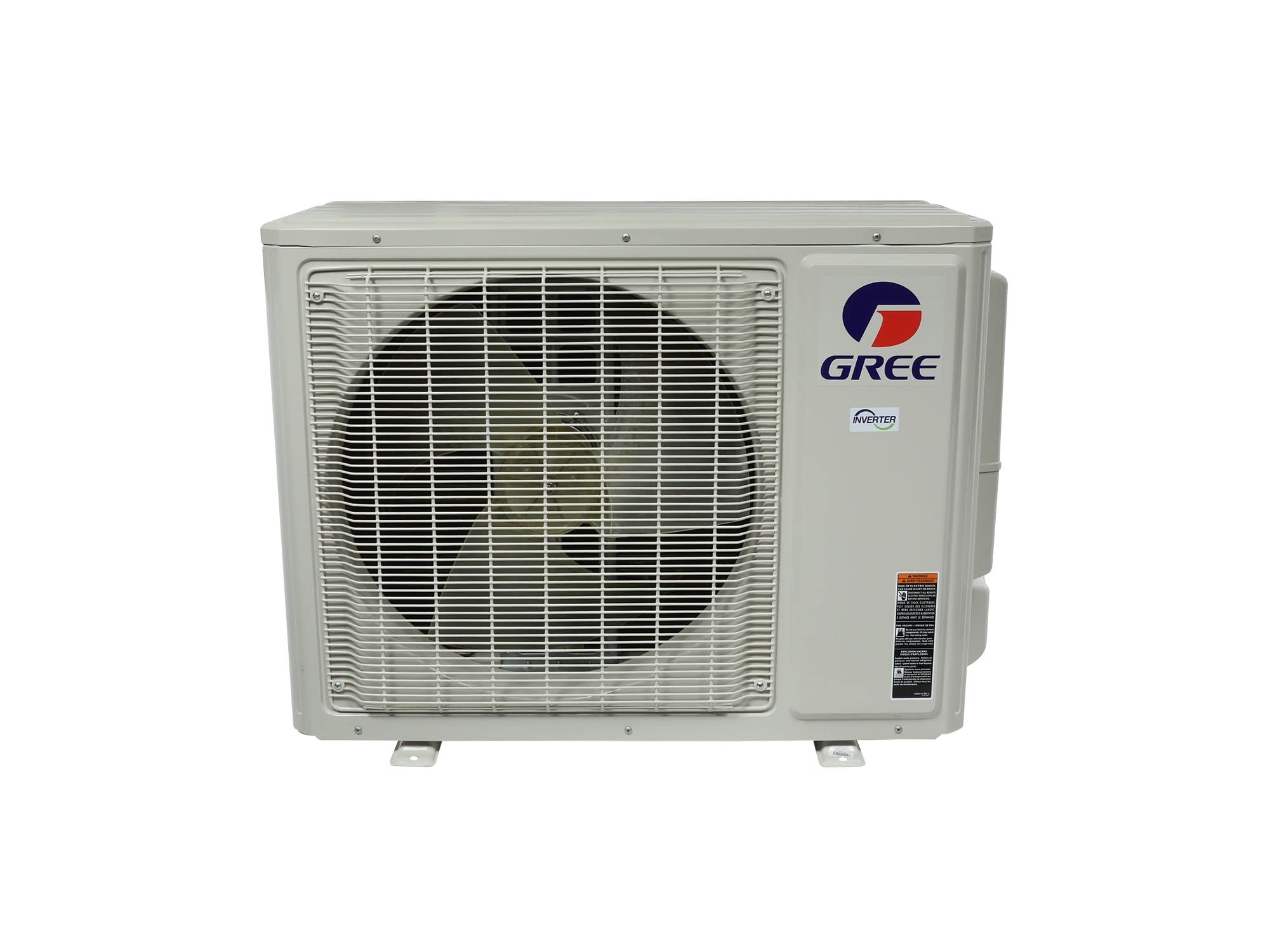

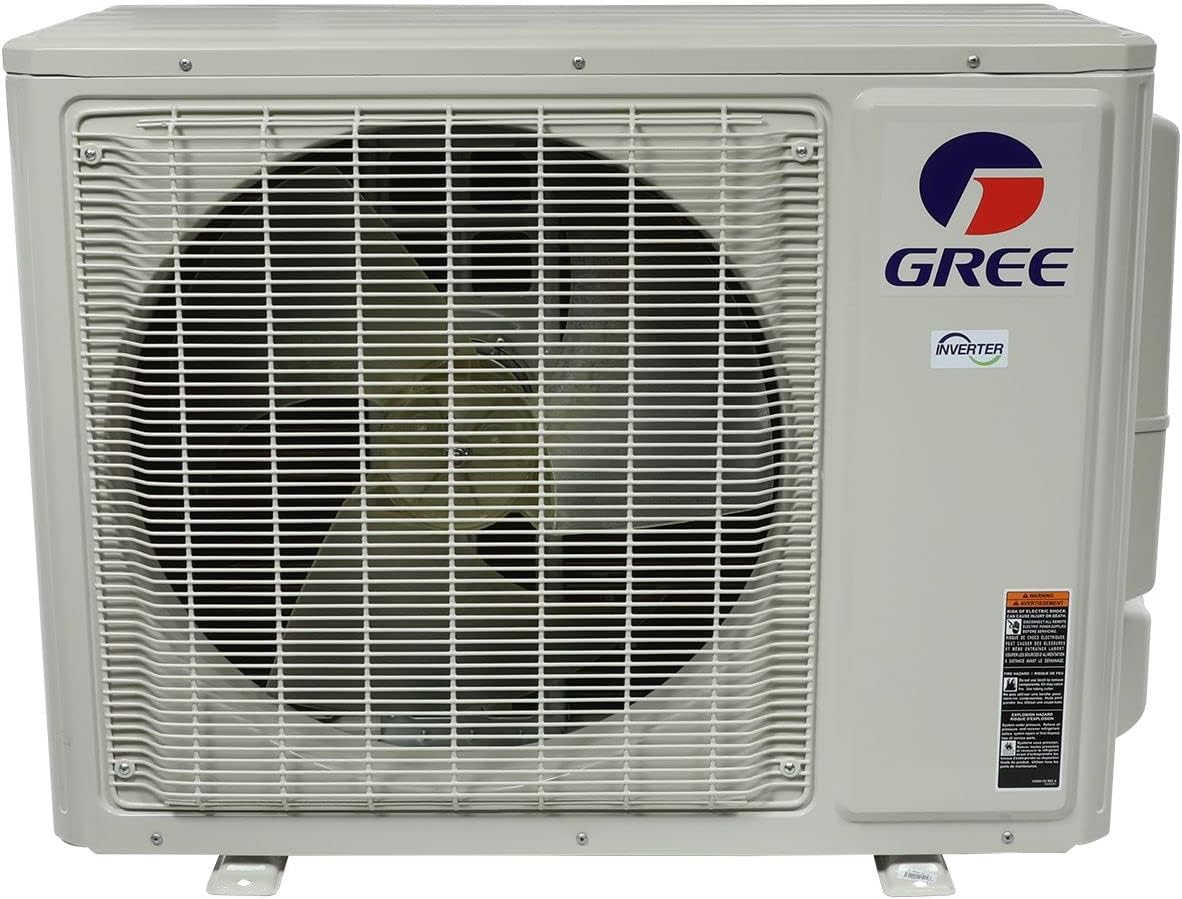

Figur 3: The Gree Multi21+ outdoor condenser unit, featuring the G10 inverter technology for energy efficiency and quiet operation.

Opsætning og installation

The Gree Multi21+ system requires professional installation by a licensed HVAC contractor. This ensures correct setup, adherence to safety standards, and proper system performance, which is also a condition for warranty eligibility.

Vigtige overvejelser ved installation:

• Linjesæt: Two sets of 1/4" x 3/8" line sets are required but not included with the unit.
• Placering af indendørsenhed: The Multi21+ Universal Floor/Ceiling indoor units are versatile and can be suspended from a ceiling or mounted low on a wall. This design is particularly suitable for spaces with limited wall space, such as restaurants or hallways.
• Elektrisk tilslutning: The system operates on 208/230V. Ensure the electrical supply meets these requirements and is installed by a qualified electrician.

Betjeningsvejledning

Your Gree Multi21+ system provides both heating and cooling functionalities, managed independently for two zones. The system is controlled via the provided wired wall controllers and wireless remote controls.

Nøglefunktioner:

• G10 Inverter Technology: This advanced technology optimizes energy consumption, reduces operational noise from the outdoor unit, and maintains stable room temperatures by avoiding the frequent on/off cycles of conventional systems.
• Dual-Zone kontrol: Each indoor unit can be set to a different temperature and mode (heating or cooling), allowing for customized comfort in two distinct areas.
• Air Purification Filter: The indoor units are equipped with an air purification filter to improve indoor air quality.

Figur 4: Visual representation of the Gree system's dual functionality, providing both cooling (blue) and heating (orange) capabilities for year-round comfort.

Figur 5: Icons illustrating key features and certifications of the Gree Multi21+ system, including a 5-year parts warranty, R410A refrigerant, heating & cooling, ETL listing, G10 Inverter Technology, AHRI certification, and Energy Star rating (except 42k model).

Opretholdelse

Regular maintenance ensures optimal performance and longevity of your Gree Multi21+ system. Always disconnect power to the unit before performing any maintenance.

• Rengøring af luftfilter: The air filters in the indoor units should be cleaned regularly (e.g., monthly, or more frequently depending on usage and air quality). Refer to the specific indoor unit manual for instructions on how to access and clean the filters.
• Rengøring af udendørsenhed: Keep the outdoor unit free from obstructions, leaves, dirt, and debris. Periodically clean the outdoor coil with a soft brush or water hose (low pressure) to maintain airflow.
• Professionel inspektion: It is recommended to have a licensed HVAC technician perform an annual inspection and professional cleaning of the entire system.

Fejlfinding

Før du kontakter service,view følgende almindelige problemer og løsninger:

• Enheden tænder ikke: Kontroller strømforsyningen, afbryderen, og sørg for, at fjernbetjeningens batterier fungerer.
• Utilstrækkelig køling/opvarmning: Verify temperature settings, ensure air filters are clean, and check for any obstructions to airflow at indoor or outdoor units.
• Usædvanlige lyde: Minor operational noises are normal. If loud or unusual noises occur, contact a qualified technician.
• Vandlækage: Ensure the condensate drain line is not clogged or kinked.

For persistent issues, contact a licensed HVAC professional.

Specifikationer

Figur 6: Detailed table showing measurements for various BTU capacities of Gree Floor/Ceiling indoor and outdoor units.

Figur 7: A table detailing system performance specifications for various models, including cooling/heating capacity, airflow, sound level, and line set sizes.

Garantioplysninger

The Gree Multi21+ system comes with a manufacturer's warranty:

• Dele: 5 år
• Kompressor: 7 år

Vigtig bemærkning: To be eligible for warranty coverage, installation must be performed by a state-licensed HVAC contractor. Failure to comply with this requirement may void the warranty.

Støtte

For technical support, service inquiries, or to locate a licensed HVAC contractor, please refer to the official Gree website or contact their customer service department. Always provide your model number (MULTI18CFLR201) and serial number when seeking support.
