1. Introduktion
The Fortinet FortiSwitch FS-224E-POE is a secure access switch designed to provide a robust, scalable Ethernet solution. It offers advanced security, performance, and manageability for small to mid-sized businesses, distributed enterprises, and branch offices. This switch integrates seamlessly with the FortiGate network security platform, allowing for centralized management and comprehensive visibility of all connected devices.
2. Produktet er slutview
2.1 Nøglefunktioner
- Lag 2/3-skift: Supports routing for flexible network design.
- 24 GE RJ45 Ports: All ports are equipped with Power over Ethernet Plus (PoE+) capability.
- 4 GE SFP Ports: Provides high-speed fiber uplinks for extended network reach.
- 180W PoE-budget: Sufficient power budget to support a variety of PoE-powered devices.
- FortiGate Switch Controller Compatibility: Enables centralized management and streamlined operations through the FortiGate interface.
2.2 Frontpanel
Figur 1: Forside view of the FortiSwitch FS-224E-POE, showing 24 RJ45 ports and 4 SFP ports.
The front panel of the FortiSwitch FS-224E-POE features 24 Gigabit Ethernet RJ45 ports, all supporting PoE+. These ports are numbered 1 through 24. Additionally, there are 4 Gigabit Ethernet SFP ports, labeled 25/26 and 27/28, for fiber optic connections. Status LEDs for Power, Alarm, PoE, Speed, and Link/Activity are also present to indicate the operational status of the switch and its ports.
2.3 Bagpanel

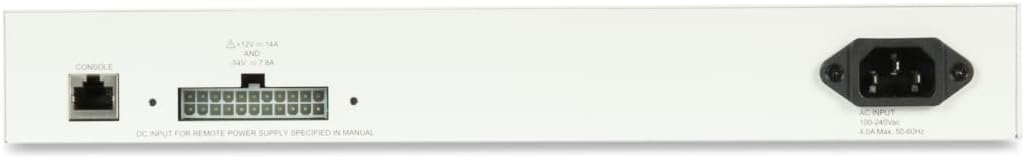

Figur 2: Bagside view of the FortiSwitch FS-224E-POE, showing power input and console port.
The rear panel includes the AC power input connector (100-240VAC, 50/60Hz) and an RJ45 console port for local management and initial configuration. There is also a DC input for remote power supply, as specified in the manual.
3. Opsætning
3.1 Udpakning
Carefully unpack the FortiSwitch from its packaging. Verify that all components are present and undamaged. Retain the packaging for future transport or storage.
3.2 Fysisk installation
The FortiSwitch FS-224E-POE can be installed on a desktop or mounted in a standard 19-inch equipment rack. Ensure the installation location provides adequate ventilation and is free from excessive heat, dust, and moisture. Maintain proper airflow around the device to prevent overheating.
3.3 Strømtilslutning
Connect the provided AC power cord to the power input on the rear panel of the switch and then to a grounded electrical outlet. Ensure the power source meets the switch's power requirements (100-240VAC, 50/60Hz).
3.4 Netværksforbindelser
Connect Ethernet cables from your network devices (computers, access points, IP cameras, etc.) to the RJ45 ports (1-24) on the front panel. For fiber optic connections, insert compatible SFP transceivers into the SFP ports (25/26, 27/28) and connect fiber optic cables.
3.5 Console Connection
For initial configuration or direct management, connect a console cable (RJ45 to DB9 or USB) from your management workstation to the console port on the rear panel. Use a terminal emulation program (e.g., PuTTY, Tera Term) with appropriate settings (e.g., 9600 baud, 8 data bits, no parity, 1 stop bit, no flow control).
3.6 Indledende konfiguration
The FortiSwitch is designed for integration with a FortiGate firewall. For initial setup and management, refer to the FortiGate documentation for instructions on how to discover and authorize the FortiSwitch. This allows for centralized management through the FortiGate interface.
4. Betjeningsvejledning
4.1 Tænd
After connecting the power cord, the switch will automatically power on. Observe the Power LED on the front panel; it should illuminate to indicate the device is receiving power.
4.2 LED-indikatorer
The front panel LEDs provide visual status information:
- Power LED: Indikerer strømstatus.
- Alarm LED: Angiver systemalarmer eller fejl.
- PoE LED: Indicates Power over Ethernet status for the ports.
- Hastighed LED: Indicates the connection speed of the respective port.
- Link/Act LED: Indicates a valid network link and activity on the respective port.
Refer to the Fortinet documentation for detailed LED behavior and troubleshooting.
4.3 Ledelse
The FortiSwitch FS-224E-POE is primarily managed through a FortiGate firewall using the FortiGate Switch Controller. This provides a single pane of glass for configuration, monitoring, and troubleshooting. For advanced configurations, the switch can also be accessed via the console port or SSH/Telnet (if enabled and configured).
5. Vedligeholdelse
5.1 Rengøring
Periodically clean the exterior of the switch with a soft, dry cloth. Do not use liquid or aerosol cleaners. Ensure ventilation openings are clear of dust and debris to maintain proper cooling.
5.2 firmwareopdateringer
Regularly check the Fortinet support website for the latest firmware updates. Keeping the firmware up-to-date ensures optimal performance, security, and access to new features. Follow the instructions provided by Fortinet for firmware upgrade procedures.
5.3 Miljøhensyn
Ensure the operating environment adheres to the specified temperature and humidity ranges to prevent damage and ensure reliable operation. Avoid placing the switch in direct sunlight or near heat sources.
6. Fejlfinding
6.1 Fælles problemer
- Ingen strøm: Verify the power cord is securely connected to both the switch and a working electrical outlet. Check the Power LED.
- Intet link/aktivitet: Ensure Ethernet or fiber cables are properly connected to both the switch and the connected device. Check the Link/Act LED. Verify the connected device is powered on and functioning.
- PoE virker ikke: Confirm the connected device is PoE-compatible. Check the PoE LED for the port. Ensure the total PoE budget (180W) is not exceeded by all connected devices.
- Kan ikke få adgang til administrationsgrænsefladen: Verify network connectivity between your management station and the FortiGate. If using the console, check cable connections and terminal emulation settings.
6.2 Support
If you encounter issues that cannot be resolved using this manual, please refer to the official Fortinet support documentation or contact Fortinet technical support for assistance. Provide your product model and serial number when seeking support.
7. Specifikationer
Figure 3: Dimensions and weight of the FortiSwitch FS-224E-POE.
| Feature | Specifikation |
|---|---|
| Modelnummer | FS-224E-POE |
| Switching Capacity (Duplex) | 56 Gbps |
| Packets Per Second (Duplex) | 83 Mpps |
| Hukommelse | 512 MB DDR3 |
| RJ-45 Serial Console Port | 1 |
| Understøttede VLAN'er | 4K |
| Network Latency | < 1 µs |
| Total Network Interfaces | 24x GE RJ45 ports, 4x GE SFP ports |
| PoE+ porte | 24 (all RJ45 ports) |
| PoE-budgettet | 180W |
| Formfaktor | 1 RU Rack Mount |
| Mål (H x D x B) | 1.73 x 9 x 12.99 tommer (44 x 230 x 330 mm) |
| Vægt | 5.37 pund (2.44 kg) |
| Etui materiale | Metal |
| Driftstemperatur | 32-122°F (0-50°C) |
| Opbevaringstemperatur | -4-158°F (-20-70°C) |
| Fugtighed | 10-90% ikke-kondenserende |
| Strømforsyning | AC built-in (100-240VAC, 50/60Hz) |
| Ledelse | FortiGate Switch Controller Compatible |
8. Garanti og support
The Fortinet FortiSwitch FS-224E-POE comes with a limited lifetime warranty. For detailed information regarding warranty terms, conditions, and registration, please refer to the official Fortinet webwebstedet eller garantidokumentationen, der følger med dit produkt.
For technical support, documentation, and software downloads, visit the Fortinet support portal. You will typically need your product's serial number to access support resources.
9. Sikkerhedsoplysninger
- Tilslut altid enheden til en jordet stikkontakt.
- Do not operate the device in environments with excessive heat, humidity, or dust.
- Sørg for ordentlig ventilation, og bloker ikke ventilationsåbninger.
- Åbn ikke enheden casing; der er ingen dele indeni, som brugeren kan servicere. Overlad al service til kvalificeret personale.
- Use only the power adapter and cables supplied or recommended by Fortinet.
- Afbryd strømmen, før du rengør eller flytter enheden.
