VonHaus 600W Corded 2-in-1 Stick Vacuum Cleaner Instruction Manual

1. Vigtige sikkerhedsoplysninger

Please read all instructions carefully before using your VonHaus 600W Corded 2-in-1 Stick Vacuum Cleaner. Retain this manual for future reference.

• Always ensure the appliance is unplugged from the power supply before assembling, disassembling, or cleaning.
• Brug ikke apparatet på våde overflader eller til at opsuge væsker.
• Hold hår, løstsiddende tøj, fingre og alle dele af kroppen væk fra åbninger og bevægelige dele.
• Tag ikke noget op, der brænder eller ryger, såsom cigaretter, tændstikker eller varm aske.
• Brug kun som beskrevet i denne manual. Brug kun producentens anbefalede tilbehør.
• Må ikke bruges uden støvkop og/eller filtre på plads.
• Hvis forsyningsledningen er beskadiget, skal den udskiftes af producenten, dennes serviceagent eller lignende kvalificerede personer for at undgå en fare.

2. Pakkens indhold

Kontroller, at alle komponenter er til stede og i god stand:

• Hovedvakuumenhed
• Udvideligt håndtag
• Gulvbørstehoved
• Sprækkeværktøj
• Børsteudstyr
• HEPA-filter (forinstalleret)
• Sponge Filter (pre-installed)

Figure 2.1: Included accessories for versatile cleaning.

3. Opsætning og montering

Your VonHaus vacuum can be assembled in two configurations: upright stick vacuum or handheld vacuum.

3.1 Upright Stick Vacuum Assembly

1. Fastgør håndtaget: Insert the extendable handle into the main vacuum unit until it clicks securely into place.
2. Fastgør gulvbørstehovedet: Connect the floor brush head to the main vacuum unit. Ensure it is firmly attached.
3. Strømtilslutning: Sæt netledningen i en passende stikkontakt.

Figure 3.1: The VonHaus 2-in-1 Stick Vacuum Cleaner in its two primary configurations.

3.2 Handheld Vacuum Assembly

1. Detach Handle and Floor Head: If assembled as an upright vacuum, press the release buttons to detach the extendable handle and the floor brush head from the main unit.
2. Vedhæft tilbehør: Select the desired accessory (crevice tool or brush attachment) and firmly attach it to the main vacuum unit.
3. Strømtilslutning: Sæt netledningen i en passende stikkontakt.

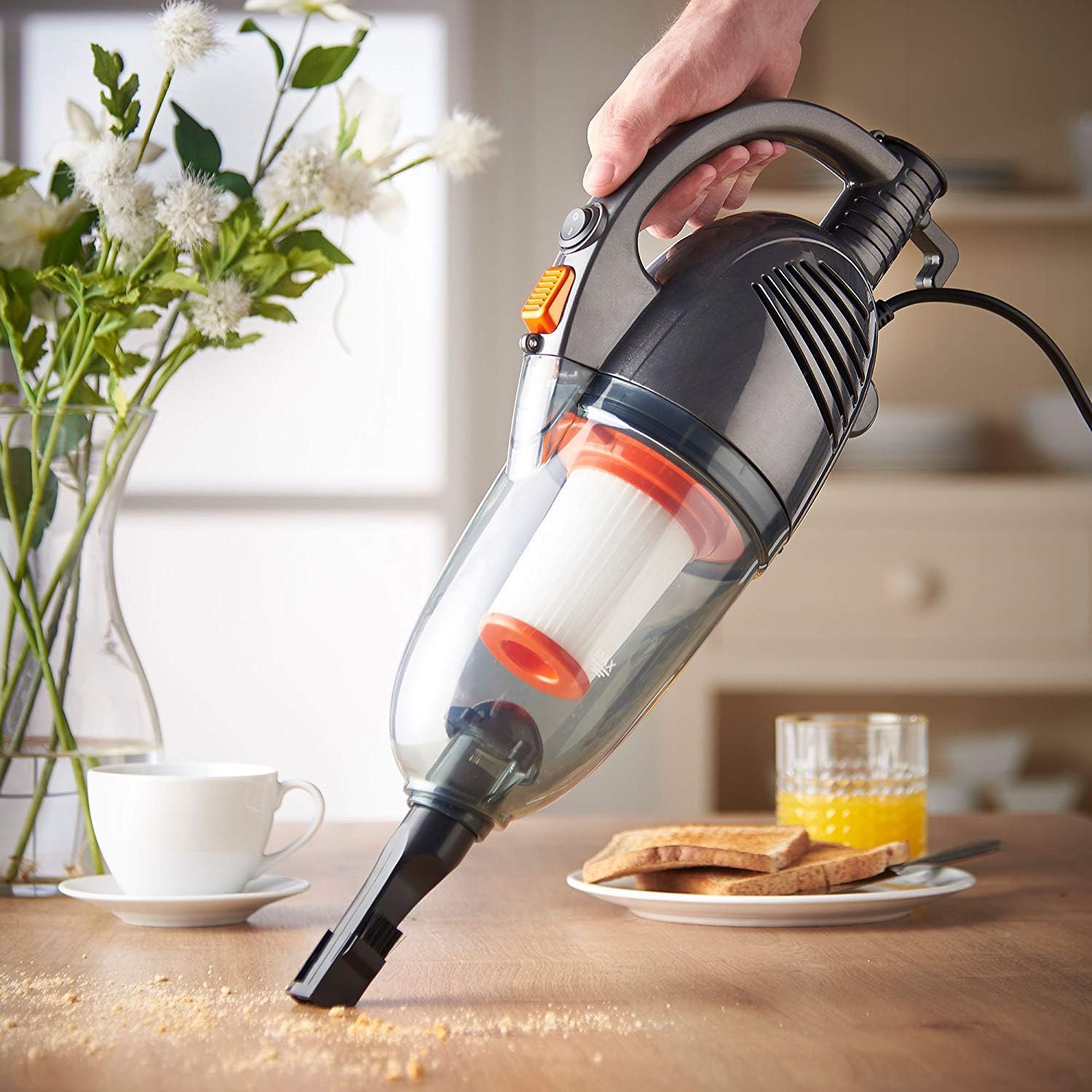

Figure 3.2: Handheld configuration for detailed cleaning tasks.

3.3 Visual Setup Guide

For a visual demonstration of the assembly process, please refer to the video below:

4. Betjeningsvejledning

Once assembled and plugged in, your vacuum is ready for use.

1. Tænd/sluk: Locate the power switch on the main unit and slide it to the 'On' position to start vacuuming. Slide to 'Off' to stop.
2. Upright Mode: Use the extendable handle and floor brush head for cleaning carpets, hard floors, and tiles. The lightweight design (approximately 0.01 ounces) allows for easy maneuverability.
3. Håndholdt tilstand: For smaller messes, upholstery, car interiors, or hard-to-reach areas, use the main unit with the appropriate attachment.
4. Brug af vedhæftede filer: The crevice tool is ideal for tight spaces and corners. The brush attachment is suitable for delicate surfaces and upholstery.

Figure 4.1: Effective cleaning of hard floors using the upright stick vacuum.

5. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer optimal ydeevne og forlænger din støvsugers levetid.

5.1 Tømning af støvbeholderen

Empty the dust cup regularly, ideally after each use, to maintain strong suction power.

1. Detach Dust Cup: Hold the main vacuum unit and press the dust cup release button. Gently pull the dust cup away from the main unit.
2. Remove Cyclone Separator: Over a waste bin, gently pull out the cyclone separator from the dust cup.
3. Tomt indhold: Tip the dust cup to empty all collected debris into the waste bin.
4. Saml igen: Reinsert the cyclone separator, ensuring it aligns correctly. Reattach the dust cup to the main unit until it clicks securely.

Figure 5.1: The 1.3L dust tank and HEPA sponge filtration system.

5.2 Rengøring af HEPA-filteret

The washable HEPA filtration system helps trap small particles. Clean the filter periodically.

1. Fjern filter: After detaching the dust cup, carefully remove the HEPA filter.
2. Shake Off Debris: Gently shake the filter over a waste bin to remove loose dirt and debris.
3. Vask filter: Rinse the filter under running water until clean. Do not use detergents or hot water.
4. Tør helt: Allow the filter to air dry completely in a well-ventilated area before reinserting it. Ensure it is completely dry to prevent mold or damage.
5. Genindsæt filter: Place the dry filter back into the vacuum, ensuring it is securely sealed.

5.3 Visual Maintenance Guide

For a visual demonstration of emptying the dust cup and washing the filter, please refer to the video below:

6. Fejlfinding

Hvis du støder på problemer med din støvsuger, kan du se følgende almindelige fejlfindingstrin:

• Ingen strøm:
  • Sørg for, at netledningen er sat ordentligt i en fungerende stikkontakt.
  • Check the power switch is in the 'On' position.
• Tab af sugeevne:
  • Tøm støvkoppen.
  • Clean or replace the HEPA and sponge filters.
  • Check for blockages in the nozzle, hose, or extension tube.
• Usædvanlig støj:
  • Check for any foreign objects caught in the floor brush head or main unit.
  • Sørg for, at alle dele er korrekt samlet og forsvarligt fastgjort.

If problems persist after attempting these steps, please contact VonHaus customer support.

7. Specifikationer

8. Garanti og support

For warranty information, product registration, or technical support, please refer to the documentation included with your purchase or visit the official VonHaus webwebsted. Gem din købsbevis i tilfælde af garantikrav.

For additional assistance, you may contact VonHaus customer service directly.
