Brugsanvisning til monteringshardware til Harbor Breeze vinkelmonteret loftsventilator

Indledning

This manual provides detailed instructions for the proper installation and maintenance of your Harbor Breeze Angle Mount Capable Ceiling Fan Mounting Hardware. This hardware is designed to securely attach a ceiling fan to an angled or flat ceiling surface. Please read all instructions carefully before beginning installation to ensure safe and correct assembly.

Sikkerhedsoplysninger

• Always turn off power at the circuit breaker or fuse box before beginning installation or performing any maintenance. Failure to do so can result in electrical shock or serious injury.
• Kontakt en kvalificeret elektriker, hvis du er usikker på ledningsføringsprocedurerne.
• Ensure the mounting structure can support the weight of the ceiling fan and its accessories.
• Use only parts supplied by the manufacturer. Substitution of parts may void the warranty and create a safety hazard.
• Hold børn og kæledyr væk fra arbejdsområdet under installationen.

Pakkens indhold

Carefully unpack all components and ensure you have received all items listed below. If any parts are missing or damaged, do not proceed with installation and contact customer support.

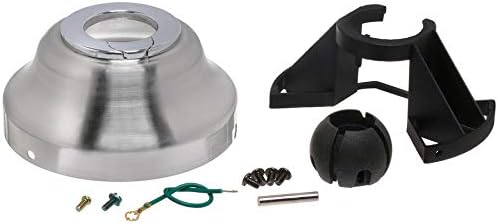

Billede: Overview of all components included in the Harbor Breeze Angle Mount Capable Ceiling Fan Mounting Hardware kit. This includes the brushed nickel canopy, a black plastic mounting bracket, a black plastic ball joint, various screws, a metal pin, and a green ground wire.

• Brushed Nickel Canopy (Escutcheon)
• Monteringsbeslag
• Ball Joint (for angle mount capability)
• Hardware Pack (screws, washers, pin, ground wire)

Billede: En detaljeret view of the brushed nickel canopy, showing its smooth finish and the opening for the downrod and ball joint.

Opsætning og installation

This hardware is designed to facilitate the secure mounting of a ceiling fan. Refer to your specific ceiling fan's instruction manual for detailed wiring and fan assembly steps. The following steps outline the installation of the mounting hardware itself.

Nødvendige værktøjer (ikke inkluderet):

• Phillips hovedskruetrækker
• Wire Strippers (if applicable for wiring)
• Stige

Installationstrin:

1. Sluk for strømmen: Before starting, ensure the power to the ceiling fan location is turned off at the main electrical panel.
2. Fastgør monteringsbeslag: Secure the mounting bracket to the ceiling junction box using the screws provided. Ensure the bracket is firmly attached and can support the fan's weight. For angled ceilings, position the bracket appropriately to allow the fan to hang vertically.
3. Assemble Downrod and Ball Joint: If your fan uses a downrod, slide the downrod through the canopy and then attach the ball joint to the top of the downrod. Ensure the pin is securely inserted through the downrod and ball joint.
4. Montering af hængende ventilator: Carefully lift the fan assembly and place the ball joint into the opening of the mounting bracket. The ball joint allows the fan to hang freely and adjust for angled ceilings.
5. Komplet ledningsføring: Follow your ceiling fan's specific wiring instructions. Connect the ground wire from the mounting bracket to the household ground wire.
6. Sikker baldakin: Slide the canopy up against the ceiling, covering the mounting bracket and wiring connections. Secure the canopy to the mounting bracket using the provided screws.
7. Gendan strøm: Once all connections are secure and the fan is properly mounted, restore power at the circuit breaker.

Opretholdelse

The Harbor Breeze Angle Mount Capable Ceiling Fan Mounting Hardware requires minimal maintenance. Regular inspection is recommended to ensure continued safe operation.

• Rensning: Wipe the brushed nickel canopy with a soft, damp klud. Undgå slibende rengøringsmidler eller opløsningsmidler, der kan beskadige overfladen.
• Periodiske kontroller: Annually, inspect the mounting screws and connections to ensure they remain tight and secure. Check for any signs of wear or damage to the mounting bracket or ball joint.
• Smøring: No lubrication is required for this mounting hardware.

Fejlfinding

If you encounter issues with your ceiling fan's mounting, consider the following common troubleshooting steps. For issues related to fan operation (e.g., motor, lights), refer to your ceiling fan's specific manual.

• Fan Wobbles Excessively:
  • Ensure all mounting bracket screws are securely tightened to the junction box.
  • Verify the ball joint is properly seated in the mounting bracket.
  • Check that the downrod pin is fully inserted and secured.
• Canopy Does Not Sit Flush:
  • Ensure all wiring is neatly tucked into the junction box and not obstructing the canopy.
  • Verify the mounting bracket is installed correctly and not protruding excessively.
• Noise from Mounting Area:
  • Tighten all screws on the mounting bracket and canopy.
  • Ensure no wires are rubbing against the canopy or mounting bracket.

Specifikationer

Garanti og support

This Harbor Breeze product is manufactured to high-quality standards. For specific warranty information, please refer to the documentation included with your complete ceiling fan unit or visit the official Harbor Breeze website. For technical support or assistance with replacement parts, please contact Harbor Breeze customer service.
