Respekta Premium Handleless Kitchenette User Manual

Indledning

Thank you for choosing the Respekta Premium Handleless Kitchenette. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new kitchen unit. Please read this manual thoroughly before beginning assembly or operation and keep it for future reference.

This kitchenette is designed for modern living spaces, featuring a sleek handleless design, glossy grey finish, and integrated appliances including an induction hob, oven, microwave, dishwasher, and refrigerator. Its modular design allows for flexible assembly to suit your space.

Figur 1: Fuld view of the Respekta Premium Handleless Kitchenette, showcasing its glossy grey finish and integrated appliances.

Sikkerhedsoplysninger

Følg altid følgende sikkerhedsretningslinjer for at forhindre personskade eller beskadigelse af produktet:

• Sørg for, at alle elektriske tilslutninger udføres af en kvalificeret elektriker, og at de overholder lokale bestemmelser.
• Do not attempt to modify or repair any component of the kitchenette. Contact qualified service personnel for assistance.
• Opbevar emballagematerialer utilgængeligt for børn for at forhindre kvælningsfare.
• Always disconnect power before cleaning or performing maintenance on any integrated appliance.
• Use appropriate personal protective equipment (PPE) during assembly, such as gloves and safety glasses.
• Ensure the kitchen unit is securely anchored to the wall to prevent tipping, especially if children are present.

Komponenter overview

The Respekta Kitchenette includes the following main components and integrated appliances:

• Base Cabinets: Various sizes with soft-close drawers and doors.
• Wall Cabinets: Overhead storage units.
• Tall Cabinets: Housing for integrated oven, microwave, and refrigerator.
• Bordplade: Durable surface for food preparation and appliance integration.
• Induktion kogeplade: Standalone unit with touch control, timer, and child safety lock.
• Ovn: Standalone unit with retractable knobs, 2 telescopic extractions, and fully programmable timer.
• Integrated Dishwasher: 60 cm, energy efficiency class E.
• Integrated Refrigerator: 144 cm, with freezer compartment.
• Integrated Microwave Oven: With timer and grill function.
• Cooker Hood: Integrated ventilation system.
• Vask: Stainless steel sink with drainer.

Figur 2: Eksample of soft-close drawers, providing smooth and quiet operation.

Figure 3: Close-up of the integrated stainless steel sink and drainer area.

Opsætning og installation

The kitchenette is delivered disassembled and requires professional assembly. It can be mounted on either the left or right side to fit your kitchen layout. Please refer to the detailed assembly instructions provided in the separate packaging for each module and appliance.

Tjekliste før installation:

• Verify all packages are present and undamaged upon delivery.
• Ensure the installation area is clean, level, and has adequate space for assembly.
• Confirm availability of necessary electrical and plumbing connections at the installation site.
• Have all required tools ready, including screwdrivers, levels, drills, and measuring tape.

Samlingstrin (generel vejledning):

1. Unpack all components carefully and identify each part using the provided diagrams.
2. Assemble the base cabinets first, ensuring they are level and securely joined.
3. Install the tall cabinets for the oven, microwave, and refrigerator.
4. Place and secure the worktop onto the base cabinets. Cut-outs for the hob and sink should be made according to templates if not pre-cut.
5. Install the integrated appliances (hob, oven, microwave, dishwasher, refrigerator, cooker hood) into their designated spaces, following their individual manuals for electrical and plumbing connections.
6. Mount the wall cabinets at the desired height, ensuring they are securely fastened to the wall studs.
7. Attach all doors and drawers, adjusting hinges and runners for proper alignment and soft-close function.
8. Perform a final check for stability, alignment, and functionality of all components and appliances.

Figure 4: Technical drawing illustrating the dimensions and layout of the kitchenette components, useful for planning installation.

Betjeningsvejledning

Induktion kogeplade:

• Ensure compatible cookware is used (magnetic base).
• Use the touch controls to select cooking zones and adjust power levels.
• The timer function can be set for individual zones or as a general kitchen timer.
• Activate child safety lock to prevent accidental operation.

Ovn:

• Rotate retractable knobs to select cooking functions and temperature.
• Utilize the fully programmable timer for precise cooking durations.
• The 2 telescopic extractions facilitate easy access to dishes.

Mikrobølgeovn:

• Use for quick heating, defrosting, or grilling.
• Refer to the specific microwave manual for detailed function descriptions and power settings.

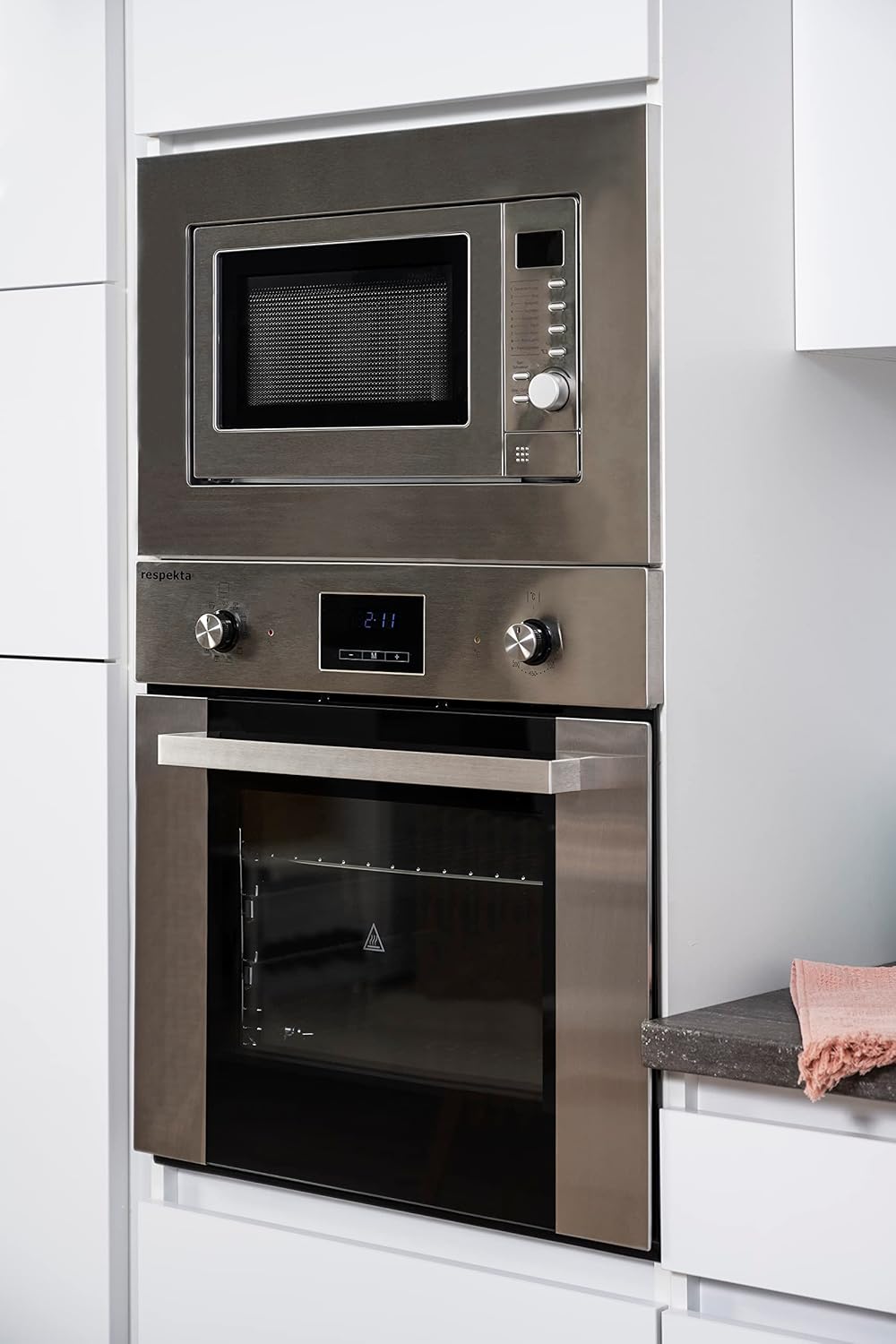

Figure 5: Close-up of the integrated oven and microwave, showing controls and display.

Opvaskemaskine:

• Fyld servicet i henhold til producentens anvisninger for optimal rengøring.
• Select appropriate wash cycle based on soil level and dish type.
• Regularly check and clean filters for efficient operation.

Køleskab:

• Adjust temperature settings as needed for optimal food preservation.
• Organize food to allow for proper air circulation.
• Defrost the freezer compartment periodically if it is not frost-free.

Figur 6: View inside the integrated refrigerator, showing shelves and storage compartments.

Vedligeholdelse og pleje

Regular cleaning and maintenance will prolong the life and appearance of your kitchenette.

Generel rengøring:

• For glossy surfaces, use a soft, damp klud og mildt rengøringsmiddel. Undgå slibende rengøringsmidler eller barske kemikalier.
• Wipe spills immediately to prevent staining, especially on the worktop.
• Clean the stainless steel sink regularly with appropriate stainless steel cleaner to maintain its luster.

Vedligeholdelse af apparater:

• Induktion kogeplade: Clean the glass surface with a ceramic hob cleaner after each use.
• Ovn: Clean the interior regularly. For stubborn stains, use oven cleaner as per product instructions.
• Cooker Hood: Clean grease filters regularly (typically monthly) by washing them in hot soapy water or in a dishwasher.
• Opvaskemaskine: Clean the filter system and spray arms periodically. Run a dishwasher cleaner cycle as needed.
• Køleskab: Clean the interior with a mild detergent solution. Defrost the freezer compartment when ice buildup is significant.

Fejlfinding

Før du kontakter service, bedes du kontrollere følgende almindelige problemer og løsninger:

If the problem persists after attempting these solutions, please contact Respekta customer support or a qualified service technician.

Specifikationer

Detailed technical specifications for the Respekta Premium Handleless Kitchenette (Model: GLRP395HWGGKEI):

• Mærke: Respekta
• Modelnummer: GLRP395HWGGKEI
• Farve: Glossy Grey
• Mål (L x D x H): Approximately 394.5 cm x 60 cm x 220.5 cm (Length x Depth x Height, based on technical drawing)
• Materiale: Konstrueret træ
• Samlet vægt: Cirka 461 kilogram
• Maximum Weight Capacity (per shelf/drawer): 20 Kilograms (general guidance)
• Særlige funktioner: Handleless design, Soft-Close function (drawers and hinges, except refrigerator door), Ergonomic working height (91 cm).

Integrated Appliance Specifications:

Figure 7: Data sheet for the Respekta CH22010 WBZ Cooker Hood, detailing performance metrics.

Figure 8: Data sheet for the Respekta GSP60VV Dishwasher, providing detailed specifications.

Figur 9: Overview of energy labels for the integrated oven, cooker hood, dishwasher, and refrigerator.

For more detailed information on appliance energy efficiency, you can visit the EPREL database: https://eprel.ec.europa.eu/qr/734801

Garanti og support

The Respekta Kitchenette comes with a 24 måneders garanti fra købsdatoen, dækker fabrikationsfejl. Gem venligst din købsbevis i tilfælde af garantikrav.

For technical support, spare parts, or warranty service, please contact Respekta customer service. Information regarding spare parts availability is currently not explicitly provided, but support can guide you.

Manufacturer: NEG-NOVEX GMBH CHENOVER STR. 5, 67117 LIMBURGERHOF
