Membrane Solutions 36 GPD Reverse Osmosis Membrane Instruction Manual

1. Introduktion

Thank you for choosing the Membrane Solutions 36 GPD Reverse Osmosis (RO) Membrane. This product is designed to provide high-quality purified water for your home drinking water system. This manual provides essential information for the safe and effective use, installation, and maintenance of your RO membrane. Please read it thoroughly before proceeding.

Figure 1: Membrane Solutions 36 GPD Reverse Osmosis Membrane.

2. Sikkerhedsoplysninger

Adherence to the following safety guidelines is crucial for proper operation and to prevent damage or injury:

• It is recommended that systems using these elements rinse the elements for 24 hours prior to first use to meet NSF/ANSI 58 Standard.
• The first full tank of permeate must be discarded. Do not use this initial permeate for drinking water or food preparation.
• Hold elementerne fugtige hele tiden efter den første befugtning.
• To prevent organic growth during prolonged system shutdowns, it is recommended that membrane elements be immersed in a preservative solution. Rinse out the preservative before use.
• Membranen viser en vis modstandsdygtighed over for kortvarige angreb fra klor (hypochlorit). Kontinuerlig eksponering kan dog beskadige membranen og bør undgås.

3. Produktet er slutview

The Membrane Solutions RO membrane is constructed from 100% food-grade Thin Film Composite (TFC) material, ensuring high purification performance. It achieves a 97% stabilized salt rejection rate and filters particles down to 0.0001 microns, effectively reducing heavy metals, organic materials, and harmful minerals.

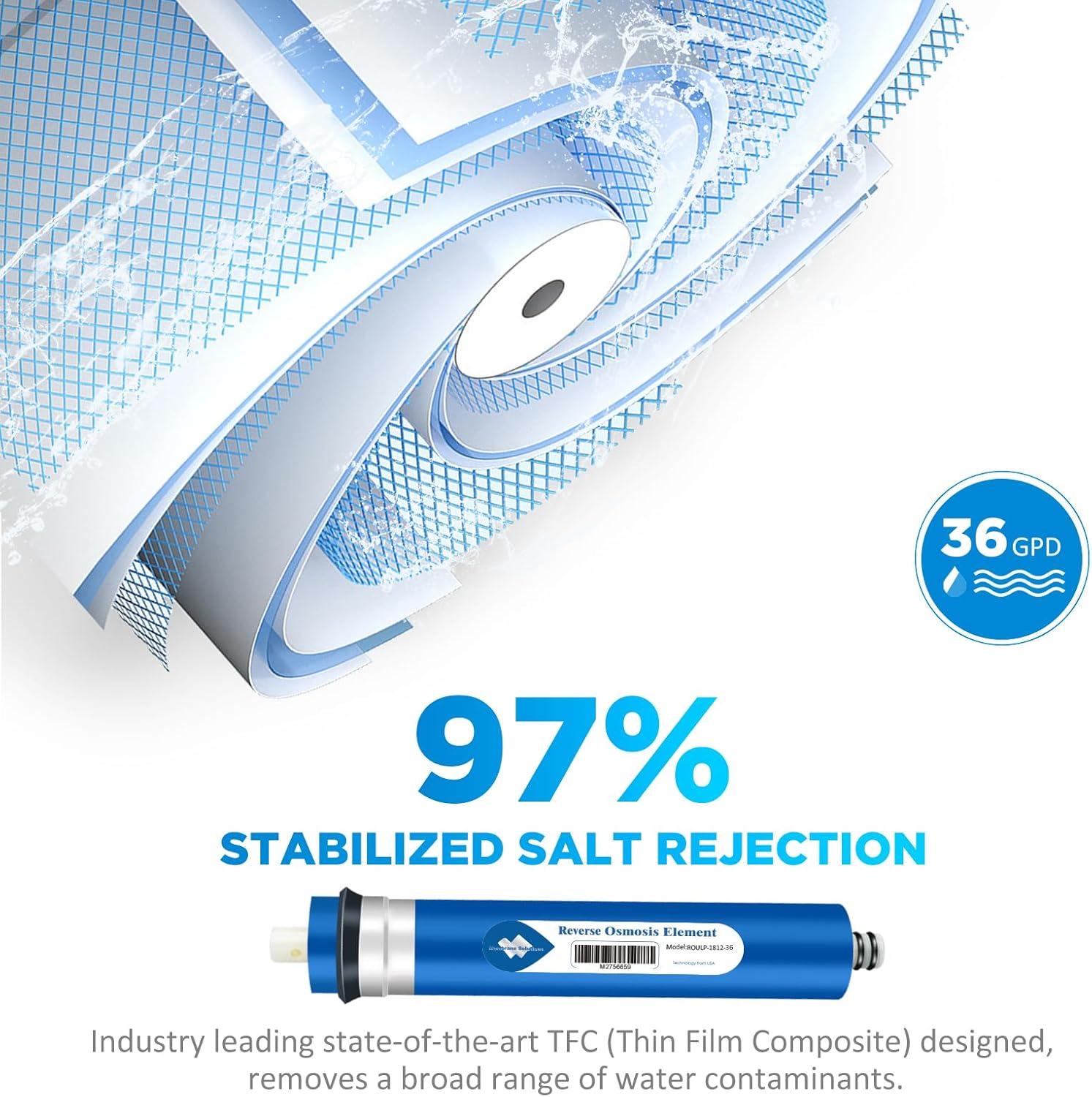

Figure 2: High 97% Stabilized Salt Rejection.

Figure 3: High Density Graded RO Membrane with 0.0001 Micron Filtration.

Nøglefunktioner:

• Center Hole Design: Facilitates easy removal or replacement by gripping the plastic spindle.
• Thin-Film Composite (TFC): High-density graded membrane film for optimal filtration.
• Double Sealing-Ring: Food-grade O-ring design to prevent re-contamination of filtered water.

Figure 4: Membrane Filtration Features.

How Reverse Osmosis Works:

Reverse osmosis is a water purification process that uses a partially permeable membrane to remove ions, unwanted molecules and larger particles from drinking water. In an RO system, applied pressure is used to overcome osmotic pressure, a colligative property that is driven by chemical potential differences of the solvent, a thermodynamic parameter. This forces the water through the membrane, leaving contaminants behind.

Figure 5: How an RO Membrane Works.

4. Installation

The Membrane Solutions RO membrane is an industry-standard size (11.75 x 1.75-inch) and is designed to fit in standard 1812/2012 residential-style RO membrane housings utilizing a 2-inch internal diameter. It is suitable for most Reverse Osmosis Water Filtration Systems.

Installationstrin:

1. Remove Tubing: Disconnect the tubing from the quick-connect fitting on the membrane housing cap.
2. Open Housing: Use a wrench to twist off the housing cap in a counter-clockwise direction.
3. Remove Old Membrane: Træk den gamle membran ud. Brug en saks eller tang til at løfte, hvis det er nødvendigt.
4. Insert New Membrane: Insert the new membrane into the housing. Ensure the O-ring is properly seated on the end of the membrane housing.
5. Sikker bolig: Place the housing cap back on and tighten it.

Figure 6: Membrane Replacement Steps.

5. Betjeningsvejledning

After installation, ensure all connections are secure and leak-free. Follow the initial flushing procedure as outlined in the safety section to prepare the membrane for use. The system will then automatically filter water as needed, storing it in the pressure tank for on-demand access.

6. Vedligeholdelse

Regular maintenance ensures the longevity and effectiveness of your RO membrane:

• Forventet levetid: The membrane element has a life expectancy between 24 to 36 months. This can vary based on feedwater quality, temperature, and incoming water pressure.
• Opbevaring: Elements are shipped dry in an original sealed package. After initial wetting, keep elements moist at all times.
• System Shutdowns: For prolonged system shutdowns, immerse the membrane elements in a preservative solution to prevent organic growth. Rinse out the preservative thoroughly before resuming use.
• Overvågning af vandkvalitet: Periodically check the Total Dissolved Solids (TDS) level of your filtered water to ensure the membrane is performing optimally. A significant increase in TDS indicates it may be time for replacement.

7. Fejlfinding

If you experience issues with your RO system's performance, consider the following:

• Low Water Production: Check for adequate water pressure, ensure pre-filters are not clogged, and verify the membrane is not fouled.
• Dårlig vandkvalitet (høj TDS): This often indicates the RO membrane needs replacement. Ensure proper flushing procedures were followed after installation.
• Lækager: Inspect all connections and O-rings for proper seating and tightness.

For persistent issues, refer to your complete RO system's manual or contact customer support.

8. Specifikationer

Figure 7: Quality Certifications.

9. Garanti og support

Membrane Solutions is committed to providing quality products and support. Assistance is available from our experts, ready to answer any of your questions about your RO membrane. American-based customer support is available for the life of the product. Please reach out if you have any concerns or questions.
