TechCare Massager BD20458 TENS EMS Enhed Brugsanvisning

1. Introduktion

The TechCare Massager BD20458 is a versatile TENS (Transcutaneous Electrical Nerve Stimulation) and EMS (Electrical Muscle Stimulation) device designed for drug-free pain relief and muscle stimulation. It delivers low-voltage electrical pulses to stimulate nerve fibers, which can help block pain signals and promote muscle recovery. This manual provides essential information for the safe and effective use of your device.

2. Sikkerhedsoplysninger

WARNING: Please read all safety instructions and precautions in the User Manual and Video Guide thoroughly before using this device.

• Do not use if you have a pacemaker, defibrillator, or any implanted metallic or electronic device.
• Consult a physician before use if you have any medical conditions, including but not limited to heart disease, epilepsy, cancer, or are pregnant.
• Do not apply pads over open wounds, rashes, swollen, red, infected, or inflamed skin areas.
• Opbevares utilgængeligt for børn.
• Stop brugen med det samme, hvis du oplever ubehag eller bivirkninger.

3. Pakkens indhold

Your TechCare Massager BD20458 package includes the following items:

• 1 Main Device (TENS/EMS Unit)
• 1 Pair (2) Large Electrode Pads
• 3 Pairs (6) Medium Electrode Pads
• 1 Pair (2) Small Electrode Pads
• 1 opladerkabel
• 1 Wall AC Adaptor
• 1 bælteklips
• 1 Pad & Wire Holder
• 2 Electrode Leads
• 1 Brugervejledning
• 1 Pad Placement Guide
• 1 Rejsetaske
• 1 Pair of Reflexology Slippers

Figure 3.1: Complete package contents of the TechCare Massager BD20458.

4. Produktet er slutview

The TechCare Massager BD20458 features a user-friendly interface with a large display and intuitive controls. It offers dual channels, allowing for independent intensity control for two separate sets of pads or muscle groups.

Figur 4.1: Forside og side views of the TENS EMS unit with key features labeled.

The device is equipped with a built-in rechargeable lithium battery, providing up to 12 hours of continuous use on a single charge. It can be conveniently charged via the included wall adapter or a computer USB port.

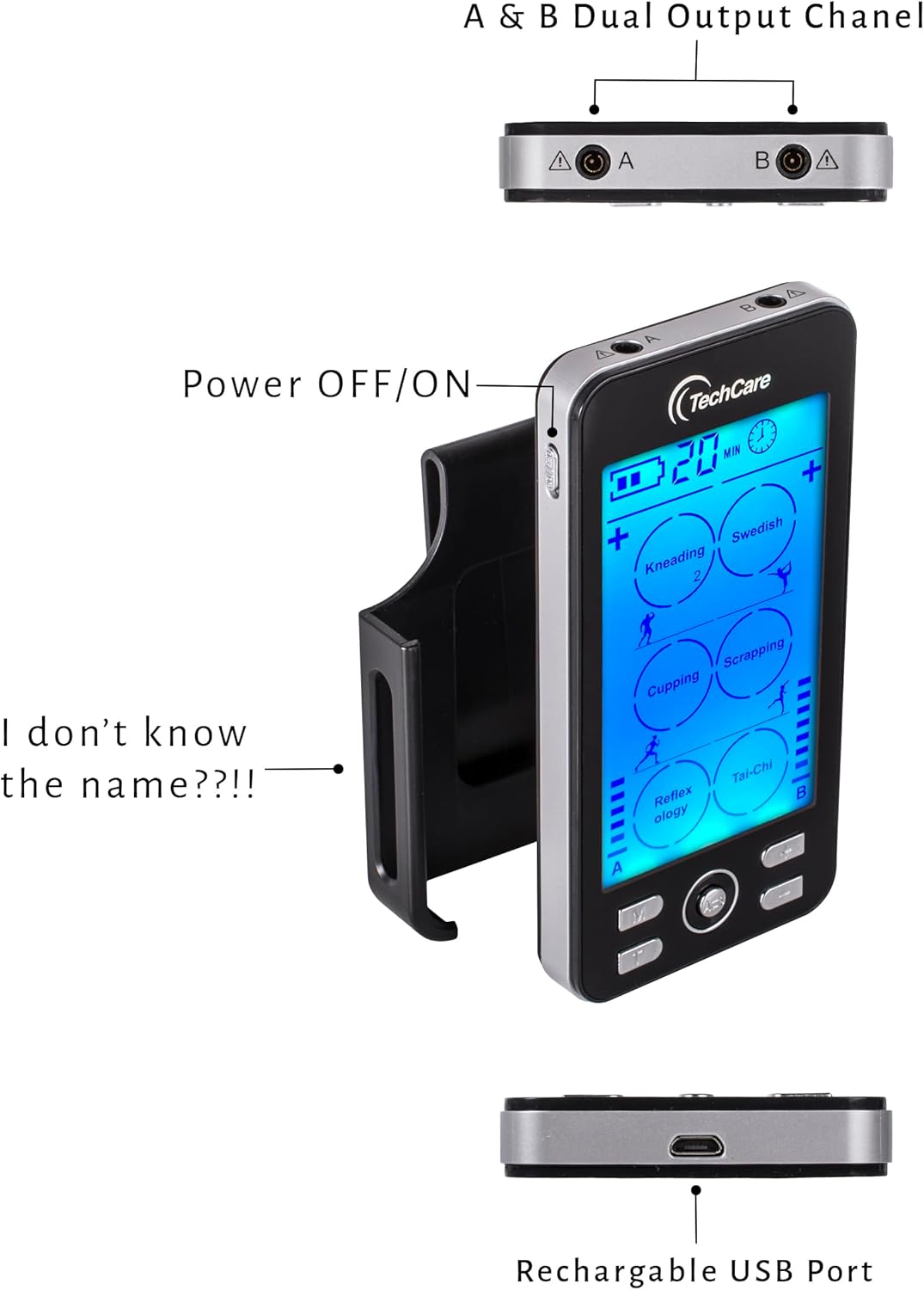

Figur 4.2: Side view highlighting the power button, belt clip, and charging port.

The included reflexology slippers can be connected to the device for foot stimulation, offering a unique application for pain relief and relaxation.

Figure 4.3: Reflexology slippers included with the unit.

5. Opsætning

1. Oplad enheden: Before first use, fully charge the device using the provided charger cable and wall AC adaptor. The battery indicator on the screen will show charging status.
2. Connect Electrode Leads: Insert the electrode leads into the A and/or B output ports located at the top of the main device.
3. Fastgør elektrodepuder: Connect the electrode pads to the ends of the electrode leads. Ensure a secure connection.
4. Attach Reflexology Slippers (Optional): If using the reflexology slippers, connect the electrode leads to the metal studs on the slippers.

Figure 5.1: Connecting electrode leads to reflexology slippers.

6. Betjeningsvejledning

1. Tænd: Press and hold the power button on the side of the device to turn it on.
2. Place Pads: Ensure the electrode pads are placed firmly on clean, dry skin in the desired treatment area. The device has a safety feature and will not deliver intensity if pads are not properly placed on the skin.
3. Vælg tilstand: Press the 'M' button to cycle through the 24 available massage modes. Each mode offers a different pulse duration and sensation (e.g., Kneading, Swedish, Cupping, Scrapping, Reflexology, Tai-Chi).
4. Juster intensitet: Use the '+' and '-' buttons for each channel (A and B) to adjust the intensity level. There are 20 intensity levels. Start with a low intensity and gradually increase until you feel a comfortable, yet effective, sensation.
5. Indstil timer: The device features an adjustable timer from 10 to 60 minutes. Use the timer button to select your desired treatment duration.
6. Dobbeltkanalsdrift: The device supports dual channels (A and B), allowing you to use two sets of pads simultaneously with independent mode and intensity settings. This is ideal for treating different areas or applying varied sensations.
7. Sluk: Tryk og hold tænd/sluk-knappen nede for at slukke enheden efter din session.

7. Pad Placement Guide

Proper electrode pad placement is crucial for effective and safe treatment. Refer to the included Pad Placement Guide for detailed diagrams and recommendations for various body areas. Generally, place pads on either side of the area of pain or muscle you wish to stimulate. For a single muscle group, place one pad at the beginning and one at the end of the muscle.

Figur 7.1: Eksample pad placement guide for common treatment areas.

8. Vedligeholdelse

• Rengøringspuder: Tør forsigtigt den klæbende side af puderne af med en advarsel.amp cloth after each use to remove any residue. Allow them to air dry. Do not use harsh chemicals.
• Opbevaring: Store the device and pads in the provided EVA travel case in a cool, dry place away from direct sunlight. Ensure pads are re-attached to their protective film.
• Batteripleje: For at forlænge batteriets levetid bør du undgå at aflade enheden helt ofte. Oplad den regelmæssigt, selvom den ikke er i konstant brug.

Figure 8.1: Device and accessories stored in the travel case.

9. Fejlfinding

• Ingen følelse eller svag følelse:
  • Ensure pads are firmly attached to the skin. The device will not activate without proper skin contact.
  • Check that electrode leads are securely plugged into the device and pads.
  • Increase the intensity level using the '+' button for the active channel.
  • Sørg for, at enheden er tilstrækkeligt opladet.
• Puder sidder ikke fast:
  • Clean the adhesive side of the pads with a damp klæde.
  • Ensure skin is clean and dry before application.
  • Replace pads if they have lost their adhesiveness after extended use.
• Enheden tænder ikke:
  • Sørg for, at enheden er fuldt opladet.
  • Tryk og hold tænd/sluk-knappen nede i et par sekunder.

10. Specifikationer

11. Garanti og support

The TechCare Massager BD20458 comes with a LIVSTID GARANTI. For any product inquiries, technical support, or warranty claims, please contact TechCare Massager customer service through their official webwebstedet eller forhandleren, hvor produktet blev købt.

12. Juridisk ansvarsfraskrivelse

Statements regarding dietary supplements have not been evaluated by the FDA and are not intended to diagnose, treat, cure, or prevent any disease or health condition. This device is intended for personal use and should not replace professional medical advice or treatment.
