1. Introduktion

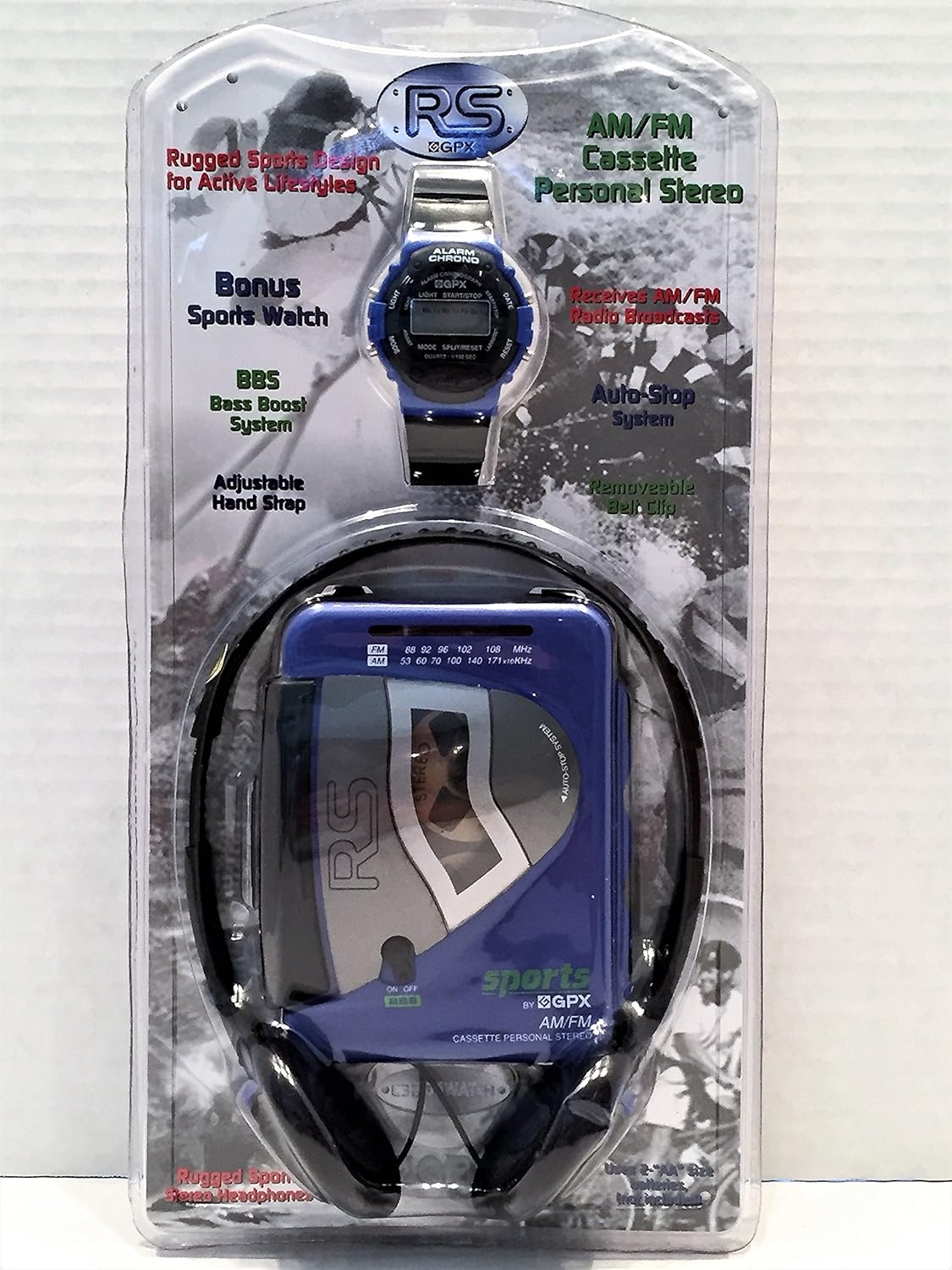

The GPX C3204RS is a rugged, portable AM/FM stereo cassette player designed for active lifestyles. It features a durable build, AM/FM radio reception, Bass Boost System (BBS), and comes with personal stereo headphones.
Nøglefunktioner
- AM/FM Stereo Cassette Player
- Rugged Sports Design
- Receives AM/FM Radio Broadcasts
- BBS Bass Boost System
- Adjustable Hand Strap with Removable Belt Clip
2. Opsætning
Udpakning
Carefully remove all components from the packaging. Ensure you have the cassette player, headphones, and any included accessories.
Tænd for enheden
The GPX C3204RS requires batteries for operation.

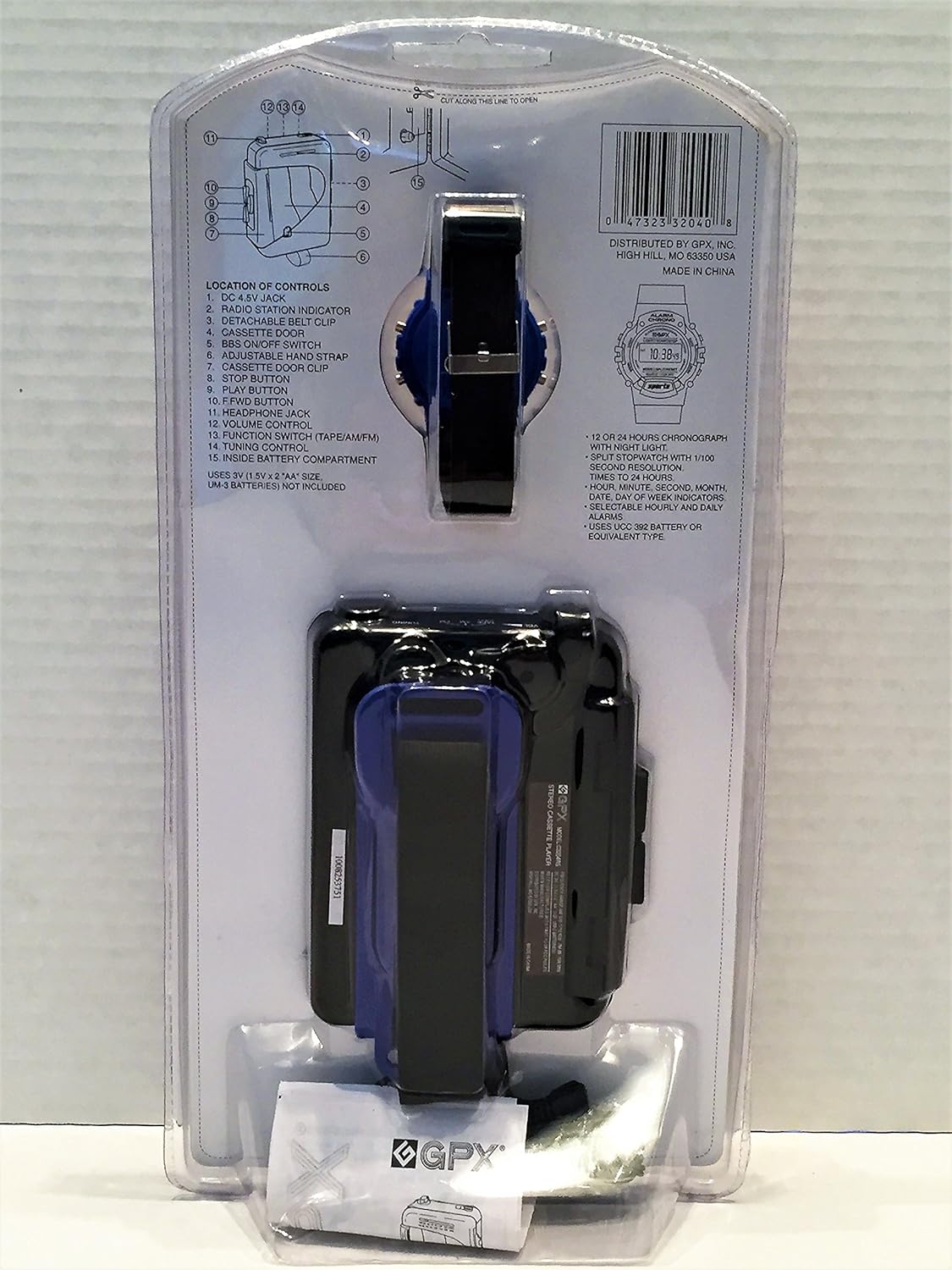

- Find batterirummet på bagsiden af enheden.
- Åbn batterirummets dæksel.
- Insert the required batteries (e.g., 2 x AA batteries, not included) according to the polarity indicators (+/-).
- Luk batterirummets dæksel forsvarligt.
Tilslutning af hovedtelefoner
Plug the 3.5mm jack of the included headphones into the headphone port on the side of the cassette player.
3. Betjeningsvejledning
Afspilning af kassette
- Open the cassette door by pressing the 'OPEN' button or sliding the latch.
- Insert a cassette tape with the open side facing upwards and the tape side facing the playback head.
- Close the cassette door firmly.
- Press the 'PLAY' button to begin playback.
- Juster lydstyrken ved hjælp af lydstyrkeknappen.
- Use the 'FAST FORWARD' (FF) and 'REWIND' (REW) buttons to navigate the tape.
- Press the 'STOP' button to stop playback.
- Press the 'EJECT' button (if available) or open the cassette door to remove the tape.
AM/FM-radiodrift
- Slide the function switch to 'RADIO' or 'AM/FM'.
- Select either 'AM' or 'FM' band using the band selector switch.
- Rotate the 'TUNING' dial to find your desired radio station.
- Juster lydstyrken ved hjælp af lydstyrkeknappen.
Bass Boost System (BBS)
To enhance bass frequencies, slide the 'BBS' switch to the 'ON' position. Slide it to 'OFF' to disable.
4. Vedligeholdelse og pleje
- Keep the unit dry. If it gets wet, wipe it dry immediately.
- Rengør enheden med en blød, damp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Periodically clean the cassette player's head and pinch roller with a specialized cassette head cleaner to ensure optimal sound quality.
- Fjern batterierne, hvis enheden ikke skal bruges i længere tid, for at forhindre lækage.
- Undgå at udsætte enheden for ekstreme temperaturer, direkte sollys eller høj luftfugtighed.
5. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen strøm | Batterierne er døde eller isat forkert. | Udskift batterierne, eller sørg for korrekt polaritet. |
| Ingen lyd fra hovedtelefoner | Headphones not plugged in correctly; volume too low; headphones faulty. | Ensure headphones are fully plugged in; increase volume; try different headphones. |
| Kassettebåndet afspiller ikke | Tape is jammed; cassette door not closed; 'PLAY' button not pressed. | Check tape for damage; ensure cassette door is closed; press 'PLAY'. |
| Dårlig radiomodtagelse | Weak signal; antenna not extended (if applicable); interference. | Adjust tuning; reposition the unit; try a different location. |
| Lyden forvrænget | Volume too high; dirty cassette head; faulty tape. | Lower volume; clean cassette head; try a different tape. |
6. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | GPX |
| Modelnummer | C3204RS |
| Dimensioner (L x B x H) | 35.6 x 18 x 10.2 cm |
| Vægt | 456 g |
| Strømkilde | DC 4.5V (2 x AA Batteries, not included) |
| Forbindelsesteknologi | Wired (for headphones) |
| Farve | Blå |
| Formfaktor | Clip-on |
| Fabrikant | GPX, Inc. |
| ASIN | B0722Z98CV |
7. Garanti og support
For warranty information or technical support, please refer to the documentation included with your purchase or visit the official GPX webwebsted. Gem din købsbevis til garantikrav.
Fabrikant: GPX, Inc.
Model: C3204RS
