1. Introduktion
This manual provides comprehensive instructions for the proper use, setup, and maintenance of your KabelDirekt SAT Cable. Please read this manual thoroughly before use to ensure optimal performance and longevity of the product.
2. Produktet er slutview
The KabelDirekt SAT Cable is a high-quality coaxial cable designed for reliable signal transmission for various applications including satellite TV, cable TV, and antenna/aerial TV. It supports Full HD and 4K resolutions and features robust shielding for interference protection.
Figure 2.1: KabelDirekt SAT Cable with its distinctive 90-degree angled F-connectors and product branding.
3. Nøglefunktioner
- High Signal Quality: Guarantees highest signal quality for satellite TV, cable TV, or antenna/aerial TV, in Full HD or 4K.
- Advanced Shielding: Features multiple layers of shielding from aluminium Mylar foil and dense copper braid for excellent interference protection.
- Fleksibelt design: Maintains high flexibility despite robust shielding.
- Holdbare stik: Connectors are protected by a break-resistant metal sleeve.
- Alsidig tilslutning: Suitable for connecting TVs, satellite receivers, radio receivers, TV antennas, wall sockets for satellite dishes, and certain internet routers.
- Angled Connectors: 90-degree angled F-connectors for convenient installation in tight spaces.
Figure 3.1: The cable's gold-plated connectors and icons indicating compatibility with DVB-T2, DVB-S2, DVB-C, Radio, Internet, and Full HD 1080p.
4. Opsætning og installation
The KabelDirekt SAT Cable is designed for straightforward installation. Follow these steps to connect your devices:
- Identificér porte: Locate the F-type coaxial input port on your television, satellite receiver, cable modem, or wall outlet.
- Tilslut første ende: Gently screw one of the 90-degree angled F-connectors of the KabelDirekt SAT Cable into the corresponding port on your source device (e.g., wall outlet). Ensure it is finger-tight to secure the connection without over-tightening.
- Adjust Angle (if needed): The angled connector can be rotated to achieve the desired cable routing, allowing for installation in tight spaces or flush against a wall. Loosen slightly, rotate, then re-tighten.
- Tilslut anden ende: Connect the other 90-degree angled F-connector to the input port of your receiving device (e.g., TV, satellite receiver).
- Bekræft forbindelsen: Ensure both ends are securely connected. A loose connection can result in signal degradation.

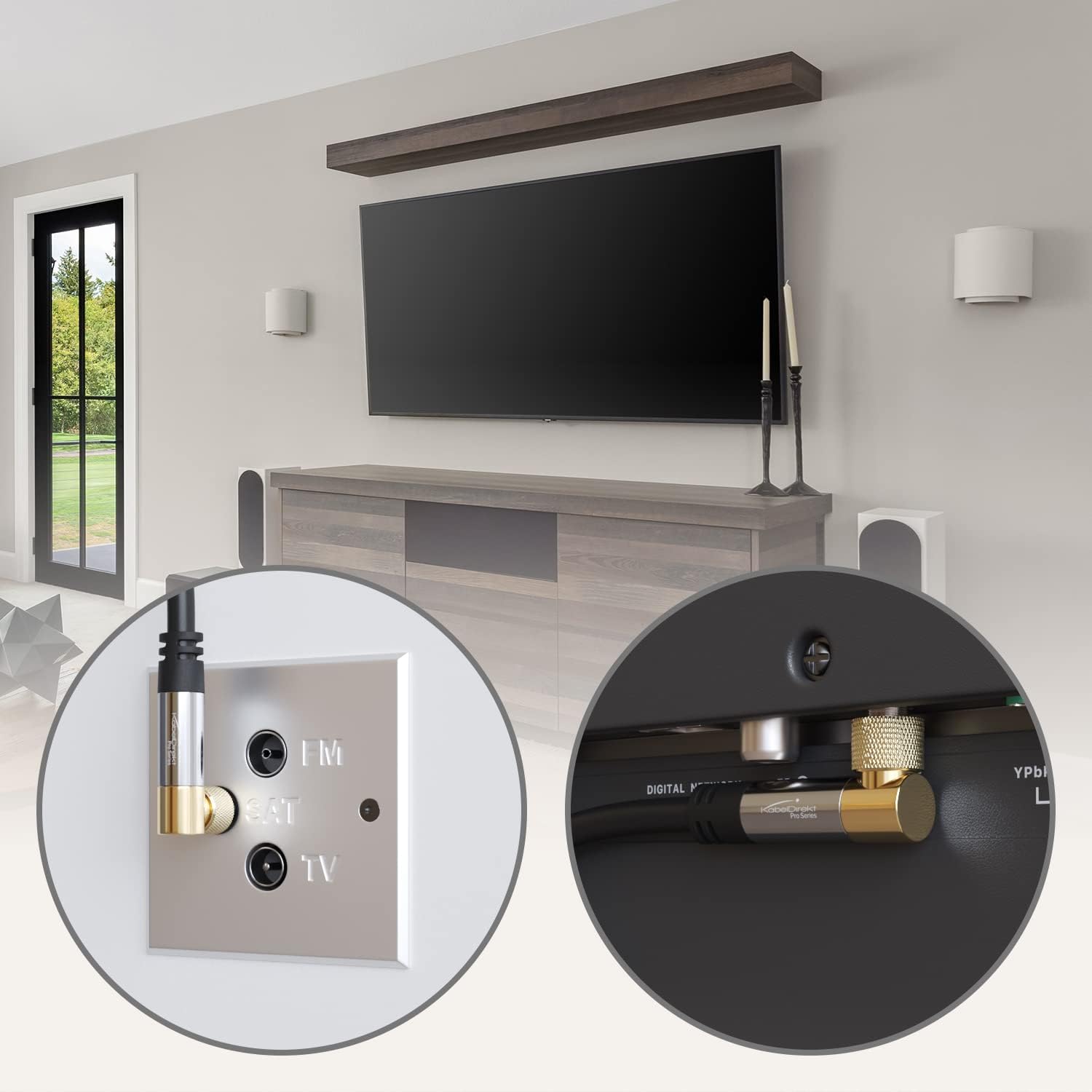

Figur 4.1: Eksample of the KabelDirekt SAT Cable connected to a wall plate and a television, demonstrating how the 90-degree angled connector allows for a flush installation.
5. Betjeningsvejledning
The KabelDirekt SAT Cable functions as a passive signal conduit. Once properly connected, it requires no further operation. Its primary function is to transmit high-quality audio and video signals between compatible devices.
- Ensure all connected devices (TV, receiver, modem) are powered on and configured correctly according to their respective manuals.
- Select the appropriate input source on your television or receiver to view the signal transmitted via the cable.
Figure 5.1: Various connector configurations available for KabelDirekt satellite cables, including angled and straight options, highlighting the angled/angled configuration of this specific model.
6. Vedligeholdelse
The KabelDirekt SAT Cable is designed for durability and requires minimal maintenance. Follow these guidelines to ensure its longevity:
- Rensning: Use a soft, dry cloth to wipe the cable and connectors. Avoid using harsh chemicals or abrasive cleaners.
- Opbevaring: When not in use, store the cable in a cool, dry place, away from direct sunlight and extreme temperatures. Avoid sharp bends or kinks in the cable.
- Tilslutningskontrol: Periodically check the connections to ensure they remain finger-tight. Loose connections can lead to signal loss or interference.
- Fysisk inspektion: Inspect the cable periodically for any signs of damage, such as cuts, fraying, or exposed wiring. Do not use a damaged cable.
Figure 6.1: An illustration of the KabelDirekt SAT Cable's internal construction, highlighting its multi-layered shielding for enhanced signal integrity and durability.
7. Fejlfinding
If you experience issues with your KabelDirekt SAT Cable, consider the following troubleshooting steps:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| No Signal / Poor Picture Quality | Loose connections, damaged cable, incorrect input source selected on TV/receiver. |
|
| Interference / Static | External electromagnetic interference, loose shielding, damaged cable. |
|
8. Specifikationer
| Attribut | Detalje |
|---|---|
| Mærke | KabelDirekt |
| Modelnavn | KabelDirekt – SAT Cable, Coaxial – Internet, Satellite Cable – TV/Aerial/Coax Cord, F-Connector – Designed in Germany – 90° angled – 3.3ft (Radio, DVB-C/DVB-S2 – black) |
| Varemodelnummer | 1012 |
| Kabeltype | Sat cable (Coaxial) |
| Connector Type | F Connector (90° Angled) |
| Connector Køn | Mand til Mand |
| Længde | 1 meter (3.3 fod) |
| Farve | Sort |
| Ydermateriale | PVC (polyvinylchlorid) |
| Varens vægt | 1.59 ounces (45 gram) |
| Produktdimensioner | 5.67 x 4.02 x 0.63 tommer |
| Kompatible enheder | Satellite set-top boxes, radios, antennas, DVB-T receivers, cable set-top boxes, cable modems, TVs |
| Speciel funktion | Braided, 90° Angled Connectors |
| Indendørs/Udendørs brug | Udendørs |
Figure 8.1: Detailed measurements of the 90-degree angled F-connector, showing its compact design for space-saving installations.
9. Garanti og support
KabelDirekt provides a 36 måneders producentgaranti for this product. This warranty covers defects in materials and workmanship under normal use. For warranty claims or technical support, please contact KabelDirekt customer service through their official channels or the retailer where the product was purchased.
For further assistance, please visit the official KabelDirekt webwebstedet eller se de kontaktoplysninger, der blev oplyst ved dit køb.
