Indledning
This manual provides essential information for the safe and effective use of your Blackburn CLICK Front Light. Please read this manual thoroughly before installation and operation to ensure proper function and longevity of the product.

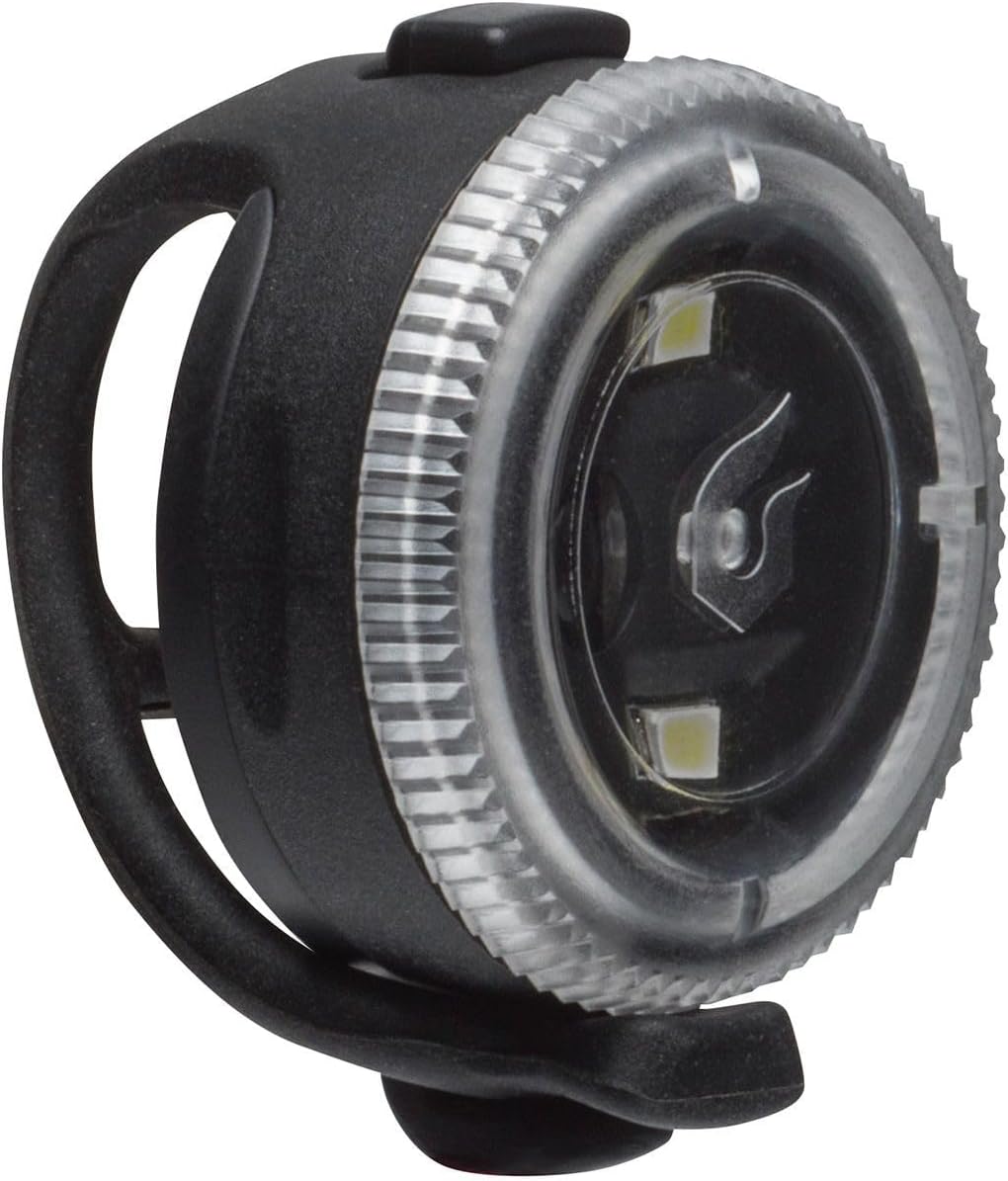

Billede: Side view of the Blackburn CLICK Front Light, showcasing its compact design and silicone strap.
Sikkerhedsoplysninger
WARNING: Potential choking hazard to children. This light is extremely bright – do not aim directly into eyes. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. Batteries included are for demonstration purposes only. It is recommended that new batteries are installed before using this light.
Always ensure the light is securely mounted before riding. Regularly check the light's function, especially before night rides. Adhere to local cycling regulations regarding bicycle lighting.
Image: Diagram illustrating battery placement (2 x CR2032) and the 'Press lens to turn On/Off' instruction for the CLICK light.
Pakkens indhold
- Blackburn CLICK Front Light Unit
- Integrated Silicone Mounting Strap
- 2 x CR2032 Batteries (pre-installed for demonstration)
Opsætning og installation
Montering af lyset
- Identify a suitable mounting location on your bicycle's handlebars or front frame.
- Wrap the integrated silicone strap around the desired mounting point.
- Stretch the strap and hook it onto the plastic tab on the opposite side of the light unit, ensuring a snug and secure fit.
Image: The Blackburn CLICK Front Light securely mounted on bicycle handlebars, demonstrating typical installation.
Battery Installation (Initial Setup or Replacement)
The light comes with demonstration batteries pre-installed. For optimal performance, it is recommended to install fresh batteries before first use.
- To access the battery compartment, grasp the clear front lens and rotate it counter-clockwise approximately 30 degrees. This may require a firm grip due to the waterproof seal.
- Fjern forsigtigt de gamle batterier.
- Insert two new CR2032 coin cell batteries, ensuring the positive (+) side faces outwards.
- Align the clear front lens with the light body and rotate it clockwise until it clicks securely into place, ensuring a tight seal for water resistance.
Betjeningsvejledning
The Blackburn CLICK Front Light features a simple one-button operation via its integrated lens switch.
- At tænde: Press the clear front lens firmly once. The light will illuminate in its steady mode.
- Sådan skifter du tilstande: Press the lens again to cycle through available modes (e.g., steady, flash).
- At slukke: Continue pressing the lens until the light turns off.
Billede: Forside view of the Blackburn CLICK Front Light, highlighting the two bright LED emitters.
Opretholdelse
Udskiftning af batteri
Refer to the 'Battery Installation' section under 'Setup and Installation' for detailed instructions on replacing the CR2032 batteries.
Rensning
To clean your light, wipe it with a damp cloth. Do not use abrasive cleaners or solvents, as these can damage the light's casing or lens. Ensure the light is dry before storage or use.
Fejlfinding
- Lyset tænder ikke:
- Ensure batteries are correctly installed with the positive (+) side facing out.
- Replace batteries with fresh CR2032 cells.
- Ensure the front lens is fully rotated and sealed.
- Lyset er svagt eller flimrer:
- This indicates low battery power. Replace both CR2032 batteries.
- Light falls off during ride:
- Ensure the silicone strap is stretched tightly and securely hooked onto the tab.
- Verify the mounting surface is clean and free of debris.
Specifikationer
| Modelnummer | 7085174 |
| Product Model Number (Manufacturer) | 350140000100000035 |
| Farve | Sort |
| Lysudgang | 20 lumen |
| Run Time (Steady) | 6 timer |
| Run Time (Flash) | 20 timer |
| Batteritype | 2 x CR2032 (inkluderet) |
| Vandtæt vurdering | IP65 (vandtæt og støvtæt) |
| Monteringstype | Frame Mount (Silicone Strap) |
| Placering | Front |
| Produktdimensioner | 22.86 x 12.7 x 5.08 cm (approx. 32mm height x 69mm length) |
| Varens vægt | 17 gram |
| UPC | 768686055058 |

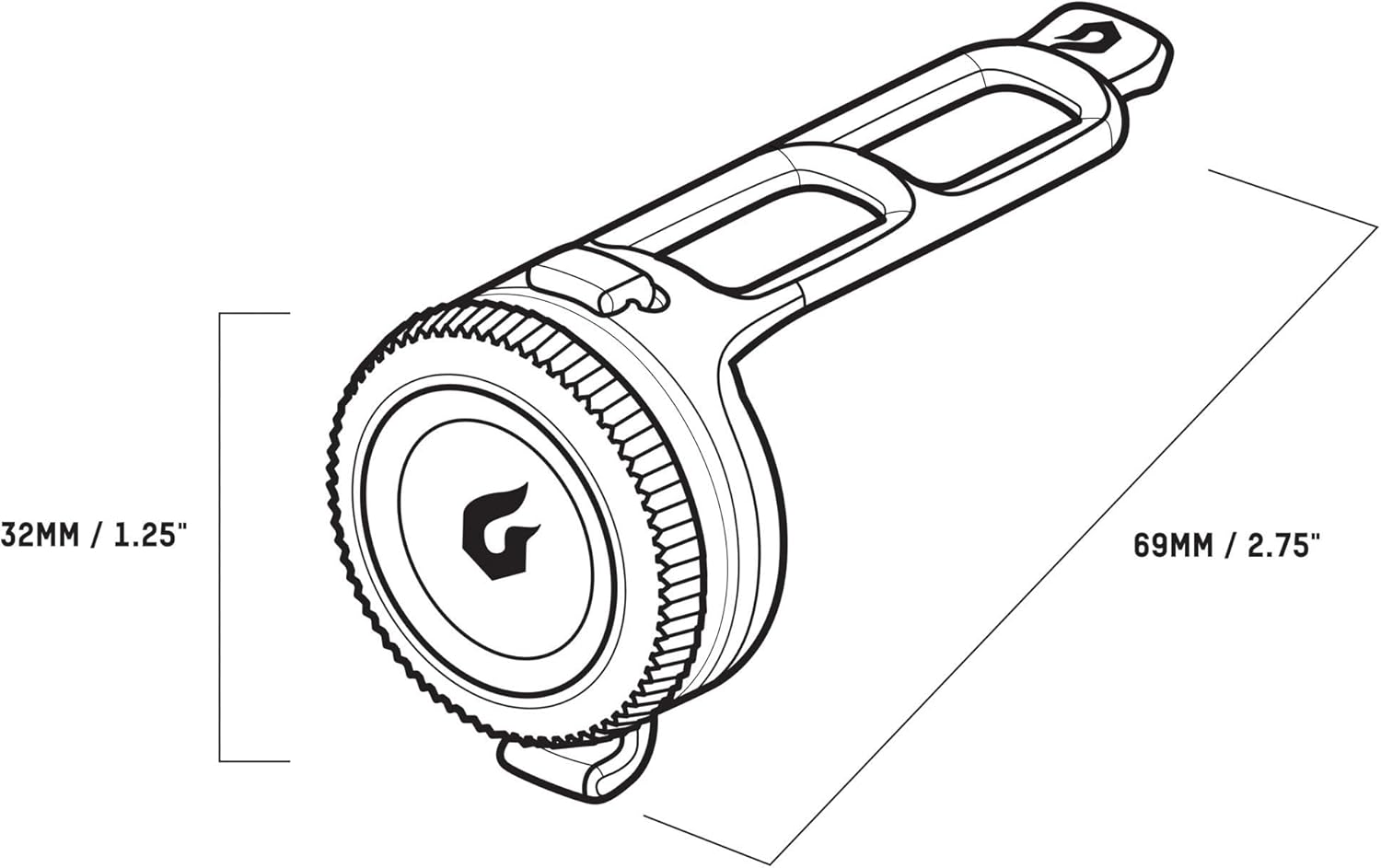

Image: Line drawing showing the dimensions of the Blackburn CLICK Light: 32mm (1.25") height and 69mm (2.75") length.
Image: A chart detailing lumens and run times for various Blackburn front lights, including the CLICK model (7085174) with 20 lumens and 6h/20h run times.
Garanti og support
The Blackburn CLICK Front Light comes with a Begrænset livstidsgaranti. Restrictions and conditions apply. For detailed warranty information, please visit the official Blackburn webwebsted.
For customer service inquiries or support, please contact Blackburn directly:
- Kundeservice: 1-800-456-2355
- Webwebsted: blackburndesign.com
