The LEZYNE Macro Floor Drive is a high-pressure bicycle floor pump designed for efficient and accurate tire inflation. It combines durable construction with user-friendly features, making it suitable for various bicycle types, including road and track bikes.
Key features include a robust Composite Matrix base and handle, a durable steel barrel and piston, and an extra-long, high-strength hose. It is equipped with either an ABS Flip Chuck or a Dual Valve Pump Head for compatibility with Presta and Schrader valves, and features an accurate 2.5-inch analog gauge for precise pressure readings up to 220 PSI (15.2 bar).
Figure 1: The LEZYNE Macro Floor Drive High Pressure Bicycle Floor Pump, featuring a gloss red barrel, black composite base, and an analog pressure gauge.
Opsætning og montering
The LEZYNE Macro Floor Drive pump typically comes pre-assembled. Upon unboxing, ensure all components are present and undamaged. These include the pump body (barrel, piston, handle), the base, the hose, and the chuck (either ABS Flip Chuck or Dual Valve Pump Head) with its integrated gauge.
Inspecting the Chuck
Your pump will be equipped with one of two chuck types:
- ABS Flip Chuck: This chuck features a threaded connection for secure attachment to both Presta and Schrader valves. It includes an Air Bleed System (ABS) button for fine-tuning tire pressure.
- Dual Valve Pump Head: This head is designed for quick and easy push-on attachment to Presta, Schrader, and Dunlop valves.

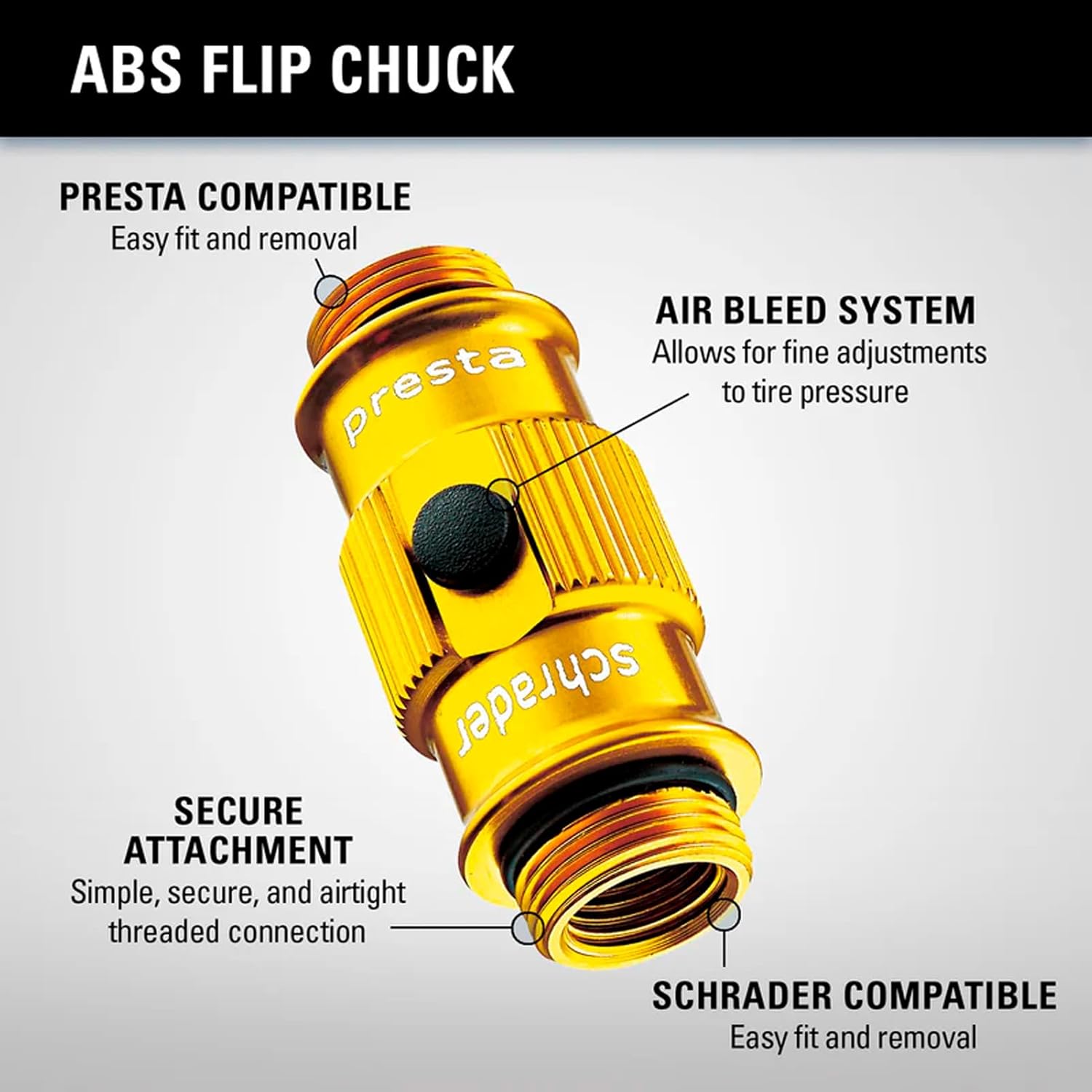

Figure 2: Detailed diagram illustrating the features of the ABS Flip Chuck, including its compatibility with Presta and Schrader valves, secure threaded connection, and the air bleed system button.
Betjeningsvejledning
Inflating Tires with ABS Flip Chuck
- Forbered ventilen: For Presta valves, unscrew the valve core locknut until it is loose. For Schrader valves, no preparation is typically needed.
- Attach the Chuck:
- For Presta valves, thread the "Presta" side of the ABS Flip Chuck onto the valve stem until secure.
- For Schrader valves, thread the "Schrader" side of the ABS Flip Chuck onto the valve stem until secure.
Figure 3: The ABS Flip Chuck securely threaded onto a bicycle tire valve, ready for inflation.
- Pump dækket op: Place your feet on the pump's base to stabilize it. Grip the handle firmly and push down smoothly to inflate the tire. Pull the handle up to draw more air into the pump. Repeat this motion.
- Monitortryk: Observe the 2.5-inch analog gauge to monitor the tire pressure as you pump. Inflate to the recommended PSI for your tire.
- Adjust Pressure (ABS Flip Chuck only): If you over-inflate, press the Air Bleed System (ABS) button on the chuck to release air in small increments until the desired pressure is reached.
- Remove the Chuck: Once the desired pressure is achieved, unscrew the chuck from the valve stem. For Presta valves, remember to tighten the valve core locknut.
Inflating Tires with Dual Valve Pump Head
- Forbered ventilen: For Presta valves, unscrew the valve core locknut until it is loose. For Schrader valves, no preparation is typically needed.
- Attach the Chuck: Push the appropriate opening of the Dual Valve Pump Head firmly onto the valve stem. Ensure a tight seal.
- Inflate and Monitor: Proceed with inflation and pressure monitoring as described for the ABS Flip Chuck.
- Remove the Chuck: Pull the chuck straight off the valve stem. For Presta valves, remember to tighten the valve core locknut.
Figure 4: A LEZYNE Macro Floor Drive pump in use, inflating a bicycle tire.
Opretholdelse
Regular maintenance ensures the longevity and optimal performance of your LEZYNE Macro Floor Drive pump.
- Rensning: Wipe down the pump's barrel, hose, and chuck with a damp cloth after use, especially if it has been exposed to dirt or moisture. Avoid using harsh chemicals.
- Opbevaring: Store the pump in a clean, dry environment, away from extreme temperatures and direct sunlight. Ensure the hose is neatly wrapped around the pump body to prevent kinks or damage.
- Inspektion af borepatron: Periodically inspect the chuck's rubber seals and threads (for ABS Flip Chuck) for wear or damage. Replace if necessary to maintain an airtight seal.
- Slangetilstand: Check the hose for any cracks, cuts, or signs of deterioration. A damaged hose can lead to air leaks and reduced pumping efficiency.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Pump does not inflate tire / No air comes out. | Chuck not securely attached to valve; Valve core not open (Presta); Internal pump seal issue. | Ensure chuck is fully threaded/pushed onto valve. For Presta, unscrew valve core locknut. Check for leaks around chuck connection. If problem persists, internal components may require service. |
| Gauge reading is inaccurate. | Gauge calibration issue; External factors affecting reading. | Compare reading with a known accurate pressure gauge. If consistently off, contact LEZYNE support. |
| Difficulty pushing handle down. | High tire pressure approaching pump's maximum; Internal friction. | This pump is designed for high pressure; a smaller diameter barrel allows for high pressures with minimal force. Ensure the pump is clean and free of debris. |
| Air leaks from chuck connection. | Chuck not properly seated; Worn chuck seals. | Re-attach chuck firmly. Inspect rubber seals inside the chuck for wear or damage and replace if necessary. |
Specifikationer
| Feature | Detalje |
|---|---|
| Pumpetype | High Pressure Floor Pump |
| Maksimal PSI | 220 PSI (15.2 bar) |
| Måler | 2.5" Analog Gauge |
| Chuck Options | ABS Flip Chuck or Dual Valve Pump Head |
| Ventilkompatibilitet | Presta, Schrader (Dunlop with Dual Valve option) |
| Grundmateriale | Sammensat matrix |
| Håndtag Materiale | Sammensat matrix |
| Barrel & Piston Material | Stål |
| Slange | Extra-long, high-strength |
| Vægt | 1225 g (2.7 lbs) |
| Dimensioner (L x B x H) | 646 mm x 248.3 mm x 195.9 mm (ca. 25.4" x 9.8" x 7.7") |
| Color (Current Model) | Glans rød |
Garanti og support
LEZYNE products are engineered and designed with high-quality materials and undergo rigorous quality control. For specific warranty information regarding your LEZYNE Macro Floor Drive pump, please refer to the documentation included with your purchase or visit the official LEZYNE webwebsted.
