1. Introduktion
Thank you for choosing the Luceco Slimline Outdoor LED Floodlight. This manual provides essential information for the safe installation, operation, and maintenance of your new floodlight. Please read these instructions carefully before installation and retain them for future reference.
The Luceco Slimline Outdoor LED Floodlight is designed for outdoor use, offering efficient and reliable illumination. Its robust construction ensures durability in various weather conditions.
2. Sikkerhedsinstruktioner
ADVARSEL: To prevent electric shock, always disconnect power at the circuit breaker before installation or servicing. This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
- Sørg for, at forsyningen voltage is correct (120V AC, 60Hz).
- Installer ikke i nærheden af brændbare materialer.
- This fixture is UL listed for outdoor safety.
- Forsøg ikke at ændre armaturet.
- Brug passende personlige værnemidler (PPE) under installationen.
3. Pakkens indhold
- 1 x Luceco Slimline Outdoor LED Floodlight
- Instruktionsmanual
Note: Mounting plate and motion sensor are not included and must be purchased separately if required.
4. Installation
4.1 Forinstallation
- Sluk for strømmen ved afbryderen før start.
- Select a suitable mounting location that can support the weight of the fixture and provides the desired illumination area.
- Ensure the mounting surface is stable and weather-resistant.
4.2 Mounting the Floodlight
The floodlight features a 1/2 inch NPT threaded mount and a 180-degree adjustable bracket for versatile installation. It is suitable for junction box or conduit mounting (mounting plate not included).
Figure 1: Key features of the Luceco Slimline Outdoor LED Floodlight, highlighting its robust construction and adjustable mounting.
- Securely attach the floodlight's mounting arm to a compatible junction box or conduit using appropriate hardware (not supplied).
- Ensure the fixture is firmly attached to prevent movement.
- The 180-degree adjustable mount allows for precise aiming of the light. Loosen the knob on the side of the mount, adjust the floodlight to the desired angle, and then tighten the knob securely.
4.3 Ledningsinstruktioner
This floodlight is designed for direct wiring. Consult a qualified electrician if you are unsure about wiring procedures.
- Connect the black wire from the floodlight to the live (hot) wire from the power supply.
- Connect the white wire from the floodlight to the neutral wire from the power supply.
- Connect the green or bare copper wire from the floodlight to the ground wire from the power supply.
- Ensure all connections are secure and insulated with approved wire connectors.
4.4 Sensorkompatibilitet
The Luceco Slimline Floodlight is compatible with most PIR motion sensors. If integrating with a motion sensor, follow the sensor's installation and wiring instructions in conjunction with these floodlight instructions.

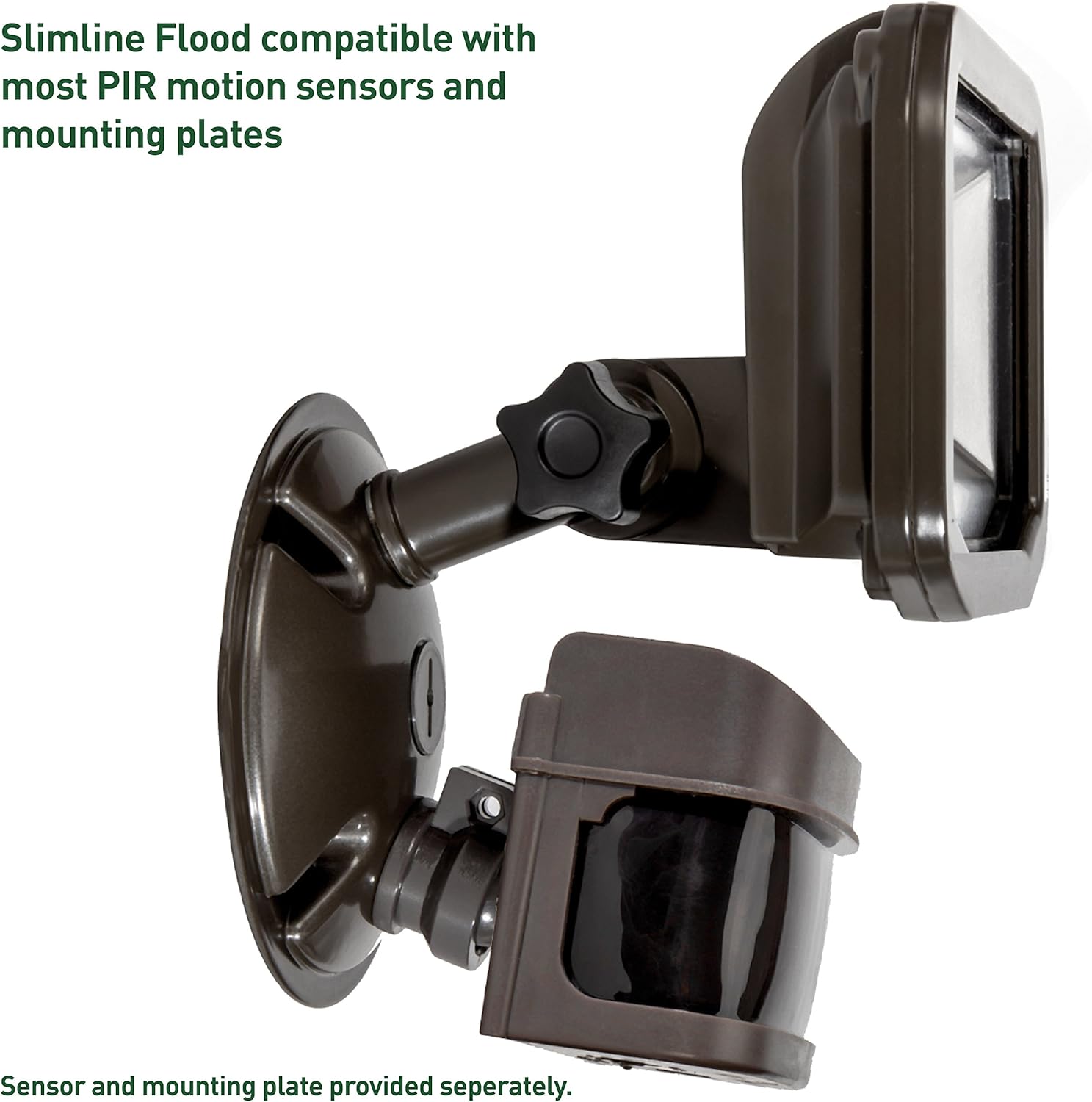

Figure 2: The floodlight can be used with a separate motion sensor for enhanced functionality.
Figur 3: Eksample of the floodlight installed on an exterior wall.
5. Betjeningsvejledning
Once installed and wired correctly, restore power at the circuit breaker. The floodlight will illuminate. If connected to a switch or sensor, operate according to the controls of that device.
- Lysoutput: The floodlight provides 1200 lumens of bright, 5000K neutral white light.
- Justering af vinkel: The fixture's head can be adjusted up to 180 degrees to direct light where needed. Loosen the adjustment knob, position the light, and re-tighten.
6. Vedligeholdelse
The Luceco Slimline Outdoor LED Floodlight requires minimal maintenance.
- Rensning: Periodically clean the tempered glass lens and housing with a soft, damp klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler. Sørg for, at strømmen er slukket, før rengøring.
- Inspektion: Regularly inspect the fixture for any signs of damage to the housing, lens, or wiring. If damage is found, disconnect power and have it repaired by a qualified professional.
7. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | Ingen strømforsyning. Løs ledningsforbindelse. Defekt kontakt/sensor. | Tjek afbryderen. Kontroller, at alle ledningsforbindelser er sikre (med strømmen slukket). Test switch/sensor functionality. |
| Lyse flimrer. | Løse ledninger. Inkonsekvent strømforsyning. | Kontroller alle ledningsforbindelser (med strømmen slukket). Consult an electrician to check power supply stability. |
| Lysudgangen er svag. | Dirt or debris on lens. | Rengør linsen med en blød, damp cloth (with power off). |
8. Specifikationer
| Feature | Specifikation |
|---|---|
| Modelnummer | LSFLBZGL12AG150N-US |
| Wattage | 20 watt |
| Lysstyrke | 1200 lumen |
| Farvetemperatur | 5000 Kelvin (Neutral hvid) |
| Materiale | Die-cast Aluminum, Tempered Glass |
| Dimensioner (produkt) | 5.2 x 3.5 x 5.3 tommer |
| Varens vægt | 1.1 pund |
| Indendørs/Udendørs brug | Udendørs |
| Strømkilde | Elektrisk med ledning |
| Monteringstype | Wall Mount (1/2 inch NPT threads) |
| Særlige funktioner | Tempered-Glass, 180-degree adjustable mount |
| Certificeringer | UL-listet |
9. Garanti
This Luceco Slimline Outdoor LED Floodlight is covered by a 3-year no-hassle warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. For warranty claims, please retain your proof of purchase.
10. Kundesupport
For technical assistance, troubleshooting, or warranty inquiries, please contact Luceco customer service. Refer to the product packaging or Luceco's official webhjemmeside for aktuelle kontaktoplysninger.
