Indledning
Tak for købetasing the Nitecore TIP 2017 CRI Upgrade 240 Lumen USB Rechargeable Keychain Flashlight. This manual provides detailed instructions for the proper use, maintenance, and troubleshooting of your device. Please read this manual thoroughly before use to ensure optimal performance and longevity of your flashlight.
Pakkens indhold
- Nitecore TIP 2017 CRI Flashlight
- Multi-Purpose Clip / Switch Protector
- USB til mikro-USB ladekabel
Image: The Nitecore TIP 2017 CRI flashlight, showing its compact design, along with the included USB charging cable and the multi-purpose clip.
Billede: Et nærbillede view of the included accessories: the multi-purpose clip/switch protector and the USB to Micro-USB charging cable.
Produktegenskaber
- High CRI LED for accurate color rendition
- Integrated USB charging port
- Dual switch design for easy operation
- Multiple brightness levels
- Indbygget Li-ion batteri
- Avanceret temperaturregulering (ATR) teknologi
- Impact resistant and water ingress protected (IP54 rated)
Image: Diagram illustrating the accidental activation prevention feature provided by the multi-purpose clip, and the physical protection against water and dust ingress for the USB charging port.
Opsætning
Opladning af batteriet
The Nitecore TIP 2017 CRI has a built-in rechargeable Li-ion battery. Before first use, fully charge the battery.
- Locate the micro-USB charging port on the side of the flashlight.
- Connect the included USB charging cable to the flashlight's micro-USB port and to a USB power source (e.g., computer USB port, USB wall adapter).
- During charging, the built-in red power indicator will stay lit.
- The indicator will turn green upon charging completion.
Image: The Nitecore TIP 2017 flashlight connected to a USB charging cable, demonstrating the USB rechargeable feature and the charging indicator.
Indledende brug
The flashlight may be in "Daily Mode" or "Constant-on Mode" by default. Refer to the "Operating" section to switch between modes.
Betjeningsvejledning
Knapper overview
- Tænd/sluk-knap (⑂): Used to turn the flashlight on/off and access different modes.
- Tilstandsknap (≡): Used to cycle through brightness levels.
Tænd/sluk
- Tænd: Tryk på Power-knappen.
- Sluk: Press the Power Button again.
Lysstyrkeniveauer
With the flashlight on, press the Mode Button to cycle through brightness levels: Ultralow → Mid → High → Turbo.
Mode Switching (Daily Mode / Constant-on Mode)
The TIP 2017 CRI features two user modes:
- Daglig tilstand: The flashlight will automatically shut off after 30 seconds of no operation. This mode is suitable for short-time illumination and helps prevent accidental activation. To access constant-on mode from daily mode, press the power switch within 3 seconds after the light shuts off.
- Konstant tændt tilstand: Provides continuous illumination until manually turned off.
To switch between Daily Mode and Constant-on Mode:
- Hold down both the Power Button and Mode Button simultaneously until the LED flashes once for Daily Mode, or twice for Constant-on Mode.
Image: A person using the Nitecore TIP 2017 in a dark environment, illustrating the "Daily Mode" where the light automatically turns off after 30 seconds of inactivity.
Image: A person standing on a path illuminated by the Nitecore TIP 2017 in "Constant-on Mode," demonstrating continuous illumination.
Opretholdelse
- Rensning: Wipe the flashlight with a clean, soft cloth. Avoid using abrasive materials or harsh chemicals.
- Opladning: Genoplad batteriet regelmæssigt, especially if the flashlight has not been used for an extended period, to maintain battery health.
- Opbevaring: Opbevar lommelygten på et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
- Vandtæthed: While rated IP54, avoid submerging the flashlight in water. Ensure the USB port cover is securely closed to prevent water and dust ingress.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lommelygten tænder ikke. | Batteriet er afladet. | Oplad batteriet helt. |
| Lysudgangen er svag eller flimrer. | Lavt batteri. | Genoplad batteriet. |
| Flashlight turns off automatically. | In Daily Mode. | Switch to Constant-on Mode (refer to Operating Instructions). |
| Knapperne reagerer ikke. | Possible water damage (if exposed to rain/submersion). | Ensure USB port cover is sealed. If damage suspected, contact customer support. |
Specifikationer
| Feature | Detalje |
|---|---|
| Lyskildetype | LED |
| Lysstyrke | Up to 240 Lumens (CRI version) |
| Voltage | 3.7 volt |
| Lysvejs afstand | Up to 61 Yards (56 meters) |
| Batteritype | Built-in Lithium-Ion |
| Runtime | Up to 46 hours (Ultralow mode) |
| Slagmodstand | 1.5 meter |
| Vandmodstand | IP54-klassificeret |
| Dimensioner | 2.39 x 0.54 x 0.96 tommer |
| Vægt | 0.8 ounce (22.68 g) |

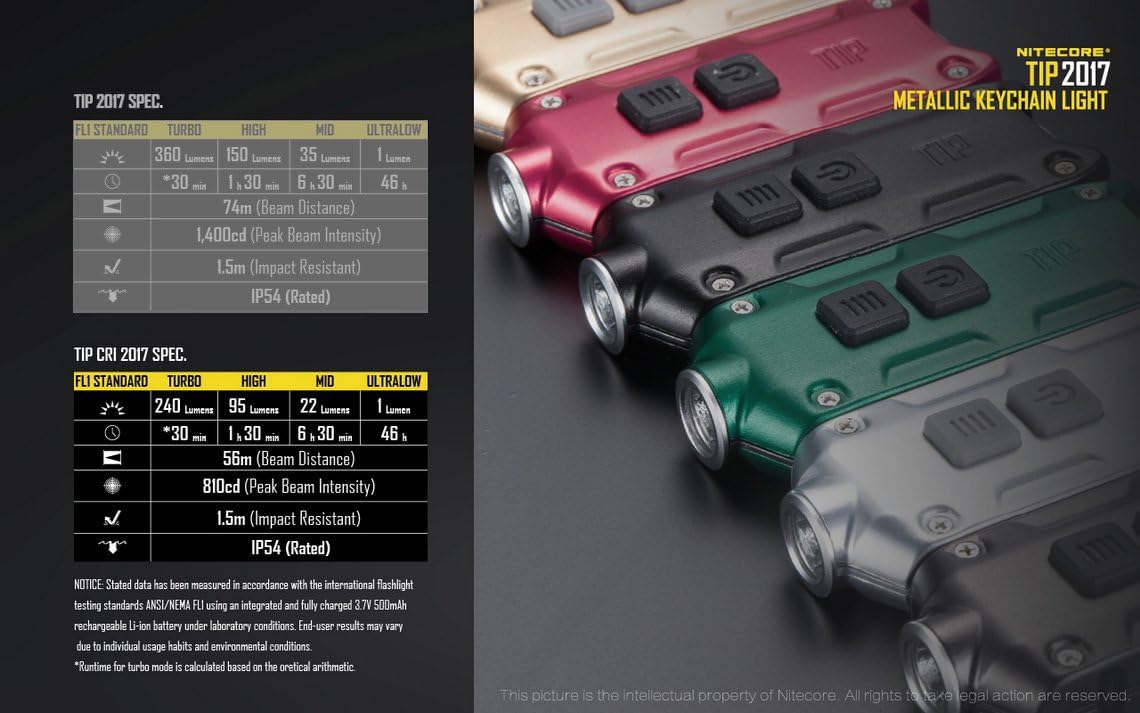

Image: Detailed specifications table for the Nitecore TIP 2017 CRI, including brightness levels, runtime, beam distance, peak beam intensity, impact resistance, and IP rating.
Garanti og support
Nitecore-produkter er dækket af en garanti. For detaljerede garantioplysninger henvises til den officielle Nitecore-side. website or contact your local distributor. If you encounter any issues not covered in this manual, please contact Nitecore customer support for assistance.
For further support, visit the official Nitecore webwebsted: Nitecore-butik på Amazon
