GREENIC 43211-1520

GREENIC Gule LED-pærer Brugermanual

Model: 43211-1520

1. Produktet er slutview

The GREENIC 60 Watt Equivalent Yellow LED Light Bulbs are designed to provide warm, soft yellow illumination for various indoor and outdoor applications. These energy-efficient A19 bulbs feature an E26 base and produce 800 lumens of light at a color temperature of 2200 Kelvin, specifically engineered to minimize blue light output. This design makes them suitable for areas where reduced insect attraction or improved sleep environment is desired, such as porches, patios, bedrooms, and yards.

Two GREENIC yellow LED light bulbs

Figure 1: Two GREENIC 60 Watt Equivalent Yellow LED Light Bulbs. These bulbs feature a standard E26 base and a distinctive yellow-tinted dome, designed for soft, warm illumination.

2. Nøglefunktioner

  • Energieffektiv: Consumes only 9 Watts of power, replacing traditional 60 Watt incandescent bulbs, leading to significant energy savings.
  • Soft Yellow Light: Emits light with a wavelength between 530-590nm, providing a comfortable, warm yellow glow that is gentle on the eyes.
  • Blue Light Blocking: Features a special powder coating to ensure no blue light output, which can contribute to improved sleep and reduced insect attraction.
  • Høj lysstyrke: Delivers 800 lumens of brightness, sufficient for illuminating porches, patios, and other outdoor or indoor spaces.
  • Lang levetid: Designed for a lifespan of 25,000 hours, reducing the frequency of bulb replacement.
  • Standard base: Equipped with a common E26 base for easy installation in most standard light fixtures.
Diagram showing soft yellow light, energy efficiency, 800 lumens, and 2200K color temperature with no blue light output.

Figure 2: Illustration of the bulb's soft yellow light characteristics, highlighting its energy efficiency (9W equivalent to 60W), 800 lumens brightness, and 2200 Kelvin color temperature with no blue light output.

3. Installation og opsætning

These LED bulbs are designed for simple and direct replacement of existing incandescent bulbs with an E26 base. Ensure power is off before installation.

3.1 Sikkerhedsforanstaltninger

  • Always turn off the power to the light fixture at the circuit breaker or wall switch before attempting installation or removal.
  • Allow the old bulb to cool down completely before handling.
  • Do not use these bulbs with dimmers unless explicitly stated on the product packaging (this product is not specified as dimmable).
  • Do not expose the bulb to water or excessive moisture.

3.2 Installationstrin

  1. Ensure the power to the light fixture is turned off.
  2. Skru forsigtigt den eksisterende pære af armaturet.
  3. Screw the GREENIC Yellow LED Light Bulb into the E26 base socket until it is snug. Do not overtighten.
  4. Gendan strømmen til lysarmaturen.
  5. Tænd lyskontakten for at kontrollere, at den fungerer korrekt.
GREENIC LED Bug Light packaging and two bulbs

Figure 3: The product packaging for GREENIC LED Bug Light bulbs, showing two bulbs. The packaging provides essential product information and safety warnings.

4. Betjeningsvejledning

Once installed, the GREENIC Yellow LED Light Bulb operates like any standard light bulb. Simply use the existing wall switch or fixture control to turn the light on or off.

  • Øjeblikkelig tændt: The bulb provides full brightness immediately upon switching on, with no warm-up time.
  • Tiltænkt brug: These bulbs are suitable for both indoor and outdoor use, particularly beneficial for areas where reduced insect attraction is desired, such as patios, porches, and entryways. They also create a warm, inviting ambiance for bedrooms and living spaces.
Two houses illuminated with yellow light bulbs at dusk.

Figur 4: Eksamples of residential exteriors illuminated by GREENIC yellow light bulbs, demonstrating their application for outdoor lighting purposes.

5. Vedligeholdelse

GREENIC Yellow LED Light Bulbs require minimal maintenance due to their long lifespan and durable construction.

  • Rensning: If cleaning is necessary, ensure the power is off and the bulb is cool. Wipe the bulb gently with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
  • Udskiftning: Replace the bulb when it reaches the end of its operational life or if it becomes damaged. Follow the installation steps outlined in Section 3.2.

6. Fejlfinding

If you encounter issues with your GREENIC Yellow LED Light Bulb, refer to the following common troubleshooting steps:

ProblemMulig årsagLøsning
Pæren lyser ikke.
  • Ingen strøm til armaturet.
  • Pæren er ikke skruet korrekt i.
  • Pæren er defekt.
  • Kontroller afbryderen og vægafbryderen.
  • Sørg for, at pæren er forsvarligt fastspændt i fatningen.
  • Try the bulb in a different working fixture. If it still doesn't light, replace the bulb.
Pæren flimrer.
  • Løs forbindelse.
  • Inkompatibel lysdæmper (hvis relevant).
  • Voltage udsving.
  • Sluk for strømmen, og spænd derefter pæren igen.
  • These bulbs are not designed for dimmers. If on a dimmer circuit, replace the dimmer with a standard switch or use a dimmable LED bulb.
  • Kontakt en elektriker, hvis der ertagder er mistanke om e-problemer.
Lyset er for svagt eller for klart.
  • Forkert pære wattage for ønsket lysstyrke.
  • Kontroller, at pærens lumenudbytte (800 lumen) opfylder dine belysningsbehov.

7. Specifikationer

AttributVærdi
MærkeGRØNISK
Modelnummer43211-1520
Lys typeLED
Wattage9 watt
Glødelignende ækvivalent60 watt
Lysstyrke800 lumen
Farvetemperatur2200 Kelvin (Soft Yellow)
Pære form størrelseA19
Pære baseE26
Voltage120 volt
Levetid25,000 timer
MaterialePlast
Indendørs/Udendørs brugUdendørs, Indendørs
Varens vægt2.12 ounce
Produktdimensioner2.36 x 2.36 x 4.25 tommer
UPC602914380560

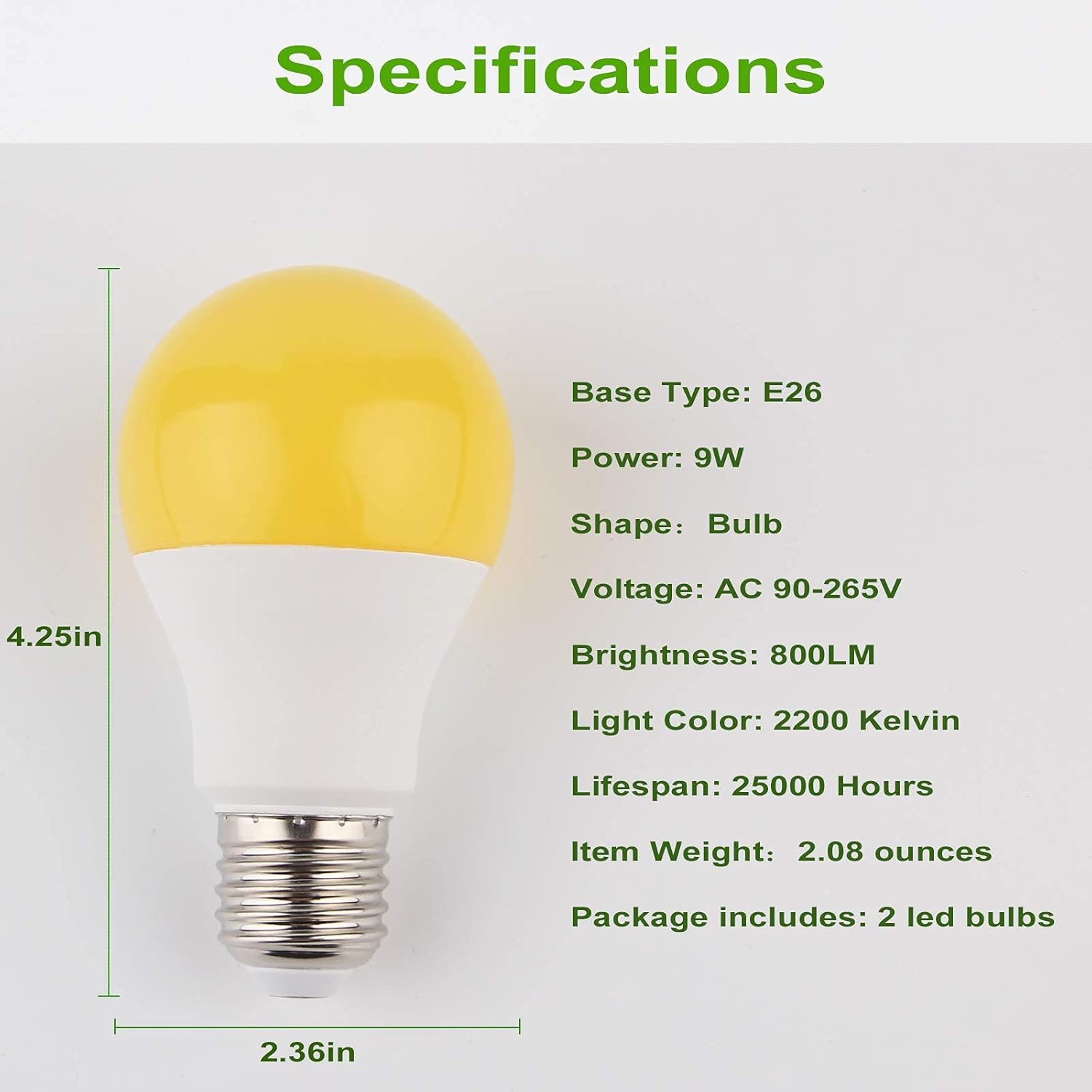

Diagram showing detailed specifications of the GREENIC yellow LED bulb, including dimensions, base type, power, shape, voltage, brightness, light color, lifespan, and item weight.

Figure 5: Detailed specifications of the GREENIC Yellow LED Light Bulb, including physical dimensions and electrical characteristics.

8. Garanti og support

GREENIC provides a 1-års garanti for these yellow light bulbs, covering defects in materials and workmanship under normal use. For warranty claims or technical support, please contact GREENIC customer service through the retailer where the product was purchased or visit the official GREENIC store page on Amazon.

For mere information kan du besøge GREENIC Store on Amazon.
