Alctron PF8 Studio Microphone Isolation Shield

1. Introduktion

The Alctron PF8 is a studio microphone isolation shield designed to enhance audio recording quality by minimizing unwanted room reflections and ambient noise. Its innovative design features high-density acoustic foam, providing maximum sound absorption for crystal-clear audio capture. The PF8 is a compact and portable solution, ideal for home studios, podcasters, content creators, and musicians seeking professional-grade sound isolation.

Figure 1: The Alctron PF8 Studio Microphone Isolation Shield, showcasing dens kompakte design og branding.

2. Opsætning og installation

The Alctron PF8 is designed for straightforward integration with various microphone setups. Follow these steps for proper installation to achieve optimal acoustic performance.

2.1 Komponenter overview

Figure 2: The Alctron PF8 with its removable front plate, revealing the high-density acoustic foam interior.

The Alctron PF8 consists of a high-density acoustic foam body and a removable front plate with the Alctron logo. This design allows for easy microphone placement and secure fitting.

2.2 Microphone Compatibility and Mounting

The PF8 is compatible with most condenser microphones. It is crucial to ensure your microphone's diameter and length fit within the internal cavity for effective isolation.

Figure 3: Diagram illustrating microphone compatibility with the PF8. The shield accommodates microphones up to 58mm in diameter with a shock mount, or up to 66mm when directly mounted. For microphones up to 111mm in length, a standard microphone clip can be used.

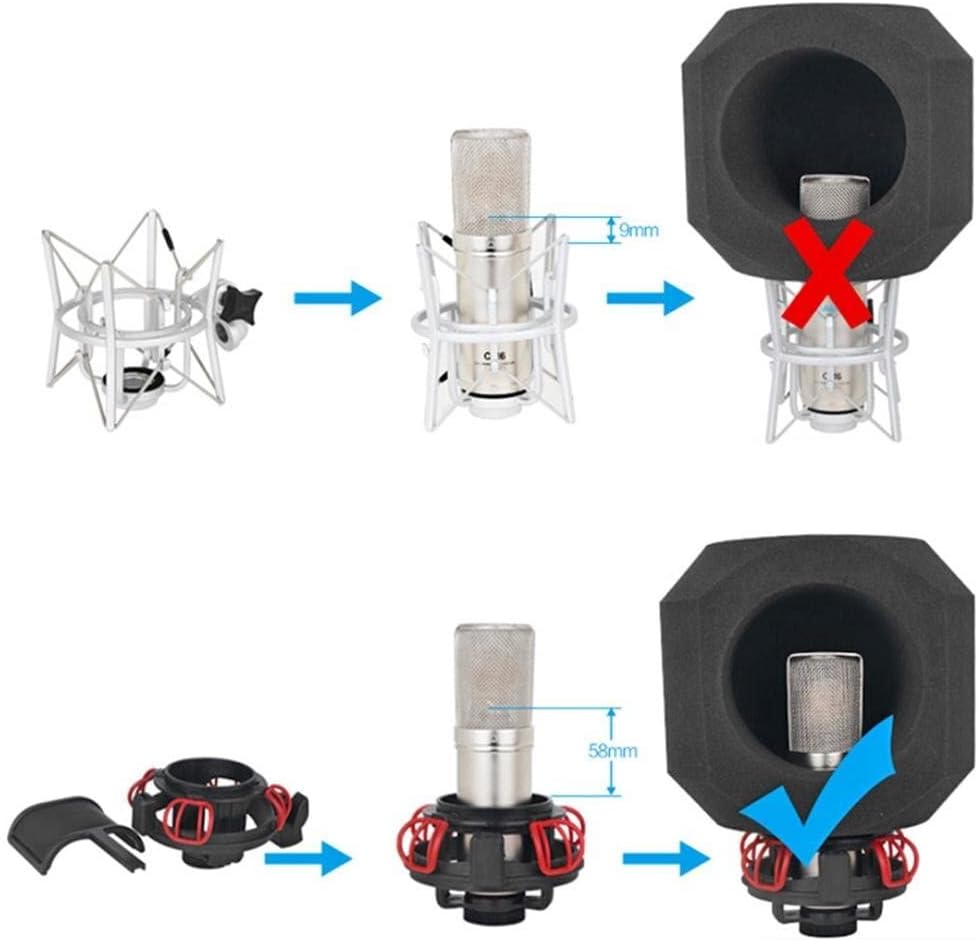

Figure 4: This diagram shows various microphone mounting options. The top row illustrates incorrect microphone placement where the microphone is too wide for the shock mount and PF8. The bottom row shows correct placement with appropriate shock mounts and microphone clips, ensuring the microphone fits securely within the PF8's acoustic foam.

The PF8 can be mounted on a standard microphone stand or boom arm. Ensure the mounting hardware (shock mount or clip) securely holds your microphone and positions it centrally within the PF8.

Figure 5: The Alctron PF8 mounted on a desktop microphone stand with a condenser microphone inside, demonstrating a compact recording setup.

Figur 6: Et nærbillede view of the Alctron PF8 mounted on a boom arm, with a microphone securely placed inside the acoustic shield.

Figure 7: The Alctron PF8 Studio Microphone Isolation Shield in a recording studio setting, mounted on a boom arm for professional vocal recording.

3. Betjeningsvejledning

Once installed, the PF8 functions passively to improve audio quality by creating a more controlled acoustic environment around your microphone.

3.1 Optimal placering

Position the microphone within the PF8 so that the primary sound source (e.g., vocalist's mouth, instrument) is directed into the microphone's capsule. The PF8's acoustic foam acts as a barrier, absorbing unwanted ambient noise and reducing reflections that can cause echo or muddiness in recordings.

3.2 Recording Environment

While the PF8 significantly reduces localized ambient noise and reflections, using it in a quiet environment will yield the best results. It is designed to minimize reflections and improve direct sound capture, not to eliminate all external noise from a loud room.

4. Pleje og vedligeholdelse

To ensure the longevity and effectiveness of your Alctron PF8, follow these simple maintenance guidelines:

• Rensning: Gently wipe the exterior foam with a dry, soft cloth. Avoid using liquid cleaners, solvents, or abrasive materials, as these can damage the acoustic foam.
• Opbevaring: When not in use, store the PF8 in a clean, dry place away from direct sunlight and extreme temperatures.
• Håndtering: Handle the unit with care to prevent tearing or deforming the foam.
• Støv: The foam material can attract dust over time. Use a soft brush or a low-power vacuum cleaner with a brush attachment to remove dust periodically.

5. Fejlfinding

If you encounter issues with your Alctron PF8, refer to the following common problems and solutions:

5.1 Microphone Does Not Fit

Problem: The microphone is too large or too small for the PF8's opening or the shock mount.

Løsning:

• Verify your microphone's dimensions against the PF8's compatibility specifications (refer to Section 2.2, "Microphone Compatibility").
• Ensure you are using an appropriate shock mount or microphone clip that allows the microphone to sit correctly and securely within the PF8. Some microphones may require specific mounting hardware.

5.2 Poor Sound Quality / "Colored" Sound

Problem: The audio sounds muffled, unnatural, or "colored" after using the PF8.

Løsning:

• Mikrofonplacering: Ensure the microphone is positioned correctly within the PF8, not too deep or too close to the foam, which could affect its frequency response. Experiment with slight adjustments to find the optimal distance.
• Rumsakustik: While the PF8 significantly helps, it does not replace proper room acoustic treatment. Excessive reflections or noise in the recording environment can still impact overall sound quality.
• Mikrofontype: Ensure the microphone is suitable for the recording task. The PF8 is designed to enhance the performance of directional microphones by isolating them from room reflections.

5.3 PF8 Appears Damaged or Components Don't Assemble Correctly

Problem: The material quality seems low, or components do not assemble correctly.

Løsning:

• Ensure all parts are correctly aligned during assembly. The removable front plate should snap securely into place.
• If parts are damaged or missing upon arrival, or if you suspect a manufacturing defect, contact Alctron customer support or your retailer for assistance.

6. Produktspecifikationer

7. Garanti og support

For specific warranty information, technical support, or inquiries regarding your Alctron PF8, please contact Alctron customer service directly or refer to their official webDet anbefales at gemme din købskvittering som købsbevis i tilfælde af garantikrav.
