STRONG Dual Band Gigabit Router 1200

1. Produktet er slutview

The STRONG Dual Band Gigabit Router 1200 is designed to enhance your internet connection by providing a high-speed Wi-Fi network. It supports the latest 802.11ac standard, offering speeds up to 1200 Mbit/s across both 2.4 GHz and 5 GHz bands. This router is equipped with multiple Gigabit Ethernet ports, a USB 3.0 port, and a Micro SD card slot for versatile connectivity and media sharing.

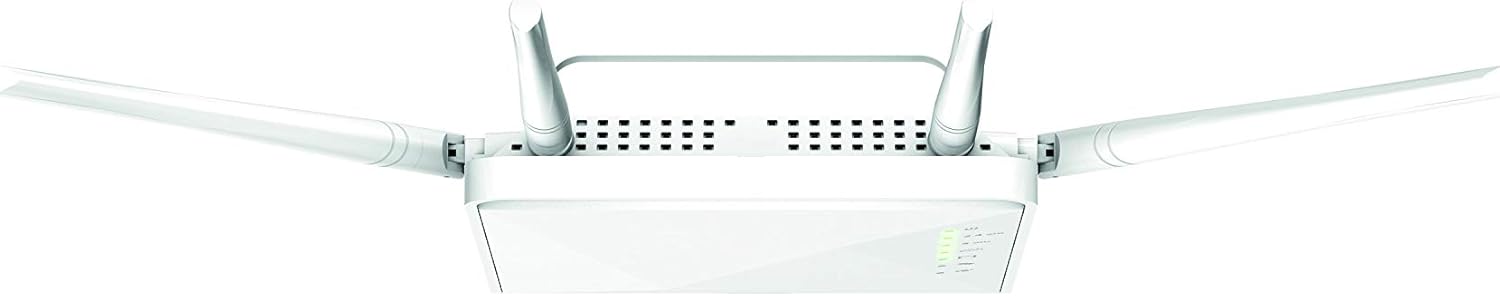

Figur 1: Forside view of the STRONG Dual Band Gigabit Router 1200. This image shows the router from the front, highlighting its four adjustable antennas and the LED indicators for power, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi, LAN activity, WAN activity, and USB/WPS status.

2. Nøglefunktioner

• Dobbeltbånds Wi-Fi: Simultaneous 867 Mbit/s on 5 GHz and 300 Mbit/s on 2.4 GHz for a combined 1200 Mbit/s.
• Gigabit Ethernet-porte: Four LAN ports and one WAN port for high-speed wired connections.
• Adjustable Antennas: Four external adjustable antennas for improved Wi-Fi coverage, reliability, and stability.
• Forbedret sikkerhed: WPA/WPA2 encryption for optimal Wi-Fi security and a dedicated Guest Wi-Fi network.
• USB 3.0-port: For sharing multimedia content or a USB printer across the network.
• Micro SD -kortplads: For sharing multimedia content directly from a Micro SD card.
• Connect & Secure Button (WPS): For easy and secure connection of Wi-Fi devices.

Figure 2: Dual-band functionality. This image visually separates the uses for the 2.4 GHz band (surfing, email, chats) and the 5 GHz band (video & music streaming up to 4K, photos, transferring large data files, online gaming), demonstrating the router's capability to handle various network demands.

3. Product Components and Ports

Familiarize yourself with the various ports and indicators on your STRONG Dual Band Gigabit Router 1200.

Figur 3: Bagside view and port diagram. This image provides a detailed view of the router's rear panel, clearly labeling the Micro SD card slot, USB port, RESET/WPS button, four yellow Gigabit LAN ports (1-4), one blue Gigabit WAN port, and the power input. It also illustrates common devices that can be connected to these ports, such as desktops, Smart TVs, game consoles, and modems.

3.1. Port Descriptions

• WAN-port (blå): Connects to your modem or internet service provider's device.
• LAN-porte (gul, 1-4): Connects wired devices such as PCs, Smart TVs, game consoles, or network-attached storage (NAS).
• USB 3.0-port: For connecting USB storage devices (e.g., external hard drives, flash drives) for network sharing, or a USB printer.
• Micro SD-slot: For inserting a Micro SD card to share files over netværket.
• RESET/WPS-knap:
  • Press briefly for WPS (Wi-Fi Protected Setup) to quickly connect compatible devices.
  • Press and hold for 10 seconds to reset the router to factory default settings.
• Strømindgang: Tilsluttes den medfølgende strømadapter.

3.2. LED-indikatorer

• Power LED: Indikerer strømstatus.
• 2.4 GHz Wi-Fi LED: Indicates activity on the 2.4 GHz wireless network.
• 5 GHz Wi-Fi LED: Indicates activity on the 5 GHz wireless network.
• LAN LED'er: Angiv aktivitet på de respektive LAN-porte.
• WAN LED: Indicates activity on the WAN port.
• USB/WPS LED: Indicates USB device activity or WPS function status.

4. Opsætningsvejledning

4.1. Pakkens indhold

Før du begynder, skal du sørge for, at alle varer er til stede i pakken:

• STRONG Dual Band Gigabit Router 1200
• Strømadapter
• Ethernet kabel
• Quick Installation Guide (this manual serves as a comprehensive guide)

Figure 4: Router packaging. This image displays the retail box for the STRONG Dual Band Gigabit Router 1200, indicating its key features like Dual Band, Gigabit Ethernet ports, USB 3.0, and Micro SD card slot.

4.2. Hardwareforbindelse

1. Placering: Place the router in a central location in your home or office, away from obstructions and sources of interference (e.g., microwaves, cordless phones).
2. Tilslut til modemet: Connect one end of the provided Ethernet cable to the WAN port (blue) on your STRONG router and the other end to an Ethernet port on your existing modem or internet service provider's device.
3. Tænd: Connect the power adapter to the router's power input and then plug it into a power outlet. The Power LED should light up.
4. Vent på initialisering: Allow a few minutes for the router to power on and initialize. The WAN LED should eventually turn solid, indicating a successful connection to your modem.

4.3. Initial Configuration (First-Time Setup)

To configure your router, you will need to access its web-baseret styringsgrænseflade.

1. Tilslut en enhed:
   • wired: Connect your computer to one of the yellow LAN ports on the router using an Ethernet cable.
   • Trådløs: On your Wi-Fi enabled device (laptop, smartphone), search for available Wi-Fi networks. Connect to the default Wi-Fi network name (SSID) printed on the label at the bottom of your router. The default password will also be on this label.
2. Adgang Web Interface: Åbn a web browser (e.g., Chrome, Firefox, Edge) and type the default IP address of the router into the address bar. This is typically 192.168.1.1 or 192.168.0.1. Refer to the label on your router for the exact address.
3. Login: Enter the default username and password. These are usually admin for both, or specified on the router's label.
4. Kør opsætningsguiden: Upon first login, the router may automatically launch a Quick Setup Wizard. Follow the on-screen instructions to:
   • Set your internet connection type (e.g., DHCP, PPPoE).
   • Change the default Wi-Fi network name (SSID) and password for both 2.4 GHz and 5 GHz bands. Choose strong, unique passwords.
   • Change the router's login password for security.
5. Gem indstillinger: Apply and save your new settings. The router may restart.

5. Betjening af din router

5.1. Tilslutning af enheder

• Trådløse enheder: On your smartphone, tablet, or laptop, search for your new Wi-Fi network name (SSID) and enter the password you set during the initial configuration.
• Kablede enheder: Connect devices like desktop computers, Smart TVs, or game consoles to any of the yellow LAN ports using an Ethernet cable.

5.2. Understanding Dual Band Wi-Fi

Your router operates on two frequency bands:

• 2.4 GHz bånd: Offers wider coverage and better penetration through walls, suitable for general internet browsing, email, and chat.
• 5 GHz bånd: Provides faster speeds and less interference, ideal for high-bandwidth activities like 4K video streaming, online gaming, and large file transfers. This band has a shorter range and is more susceptible to obstacles.

You can connect devices to the band that best suits their location and usage needs.

5.3. Gæstenetværk

The router supports a dedicated guest Wi-Fi network. This allows visitors to access the internet without gaining access to your main network resources (e.g., shared files, printers). You can enable and configure the guest network through the router's web ledelsesgrænseflade.

5.4. USB and Micro SD Sharing

Du kan dele files from a USB storage device or a Micro SD card connected to the router across your network. Access these shared resources through network drives on your computers or compatible media players. Refer to the router's web interface for specific configuration steps for file sharing services (e.g., Samba/SMB, FTP).

5.5. WPS (Wi-Fi-beskyttet opsætning)

WPS allows you to connect WPS-compatible devices to your Wi-Fi network without manually entering the password. Simply press the WPS button on your router (the same as the RESET button, a short press) and then activate WPS on your device within two minutes. The device will automatically connect.

6. Vedligeholdelse

6.1. Firmwareopdateringer

Periodically check the STRONG support website for firmware updates for your router model. Firmware updates can improve performance, add new features, and enhance security. Follow the instructions provided with the firmware update carefully to avoid damaging the device.

6.2. Rensning

Clean the router regularly with a soft, dry cloth. Do not use liquid cleaners or aerosol sprays. Ensure the ventilation holes are clear of dust to prevent overheating.

6.3. Optimal placering

For the best Wi-Fi performance, ensure your router is:

• Placed centrally in your home or office.
• Elevated, not on the floor.
• Away from large metal objects, concrete walls, and other electronic devices that may cause interference.
• With antennas adjusted for optimal signal direction.

Figure 5: Router in a home environment. This image shows the router positioned on a wooden media console, demonstrating a typical setup location within a living space.

7. Fejlfinding

7.1. Ingen internetadgang

• Tjek kabler: Sørg for, at alle Ethernet-kabler er korrekt tilsluttet til routeren og modemmet.
• Tjek LED'er: Verify that the Power, WAN, and Wi-Fi LEDs are lit correctly. If the WAN LED is off or blinking irregularly, there might be an issue with your modem or ISP connection.
• Genstart enheder: Sluk dit modem og din router. Vent 30 sekunder, og tænd derefter først modemmet. Når modemmet er helt online, skal du tænde routeren.
• Internetudbyderproblem: Kontakt din internetudbyder (ISP) for at bekræfte, at der ikke er nogen tjenester ude.tager i dit område.

7.2. Weak Wi-Fi Signal or Slow Speeds

• Placering af router: Relocate the router to a more central and elevated position.
• Interferens: Move the router away from other electronic devices (e.g., cordless phones, microwaves, Bluetooth devices) and large metal objects.
• Antennejustering: Adjust the router's antennas to optimize signal direction.
• Bandvalg: For devices closer to the router and requiring higher speeds, connect them to the 5 GHz Wi-Fi band.
• Kanaloptimering: Få adgang til routerens web interface and try changing the Wi-Fi channel for both 2.4 GHz and 5 GHz bands to a less congested one.

7.3. Cannot Access Router's Web Interface

• IP-adresse: Ensure you are using the correct IP address (e.g., 192.168.1.1).
• Kablet forbindelse: Prøv at forbinde din computer direkte til routeren via et Ethernet-kabel.
• IP-indstillinger: Sørg for, at din computers netværkskort er indstillet til automatisk at hente en IP-adresse (DHCP).
• Firewall/antivirus: Deaktiver midlertidigt enhver firewall eller antivirussoftware på din computer, der muligvis blokerer adgang.

7.4. Fabriksindstilling

If you forget your router's login password or encounter persistent issues, you can perform a factory reset. This will revert all settings to their default values, including Wi-Fi names and passwords.

1. With the router powered on, locate the RESET/WPS button on the back panel.
2. Using a paperclip or a thin object, press and hold the RESET button for approximately 10 seconds until the LEDs flash.
3. Release the button and wait for the router to restart.
4. After the reset, you will need to reconfigure the router using the initial setup steps (Section 4.3).

8. Tekniske specifikationer

9. Garanti og support

9.1. Garantioplysninger

For detaljerede garantioplysninger henvises til garantikortet, der følger med dit produkt, eller besøg den officielle STRONG webwebsted. Behold din købskvittering som købsbevis i tilfælde af garantikrav.

9.2. Teknisk support

If you encounter issues that cannot be resolved using this manual, please contact STRONG technical support. Support contact details can typically be found on the official STRONG webwebsted eller i produktemballagen.

Du kan også besøge Stærk mærkebutik på Amazon for yderligere information og produktopdateringer.
