Jetson Adventure Elcykel Brugermanual

1. Introduktion

The Jetson Adventure Electric Bike is designed to enhance your cycling experience, allowing you to travel further and faster with integrated electric assistance. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your new electric bike.

Figure 1.1: The Jetson Adventure Electric Bike, showcasing its sleek design and integrated components.

Featuring the appearance of a traditional bicycle, the Jetson Adventure incorporates a hub motor that provides assistance as you pedal. Built-in sensors detect your pedaling effort and adjust motor power accordingly. A rechargeable lithium-ion battery powers the motor and the integrated headlight system. Despite its electric capabilities, it remains one of the lightest e-bikes on the market, ensuring ease of riding even without motor assistance. For a comfortable ride on various terrains, the bike is equipped with front shock suspension, a shock-absorbing seat post, and disc brakes.

2. Sikkerhedsoplysninger

Always prioritize safety when operating your electric bike. Read and understand all instructions before your first ride. Failure to follow safety guidelines can result in serious injury or damage to the bike.

• Brug hjelm: Brug altid en godkendt cykelhjelm, der passer ordentligt.
• Tjek før kørsel: Before each ride, inspect tires, brakes, and battery charge. Ensure all components are securely fastened.
• Bremsning: The bike is equipped with front and rear disc brakes for superior stopping power. Familiarize yourself with their operation in a safe area before riding in traffic.
• Sigtbarhed: Utilize the bright LED headlight and taillight, especially during low-light conditions or at night, to increase your visibility to others.
• Færdselslove: Overhold alle lokale færdselslove og regler.
• Vejrforhold: Exercise caution when riding in wet or slippery conditions, as braking distance may increase.

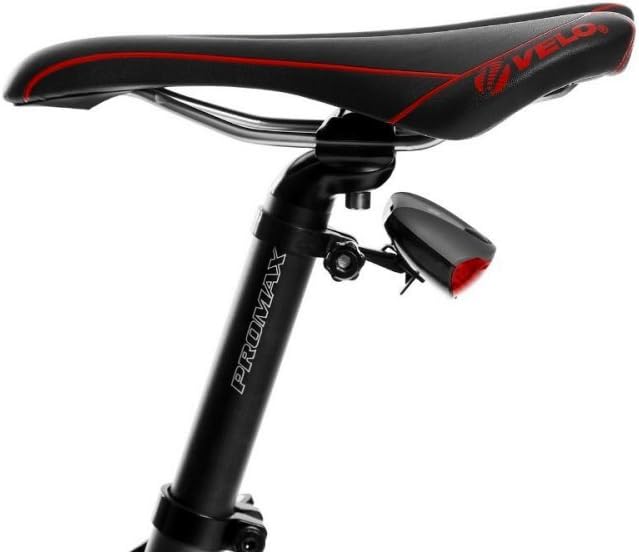

Figur 2.1: Bagside view of the seat and integrated LED taillight, crucial for rider visibility.

3. Pakkens indhold

Upon unboxing your Jetson Adventure Electric Bike, please ensure all the following components are present:

• Jetson Adventure Electric Bicycle
• Batterioplader
• Brugervejledning (dette dokument)

4. Opsætning og montering

The Jetson Adventure Electric Bike requires partial assembly. Follow these steps carefully to ensure proper setup:

1. Udpak komponenter: Fjern forsigtigt alle dele fra emballagen.
2. Fastgør styret: Securely attach the handlebar to the bike's stem. Ensure it is centered and tightened to the manufacturer's specifications.
3. Monter forhjul: Mount the front wheel, ensuring the disc brake rotor aligns correctly with the caliper. Tighten the quick-release skewer or axle nuts firmly.
4. Fastgør pedaler: Identify the left (L) and right (R) pedals. Thread them into the corresponding crank arms. Remember that the left pedal threads counter-clockwise. Tighten securely with a wrench.
5. Indsæt sadelpind: Insert the seat post into the frame's seat tube. Adjust the seat height for comfortable pedaling, ensuring the minimum insertion mark is not visible. Tighten the seat post clamp.
6. Oplad batteri: Before your first ride, fully charge the lithium-ion battery using the provided charger. Refer to the charging instructions in the Operating section.

Figur 4.1: Forside view of the bike, showing the handlebar and front wheel assembly points.

Figur 4.2: Bagside view of the bike, illustrating the seat post and rear wheel area.

5. Betjeningsvejledning

5.1 Tænd/sluk

To power on the bike's electrical system, press and hold the power button on the LCD display. Repeat to power off.

5.2 Pedal Assist System (PAS)

The Jetson Adventure features a 250-watt hub motor with 9 levels of pedal assist. The system automatically detects your pedaling effort and provides motor assistance. Use the controls on the handlebar to adjust the assist level (1-9) to match your desired effort and speed.

5.3 LCD-skærm

The integrated LCD display provides crucial ride information at a glance. It shows:

• Aktuel hastighed (mph)
• Battery Life/Energy Bar
• Pedal Assist Level (PAS)
• Distance Traveled (ODO/Mile)

Figure 5.1: The LCD display showing speed, battery, pedal assist level, and odometer.

5.4 Forlygte og baglygte

The bike is equipped with a bright LED headlight and taillight for increased visibility. These lights are powered by the main battery. Consult the display controls for activating and deactivating the lights.

5.5 Opladning af batteriet

To charge the lithium-ion battery, connect the provided charger to the bike's charging port and then to a standard electrical outlet. The charging indicator on the charger will show the charging status. A full charge can power the bike for up to 30 miles, depending on terrain, assist level, and rider weight.

6. Vedligeholdelse

Regular maintenance is crucial for the longevity and safe operation of your electric bike. Perform these checks periodically:

• Dæktryk: Check tire pressure before each ride. Maintain the recommended PSI (pounds per square inch) indicated on the tire sidewall.
• Bremser: Regularly inspect brake pads for wear and ensure disc brakes are clean and free of contaminants. Adjust brake levers for proper tension and responsiveness.
• Kædesmøring: Hold kæden ren og smurt for at sikre jævne gearskift og forhindre rust.
• Fastgørelsesmidler: Kontrollér regelmæssigt alle bolte, møtrikker og hurtigudløsergreb for at sikre, at de er forsvarligt spændt.
• Batteripleje: Store the battery in a cool, dry place. Avoid fully discharging the battery for extended periods. Charge it regularly, even if the bike is not in use.
• Rensning: Rengør cyklen med en damp klud. Undgå at bruge højtryksrensere direkte på elektriske komponenter.

7. Fejlfinding

This section addresses common issues you might encounter with your Jetson Adventure Electric Bike. For problems not listed here, please contact customer support.

8. Specifikationer

Detailed specifications for the Jetson Adventure Electric Bike:

9. Garanti og support

Your Jetson Adventure Electric Bike comes with a 1-års garanti fra købsdatoen, dækker fabrikationsfejl. Gem venligst din købsbevis i tilfælde af garantikrav.

For any questions, issues, or technical support, please contact our responsive customer service team. They are ready to help you with any concerns regarding your product.

You can find contact information on the official Jetson webwebsted eller via din købsplatform.
