Brugermanual til CatEye Volt 100 XC genopladelig forlygte

Indledning

The CatEye Volt 100 XC is a lightweight and dependable rechargeable headlight designed for cycling. It provides 100 lumens of illumination, enhancing visibility for the rider and alerting others to your presence. This manual provides instructions for the proper setup, operation, and maintenance of your Volt 100 XC headlight.

Sikkerhedsoplysninger

• Sørg altid for, at lygten er sikkert monteret, inden du kører.
• Se ikke direkte ind i lysstrålen for at undgå midlertidig synsnedsættelse.
• Charge the battery fully before first use and regularly thereafter.
• Du må ikke skille lyset ad eller ændre det.
• Opbevares utilgængeligt for børn.
• This light is designed to enhance visibility; it does not replace the need for caution and adherence to traffic laws.

Pakkens indhold

Kontroller venligst, at alle varer er til stede:

• CatEye Volt 100 XC Headlight
• Rubber Bar Mount
• USB opladningskabel

Opsætning

1. Første opladning

Before first use, fully charge the Volt 100 XC headlight. Connect the light to a USB power source using the provided USB cable. The charging indicator will illuminate during charging and change when fully charged. A full charge takes approximately 1.5 hours.

2. Mounting the Headlight

The Volt 100 XC features a rubber bar mount for easy attachment and removal.

1. Position the rubber mount on your bicycle's handlebar.
2. Wrap the rubber strap around the handlebar and hook it onto the designated latch on the mount. Ensure the mount is secure and does not rotate freely.
3. Slide the Volt 100 XC headlight onto the mount until it clicks into place.
4. Adjust the angle of the light to illuminate the path ahead without blinding oncoming traffic.

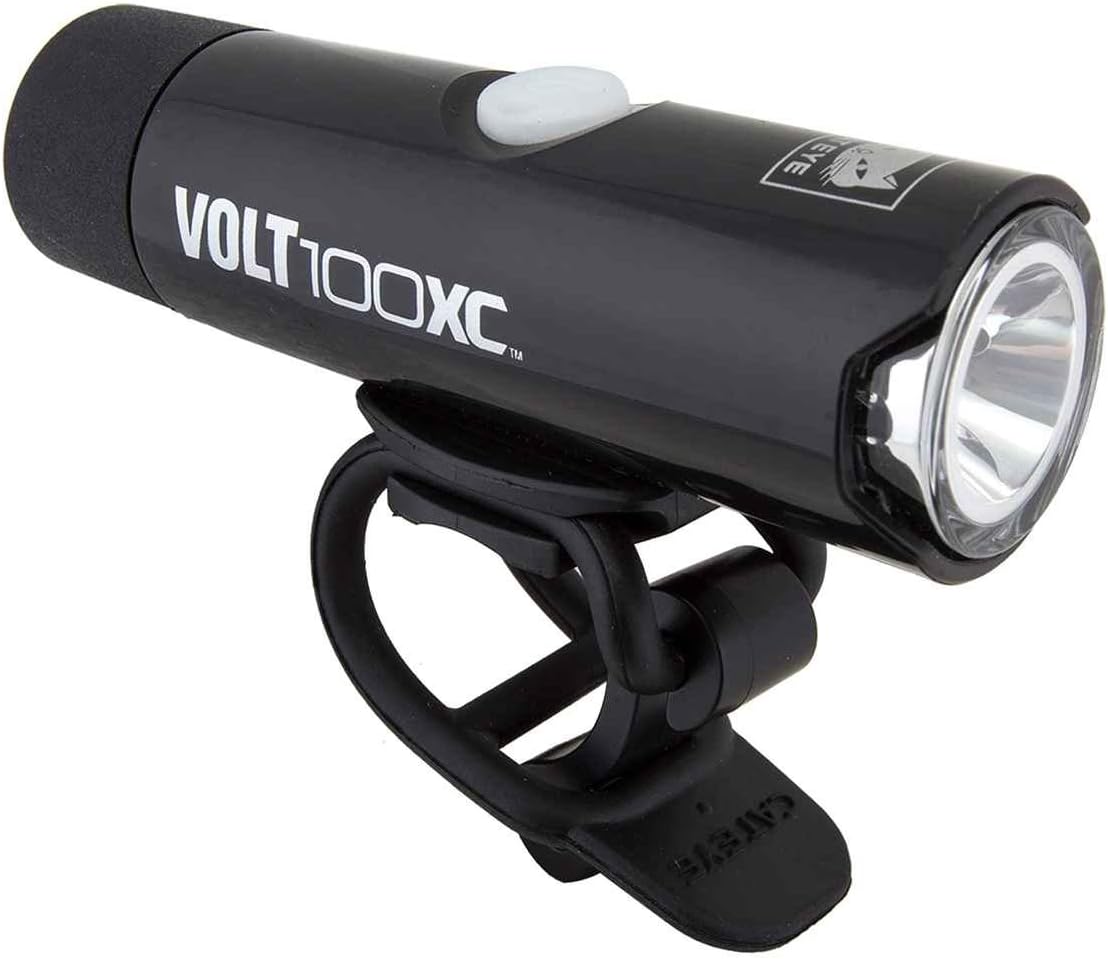

Image: The CatEye Volt 100 XC Headlight shown with its rubber bar mount, ready for attachment to a bicycle handlebar. The light is black with a white power button and a clear lens.

Betjeningsvejledning

Tænd/sluk

Press and hold the power button located on the top of the light for approximately 1 second to turn the light on or off.

Ændring af lystilstande

Briefly press the power button to cycle through the available light modes. The Volt 100 XC offers two modes:

• Konstant tilstand: Giver kontinuerlig belysning.
• Blinkende tilstand: Provides intermittent illumination for increased visibility.

The light features a mode memory function, which means it will power on in the last mode used.

Indikator for lavt batteri

The power button also functions as a low battery indicator. When the battery level is low, the button will change color or flash to alert you that charging is required.

Opladning

To charge the Volt 100 XC, locate the USB charging port, typically covered by a rubber flap to protect against water. Connect the provided USB cable to the light and to a standard USB power source (e.g., computer, wall adapter).

• Opladningstid: Cirka 1.5 timer for en fuld opladning.
• Batterilevetid: Up to 5 hours, depending on the selected mode.

Opretholdelse

Rensning

Tør lampehuset og linsen af ​​med en blød kludamp cloth. Avoid using abrasive cleaners or solvents, as these can damage the light's finish or lens.

Opbevaring

Store the light in a cool, dry place when not in use. For long-term storage, it is recommended to charge the battery periodically (e.g., every 3-6 months) to maintain battery health.

Fejlfinding

• Lyset tænder ikke: Sørg for, at batteriet er opladet. Tilslut til en USB-strømkilde, og kontroller opladningsindikatoren.
• Light does not hold a charge: Verify the USB cable and power source are functioning correctly. Ensure the charging port is clean and free of debris. If the issue persists, the battery may require service.
• Lyset flimrer eller dæmpes uventet: Dette kan indikere et lavt batteri. Genoplad lyset.
• Mount is not secure: Re-adjust the rubber strap on the handlebar to ensure a tight fit.

Specifikationer

Garanti og support

For warranty information and customer support, please refer to the official CatEye webwebstedet eller kontakt deres kundeserviceafdeling. Gem din købsbevis til garantikrav.

Webwebsted: www.cateye.com
