Lasko CD08200 Bærbar Elektrisk Keramisk Rumvarmer Brugermanual

1. Introduktion og overview

The Lasko CD08200 is a compact, portable ceramic space heater designed for supplemental heating in small indoor spaces, including bathrooms. It features a 1500-watt ceramic heating element and incorporates multiple safety features for reliable operation. This manual provides essential information for the safe and effective use of your heater.

Figur 1: Forside view of the Lasko CD08200 heater.

2. Vigtige sikkerhedsoplysninger

Læs og forstå alle sikkerhedsinstruktioner, før du bruger denne varmeovn. Manglende overholdelse af disse instruktioner kan resultere i elektrisk stød, brand eller alvorlig personskade.

• ALCI sikkerhedsstik: This heater is equipped with an Appliance Leakage Current Interrupter (ALCI) plug, which is designed to shut off power to the unit in a fraction of a second in the event of an electrical short. Do not bypass or tampmed denne sikkerhedsfunktion.
• Automatisk overophedningsbeskyttelse: The heater includes an automatic overheat protection system that will turn the unit off if it becomes too hot. If this occurs, unplug the heater, wait 10 minutes, and then plug it back in.
• Cool-Touch eksteriør: The exterior casing of the heater is designed to remain cool to the touch during operation, reducing the risk of accidental burns.
• Placering: Always place the heater on a stable, flat surface. Keep combustible materials such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 meters) from the front of the heater and keep them away from the sides and rear.
• Dæk ikke til: Never cover the heater or block the air intake/outlet openings. This can lead to overheating and fire.
• Fugtighed: This heater is approved for bathroom use due to its ALCI plug, but avoid direct contact with water. Do not immerse the heater in water.
• Overvågning: Nøje opsyn er nødvendigt, når en varmeovn bruges af eller i nærheden af ​​børn eller handicappede.
• Strømledning: Før ikke strømkablet under gulvtæpper. Dæk ikke ledningen med tæpper, løbere eller lignende belægninger. Anbring ledningen væk fra trafikområder, hvor den ikke vil blive snublet over.

Figure 2: Key safety features of the heater.

3. Pakkens indhold

• Lasko CD08200 Portable Electric Ceramic Space Heater
• Brugervejledning (dette dokument)

4. Opsætning

The Lasko CD08200 heater requires no assembly. Simply follow these steps:

1. Tag varmelegemet ud af emballagen.
2. Place the heater on a firm, level surface in the desired location, ensuring it is away from any obstructions or combustible materials.
3. Unwrap the power cord and plug the integrated ALCI safety plug directly into a 120V wall outlet.

Figure 3: The integrated ALCI safety plug.

5. Betjeningsvejledning

The heater features a simple one-button control located on the top of the unit.

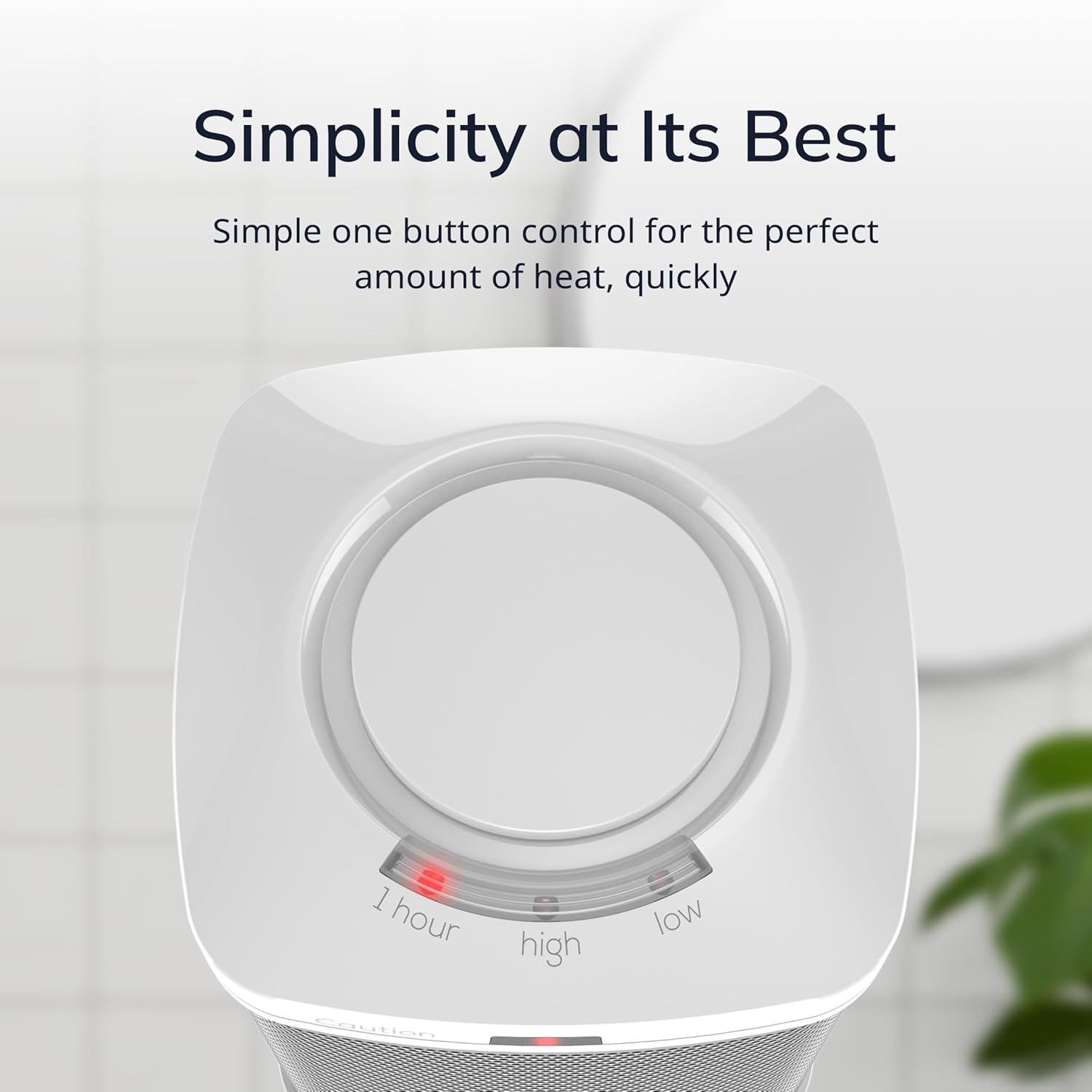

Figure 4: Top control button for operation.

1. To activate High Heat for One Hour: Press the button once. The heater will operate on high heat and automatically turn off after one hour.
2. To activate High Heat (Continuous): If the heater is in the 1-hour high heat mode, press the button again. The heater will continue to operate on high heat until manually turned off.
3. To activate Low Heat: If the heater is in continuous high heat mode, press the button a third time. The heater will switch to low heat output.
4. At slukke: Press the button a fourth time. The heater will power off.

An indicator light will illuminate when the heating element is active.

6. Funktioner

• Kompakt design: With dimensions of 6.25"W x 6.25"D x 7.65"H, this heater has a minimal footprint, making it suitable for countertops, desks, or small floor spaces.


Figure 5: Compact dimensions of the heater.

• Kraftig opvarmning: Equipped with a 1500-watt ceramic heating element, it provides efficient warmth for small areas.
• Alsidig brug: While designed for bathroom use, its portability allows it to be used in various rooms to eliminate cold spots.


Figure 6: Heater in a bedroom setting.

• Quick Warmth: Ceramic heating technology provides immediate warmth without a long warm-up period.


Figure 7: Heater providing warmth in a bathroom.

7. Vedligeholdelse

Regular maintenance helps ensure the longevity and efficient operation of your heater.

1. Rensning: Tag altid stikket ud af varmeapparatet før rengøring. Brug en blød, tør klud.amp klud til at tørre de udvendige overflader af. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
2. Luftindtag: Periodically check the air intake and outlet grilles for dust and debris. Use a vacuum cleaner with a brush attachment to gently remove any buildup.
3. Opbevaring: When not in use, store the heater in a cool, dry place. It is recommended to keep it in its original packaging to protect it from dust and damage.

8. Fejlfinding

If your heater is not operating as expected, consult the following common issues and solutions:

9. Specifikationer

10. Garanti og support

This Lasko CD08200 Portable Electric Ceramic Space Heater is covered by a 3 års begrænset producentgaranti.

For warranty claims, technical support, or any questions regarding your product, please contact Lasko customer service directly. Refer to the contact information provided in the original product packaging or on the official Lasko webwebsted.
