1. Introduktion
The Nightstick XPP-5422GMX is an X-Series Intrinsically Safe Dual-Light Flashlight designed for reliable illumination in various environments. This manual provides essential information for the safe and effective use of your device.
Nøglefunktioner
- 235 lumen flashlight, 130 lumen floodlight, 300 lumen dual-light
- ETLus Intrinsically Safe certification
- Dual integrated magnets for hands-free use
- 187 meter beam distance
- Engineered polymer housing for durability
2. Opsætning
Installation af batteri
The XPP-5422GMX requires 3 AA batteries (not included). To maintain the Intrinsically Safe Permissible rating, use only Duracell PC1500, Energizer EN91, or Energizer L91 batteries. Do not use any other brand or model of AA batteries, including rechargeable types.
- Skru hætten på lommelygten af.
- Insert 3 AA batteries according to the polarity indicators inside the battery compartment.
- Securely screw the tail cap back on, ensuring a tight seal to maintain water resistance and intrinsic safety.
3. Betjeningsvejledning

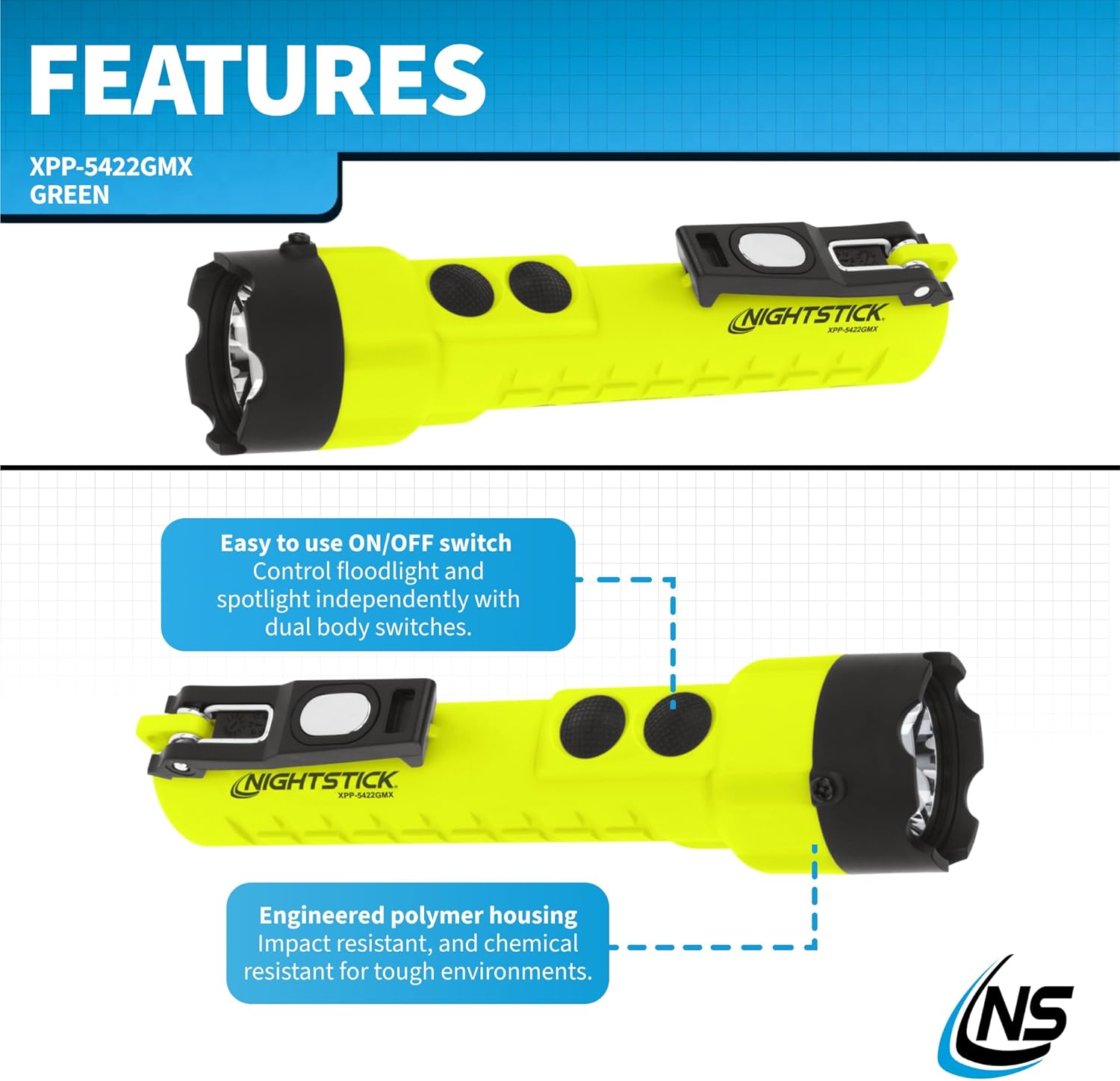

The XPP-5422GMX features dual body switches for independent control of the flashlight (spotlight) and floodlight functions.
Tænd/sluk
- Press the upper switch to activate the flashlight (spotlight). Press again to turn off.
- Press the lower switch to activate the floodlight. Press again to turn off.
Flashlight Mode (Spotlight)
The flashlight mode provides a focused beam of 235 lumens, ideal for long-distance illumination up to 187 meters. This mode is effective for piercing through smoke or fog.
Floodlight-tilstand
The floodlight mode offers a wide, unfocused beam of 130 lumens, designed to illuminate a broad area for close-up tasks and to enhance peripheral vision, helping to prevent slips and falls.
Dual-Light Mode (Spot + Flood)
Activate both the flashlight and floodlight simultaneously for a combined output of 300 lumens. This dual-light mode provides both long-distance clarity and wide-area illumination, reducing shadows and improving overall visibility.
Integrerede magneter
The XPP-5422GMX features dual integrated magnets in its base and pocket clip, allowing for hands-free operation by attaching the flashlight to metallic surfaces.
Officielle produktvideoer
Video 1: Nightstick Portable Lighting for the Maritime Industry. This video showcases Nightstick lighting solutions in maritime settings, emphasizing their durability and suitability for harsh conditions.
Video 2: Nightstick XPP-5422GMX Series Features and Functions. This video provides a detailed look at the features and operational functions of the XPP-5422GMX flashlight.
Video 3: Focused Vs. Unfocused: Bi-Directional Light. This video explains the benefits of bi-directional lighting, contrasting focused and unfocused beams for different applications.
Video 4: Nightstick XPP-5422GMX - 360 SPIN. A 360-degree view of the Nightstick XPP-5422GMX flashlight, showcasing its design and features from all angles.
4. Vedligeholdelse
Rensning
Regularly clean the exterior of the flashlight with a damp cloth. Do not use abrasive cleaners or solvents, as these may damage the polymer housing or seals. Ensure the lens is clean for optimal light output.
Opbevaring
Store the flashlight in a cool, dry place away from direct sunlight. If storing for extended periods, remove the batteries to prevent leakage and potential damage to the device.
5. Fejlfinding
Lyset tænder ikke
- Check battery orientation: Ensure batteries are inserted correctly according to polarity markings.
- Replace batteries: If the batteries are old or depleted, replace them with new, approved AA batteries.
- Tighten tail cap: Ensure the tail cap is fully tightened to establish electrical contact.
Dæmpet lysudgang
- Replace batteries: Dim light often indicates low battery power.
- Clean lens: A dirty lens can reduce light output. Clean gently with a soft cloth.
6. Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | XPP-5422GMX |
| Speciel funktion | Intrinsically Safe, Dual-Light, Integrated Magnets |
| Farve | Grøn/sort |
| Strømkilde | 3 AA batterier (medfølger ikke) |
| Lyskildetype | LED |
| Materiale | Polymer |
| Lommelygtens lysstyrke | 235 lumen |
| Floodlight Brightness | 130 lumen |
| Dual-Light Output | 300 lumen |
| Stråleafstand | 187 meter |
| Kørselstid (høj) | 14 timer |
| IP-vurdering | IP-67 Dustproof/Waterproof |
| Produktdimensioner | 7" D x 1.8" B x 1.8" H |
| Varens vægt | 6.7 ounce (0.19 kilo) |
| Inkluderede komponenter | Light & Removable Lanyard |
7. Garanti og support
Garantioplysninger
The Nightstick XPP-5422GMX comes with a Limited Lifetime Warranty. For specific terms and conditions, please refer to the official Nightstick warranty documentation or contact customer support.
Kundesupport
For technical assistance, troubleshooting, or warranty claims, please contact Bayco Products, Inc., the manufacturer of Nightstick products. You can also visit the official Nightstick store for more information: Nightstick Store.
